IEC 60384-9:1988/AMD1:2000

Overview

IEC 60384-9:1988/AMD1:2000 is an important amendment to the international standard specifying fixed capacitors used in electronic equipment, specifically focusing on fixed capacitors with ceramic dielectric, Class 2. This amendment, prepared by IEC Technical Committee 40, updates various technical requirements, measurement methods, and test procedures to ensure improved performance and reliability of ceramic capacitors with Class 2 dielectric materials.

The amendment provides detailed changes to temperature characteristics, measuring conditions, test voltages, and criteria for final inspections. It ensures that devices meet rigorous international safety and quality standards, contributing to the robust design of electronic equipment components.

Key Topics

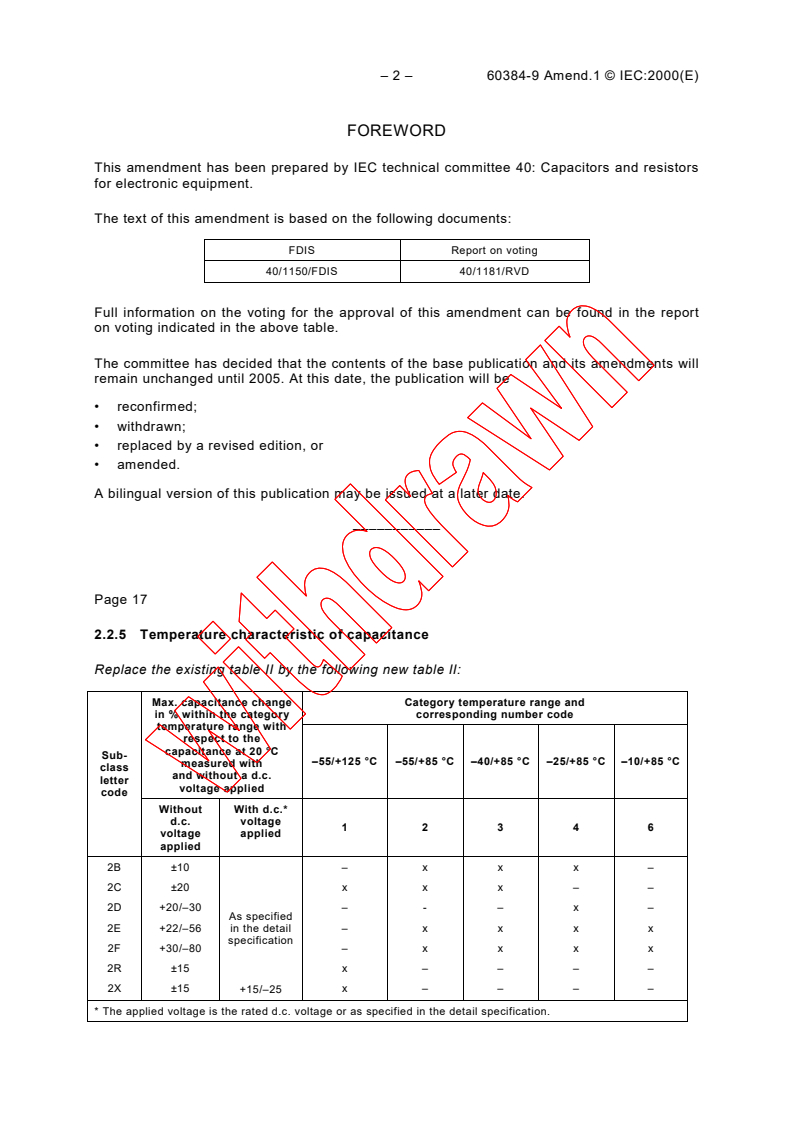

• Temperature Characteristics of Capacitance
  Updated tables define maximum capacitance change percentages within specific temperature ranges for different subclass categories (e.g., 2B, 2C, 2D). These specifications ensure capacitors maintain reliable performance under temperature variations from -55 °C to +125 °C.

• Measuring Conditions and Test Voltages
  Measurement protocols are refined with precise subclass-specific measuring voltages to improve accuracy. Test voltage values for leaded multilayer ceramic capacitors and others ensure capacitors withstand rated voltages safely:

  • Rated voltages ≤ 100 V tested at 2.5× rated voltage.
  • Voltage ranges up to >500 V have defined scaled test voltages.

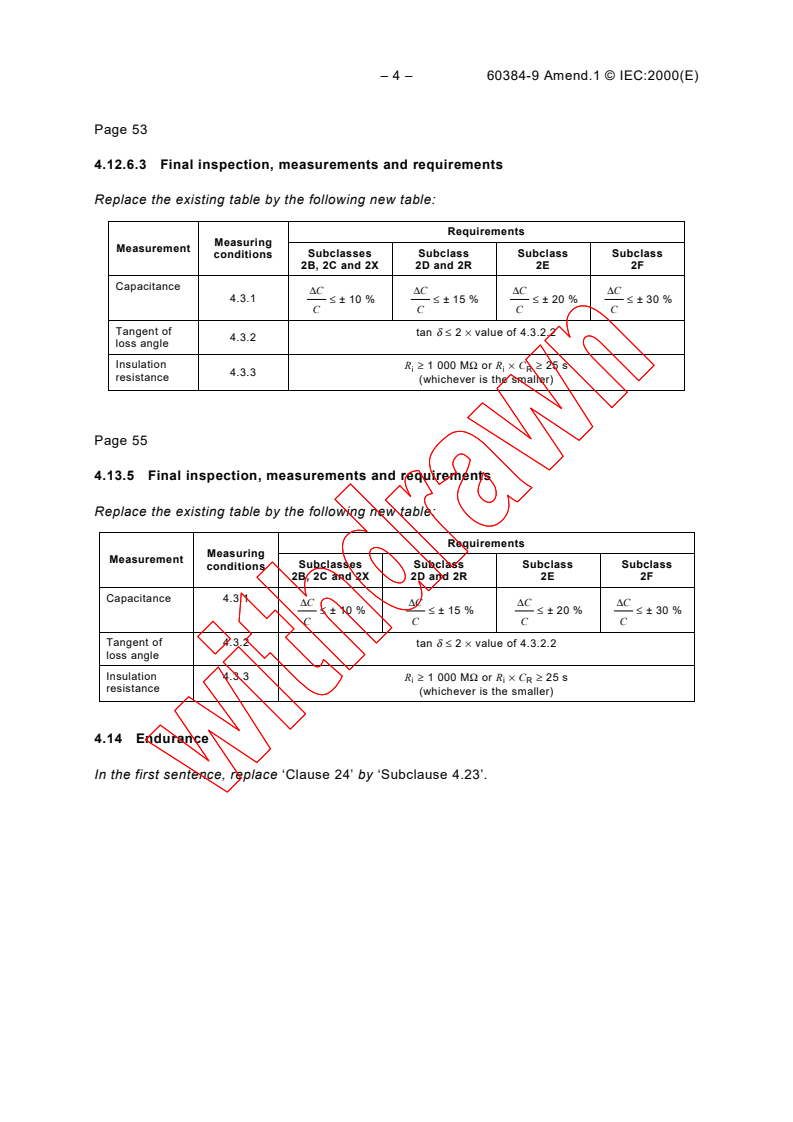

• Final Inspection and Quality Requirements
  Stricter limits for capacitance deviation (ΔC), loss angle tangent (tan δ), and insulation resistance (R) are set for subclasses under various test conditions. For example:

  • Capacitance tolerance ranges vary between ±10% to ±30%, based on the subclass.
  • Insulation resistance must meet or exceed 1,000 MΩ or meet time constants of 25 seconds for reliability.

• Endurance Testing Protocols
  This amendment updates endurance testing conditions, including temperature, voltage, test duration, and final inspection requirements, ensuring long-term stability. Test durations for leaded multilayer ceramic capacitors range from 1,000 to 2,000 hours depending on rated voltage.

Applications

IEC 60384-9 Amendment 1 is vital for manufacturers, designers, and quality assurance teams working with fixed ceramic capacitors, especially in the following areas:

• Consumer Electronics - Ensuring reliability of capacitors in smartphones, tablets, and household devices.
• Industrial Equipment - Enhancing endurance and performance in harsh environments typical to factory automation and sensors.
• Automotive Electronics - Supporting capacitors that operate across wide temperature ranges and voltage stresses in vehicles.
• Telecommunications - Providing standards for components used in network equipment requiring stable capacitance and insulation properties.
• Medical Devices - Guaranteeing electronic components comply with strict safety and performance criteria.

By adhering to this amendment, manufacturers can ensure compatibility with international safety regulations, enhance product life cycles, and reduce failure rates in critical electronic systems.

Related Standards

• IEC 60384-1 - General and measuring methods for fixed capacitors.
• IEC 60384-8 - Sectional specification for fixed capacitors of ceramic dielectric, Class 1, used in electronic equipment.
• IEC 60068 - Environmental testing for electronic components.
• IEC 60664 - Insulation coordination for equipment within low-voltage systems.

These related IEC standards complement IEC 60384-9:1988/AMD1:2000 by providing a comprehensive framework governing capacitor design, testing, and application, overall enhancing electronic equipment reliability.

By implementing the guidelines in IEC 60384-9 Amendment 1, stakeholders in the electronics sector can achieve improved product consistency, safety, and performance, aligning their products with global best practices for fixed ceramic capacitors with Class 2 dielectric.
