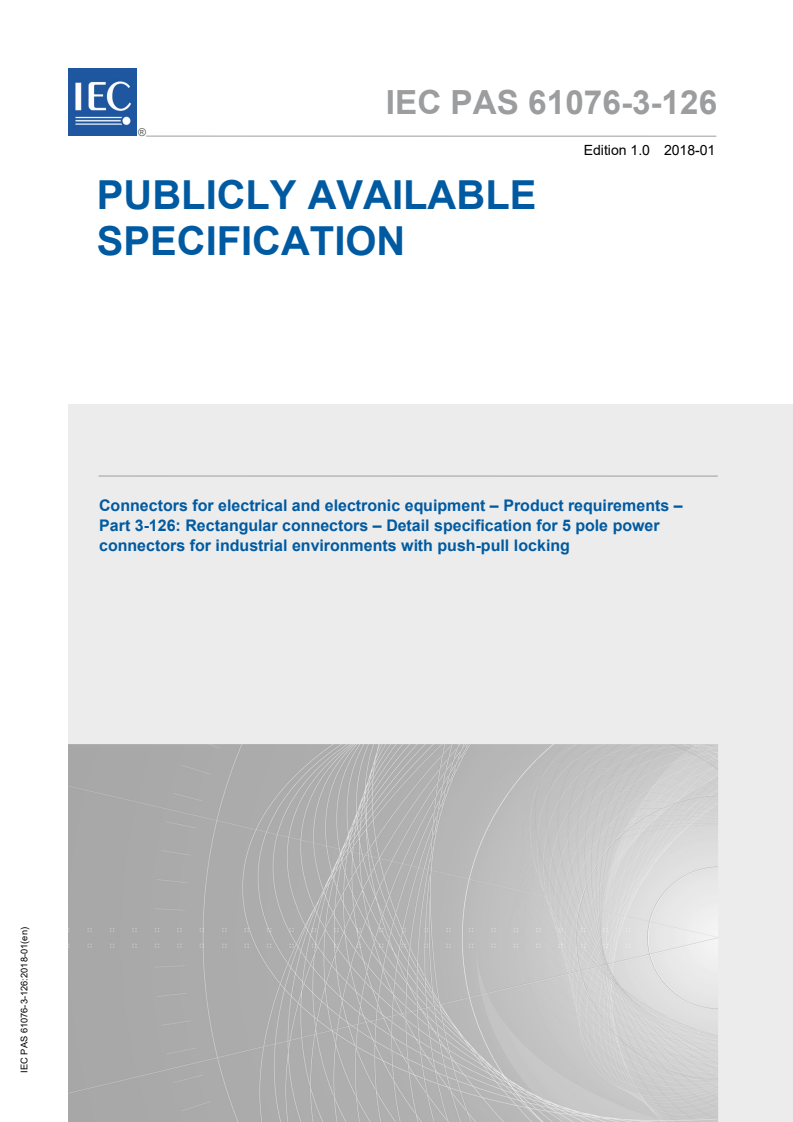

IEC PAS 61076-3-126:2018

IEC PAS 61076-3-126 ®
Edition 1.0 2018-01
PUBLICLY AVAILABLE
SPECIFICATION
Connectors for electrical and electronic equipment – Product requirements –
Part 3-126: Rectangular connectors – Detail specification for 5 pole power
connectors for industrial environments with push-pull locking
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.

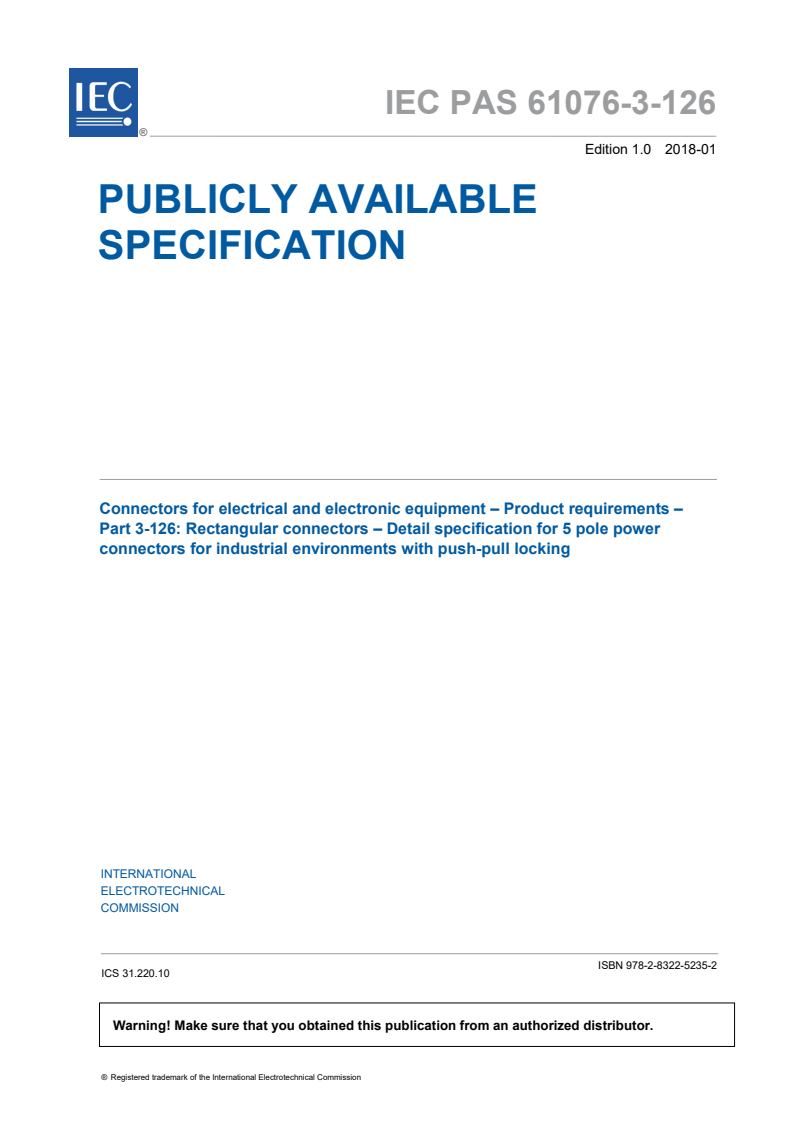

IEC PAS 61076-3-126 ®
Edition 1.0 2018-01
PUBLICLY AVAILABLE
SPECIFICATION
Connectors for electrical and electronic equipment – Product requirements –

Part 3-126: Rectangular connectors – Detail specification for 5 pole power

connectors for industrial environments with push-pull locking

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ISBN 978-2-8322-5235-2
ICS 31.220.10
– 2 – IEC PAS 61076-3-126:2018 © IEC 2018

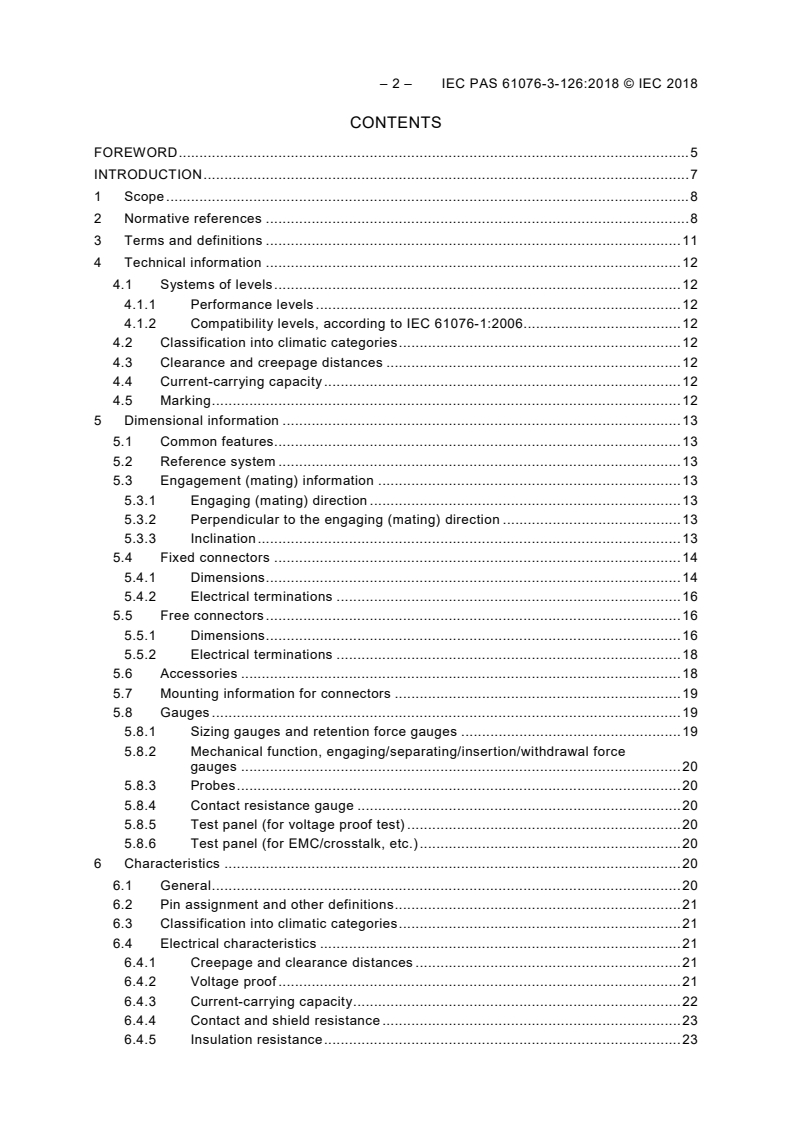

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 11
4 Technical information . 12
4.1 Systems of levels . 12
4.1.1 Performance levels . 12
4.1.2 Compatibility levels, according to IEC 61076-1:2006. 12
4.2 Classification into climatic categories . 12
4.3 Clearance and creepage distances . 12
4.4 Current-carrying capacity . 12
4.5 Marking . 12
5 Dimensional information . 13
5.1 Common features. 13
5.2 Reference system . 13
5.3 Engagement (mating) information . 13
5.3.1 Engaging (mating) direction . 13
5.3.2 Perpendicular to the engaging (mating) direction . 13
5.3.3 Inclination . 13
5.4 Fixed connectors . 14
5.4.1 Dimensions . 14
5.4.2 Electrical terminations . 16
5.5 Free connectors . 16
5.5.1 Dimensions . 16
5.5.2 Electrical terminations . 18
5.6 Accessories . 18
5.7 Mounting information for connectors . 19
5.8 Gauges . 19
5.8.1 Sizing gauges and retention force gauges . 19
5.8.2 Mechanical function, engaging/separating/insertion/withdrawal force
gauges . 20
5.8.3 Probes . 20
5.8.4 Contact resistance gauge . 20
5.8.5 Test panel (for voltage proof test) . 20
5.8.6 Test panel (for EMC/crosstalk, etc.) . 20
6 Characteristics . 20
6.1 General . 20
6.2 Pin assignment and other definitions . 21
6.3 Classification into climatic categories . 21
6.4 Electrical characteristics . 21
6.4.1 Creepage and clearance distances . 21
6.4.2 Voltage proof . 21
6.4.3 Current-carrying capacity . 22
6.4.4 Contact and shield resistance . 23
6.4.5 Insulation resistance . 23

6.4.6 Impedance . 24
6.4.7 Transmission characteristics . 24
6.5 Mechanical characteristics . 24
6.5.1 Mechanical operation . 24
6.5.2 Effectiveness of connector coupling devices . 24
6.5.3 Engaging and separating forces (or insertion and withdrawal forces) . 24
6.5.4 Contact retention in insert . 24
6.5.5 Polarizing and coding method . 25
6.6 Other characteristics . 25
6.6.1 Vibration (method half-sine) . 25
6.6.2 Shock (method half-sine) . 26
6.6.3 Degree of protection provided by enclosures (IP-code) . 26
6.6.4 Screen and shielding properties . 26
6.6.5 Static load test . 26
6.7 Environmental aspects . 26
6.7.1 Marking of insulation material (plastics) . 26
6.7.2 Design/use of material . 26
7 Test schedule . 26
7.1 General . 26
7.1.1 Overview . 26
7.1.2 Climatic category . 27
7.1.3 Creepage and clearance distances . 27
7.1.4 Arrangement for contact resistance measurement . 27
7.1.5 Arrangement for dynamic stress tests . 28
7.1.6 Arrangement for testing static load, axial . 28
7.1.7 Wiring of specimens . 28
7.2 Test schedules . 29
7.2.1 Basic (minimum) test schedule (Table 11) . 29
7.2.2 Full test schedule . 29
7.3 Test procedures and measuring methods . 41
7.4 Pre-conditioning . 41
7.5 Wiring and mounting of specimens . 42
7.5.1 Wiring . 42
7.5.2 Mounting . 42

Figure 1 – View showing mating direction . 13
Figure 2 – Fixed connector with male contacts . 14
Figure 3 – Free connector with female contacts . 17
Figure 4 – Mounting information – panel cut-out outline . 19
Figure 5 – Gauge dimensions . 20
Figure 6 – Connector de-rating curve . 23
Figure 7 – Stress test arrangement . 25
Figure 8 – Contact resistance arrangement . 28

Table 1 – Climatic category. 12
Table 2 – Dimensions of fixed connector . 15
Table 3 – Dimensions of free connector . 18

– 4 – IEC PAS 61076-3-126:2018 © IEC 2018
Table 4 – Mounting dimensions . 19
Table 5 – Gauge dimensions. 20
Table 6 – Ratings of connectors . 21
Table 7 – Rated impulse voltage – Pollution degree . 22
Table 8 – Voltage proof . 22
Table 9 – Number of mechanical operations . 24
Table 10 – Total insertion force . 25
Table 11 – Basic tests . 29
Table 12 – Number of test specimens and contacts . 30
Table 13 – Test group P . 31
Table 14 –Test group AP . 32
Table 15 – Test group BP . 35
Table 16 – Test group CP . 36
Table 17 –Test group DP . 37
Table 18 – Test group EP . 38
Table 19 – Test group FP . 39
Table 20 – Test group GP . 40
Table 21 – Test group JP . 41
Table 22 – Test group KP . 41

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRICAL AND ELECTRONIC
EQUIPMENT – PRODUCT REQUIREMENTS –

Part 3-126: Rectangular connectors – Detail specification for 5 pole
power connectors for industrial environments with push-pull locking

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
A PAS is a technical specification not fulfilling the requirements for a standard, but made
available to the public.
IEC PAS 61076-3-126 has been prepared by subcommittee 48B: Electrical connectors, of IEC
technical committee 48: Electrical connectors and mechanical structures for electrical and
electronic equipment.
The text of this PAS is based on the This PAS was approved for
following document: publication by the P-members of the
committee concerned as indicated in
the following document
Draft PAS Report on voting
48B/2593/PAS 48B/2612/RVC
Following publication of this PAS, which is a pre-standard publication, the technical committee
or subcommittee concerned may transform it into an International Standard.

– 6 – IEC PAS 61076-3-126:2018 © IEC 2018
This PAS shall remain valid for an initial maximum period of 3 years starting from the
publication date. The validity may be extended for a single period up to a maximum of
3 years, at the end of which it shall be published as another type of normative document, or
shall be withdrawn.
INTRODUCTION
IEC SC 48B – Electrical connectors IEC 61076-3-126 Ed.1
Specification available from:
IEC General secretariat
or from the addresses shown on the inside cover.
ELECTRONIC COMPONENTS
DETAIL SPECIFICATION in accordance with IEC 61076-1
Rectangular connectors
Detail specification for power
connectors for industrial
environments with push-pull
locking
Male and female connectors
Male and female contacts
Rewirable –
Non-rewirable
Free cable connectors
Straight and right angle
connectors
Fixed connectors
Flange mounting
Single hole mounting
– 8 – IEC PAS 61076-3-126:2018 © IEC 2018
CONNECTORS FOR ELECTRICAL AND ELECTRONIC
EQUIPMENT – PRODUCT REQUIREMENTS –

Part 3-126: Rectangular connectors – Detail specification for 5 pole
power connectors for industrial environments with push-pull locking

1 Scope
This document covers rectangular IP65/IP67 connectors with 5 poles for electric power supply
up to 16 A. These connectors consist of fixed and free connectors, either rewirable or non-
rewirable (for both portions). It uses the general function principles of the push-pull connector
housing system described in IEC 61076-3-117 with IP65/IP67 degree of protection according
to IEC 60529 for harsh applications.
Male connectors have 5 square 1 mm electric contacts, with 16 A rated current. Connectors
according this document are without breaking capacity COC according to IEC 61984,
therefore they are not intended to be engaged or disengaged in normal use when live or
under load, if not otherwise specified by the manufacturer.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60050-581:2008, International Electrotechnical Vocabulary – Chapter 581: Electro-
mechanical components for electronic equipment
IEC 60068-1, Environmental testing – Part 1: General and guidance
IEC 60068-2-30, Environmental testing – Part 2-30: Tests – Test Db: Damp heat, cyclic (12 h
+ 12 h cycle)
IEC 60352-1, Solderless connections – Part 1: Wrapped connections – General requirements,
test methods and practical guidance
IEC 60352-2, Solderless connections – Part 2: Crimped connections – General requirements,
test methods and practical guidance
IEC 60352-3, Solderless connections – Part 3: Solderless accessible insulation displacement
connections – General requirements, test methods and practical guidance
IEC 60352-4, Solderless connections – Part 4: Solderless non-accessible insulation
displacement connections – General requirements, test methods and practical guidance
IEC 60352-5, Solderless connections – Part 5: Press-in connections – General requirements,
test methods and practical guidance
IEC 60352-6, Solderless connections – Part 6: Insulation piercing connections – General
requirements, test methods and practical guidance

IEC 60352-7, Solderless connections – Part 7: Spring clamp connections – General
requirements, test methods and practical guidance
IEC 60352-8, Solderless connections – Part 8: Compression mount connections – General
requirements, test methods and practical guidance
IEC 60512-1-1, Connectors for electronic equipment – Tests and measurements – Part 1-1:
General examination – Test 1a: Visual examination
IEC 60512-1-2, Connectors for electronic equipment – Tests and measurements – Part 1-2:
General examination – Test 1b: Examination of dimension and mass
IEC 60512-2-1, Connectors for electronic equipment – Tests and measurements – Part 2-1:
Electrical continuity and contact resistance tests – Test 2a: Contact resistance – Millivolt level
method
IEC 60512-2-2, Connectors for electronic equipment – Tests and measurements – Part 2-2:
Electrical continuity and contact resistance tests – Test 2b: Contact resistance – Specified
test current method
IEC 60512-2-5, Connectors for electronic equipment – Tests and measurements – Part 2-5:
Electrical continuity and contact resistance tests – Test 2e: Contact disturbance
IEC 60512-2-6, Connectors for electronic equipment – Tests and measurements – Part 2-6:
Electrical continuity and contact resistance tests – Test 2f: Housing (shell) electrical continuity
IEC 60512-3-1, Connectors for electronic equipment – Tests and measurements – Part 3-1:
Insulation tests – Test 3a: Insulation resistance
IEC 60512-4-1, Connectors for electronic equipment – Tests and measurements – Part 4-1:
Voltage stress tests – Test 4a: Voltage proof
IEC 60512-5-2, Connectors for electronic equipment – Tests and measurements – Part 5-2:
Current-carrying capacity tests – Test 5b: Current-temperature derating
IEC 60512-6-1, Connectors for electronic equipment – Tests and measurements – Part 6-1:
Dynamic stress tests – Test 6a: Acceleration, steady state
IEC 60512-6-2, Connectors for electronic equipment – Tests and measurements – Part 6-2:
Dynamic stress tests – Test 6b: Bump
IEC 60512-6-3, Connectors for electronic equipment – Tests and measurements – Part 6-3:
Dynamic stress tests – Test 6c: Shock
IEC 60512-6-4, Connectors for electronic equipment – Tests and measurements – Part 6-4:
Dynamic stress tests – Test 6d: Vibration (sinusoidal)
IEC 60512-6-5, Electromechanical components for electronic equipment – Basic testing
procedures and measuring methods – Part 6: Dynamic stress tests – Section 5: Test 6e:
Random vibration
IEC 60512-8-1, Connectors for electronic equipment – Tests and measurements – Part 8-1:
Static load tests (fixed connectors) – Test 8a: Static load, transverse
IEC 60512-8-2, Connectors for electronic equipment – Tests and measurements – Part 8-2:
Static load tests (fixed connectors) – Test 8b: Static load, axial

– 10 – IEC PAS 61076-3-126:2018 © IEC 2018
IEC 60512-9-1, Connectors for electronic equipment – Tests and measurements – Part 9-1:
Endurance tests – Test 9a: Mechanical operation
IEC 60512-9-2, Connectors for electronic equipment – Tests and measurements – Part 9-2:
Endurance tests – Test 9b: Electrical load and temperature
IEC 60512-11-1, Electromechanical components for electronic equipment – Basic testing
procedures and measuring methods – Part 11: Climatic tests – Section 1: Test 11a – Climatic
sequence
IEC 60512-11-3, Connectors for electronic equipment – Tests and measurements – Part 11-3:
Climatic tests – Test 11c: Damp heat, steady state
IEC 60512-11-4, Connectors for electronic equipment – Tests and measurements – Part 11-4:
Climatic tests – Test 11d: Rapid change of temperature
IEC 60512-11-9, Connectors for electronic equipment – Tests and measurements – Part 11-9:
Climatic tests – Test 11i: Dry heat
IEC 60512-11-10, Connectors for electronic equipment – Tests and measurements – Part 11-
10: Climatic tests – Test 11j: Cold
IEC 60512-11-13, Connectors for electronic equipment – Tests and measurements – Part 11-
13: Climatic tests – Test 11n: Gas tightness, solderless wrapped connections
IEC 60512-12-4, Connectors for electronic equipment – Tests and measurements – Part 12-4:
Soldering tests – Test 12d: Resistance to soldering heat, solder bath method
IEC 60512-12-5, Connectors for electronic equipment – Tests and measurements – Part 12-5:
Soldering tests – Test 12e: Resistance to soldering heat, soldering iron method
IEC 60512-13-1, Connectors for electronic equipment – Tests and measurements – Part 13-1:
Mechanical operation tests – Test 13a: Engaging and separating forces
IEC 60512-13-2, Connectors for electronic equipment – Tests and measurements – Part 13-2:
Mechanical operation tests – Test 13b: Insertion and withdrawal forces
IEC 60512-13-5, Connectors for electronic equipment – Tests and measurements – Part 13-5:
Mechanical operation tests – Test 13e: Polarizing and keying method
IEC 60512-14-7, Electromechanical components for electronic equipment – Basic testing
procedures and measuring methods – Part 14: Sealing tests – Section 7: Test 14g: Impacting
water
IEC 60512-15-1, Connectors for electronic equipment – Tests and measurements – Part 15-1:
Connector tests (mechanical) – Test 15a: Contact retention in insert
IEC 60512-16-5, Connectors for electronic equipment – Tests and measurements – Part 16-5:
Mechanical tests on contacts and terminations – Test 16e: Gauge retention force (resilient
contacts)
IEC 60512-15-6, Connectors for electronic equipment – Tests and measurements – Part 15-6:
Connector tests (mechanical) – Test 15f: Effectiveness of connector coupling devices
IEC 60512-17-3, Connectors for electronic equipment – Tests and measurements – Part 17-3:
Cable clamping tests – Test 17c: Cable clamp resistance to cable pull (tensile)

IEC 60512-17-4, Connectors for electronic equipment – Tests and measurements – Part 17-4:
Cable clamping tests – Test 17d: Cable clamp resistance to cable torsion
IEC 60512-19-3, Electromechanical components for electronic equipment – Basic testing
procedures and measuring methods – Part 19: Chemical resistance tests – Section 3: Test
19c - Fluid resistance
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)
IEC 60664-1:2007, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests
IEC 60998-2-1:2002, Connecting devices for low-voltage circuits for household and similar
purposes – Part 2-1: Particular requirements for connecting devices as separate entities with
screw-type clamping units
IEC 60999-1:1999, Connecting devices – Electrical copper conductors – Safety requirements
for screw-type and screwless-type clamping units – Part 1: General requirements and
particular requirements for clamping units for conductors from 0,2 mm2 up to 35 mm
(included)
IEC 60999-2, Connecting devices – Electrical copper conductors – Safety requirements for
screw-type and screwless-type clamping units – Part 2: Particular requirements for clamping
units for conductors above 35 mm2 up to 300 mm2 (included)
IEC 61076-1:2006, Connectors for electronic equipment – Product requirements – Part 1:
Generic specification
IEC 61076-3:2008, Connectors for electronic equipment – Product requirements – Part 3:
Sectional specification for rectangular connectors
IEC 61984:2008, Connectors - Safety requirements and tests
IEC 62430:2009, Environmentally conscious design for electrical and electronic products
IEC GUIDE 109, Environmental aspects – Inclusion in electrotechnical product standards
ISO 128-30:2001, Technical drawings – General principles of presentation – Part 30: Basic
conventions for views
ISO 1302:2002, Geometrical Product Specifications (GPS) – Indication of surface texture in
technical product documentation
ISO 11469:2016, Plastics – Generic identification and marking of plastics products
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-581 as well
as the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
IEC Electropedia: available at http://www.electropedia.org/

– 12 – IEC PAS 61076-3-126:2018 © IEC 2018
ISO Online browsing platform: available at http://www.iso.org/obp
3.1
protective conductor
PE
conductor provided for purposes of safety, for example protection against electric shock
Note 1 to entry: In an electrical installation, the conductor identified PE is normally also considered as protective
earthing conductor.
[SOURCE: IEC 60050-581:2008, 581-27-26]
3.2
functional earth conductor
FE
earthing conductor provided for functional earthing
Note 1 to entry: Functional earthing a point or points in a system or in an installation or in equipment, for
purposes other than electrical safety.
[SOURCE: IEC 60050-195, Amendment 1: 2001, 195-01-13]
4 Technical information
4.1 Systems of levels
4.1.1 Performance levels
See Table 9.
4.1.2 Compatibility levels, according to IEC 61076-1:2006
Connectors according to this document are deemed to be intermateable.
4.2 Classification into climatic categories
Table 1 shows the climatic category.
Table 1 – Climatic category
Climatic Category temperature Damp heat steady state Days
category
Lower Upper Temperature Relative humidity
°C °C °C %
25/070/21 –25 +70 40 93 21
4.3 Clearance and creepage distances
Creepage and clearance distances shall meet the requirements given in 6.4.1.
4.4 Current-carrying capacity
See 6.4.3.
4.5 Marking
The marking of the connector and the package shall be in accordance with 2.7 of
IEC 61076-1:2006.
5 Dimensional information
5.1 Common features
Connectors meant to comply with IP ratings per IEC 60529 shall be appropriately mated and
sealed in order to meet the requirements detailed in the test schedules in 7.2.
5.2 Reference system
Coordination dimensions are dimensions without tolerances which indicate the boundary or
centre-line references in order to allow arrangement.
Dimensions are given in millimetres, drawings are shown in first angle projection according
ISO 128-30. The shape of connectors may deviate from those shapes given in the following
figures as long as the specified dimensions are not influenced.
5.3 Engagement (mating) information
5.3.1 Engaging (mating) direction
5.3.1.1 General
An arrow in Figure 1 indicates the mating direction.

IEC
Figure 1 – View showing mating direction
5.3.1.2 Contact levels and sequencing
For all interfaces, the contact sequence during the connection process shall be:
• Protective Earth (if any)
• Functional Earth (if any)
• Power contacts
During disconnection the order shall be reversed.
5.3.2 Perpendicular to the engaging (mating) direction
Not applicable.
5.3.3 Inclination
Not applicable.
– 14 – IEC PAS 61076-3-126:2018 © IEC 2018
5.4 Fixed connectors
5.4.1 Dimensions
Figure 2 shows a fixed connector with male contacts and Table 2 shows the related
dimensions.
IEC
Figure 2 – Fixed connector with male contacts

Table 2 – Dimensions of fixed connector
Dimensions in millimetres
Letter Minimum Nominal Maximum
B1 19,9 20 20,1
B2 28,7 28,8 28,9
B3 31,05 31,2 31,35
B4 32,15 32,2 32,25
B5 34,1 34,2 34,3
B6 R 2,75 R 2,8 R 2,85
B7 R 1,93 R 2 R 2,07
B8 29° 30° 31°
B9 - 3,6 1 -
B10 12,2 12,35 12,5
B11 8,25 8,3 8,35
B12 7,44 7,5 7,56
B13 4,4 4,5 4,6
B14 8,05 8,15 8,25
B15 18,15 18,2 18,25
B16 21,45 21,5 21,55
B17 0,6 0,65 0,8
B18 0,55 0,6 0,65
B19 1,85 1,9 1,95
B20 1,9 2 2,1
B21 R 4,9 R 5 R 5,1
B22 R 0,3 R 0,4 R0,5
B23 14° 15° 16°
B24 1,4 2,4 2,6
B25 0,95 1 1,1
B26 2,73 2,8 2,87
B27 0,95 1 1,05
B28 0,40 0,5 0,55
B29 2,04 2,14 2,24
B30 0,95 1 1,05
B31 2,64 2,74 2,99
B32 - 5,08 1 -
B33 R 2,98 R 3,08 R 3,38
B34 5,95 6 6,2
B35 2,95 3 3,05
B36 2,1 2,2 2,35
B37 0,45 0,55 0,65
B38 32,1 32,25 32,4
B39 13,9 14 14,1
B40 32,9 33 33,1
B41 21,65 21,85 22,05
B42 3,4 3,5 3,6
B43 1,25 - -
NOTE Theoretically precise dimension.

– 16 – IEC PAS 61076-3-126:2018 © IEC 2018
5.4.2 Electrical terminations
The contact terminations shall be of any type.
Solderless terminations shall be in accordance with the relevant part of the IEC 60352 series.
Screw-type or screwless-type terminations shall be in accordance with IEC 60999-1.
5.5 Free connectors
5.5.1 Dimensions
Figure 3 shows a free connector with female contacts and Table 3 shows the related
dimensions.
IEC
Figure 3 – Free connector with female contacts

– 18 – IEC PAS 61076-3-126:2018 © IEC 2018
Table 3 – Dimensions of free connector
Dimensions in millimetres
Letter Minimum Nominal Maximum
A1 35,95 36,2 36,45
A2 31,89 32,06 32,09
A3 21,7 - -
A4 20,45 - -
A5 - - 19,35
A6 29,45 - -
A7 31,45 - -
A8 34,4 34,5 34,6
A9 29° 30° 31°
A10 - 3,6 -
A11 R 3,07 R 3,1 R 3,3
A12 - - 26,8
A13 17,89 18,06 18,09
A14 23 23,2 23,4
A15 4,6 5,1 5,6
A16 2,15 2,25 2,45
A17 8,26 8,33 8,38
A18 1,48 1,53 1,58
A19 2,93 3 3,1
A20 0,95 1 1,1
A21 0,57 0,6 0.8
A22 2,5 2,6 2,7
A23 0,63 0,68 0,73
A24 5,73 5,83 5,88
A25 1,95 2 2,05
A26 2,89 2,92 2,95
A27 R 2,78 R 2,93 R 3,03
A28 2,1 2,52 2,57
A29 - 5,08 -
A30 120° 125 130°
NOTE Theoretically precise dimension.

5.5.2 Electrical terminations
The contact terminations shall be of the following types: screw, crimp, piercing, insulation
displacement, press-in or solder.
Solderless terminations shall be in accordance with the relevant part of the IEC 60352 series.
Screw-type or screwless-type terminations shall be in accordance with IEC 60999-1.
5.6 Accessories
Not applicable.
5.7 Mounting information for connectors
Figure 4 shows a panel cut out for the fixed connector and Table 4 shows the related
dimensions.
IEC
Figure 4 – Mounting information – panel cut-out outline
Table 4 – dimensions
Mounting
Dimensions in millimetres
Letter Minimum Nominal Maximum
mm mm mm
C1 22,7 22,8 22,9
C2 32,9 33 33,1
C3 33,1 33,2 33,3
C4 13,9 14 14,1
C5 - M 3 -
C6 - - 1,25
5.8 Gauges
5.8.1 Sizing gauges and retention force gauges
Material: tool steel, hardened
= Surface roughness acc. to ISO 1302: Ra = 0,25 µm, Ra = 0,15 µm
max min
Surface clean and free of grease.
Figure 5 shows gauge dimensions.

– 20 – IEC PAS 61076-3-126:2018 © IEC 2018

IEC
Figure 5 – Gauge dimensions
Table 5 shows gauge dimensions.
Table 5 – Gauge dimensions
Gauge Mass Application □ a l min Nom pin □
g mm mm mm
P51 - Sizing 1,03 mm 10
+0,01 / 0 mm
1,0
P52 25 Retention force 0,97 mm 10
0 / -0,01 mm
5.8.2 Mechanical function, engaging/separating/insertion/withdrawal force gauges
Not applicable.
5.8.3 Probes
Not applicable.
5.8.4 Contact resistance gauge
Not applicable.
5.8.5 Test panel (for voltage proof test)
For all styles of fixed connectors, the panel cut-out shall be designed according to the
drawings in 5.7 with cut-out dimensions 2 μm larger than the maximum permitted
corresponding dimension of the fixed connector. The test panel shall have the maximum
thickness.
For free connectors, the connectors shall be wrapped into a foil of aluminium. The foil shall be
connected to PE.
5.8.6 Test panel (for EMC/crosstalk, etc.)
Not applicable.
6 Characteristics
6.1 General
For the ratings, see Table 6.
Table 6 – Ratings of connectors
Contacts Rated voltage Rated current
a.c. or d.c. A
V
5 (4+FE) 60 16
Insulation resistance: 10 Ω min.
Climatic category: see Table 1
Contact spacing: see Clause 5
The Detail Quality Specification according to IEC 62197-2-1xx is not applicable.
6.2 Pin assignment and other definitions
See Clause 5.
6.3 Classification into climatic categories
Conditions: IEC 60068-1
Table 1 shows the climatic category.
The lowest and highest temperatures and the duration of the damp heat, steady state
test should be selected from the preferred values stated in 2.2 of IEC 61076-1:2006.
6.4 Electrical characteristics
6.4.1 Creepage and clearance distances
Clearance and creepage distances shall be measured according to IEC 60512-1-2 with the
following additional requirements.
For this connector clearance and creepage distances shall be measured only in mated
position (connector without breaking capacity COC as defined in IEC 61984).
The connector has protection against electric shock by finger safety (IP2X or IPXXB), both in
the mated or unmated condition, after mounting (see also 6.4.2.2 of IEC 61984:2008). For
minimum values for clearance and creepage distances see Clause 5.
6.4.2 Voltage proof
The coordination of creepage and clearance distances has to be performed according
IEC 60664-1.
The connector shall be tested according to the ratings in 6.1 and shall be mounted to the test
panel specified in 5.8.5.
Conditions: IEC 60512-4-1, Test 4a
Standard atmospheric conditions
Mated connectors
For ratings see Table 6 and Table 8.

– 22 – IEC PAS 61076-3-126:2018 © IEC 2018
Application information: The permissible rated voltage depends on the application or specified
safety requirements. Reductions in creepage or clearance distances may occur due to the
printed board or wiring used, and shall duly be taken into account.
Table 7 shows rated impulse voltage and pollution degree.
Table 7 – Rated impulse voltage – Pollution degree
Rated impulse voltage Pollution degree
kV
1,5 3
Table 8 shows voltage proof.
Table 8 – Voltage proof
kV withstanding voltage
Between contacts Between contacts and metal-housing
Fixed connectors Free connectors Fixed connectors Free connectors
2,21 2,21 2,21 2,21
6.4.3 Current-carrying capacity
Conditions: IEC 60512-5-2, Test 5b
All contacts except FE and PE, connected in series.
The current-carrying capacity of connectors shall comply with the de-rating curve given in
Figure 6 as a minimum requirement.

IEC
NOTE 1 The maximum permissible current I for an ambient temperature between T = -25 °C and T = 40 °C is
I = 16 A.
NOTE 2 The maximum permissible current I for an ambient temperature between T = 40 °C and T= 70 °C is
0,5.
I = 16 A · (1-(T-40)/35)
Figure 6 – Connector de-rating curve
6.4.4 Contact and shield resistance
Conditions: IEC 60512-2-1, Test 2a, IEC 60512-2-2, Test 2b and IEC 60512-2-6, Test 2f
Standard atmospheric conditions.
Conditions: IEC 60512-2-1, Test 2a
Mated connectors.
Measurement points: 40 mm behind the cable glan
...
