IEC 60384-18-2:2007

IEC 60384-18-2
Edition 2.0 2007-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
QC 302302
Fixed capacitors for use in electronic equipment –
Part 18-2: Blank detail specification – Fixed aluminium electrolytic surface
mount capacitors with non-solid electrolyte – Assessment level EZ

Condensateurs fixes utilisés dans les équipements électroniques –
Partie 18-2: Spécification particulière cadre – Condensateurs fixes
électrolytiques à l’aluminium pour montage en surface à électrolyte non solide –
Niveau d’assurance EZ
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60384-18-2
Edition 2.0 2007-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
QC 302302
Fixed capacitors for use in electronic equipment –
Part 18-2: Blank detail specification – Fixed aluminium electrolytic surface
mount capacitors with non-solid electrolyte – Assessment level EZ

Condensateurs fixes utilisés dans les équipements électroniques –
Partie 18-2: Spécification particulière cadre – Condensateurs fixes
électrolytiques à l’aluminium pour montage en surface à électrolyte non solide –
Niveau d’assurance EZ
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
M
CODE PRIX
ICS 31.060.50 ISBN 2-8318-9858-7

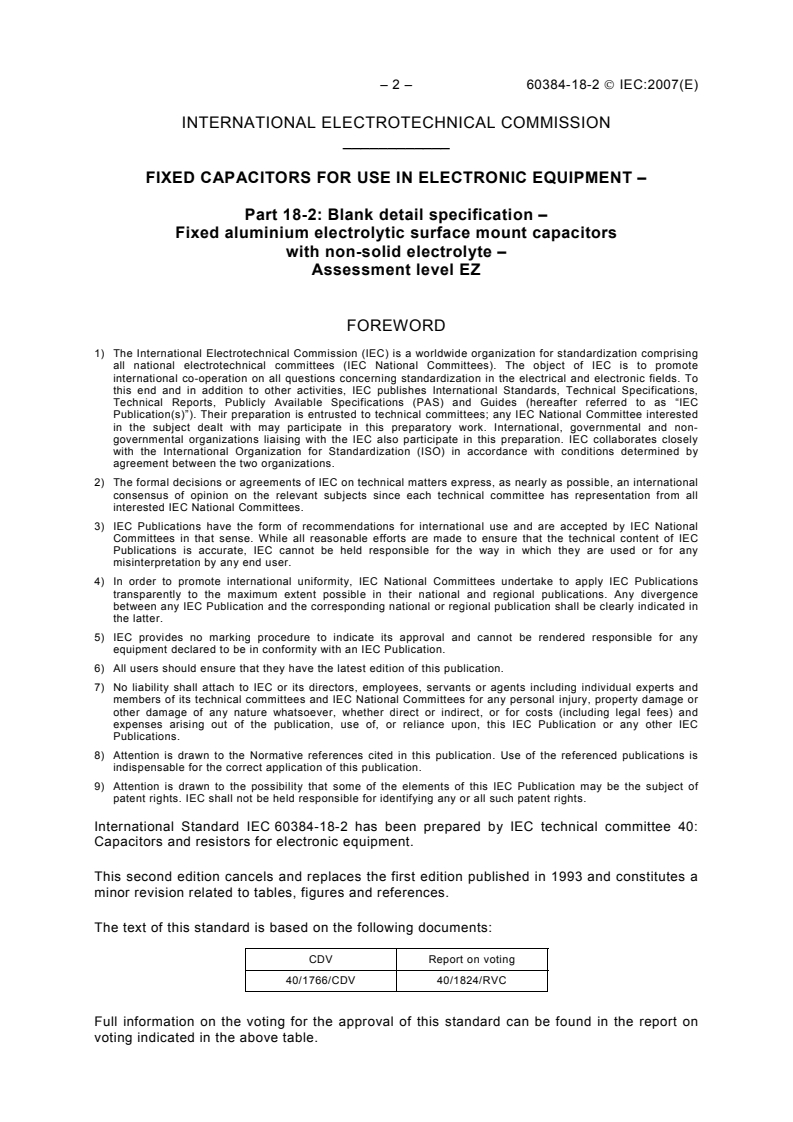

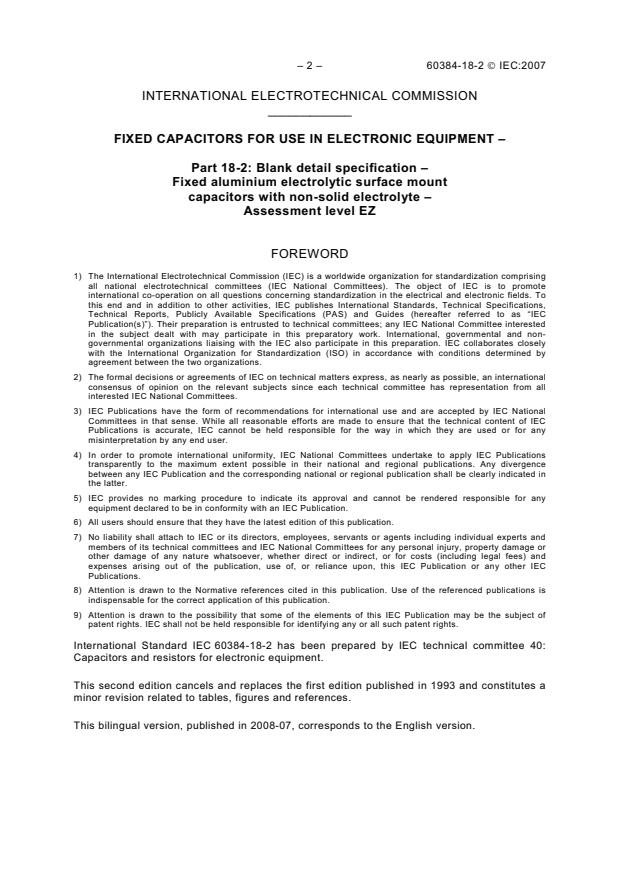

– 2 – 60384-18-2 © IEC:2007
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 18-2: Blank detail specification –
Fixed aluminium electrolytic surface mount
capacitors with non-solid electrolyte –
Assessment level EZ
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60384-18-2 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This second edition cancels and replaces the first edition published in 1993 and constitutes a
minor revision related to tables, figures and references.
This bilingual version, published in 2008-07, corresponds to the English version.

60384-18-2 © IEC:2007 – 3 –
The text of this standard is based on the following documents:
CDV Report on voting
40/1766/CDV 40/1824/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This International Standard is to be read in conjunction with IEC 60384-18.
The QC number that appears on the front cover of this publication is the specification number
in the IEC Quality Assessment System for Electronic Components (IECQ).
The list of all parts of the IEC 60384 series, under the general title Fixed capacitors for use in
electronic equipment, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition; or
• amended.
– 4 – 60384-18-2 © IEC:2007
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 18-2: Blank detail specification –
Fixed aluminium electrolytic surface mount
capacitors with non-solid electrolyte –
Assessment level EZ
Blank detail specification
A blank detail specification is a supplementary document to the sectional specification and
contains requirements for style, layout and minimum content of detail specifications. Detail
specifications not complying with these requirements may not be considered as being in
accordance with IEC specifications nor shall they so be described.
In the preparation of detail specifications the content of 1.4 of the sectional specification shall
be taken into account.
The numbers between square brackets on the first page correspond to the following
information, which shall be inserted in the position indicated.
Identification of the detail specification
(1) The “International Electrotechnical Commission” (IEC) or the National Standards
Organization under whose authority the detail specification is drafted.
(2) The IEC or National Standards number of the detail specification, date of issue and any
further information required by the national system.
(3) The number and issue number of the IEC or national generic specification.
(4) The IEC number of the blank detail specification.
Identification of the capacitor
(5) A short description of the type of capacitor.
(6) Information on typical construction (when applicable).
NOTE When the capacitor is not designed for use in printed board applications, this is clearly stated in
the detail specification in this position.
(7) Outline drawing with main dimensions which are of importance for interchangeability
and/or reference to the national or international documents for outlines. Alternatively,
this drawing may be given in an annex to the detail specification.
(8) Application or group of applications covered and/or assessment level.
NOTE The assessment level(s) to be used in a detail specification are selected from 3.5.4 of the sectional
specification. This implies that one blank detail specification may be used in combination with several
assessment levels, provided the grouping of the tests does not change.
(9) Reference data on the most important properties, to allow comparison between the
various capacitor types.
60384-18-2 © IEC:2007 – 5 –
(1) IEC 60384-18-2-XXX (2)
QC 302302-XXX
ELECTRONIC COMPONENTS OF ASSESSED (3) IEC 60384-18-2 (4)
QUALITY IN ACCORDANCE WITH: QC 302302
Outline drawing: (see Table 1) FIXED ALUMINIUM ELECTROLYTIC SURFACE (5)
MOUNT CAPACITORS WITH NON-SOLID
(…angle projection)
ELECTROLYTE
(7)
(6)
(Other shapes are permitted within the Assessment level(s): EZ (8)
dimensions given.)
Information on the availability of components qualified to this
detail specification is given in IEC QC 001005.
(9)
– 6 – 60384-18-2 © IEC:2007
1 General data
1.1 Recommended method(s) of mounting (to be inserted)
(See 1.4.2 and 4.3 of IEC 60384-18.)
1.2 Dimensions
Table 1 – Case size reference and dimensions
Dimension(s)
Case size
mm
reference
L H d .
∅
NOTE 1 When there is no case size reference, Table 1 may be omitted and the dimensions should be given in
Table 2, which then becomes Table 1.
NOTE 2 The dimensions should be given as maximum dimensions or as nominal dimensions with a tolerance.
1.3 Ratings and characteristics
Rated capacitance range (see Table 2)
Tolerance on rated capacitance
Rated voltage (see Table 2)
Category voltage (if applicable) (see Table 2)
Climatic category
Rated temperature
Rated ripple current (see Table 3)
Tangent of loss angle (see Table 3)
Leakage current
Impedance (if applicable) (see Table 3)
Reverse voltage (if required)
Insu
...
