– 2 – IEC 62906-5-3:2021 © IEC 2021

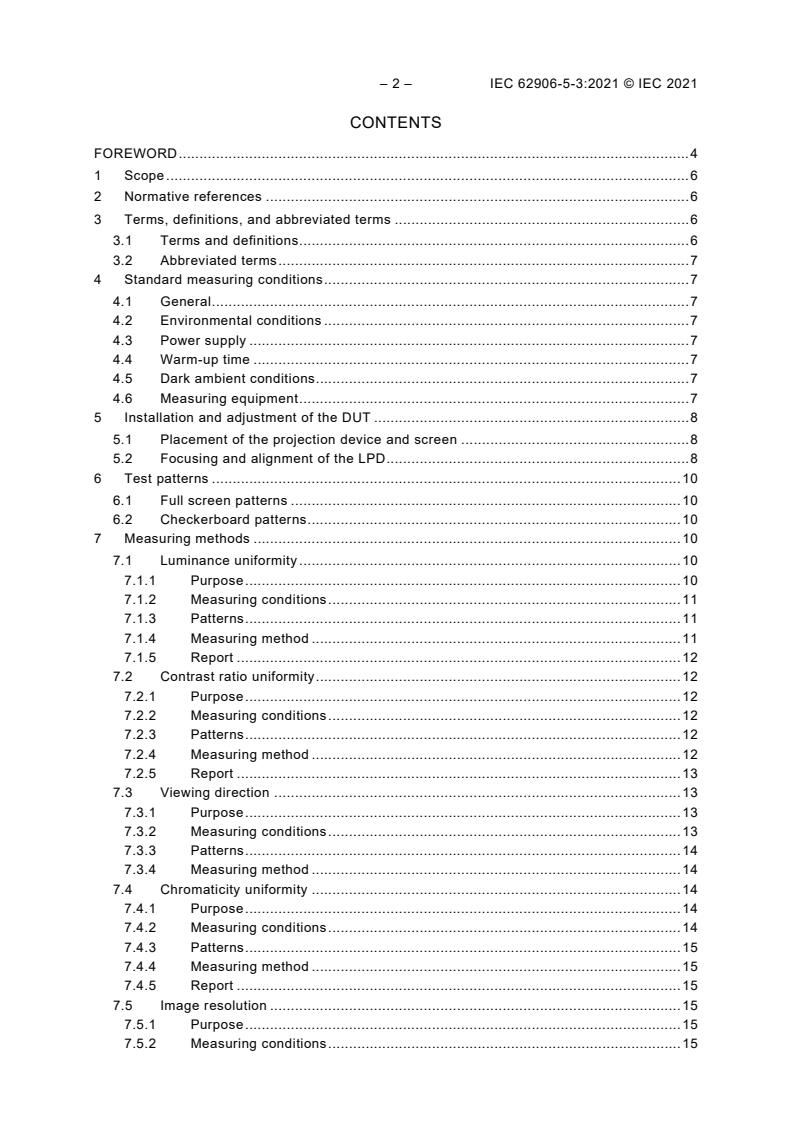

CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, and abbreviated terms . 6
3.1 Terms and definitions . 6
3.2 Abbreviated terms . 7
4 Standard measuring conditions . 7
4.1 General . 7
4.2 Environmental conditions . 7
4.3 Power supply . 7
4.4 Warm-up time . 7
4.5 Dark ambient conditions . 7
4.6 Measuring equipment . 7
5 Installation and adjustment of the DUT . 8
5.1 Placement of the projection device and screen . 8
5.2 Focusing and alignment of the LPD . 8
6 Test patterns . 10
6.1 Full screen patterns . 10
6.2 Checkerboard patterns . 10
7 Measuring methods . 10
7.1 Luminance uniformity . 10
7.1.1 Purpose . 10
7.1.2 Measuring conditions . 11
7.1.3 Patterns . 11
7.1.4 Measuring method . 11
7.1.5 Report . 12
7.2 Contrast ratio uniformity . 12
7.2.1 Purpose . 12
7.2.2 Measuring conditions . 12
7.2.3 Patterns . 12
7.2.4 Measuring method . 12
7.2.5 Report . 13
7.3 Viewing direction . 13
7.3.1 Purpose . 13
7.3.2 Measuring conditions . 13
7.3.3 Patterns . 14
7.3.4 Measuring method . 14
7.4 Chromaticity uniformity . 14
7.4.1 Purpose . 14
7.4.2 Measuring conditions . 14
7.4.3 Patterns . 15
7.4.4 Measuring method . 15
7.4.5 Report . 15
7.5 Image resolution . 15
7.5.1 Purpose . 15
7.5.2 Measuring conditions . 15

7.5.3 Measuring method . 16
7.5.4 Calculation . 16
7.5.5 Report . 17
Bibliography . 18

Figure 1 – Example of an image pattern with width W and height H . 9
Figure 2 – Example of DUT setup . 9
Figure 3 – Full screen patterns . 10
Figure 4 – Examples of checkerboard patterns . 10
Figure 5 – Measurement points . 11
Figure 6 – Set-up for viewing direction measurement . 14
Figure 7 – Example of contrast modulation measurement . 17

– 4 – IEC 62906-5-3:2021 © IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LASER DISPLAY DEVICES –
Part 5-3: Measuring methods of image quality
for laser projection displays
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62906-5-3 has been prepared by IEC technical committee 110: Electronic displays. It is an
International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
110/1269/FDIS 110/1285/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts in the IEC 62906 series, published under the general title Laser display devices,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

– 6 – IEC 62906-5-3:2021 © IEC 2021
LASER DISPLAY DEVICES –
Part 5-3: Measuring methods of image quality
for laser projection displays
1 Scope
This document specifies the standard measurement conditions and measuring methods for
determining the parameters of image quality for full-frame laser projection displays integrating
the projection devices and screens. The front and rear projection screens are included in this
document. Other display devices, such as raster-scanned (flying spot) projection devices, are
not included.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050-845, International Electrotechnical Vocabulary (IEV) – Part 845: Lighting
IEC 60825-1, Safety of laser products – Part 1: Equipment classification and requirements
IEC TR 60825-8, Safety of laser products – Part 8: Guidelines for the safe use of laser beams
on humans
IEC 62341-6-3:2017, Organic light emitting diode (OLED) displays – Part 6-3: Measuring
methods of image quality
IEC 62471-5, Photobiological safety of lamps and lamp systems – Part 5: Image projectors
IEC 62906-1-2, Laser display devices – Part 1-2: Vocabulary and letter symbols
ISO/CIE 11664-1, Colorimetry – Part 1: CIE standard colorimetric observers
ISO/CIE 19476, Characterization of the performance of illuminance meters and luminance
meters
CIE 63, The spectroradiometric measurement of light sources
3 Terms, definitions, and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-845,
IEC 62906-1-2 and ISO/CIE 11664-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp

3.2 Abbreviated terms
DUT Device under test
LDD Laser display device
LPD Laser projection display
LMD Light measuring device
4 Standard measuring conditions
4.1 General
Unless stated otherwise, the following conditions shall be applied. During the measurement,
the protection of optical radiation safety shall be implemented according to IEC 60825-1 and
IEC TR 60825-8 for the products with a classification over M2, and IEC 62471-5 for RG2 and
RG3.
4.2 Environmental conditions
Measurements shall be carried out under the standard environmental conditions:
– temperature: 25 °C ± 3 °C,
– relative humidity: 25 % to 85 % RH,
– atmospheric pressure: 86 kPa to 106 kPa.
When different environmental conditions are used, they shall be noted in the measurement
report.
4.3 Power supply
The power supply for driving the DUT shall be adjusted to the rated voltage ± 0,5 %, and the
frequency shall be supplied at the rated frequency ± 0,2 %.
4.4 Warm-up time
The measurements should be carried out after the light output is sufficiently stable. It is defined
as the time elapsed from when the supply source is switched on, and a full level of input signal
is applied to the DUT, until the repeated measurements with the interval of one minute show a
variation within ten minutes in luminance (or illuminance) of less than 3 %.
4.5 Dark ambient conditions
The LPDs are intended to be measured under the dark room conditions. Any background
illuminance at the image plane shall be less than 1 % of the projector maximum illuminance
when measured with a projector mask blocking the direct beam from the projector (for example
refer to [1] in 15.1.4). The measurements should be conducted in a room with matte black
surfaces having a photometric reflectance of less than 3 %.
4.6 Measuring equipment
The configurations and operating conditions of the measuring equipment shall comply with the
requirements specified in each item. Unless stated otherwise, the measurement point shall be
at the centre of the image area to be measured. The measurement area at the image plane
shall be at least 1 cm in diameter and contain at least 10 pixels x 10 pixels. It shall be confirmed
that this number of pixels is sufficient by shifting the LMD 20 % laterally and verifying that the
luminance is less than 2 %. A large enough measurement area is needed to average out
speckle-induced non-uniformity; in addition, the entrance pup
...
