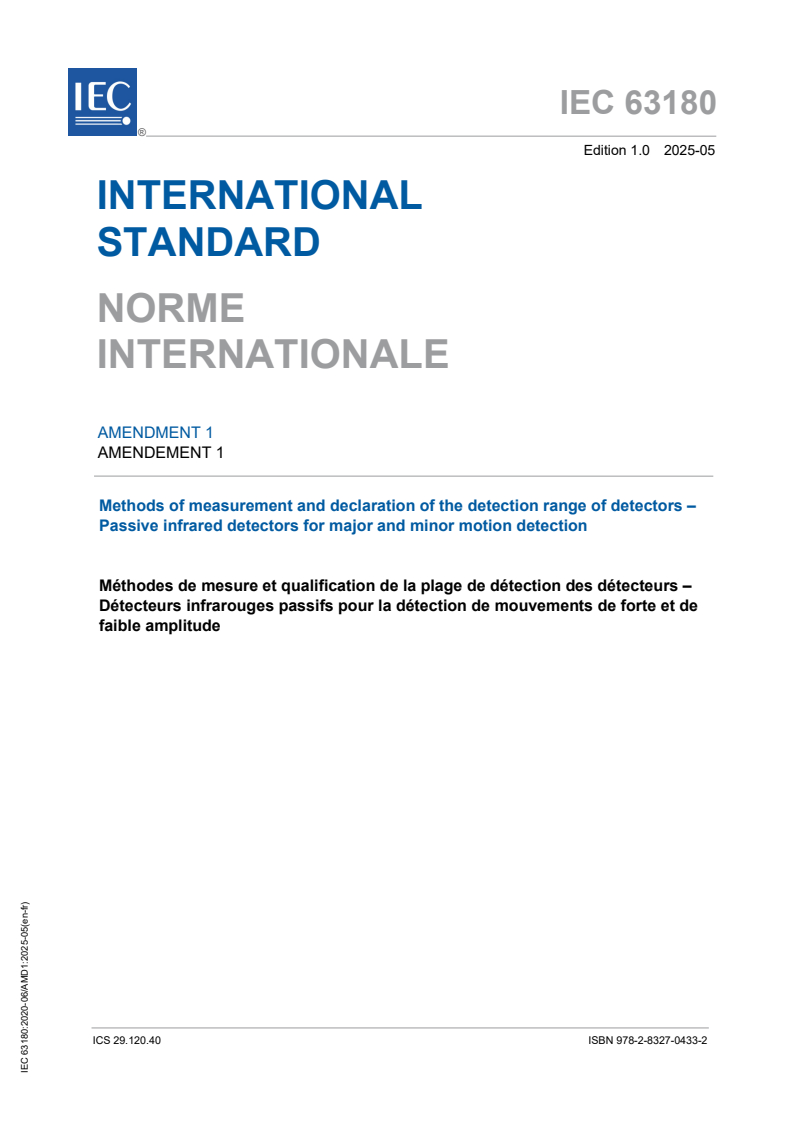

IEC 63180:2020/AMD1:2025

IEC 63180 ®
Edition 1.0 2025-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Methods of measurement and declaration of the detection range of detectors –
Passive infrared detectors for major and minor motion detection

Méthodes de mesure et qualification de la plage de détection des détecteurs –
Détecteurs infrarouges passifs pour la détection de mouvements de forte et de
faible amplitude
ICS 29.120.40  ISBN 978-2-8327-0433-2

IEC 63180:2020-06/AMD1:2025-05(en-fr)

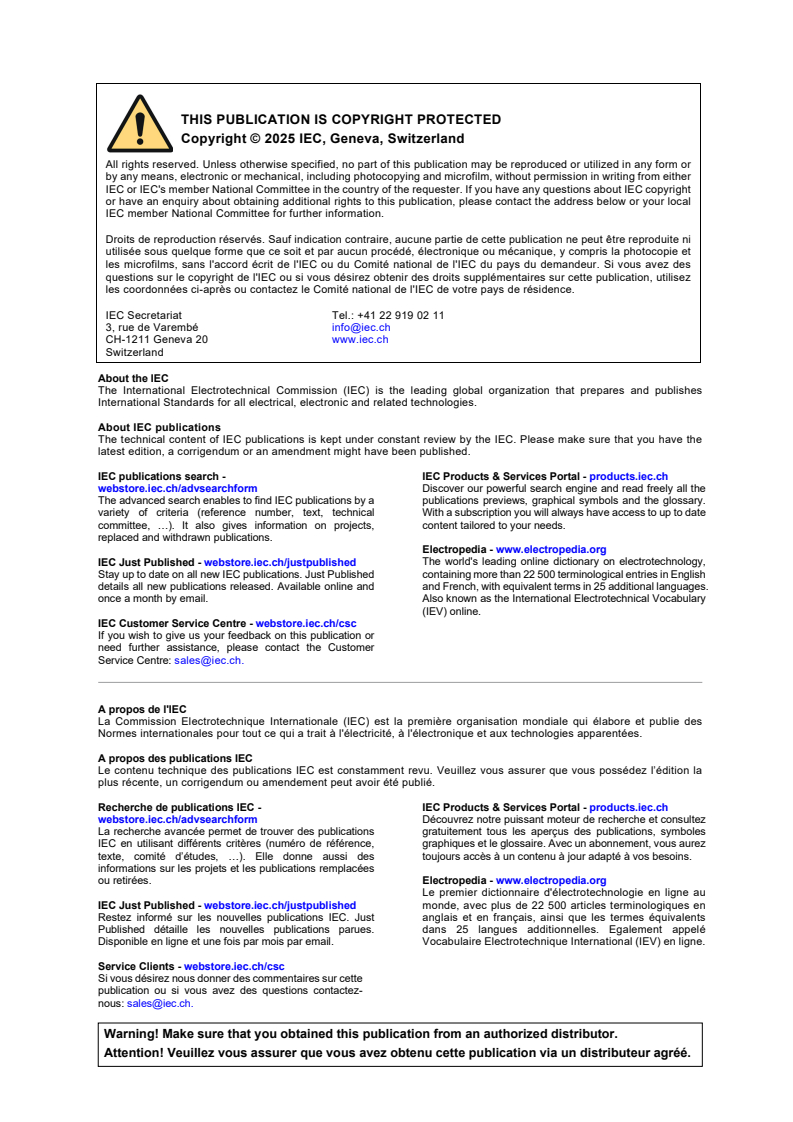

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.

replaced and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications gratuitement tous les aperçus des publications, symboles
IEC en utilisant différents critères (numéro de référence, graphiques et le glossaire. Avec un abonnement, vous aurez
texte, comité d’études, …). Elle donne aussi des toujours accès à un contenu à jour adapté à vos besoins.
informations sur les projets et les publications remplacées
ou retirées. Electropedia - www.electropedia.org
Le premier dictionnaire d'électrotechnologie en ligne au
IEC Just Published - webstore.iec.ch/justpublished monde, avec plus de 22 500 articles terminologiques en
Restez informé sur les nouvelles publications IEC. Just anglais et en français, ainsi que les termes équivalents
Published détaille les nouvelles publications parues. dans 25 langues additionnelles. Egalement appelé
Disponible en ligne et une fois par mois par email. Vocabulaire Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-
nous: sales@iec.ch.
– 2 – IEC 63180:2020/AMD1:2025
© IEC 2025
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
METHODS OF MEASUREMENT AND DECLARATION
OF THE DETECTION RANGE OF DETECTORS –

Passive infrared detectors for major and minor motion detection

AMENDMENT 1
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch [and/or]
www.iso.org/patents. IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to IEC 63180:2020 has been prepared by subcommittee 23B: Plugs,
socket-outlets and switches, of IEC technical committee 23: Electrical accessories.
The text of this Amendment is based on the following documents:
Draft Report on voting
23B/1491/CDV 23B/1509A/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
© IEC 2025
The language used for the development of this Amendment is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
___________
INTRODUCTION to Amendment 1
This amendment includes the following significant technical changes with respect to the base
edition:
a) improvement of general tolerances of the test environment and test equipment;
b) definition of the rotating point of the test arm;
c) addition of the recommended mounting heights for performing the tests;
d) addition of acceleration and deceleration speeds for scaled dummies;
e) modification of the pre-conditioning test at minimum and maximum declared ambient
temperature with new performance criteria;
f) addition of an alternative test procedure for large tangential major motion detection areas.
3 Terms and definitions
3.8
detection area
Replace the title of Figure 3 with:
Figure 3 – Example of detection area
4 General requirements on tests
Add "1" to the first note in Clause 4, as follows:
NOTE 1 A modification of the detector software with a minimum value of 5 s for the delay-time can be necessary to
shorten the test time in total.
Add "2" to the second note in Clause 4, as follows:
NOTE 2 Type tests are defined in IEC 60050-581:2008, 581-21-08.

– 4 – IEC 63180:2020/AMD1:2025
© IEC 2025
Add the following at the end of the last paragraph:
For more repeatable measurements it is recommended to use the automated test procedure.
5 Test environment
Replace the tenth paragraph (excluding the notes) with the following:
The test room temperature and the temperature of the walls, ceiling and floor shall be stable
during the tests within a tolerance of:
– ±2 K for manual tests;
– ±1,5 K for automated tests.
Add "1" to the first note in Clause 5, as follows:
NOTE 1 This can be achieved by covering the detection area of the detector towards the wall or by covering the
wall with a coating or a curtain.
Add "2" to the second note in Clause 5, as follows:
NOTE 2 Artificial light without an IR component can be achieved using LED technology.
Add "3" to the third note in Clause 5, as follows:
NOTE 3 It can be required to set the test room temperature several hours prior to testing.
6 Test equipment
6.2 Test dummies for major motion detection when using automated test systems
Replace Figure 4 with the following new Figure 4:

Figure 4 – Test dummy perspective view
Replace the fifth paragraph, the sixth paragraph, seventh paragraph, eighth paragraph and the
note with the following:
The body and legs are heated to a temperature of (7 ± 1) K above the ambient temperature of
the test room.
© IEC 2025
NOTE The shoulders are part of the body.
All test sides of the dummies shall be heated except the bottom side which is not relevant for
the test.
The temperature of the surface for each zone of the dummy shall be homogeneous and the
spread shall be ≤ 5 K.
The dummy can be made of aluminium, painted black and heated by heating plates placed
inside the dummy.
The temperature of the dummy shall be stable within 1 K for a minimum of 10 min prior to testing
and for the duration of the tests.
Stability can be verified by measuring the temperature during the test at one reference point at
each zone.
Replace the title of Table 1 with the following:
Table 1 – Relation between the declared mounting height, the mounting height of the
device under test (DUT) and test dummy used
6.3 Test arm for minor motion detection
Replace the whole subclause with the following:
The test arm to be used for the minor motion detection test shall be a robotic arm with
dimensions (76 mm × 76 mm × 380 mm) ±2 mm, mounted at a height of 750 mm ± 20 mm
above the reference level.
For manual tests the reference level is the floor.
For automated tests the reference level is the mounting surface of the test dummy as given in
Figure 4.
The test arm can be made of aluminium, painted black and heated by heating plates placed
inside the test arm.
The height is measured from the centre of the horizontal axis.
The test arm shall be able to move at a velocity of 90°/s.
The test arm shall be able to rotate in the horizontal x-y axis anticlockwise for 90°, followed by
a vertical y-z axis movement upwards and back to the start
...
