IEC TR 63344:2021

IEC TR 63344 ®
Edition 1.0 2021-11
TECHNICAL
REPORT
colour
inside
Conceptual model of standardization for haptic multimedia systems
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.

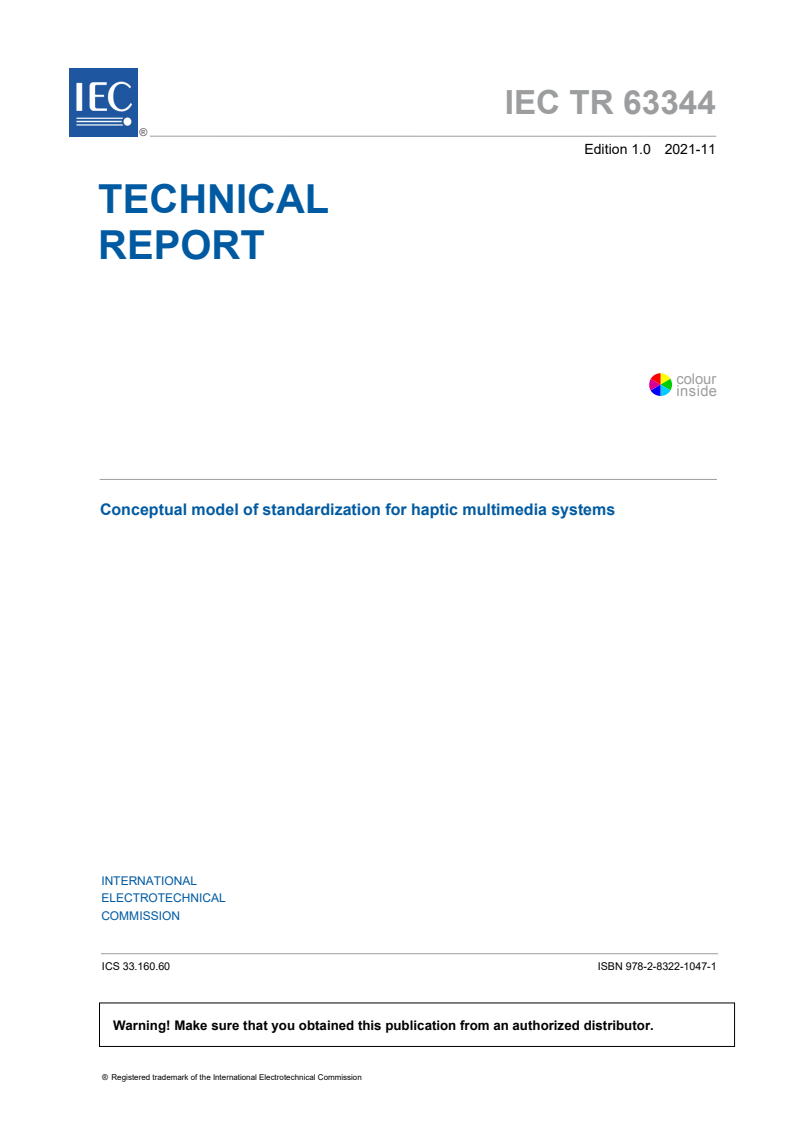

IEC TR 63344 ®
Edition 1.0 2021-11
TECHNICAL
REPORT
colour
inside
Conceptual model of standardization for haptic multimedia systems

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.160.60 ISBN 978-2-8322-1047-1

– 2 – IEC TR 63344:2021 © IEC 2021

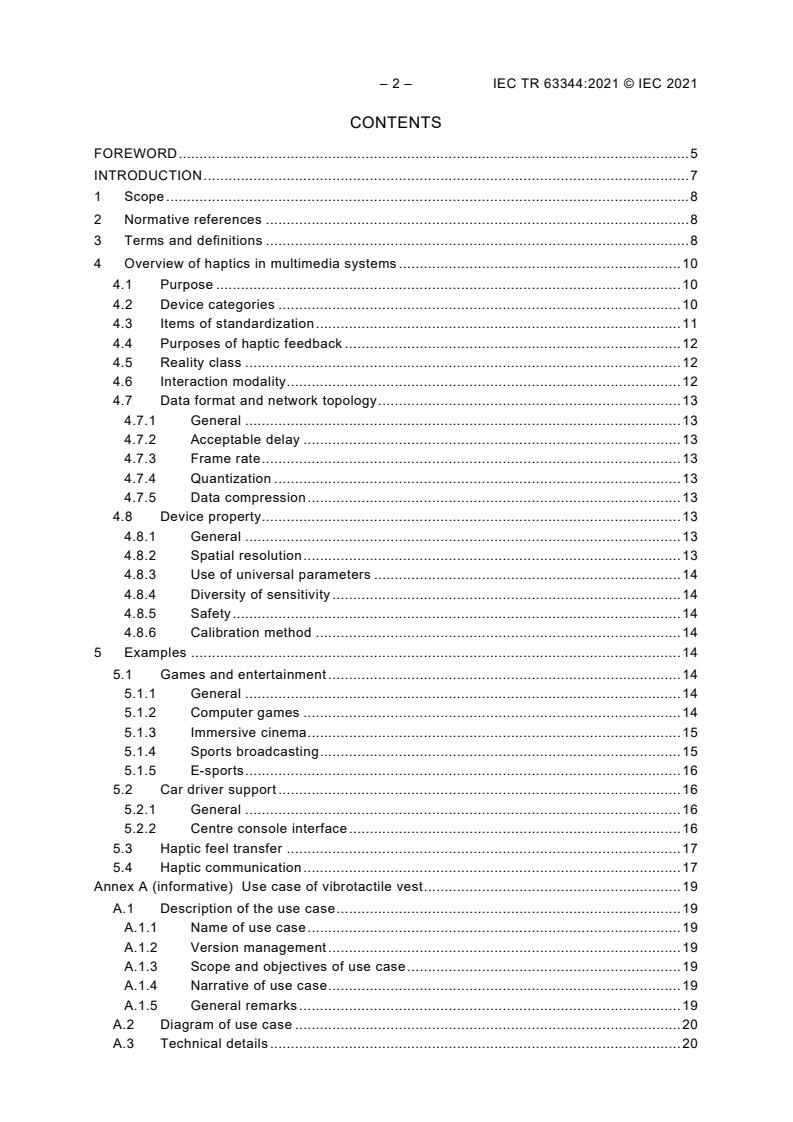

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 8
4 Overview of haptics in multimedia systems . 10
4.1 Purpose . 10
4.2 Device categories . 10
4.3 Items of standardization . 11
4.4 Purposes of haptic feedback . 12
4.5 Reality class . 12
4.6 Interaction modality . 12
4.7 Data format and network topology . 13
4.7.1 General . 13
4.7.2 Acceptable delay . 13
4.7.3 Frame rate . 13
4.7.4 Quantization . 13
4.7.5 Data compression . 13
4.8 Device property. 13
4.8.1 General . 13
4.8.2 Spatial resolution . 13
4.8.3 Use of universal parameters . 14
4.8.4 Diversity of sensitivity . 14
4.8.5 Safety . 14
4.8.6 Calibration method . 14
5 Examples . 14
5.1 Games and entertainment . 14
5.1.1 General . 14
5.1.2 Computer games . 14
5.1.3 Immersive cinema . 15
5.1.4 Sports broadcasting . 15
5.1.5 E-sports . 16
5.2 Car driver support . 16
5.2.1 General . 16
5.2.2 Centre console interface . 16
5.3 Haptic feel transfer . 17
5.4 Haptic communication . 17
Annex A (informative) Use case of vibrotactile vest . 19
A.1 Description of the use case . 19
A.1.1 Name of use case . 19
A.1.2 Version management . 19
A.1.3 Scope and objectives of use case . 19
A.1.4 Narrative of use case . 19
A.1.5 General remarks . 19
A.2 Diagram of use case . 20
A.3 Technical details . 20

A.3.1 Actors . 20
A.3.2 Triggering event, preconditions, assumptions . 21
A.3.3 References . 21
A.3.4 Further information on the use case for classification and mapping . 22
A.4 Step by step analysis of use case . 22
A.4.1 Overview Scenarios . 22
A.4.2 Steps – scenarios . 23
A.5 Information exchanged . 25
A.6 Requirements (optional) . 25
A.7 Common terms and definitions . 25
A.8 Custom information (optional) . 25
A.9 Terms and definitions (additional) . 26
A.10 Technologies (additional) . 26
Annex B (informative) Use case of vibrotactile IPTV . 27
B.1 Description of the use case . 27
B.1.1 Name of use case . 27
B.1.2 Version management . 27
B.1.3 Scope and objectives of use case . 27
B.1.4 Narrative of use case . 27
B.2 Diagram of use case . 27
B.3 Technical details . 28
B.3.1 Actors . 28
B.3.2 Triggering Event, Preconditions, Assumptions . 28
B.3.3 References . 29
B.3.4 Further Information to the use case for classification / mapping . 29
B.4 Step-by-step analysis of use case . 30
B.4.1 Overview scenarios . 30
B.4.2 Steps – Scenarios . 31
B.5 Information exchanged . 32
B.6 Requirements (optional) . 32
B.7 Common terms and definitions . 32
B.8 Custom information (optional) . 32
B.9 Terms and definitions (additional) . 36
B.10 Technologies (additional) . 37
Bibliography . 38

Figure 1 – Device categories . 10
Figure 2 – Applications . 11
Figure 3 – Game & Entertainment . 14
Figure 4 – Computer games . 15
Figure 5 – Wear-type display for Immersive cinema . 15
Figure 6 – Sports broadcasting . 16
Figure 7 – Car driver support . 16
Figure 8 – Centre console interface . 17
Figure 9 – Tactile feel transfer . 17
Figure 10 – Tactile communication . 18
Figure A.1 – Use case diagram of vibrotactile vest . 20

– 4 – IEC TR 63344:2021 © IEC 2021
Figure B.1 – Use case diagram of vibrotactile IPTV . 28
Figure B.2 – Relationship between channel number and actuator position . 35

Table 1 – Items of haptics standardization . 11
Table B.1 – Assigned channel number for each use case . 36

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONCEPTUAL MODEL OF STANDARDIZATION
FOR HAPTIC MULTIMEDIA SYSTEMS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC TR 63344 has been prepared by IEC technical committee 100: Audio, video and multimedia
systems and equipment. It is a Technical Report.
The text of this Technical Report is based on the following documents:
Draft Report on voting
100/3573/DTR 100/3630/RVDTR
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Technical Report is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.

– 6 – IEC TR 63344:2021 © IEC 2021
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.

INTRODUCTION
The multimedia devices covered by TC 100 used to be primarily stationary audio and video
devices, but now comprise mobile and wearable devices, for which it is necessary to consider
different specifications from conventional stationary devices. At first, this Technical Report
clarifies the conceptual model of haptics issues under the scope of TC 100, and then the details
are described to understand the standardization items of haptics-related issues under the scope
of TC 100.
– 8 – IEC TR 63344:2021 © IEC 2021
MULTIMEDIA SYSTEMS – HAPTICS –
CONCEPTUAL MODEL OF STANDARDIZATION

1 Scope
This document describes the conceptual model of vibro-tactile-based haptics in multimedia
systems and equipment used in electrical appliances, computer interfaces, automobiles,
amusements, and communication devices. This model describes possible standardization items.
NOTE Ergonomic aspects of haptics systems are standardised in the ISO 9241 series. The scope of that standard
is focused on the physical specifications of the devices, signal properties and formats to ensure the common use
with compatibility among various types of devices in haptics systems.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
haptic sensation
sensation, including tactile sensation and kinesthetic sensation perceived by bathyesthesia
3.2
tactile sensation
sensation detected by skin receptors
3.3
haptic display
device to produce touch sensation
3.4
tactile display
device that stimulates the skin receptors
3.5
haptic reproduction
creating realistic haptic sensation in VR and tele-manipulation, targeting a real sensation
3.6
haptic notification
notifying a user of necessary information by haptic stimulation

3.7
haptic guidance
guiding a user or the parts of the body to a desirable state regarding the position, direction,
velocity or posture, sometimes synchronized with a specific task
Note 1 to entry: In the broader meaning, it includes guiding the user's other physical/mental conditions to desired
states.
3.8
reality class
class of reality supposed in the displayed reality
3.9
haptic broadcasting
sending of haptic signals to multiple users to share the haptic experiences of a specific person
3.10
vibrotactile
mechanical vibration to produce haptic experiences
3.11
phantom sensation
illusional perception that a user feels a point stimulation at an intermediate point between a
couple of stimulators placed with a certain distance
3.12
apparent motion
illusional perception that a user feels a continuous motion between a couple of stimulators
placed with a certain distance when the stimulators are driven sequentially
3.13
surface haptics
technique to create haptic sensation on a flat panel by vibrations and friction control using
electrostatic forces or ultrasonic vibrations
3.14
tactile electrostimulation
stimulating a skin via electrical current in the skin
3.15
mid-air haptic stimulation
stimulating a skin in a non-contact manner using airborne ultrasound or air stream
3.16
surface displacement
skin-surface displacement produced by a tactile display
Note 1 to entry: The direction of the displacement is described with the terms, vertical and lateral.
3.17
surface stress
skin-surface stress, applied force per unit area, produced by a tactile display
3.18
thermal tactile display
tactile display to control a skin surface temperature

– 10 – IEC TR 63344:2021 © IEC 2021
3.19
haptic feel transfer
transferring the haptic feel of a real object
3.20
haptic communication
multimedia communication including touch sensation
4 Overview of haptics in multimedia systems
4.1 Purpose
The purpose of the standardization is to define the performance, ensure the compatibility among
the different types of hardware and facilitate the development and technical spread.
4.2 Device categories
The device categories of haptics systems are summarized in Figure 1. A vibrotactile device is
an apparatus to send vibration to a part of a human skin via specified device such as a game
controller, wristband, joystick, or other grip-type/wearable devices, which creates haptic
experiences synchronized with visual and audio information. Surface haptic devices produce
various haptic sensations on a flat panel via vibration and friction control using electrostatic
forces and ultrasonic vibrations. A stylus device reproduces the texture via the vibration of a
pen-like device. A wear-type device creates vibrations at multiple points on a body. Tactile
electrostimulation, electric current in the skin, can also create haptic with no moving parts, and
airborne ultrasound or air stream can produce haptic sensations without contact, which is called
mid-air haptic stimulation. The typical applications are illustrated in Figure 2.

Figure 1 – Device categories
A) Haptic feel transfer B) Communication

C) Car driver support D) Alarm, safety

Figure 2 – Applications
Table 1 – Items of haptics standardization
 Reproduction
Purpose  Notification
 Guidance
 Class 1: Physically faithful
 Class 2: Indistinguishable
Reality class
 Class 3: Different but useful
---- Subclasses
 Cutaneous
Interaction
 Proprioception/Kinesthetic
modality
 Audio/Visual
 Device category  Framerate
 Number of stimulation point  Data length
Data format
 Body part  Data
and network
 One way, Bidirectional  Bandwidth, delay
Device  Category definition  Diversity of sensitivity and safety
property  Use of universal parameter  Calibration method

4.3 Items of standardization
This document deals with mechanical and thermal stimulations to users' bodies, which contains
multiple layers of potential standardization summarized in Table 1. This document clarifies the
items that should be standardized for:
a) purposes of haptic feedback;
b) class of performance represented by reality;
c) interaction modality;
d) data format and network topology;

– 12 – IEC TR 63344:2021 © IEC 2021
e) device property.
4.4 Purposes of haptic feedback
In general, the purposes of haptic feedback are classified into Reproduction, Notification, and
Guidance as follows.
Haptic reproduction is creating realistic haptic sensation in VR and tele-manipulation, targeting
a real sensation. Producing the touch feel of a commercial product for Internet shopping is an
example of Reproduction. In a tele-manipulation system, reproduced stimulation enables the
user to handle the remote object as if touching it directly. In a communication system, users
can feel the remote partner with the reproduced haptic sensation. Many applications such as
computer games, sports broadcasting, and cinemas potentially need haptic reproduction.
Haptic notification is sending necessary information to users by haptic channel. A vibration from
a mobile phone is a familiar example of notification. In an automobile, the driver can receive
haptic signals from the seat and foot pedal to be alerted to the abnormal situation of the car,
change of the road condition, and danger approaching the car. In addition to these passive
cases, it is also useful in active motions. For example, a click felt by a finger notifies the
completion of input action. Periodic resistance in a dial notifies the quantity that the user is
controlling. These sensations facilitate the operations.
Haptic guidance is leading a user or the parts of the body to a desirable state regarding the
position, direction, velocity or posture sometimes synchronized with a specific task. Haptic
stimulation can inform a pedestrian of the direction to the destination. Stimulation on a steering
wheel can indicate the direction suggested by the navigation system. Vibrations given on the
limbs teach which limb to move at what timing. In addition to the motion guidance, haptic
stimulation can induce relaxation and control the mental condition.
4.5 Reality class
Consensus on the reality is a crucial premise for practical use of haptics technologies. Users
and developers need to share the reality class supposed in each application as:
• Class 1: physically faithful stimulation to real experience;
• Class 2: physically different but indistinguishable from real experience;
• Class 3: distinguishable but useful.
For example, a dot of an HD display produces Class 2 reality since it creates a faithful colour
but a different spectrum from the real one. Lossy audio compression also ensures the
reproduced sound satisfies the Class 2 reality.
In haptics, the major applications would belong to Class 3 while Class 2 reality is achieved in
only limited applications. A standard is necessary to define the reality class before sharing the
haptic information. Such a standard also facilitates the technological advancement. Subclasses
would follow after Class 3.
4.6 Interaction modality
In general, haptic sensation is formed by multiple sensory perceptions. Haptic feeling is strongly
affected by visual and auditory information and the context. Even within haptic modality, force
perception is created by combining almost independent perception channels: cutaneous
perception, and proprioception, including kinesthetics. In many haptic feedback systems, the
haptic experiences are created by integrating these fragmented stimulations given to a part of
the body.
Therefore, it is useful to standardize the adequate modalities to achieve the desired haptic
effects and ensure the compatibilities among different sets of modalities.

4.7 Data format and network topology
4.7.1 General
This document describes the required contents and format of the transferred data. The data will
contain the information of device category, type of stimulation, number of stimulation points,
applied body part, as well as frame rate and data length, depending on the applications.
The network topology is also described in this layer. For example, one-to-many connection is
employed for many people to share a passive haptic signal in a scene of 4D theatre, sport
watching, and live concerts. In communication between two people, bidirectional one-to-one
connection is employed.
4.7.2 Acceptable delay
A 1 ms delay is the desirable and sufficient delay for all kinds of applications. Such a short
delay from the sensor to the haptic display enables to create a contact experience with a rigid
object. But sometimes, larger delays than 1 ms are acceptable. There are many cases where
10 ms is acceptable to produce an interaction with a soft object. For the interaction with a very
soft object or non-interactive applications, even a 100 ms delay is acceptable. The standard
should clarify the acceptable delays for specific applications.
4.7.3 Frame rate
The sufficient frame rate for all kinds of applications is 2 kHz that can reproduce 1 kHz-
bandwidth signals. In some applications of vibrotactile feedback, a 400 Hz-frame rate becomes
an option that can create a 200 Hz tactile signal, the easiest-to-sense vibration in many cases.
If the signal transfers only the event of a contact, a 10 Hz framerate might be enough.
4.7.4 Quantization
The standard should clarify the necessary number of quantization bits. In order to reproduce a
realistic tactile feeling, 8 bits or more would be necessary, but if the purpose of haptic
stimulation is only to alarm or motion inductance, a lesser number of bits or only 1 bit might be
enough.
4.7.5 Data compression
In public applications where many people share a real-time haptic signal with a limited
bandwidth of wireless communication, efficient data compression would be necessary.
4.8 Device property
4.8.1 General
The standard should define the categories of hardware, and standardize the specification and
calibration method in each category.
4.8.2 Spatial resolution
The necessary spatial resolution of haptic devices should be defined here considering the
applications. For example, 1 mm is the sufficient spatial resolution on a finger pad, 1 cm is the
ideal spatial resolution on a palm, and 10 cm is acceptable in a whole-body stimulation. In some
applications using the phantom sensation and apparent motion, the spacing of stimulators can
be wider.
– 14 – IEC TR 63344:2021 © IEC 2021
4.8.3 Use of universal parameters
In order to secure the compatibility, the stimulation signal should be described and shared by
the direct physical effect to the skin, that is, surface displacement, surface stress, velocity,
acceleration, or force. In thermal tactile display, the temperature change on the skin should be
shared.
4.8.4 Diversity of sensitivity
A feature of haptics is the broad diversity of sensitivity among individuals. The standard should
provide the average and range of the diversity and maximum stimulation amplitude.
4.8.5 Safety
The safety can be classified into two sorts: one is for electronic equipment and the other is for
user interfaces. The safety of electronic equipment can be referred to (e.g. see IEC 62368-1).
The safety of user interfaces should also be considered.
4.8.6 Calibration method
The standard provides the physical calibration method of the device. The above universal
parameters will be measured on a standard skin with a standard viscoelasticity. This procedure
is indispensable to ensure the uniformity of the haptic effect.
5 Examples
5.1 Games and entertainment
5.1.1 General
Vibration displayed on a user's hand and whole body can produce enriched user experiences
in computer games. Similar technologies enable haptic broadcasting in real actions of various
sports. Racket sports such as tennis as shown in Figure 3, ping-pong, badminton and baseball
batting are promising examples, and volleyball and football would be the next targets. In these
applications, standardization is desired as follows.

Figure 3 – Game & Entertainment
5.1.2 Computer games
Computer games is a promising application field of haptics. Vibration is applied to the user's
hand and whole body synchronized with the game scenario. The system diagram is shown in
Figure 4. In order to make tactile feedback effective, it is desirable to standardize the required
precision, temporal throughput, and delay of the sensor the acquisition of the user's motion and
posture. If the physical properties of the tactile display and driver circuit are standardized, users
having various types of devices can share common experiences. Such standards are especially
necessary in networked games.
Figure 4 – Computer games
5.1.3 Immersive cinema
A vibrotactile vest creates an immersive experience in a theatre. The audience wears
vibrotactile vests or jackets as shown in Figure 5 and enjoys the haptic effects. Currently, the
stimulation is limited to a passive one, but it is expected that some interaction will be included.
It is desirable to standardise the following items:
1) contact condition between the wear and body;
2) appropriate signal strength/waveform and effect on the body;
3) density and placement of the vibrators.
A use case is described in Annex A.

Figure 5 – Wear-type display for Immersive cinema
5.1.4 Sports broadcasting
A realistic vibration estimated from a video of a real player can be transmitted to people and
reproduced being synchronized with the video. The system diagram is shown in Figure 6. In
this application, it is desirable to standardise:
1) estimation quality of vibration from video,
2) tactile signal format to be shared,
3) network properties,
4) physical specifications of tactile display,
