IEC 61158-3-17:2007

IEC 61158-3-17
Edition 1.0 2007-12
INTERNATIONAL
STANDARD
Industrial communication networks – Fieldbus specifications –
Part 3-17: Data-link layer service definition – Type 17 elements

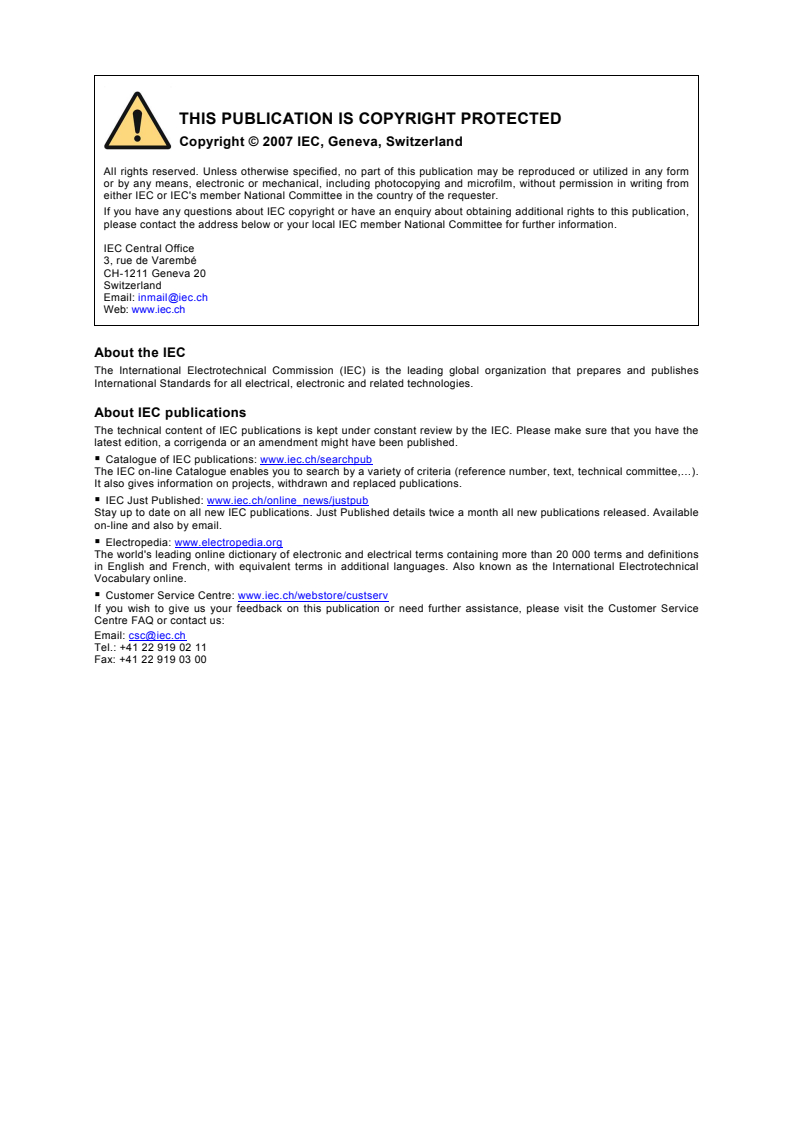

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: 0Hinmail@iec.ch
Web: 1Hwww.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: 2Hwww.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: 3Hwww.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: 4Hwww.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: 5Hwww.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: 6Hcsc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61158-3-17
Edition 1.0 2007-12
INTERNATIONAL
STANDARD
Industrial communication networks – Fieldbus specifications –
Part 3-17: Data-link layer service definition – Type 17 elements

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
U
ICS 35.100.20; 25.040.40 ISBN 2-8318-9421-2

– 2 – 61158-3-17 © IEC:2007(E)

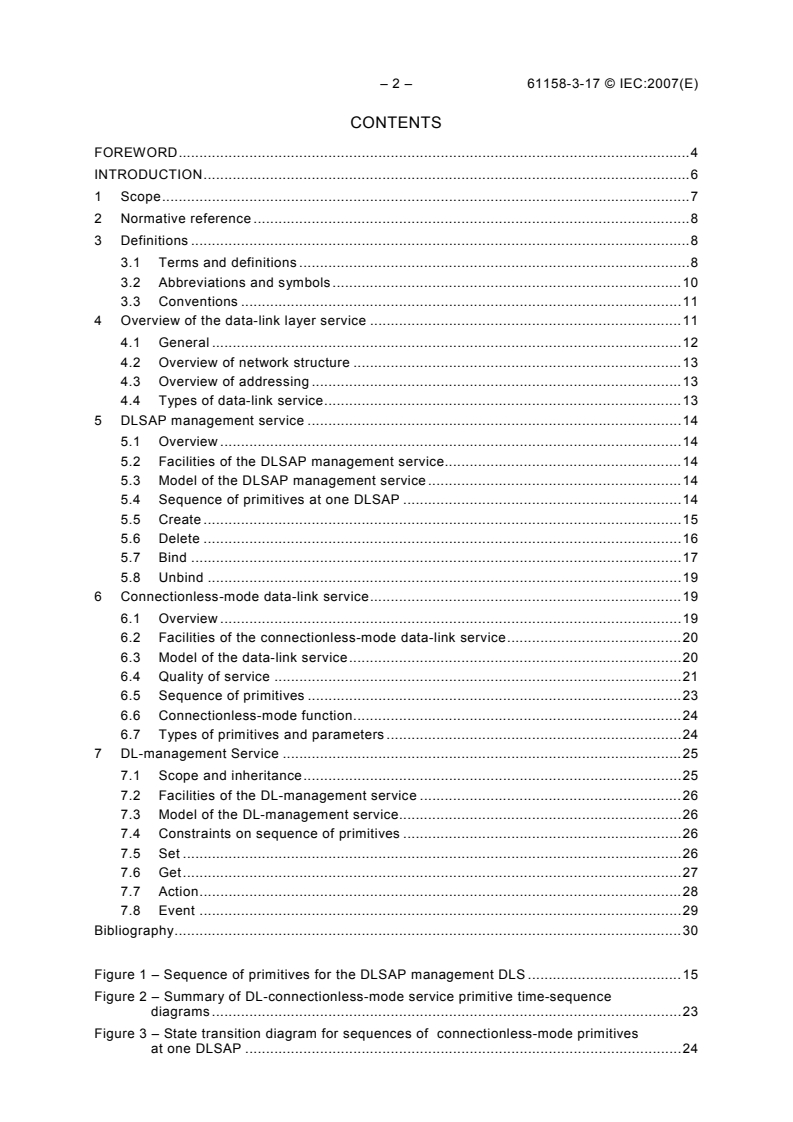

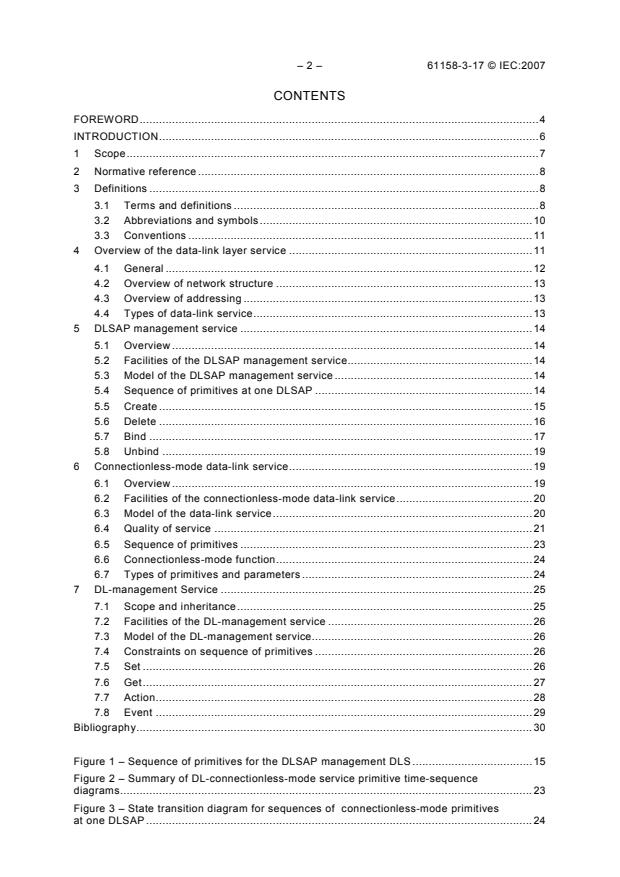

CONTENTS

0HFOREWORD.58H4
1HINTRODUCTION.59H6
2H1 Scope.60H7
3H2 Normative reference .61H8
4H3 Definitions .62H8
5H3.1 Terms and definitions .63H8
6H3.2 Abbreviations and symbols.64H10
7H3.3 Conventions .65H11
8H4 Overview of the data-link layer service .66H11
9H4.1 General .67H12
10H4.2 Overview of network structure .68H13
11H4.3 Overview of addressing .69H13
12H4.4 Types of data-link service.70H13
13H5 DLSAP management service .71H14
14H5.1 Overview .72H14
15H5.2 Facilities of the DLSAP management service.73H14
16H5.3 Model of the DLSAP management service .74H14
17H5.4 Sequence of primitives at one DLSAP .75H14
18H5.5 Create .76H15
19H5.6 Delete .77H16
20H5.7 Bind .78H17
21H5.8 Unbind .79H19
22H6 Connectionless-mode data-link service.80H19
23H6.1 Overview .81H19
24H6.2 Facilities of the connectionless-mode data-link service.82H20
25H6.3 Model of the data-link service.83H20
26H6.4 Quality of service .84H21
27H6.5 Sequence of primitives .85H23
28H6.6 Connectionless-mode function.86H24
29H6.7 Types of primitives and parameters .87H24
30H7 DL-management Service .88H25
31H7.1 Scope and inheritance.89H25
32H7.2 Facilities of the DL-management service .90H26
33H7.3 Model of the DL-management service.91H26
34H7.4 Constraints on sequence of primitives .92H26
35H7.5 Set .93H26
36H7.6 Get.94H27
37H7.7 Action.95H28
38H7.8 Event .96H29
39HBibliography.97H30

40HFigure 1 – Sequence of primitives for the DLSAP management DLS .98H15
41HFigure 2 – Summary of DL-connectionless-mode service primitive time-sequence
diagrams .99H23
42HFigure 3 – State transition diagram for sequences of connectionless-mode primitives
at one DLSAP .100H24

61158-3-17 © IEC:2007(E) – 3 –
43HFigure 4 – Sequence of primitives for the DLM action service .101H26

44HTable 1 – Summary of DLSAP management primitives and parameters .102H14
45HTable 2 – DLSAP-management CREATE primitive and parameters.103H15
46HTable 3 – DLSAP-management DELETE primitive and parameters .104H16
47HTable 4 – DLSAP management BIND primitive and parameters.105H17
48HTable 5 – DLSAP management UNBIND primitive and parameter .106H19
49HTable 6 – Data delivery features of each type of service .107H21
50HTable 7 – Summary of DL-connectionless-mode primitives and parameters .108H23
51HTable 8 – DL-connectionless-mode UNITDATA transfer primitives and parameters .109H24
52HTable 9 – Summary of DL-management primitives and parameters .110H26
53HTable 10 – DLM-SET primitive and parameters .111H27
54HTable 11 – DLM-GET primitive and parameters.112H27
55HTable 12 – DLM-ACTION primitive and parameters.113H28
56HTable 13 – DLM-EVENT primitive and parameters .114H29

– 4 – 61158-3-17 © IEC:2007(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 3-17: Data-link layer service definition – Type 17 elements

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
NOTE  Use of some of the associated protocol types is restricted by their intellectual-property-right holders. In all
cases, the commitment to limited release of intellectual-property-rights made by the holders of those rights permits
a particular data-link layer protocol type to be used with physical layer and application layer protocols in type
combinations as specified explicitly in the IEC 61784 series. Use of the various protocol types in other
combinations may require permission of their respective intellectual-property-right holders.
International Standard IEC 61158-3-17 has been prepared by subcommittee 65C: Industrial
networks, of IEC technical committee 65: Industrial-process measurement, control and
automation.
This first edition and its companion parts of the IEC 61158-3 subseries cancel and replace
IEC 61158-3:2003. This edition of this part constitutes a technical addition. This part and its
Type 17 companion parts also replace IEC/PAS 62405, published in 2005.
This edition includes the following significant changes with respect to the previous edition:
a) deletion of the former Type 6 fieldbus, and the placeholder for a Type 5 fieldbus data-link
layer, for lack of market relevance;
b) addition of new types of fieldbuses;
c) division of this part into multiple parts numbered 3-1, 3-2, …, 3-19.
This edition of this part constitutes an editorial revision.

61158-3-17 © IEC:2007(E) – 5 –
The text of this standard is based on the following documents:
FDIS Report on voting
65C/473/FDIS 65C/484/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under 57Hhttp://webstore.iec.ch in the
data related to the specific publication. At this date, the publication will be:
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
NOTE  The revision of this standard will be synchronized with the other parts of the IEC 61158 series.
The list of all the parts of the IEC 61158 series, under the general title Industrial
communication networks – Fieldbus specifications, can be found on the IEC web site.

– 6 – 61158-3-17 © IEC:2007(E)
INTRODUCTION
This part of IEC 61158 is one of a series produced to facilitate the interconnection of
automation system components. It is related to other standards in the set as defined by the
“three-layer” fieldbus reference model described in IEC/TR 61158-1.
Throughout the set of fieldbus standards, the term “service” refers to the abstract capability
provided by one layer of the OSI Basic Reference Model to the layer immediately above. Thus,
the data-link layer service defined in this standard is a conceptual architectural service,
independent of administrative and implementation divisions.

61158-3-17 © IEC:2007(E) – 7 –
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 3-17: Data-link layer service definition – Type 17 elements

1 Scope
This part of IEC 61158 provides common elements for basic time-critical messaging
communications between devices in an automation environment. The term “time-critical” is
used to represent the presence of a time-window, within which one or more specified actions
are required to be completed with some defined level of certainty. Failure to complete
specified actions within the time window risks failure of the applications requesting the actions,
with attendant risk to equipment, plant and possibly human life.
This standard defines in an abstract way the externally visible service provided by the Type
17 fieldbus data-link Layer in terms of
a) the primitive actions and events of the service;
b) the parameters associated with each primitive action and event, and the form which they
take; and
c) the interrelationship between these actions and events, and their valid sequences.
The purpose of this standard is to define the services provided to
• the Type 17 fieldbus application layer at the boundary between the application and data-
link layers of the fieldbus reference model, and
• systems management at the boundary between the data-link layer and systems
management of the fieldbus reference model;
• specifications
The principal objective of this standard is to specify the characteristics of conceptual data-link
layer services suitable for time-critical communications, and thus supplement the OSI Basic
Reference Model in guiding the development of data-link protocols for time-critical
communications. A secondary objective is to provide migration paths from previously-existing
industrial communications protocols.
This specification may be used as the basis for formal DL-Programming-Interfaces.
Nevertheless, it is not a formal programming interface, and any such interface will need to
address implementation issues not covered by this specification, including
a) the sizes and octet ordering of various multi-octet service parameters, and
b) the correlation of paired request and confirm, or indication and response, primitives.
• Conformance
This standard does not specify individual implementations or products, nor does it constrain
the implementations of data-link entities within industrial automation systems.
There is no conformance of equipment to this data-link layer service definition standard.
Instead, conformance is achieved through implementation of the corresponding data-link
protocol that fulfills the Type 17 data-link layer services defined in this standard.

– 8 – 61158-3-17 © IEC:2007(E)
2 Normative reference
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For all other undated references, the
latest edition of the referenced document (including any amendments) applies.
ISO/IEC 7498-1, Information technology – Open Systems Interconnection — Basic Reference
Model: The Basic Model
ISO/IEC 7498-3, Information technology – Open Systems Interconnection — Basic Reference
Model: Naming and addressing
ISO/IEC 10731:1994, Information technology – Open Systems Interconnection – Basic
Reference Model – Conventions for the definition of OSI services
ISO/IEC 8802-3, Information technology – Telecommunications and information exchange
between systems – Local and metropolitan area networks – Specific requirements – Part 3:
Carrier sense multiple access with collision detection (CSMA/CD) access method and
physical layer specifications
Internet Engineering Task Force (IETF), Request for Comments (RFC):
RFC 826 Ethernet Address Resolution Protocol
(available at )
3 Definitions
For the purposes of this document, the following terms and definitions apply.
3.1 Terms and definitions
3.1.1 ISO/IEC 10731 terms
a) (N)-connection
b) (N)-entity
c) (N)-layer
d) (N)-service
e) (N)-service-access-point
f) confirm (primitive)
g) deliver (primitive)
h) indication (primitive)
i) request (primitive)
j) response (primitive)
3.1.2 Other terms and definitions
3.1.2.1
bridge
intermediate equipment that connects two or more segments using a data-link layer relay
function
3.1.2.2
domain
part of the RTE network consisting of one or two subnetwork(s)
NOTE Two subnetworks are required to compose a dual-redundant RTE network, and each end node in the
domain is connected to both of the subnetworks.

61158-3-17 © IEC:2007(E) – 9 –
3.1.2.3
domain master
station which performs diagnosis of routes to all other domains, distribution of network time to
nodes inside the domain, acquisition of absolute time from the network time master and
notification of status of the domain
3.1.2.4
domain number
numeric identifier which indicates a domain
3.1.2.5
external bridge
bridge to which neither internal bridges nor RTE stations are connected directly
3.1.2.6
interface port
physical connection point of an end node, which has an independent DL-address
3.1.2.7
internal bridge
bridge to which no routers, external bridges or nodes non-compliant with this specification are
connected directly
3.1.2.8
junction bridge
bridge to which at least one router, external bridge or node non-compliant with this
specification, and to which at least one internal bridge or RTE station is connected
3.1.2.9
link
physical communication channel between two nodes
3.1.2.10
network time master
station which distributes network time to domain masters
3.1.2.11
non-redundant interface node
node which has a single interface port
3.1.2.12
non-redundant station
station that consists of a single end node
NOTE “non-redundant station” is synonymous with “end node”.
3.1.2.13
path
logical communication channel between two nodes, which consists of one or two link(s)
3.1.2.14
redundant interface node
node with two interface ports one of which is connected to a primary network, while the other
is connected to a secondary network
3.1.2.15
redundant station
station that consists of a pair of end nodes

– 10 – 61158-3-17 © IEC:2007(E)
NOTE Each end node of a redundant station has the same station number, but has a different DL-address.
3.1.2.16
route
logical communication channel between two communication end nodes
3.1.2.17
router
intermediate equipment that connects two or more subnetworks using a network layer relay
function
3.1.2.18
RTE station
station with real-time capability
3.1.2.19
segment
communication channel that connects two nodes directly without intervening bridges
3.1.2.20
station
end node or a pair of end nodes that perform a specific application function
3.1.2.21
station number
numeric identifier which indicates a RTE station
3.1.2.22
subnetwork
part of a network that does not contain any routers. A subnetwork consists of end nodes,
bridges and segments
NOTE Every end node included in a subnetwork has the same IP network address.
3.2 Abbreviations and symbols
3.2.1 ISO/IEC 10731 abbreviations
OSI  Open Systems Interconnection
3.2.2 Other abbreviations and symbols
ASS Acknowledged sequence of unitdata transfer service
AUS Acknowledged unitdata transfer service
cnf Confirmation primitive
DL- Data-link layer (as a prefix)
DLE DL-entity (the local active instance of the data-link layer)
DLL DL-layer
DLM DL-management
DLMS DL-management service
DLPDU DL-protocol-data-unit
DLS DL-service
DLSAP DL-service-access-point
DLSDU DL-service-data-unit
FIFO First-in first-out (queuing method)
ind Indication primitive
61158-3-17 © IEC:2007(E) – 11 –
IP Internet protocol
ISO International Organization for Standardization
PDU Protocol data unit
MSS Multipoint sequence of unitdata transfer service
MUS Multipoint unitdata transfer service
QoS Quality of service
req Request primitive
rsp Response primitive
SAP Service access point
SDU Service data unit
ToS Type of service
UUS Unacknowledged unitdata transfer service
3.3 Conventions
This standard uses the descriptive conventions given in ISO/IEC 10731.
The service model, service primitives, and time-sequence diagrams used are entirely abstract
descriptions; they do not represent a specification for implementation.
Service primitives, used to represent service user/service provider interactions (see
ISO/IEC 10731), convey parameters that indicate information available in the user/provider
interaction.
This standard uses a tabular format to describe the component parameters of the DLS
primitives. The parameters that apply to each group of DLS primitives are set out in tables
throughout the remainder of this standard. Each table consists of up to six columns,
containing the name of the service parameter, and a column each for those primitives and
parameter-transfer directions used by the DLS:
⎯ the request primitive’s input parameters;
⎯ the request primitive’s output parameters;
⎯ the indication primitive’s output parameters;
⎯ the response primitive’s input parameters; and
⎯ the confirm primitive’s output parameters.
NOTE  The request, indication, response and confirm primitives are also known as requestor.submit,
acceptor.deliver, acceptor.submit, and requestor.deliver primitives, respectively (see ISO/IEC 10731).
One parameter (or part of it) is listed in each row of each table. Under the appropriate service
primitive columns, a code is used to specify the type of usage of the parameter on the
primitive and parameter direction specified in the column:
M — parameter is mandatory for the primitive.
U — parameter is a User option, and may or may not be provided depending
on the dynamic usage of the DLS-user. When not provided, a default
value for the parameter is assumed.
C — parameter is conditional upon other parameters or upon the environment
of the DLS-user.
(blank) — parameter is never present.
Some entries are further qualified by items in brackets. These may be

– 12 – 61158-3-17 © IEC:2007(E)
a) a parameter-specific constraint
(=) indicates that the parameter is semantically equivalent to the parameter in the
service primitive to its immediate left in the table;
b) an indication that some note applies to the entry
(n) indicates that the following note n contains additional information pertaining to the
parameter and its use.
In any particular interface, not all parameters need be explicitly stated. Some may be
implicitly associated with the DLSAP at which the primitive is issued.
In the diagrams which illustrate these interfaces, dashed lines indicate cause-and-effect or
time-sequence relationships, and wavy lines indicate that events are roughly
contemporaneous.
4 Overview of the data-link layer service
4.1 General
The data-link service (DLS) provides transparent and reliable data transfer between DLS-
users. It makes the way that supporting communication resources are utilized invisible to
DLS-users.
In particular, the DLS provides the following.
a) Independence from the underlying Physical Layer. The DLS relieves DLS-users from all
direct concerns regarding which configuration is available (for example, direct connection,
or indirect connection through one or more bridges) and which physical facilities are used
(for example, which of a set of diverse physical paths).
b) Transparency of transferred information. The DLS provides the transparent transfer of
DLS-user-data. It does not restrict the content, format or coding of the information, nor
does it ever need to interpret the structure or meaning of that information. It may, however,
restrict the amount of information that can be transferred as an indivisible unit.
c) Reliable data transfer. The DLS relieves the DLS-user from concerns regarding insertion
or corruption of data, or, if requested, loss, duplication or misordering of data, which can
occur. In some cases of unrecovered errors in the data-link layer, duplication or loss of
DLSDUs can occur. In cases where protection against misordering of data is not
employed, misordering can occur.
d) Quality of Service (QoS) selection. The DLS provides DLS-users with a means to request
and to agree upon a quality of service for the data transfer. QoS is specified by means of
QoS parameters representing aspects such as mode of operation, transit delay, accuracy,
reliability, security and functional safety.
e) Addressing. The DLS allows the DLS-user to identify itself and to specify the DLSAPs
to/from which data are to be transferred.
f) Scheduling. The DLS allows the set of DLS-users to provide some guidance on internal
scheduling of the distributed DLS-provider. This guidance supports the time-critical
aspects of the DLS, by permitting the DLS-user some degree of management over when
opportunities for communication will be granted to various DLEs for various DLSAP-
addresses.
g) Common time sense. The DLS can provide the DLS-user with a sense of time that is
common to all DLS-users on the network.
h) Queues. The DLS can provide the sending or receiving DLS-user with a FIFO queue,
where each queue item can hold a single DLSDU.

61158-3-17 © IEC:2007(E) – 13 –
4.2 Overview of network structure
Although the DLS conforms formally to the “three-layer” Fieldbus Reference Model, it actually
utilizes the transport layer service and the network layer service in addition to the data-link
layer service of the OSI Basic Reference Model. The DLS of this specification is actually a
transport layer service in terms of the OSI Basic Reference Model. Thus the network may
consist of one or more subnetworks interconnected to each other by the network layer relay
entities, known as routers.
A network may be a redundant structure. A redundant network consists of two independent
networks making dual-redundancy; they are referred to as the primary network and the
secondary network. Consequently, dual-redundant independent logical communication
channels between two communication end nodes can be implemented. This logical channel is
called a route.
A pair of subnetworks comprising a dual-redundant network is called a domain.
A subnetwork consists of one or more segments interconnected by DL-relay entities, known
as bridges. The topology of a subnetwork may be a tree, a ring or a mesh consisting of
segments interconnected by bridges.
A segment consists of one or more DLEs, all of which are connected directly (i.e., without
intervening DL-relay entities) to a single shared logical communication channel, which is
called a link.
A path (logical communication channel) consists of one or two physically independent and
logically parallel real communication channels, which are called links.
4.3 Overview of addressing
domain number
numeric identifier that indicates a domain. Two subnetworks comprising a dual-redundant
domain have an identical domain number.
station number
numeric identifier that indicates a RTE station. Two end nodes comprising a dual-redundant
station have an identical station number.
TSAP address
DL-entity actually provides transport layer services, so DLS is provided at TSAPs. TSAP is
identified by a set of TSAP-address (IP-address) and TSAP-identifier (UDP port number)
IP address
unique address for each end node. An IP address consists of a network address portion and a
host address portion. The network address is assigned according to the domain number, while
the host address is assigned based on the station number. Each end node of a dual-
redundant station has a different host address
MAC address
MAC address is a unique address for an end node defined in ISO/IEC 8802-3. The destination
MAC address is resolved by the mechanism defined in RFC 826 from the destination IP
address
4.4 Types of data-link service
There are three types of DLS as follows:
a) a DLSAP management service;
b) a connectionless-mode data transfer service;
c) a DL-management service.
– 14 – 61158-3-17 © IEC:2007(E)
5 DLSAP management service
5.1 Overview
This clause provides a conceptual definition of the services provided by the DLS-provider to
the DLS-user(s). This clause does not constrain the actual implementations of the interactions
at the DLS-provider to the DLS-user interface.
5.2 Facilities of the DLSAP management service
The DLS provides the following facilities to the DLS-user:
a) a means for creating and deleting a FIFO queue of specified depth;
b) a means for assigning a DLSAP-address to the DLSAP;
c) a means for binding previously created FIFO queues to each potential direction of
connectionless data transfer at the specified DLSAP;
d) a means for specifying QoS parameters of the specified DLSAP;
e) a means for releasing resources used previously for the DLSAP.
5.3 Model of the DLSAP management service
This standard uses the abstract model for a layer service defined in ISO/IEC 10731, Clause 5.
The model defines interactions between the DLS-user and the DLS-provider that take place at
a DLSAP. Information is passed between the DLS-user and the DLS-provider by DLS
primitives that convey parameters.
The DLSAP management primitives are used to provide a local service between a DLS-user
and the local DLE. Remote DLEs and remote DLS-users are not involved direct, so there is no
need for the other primitives of ISO/IEC 10731. Therefore the DLSAP management services
are provided by request primitives with input and output parameters.
5.4 Sequence of primitives at one DLSAP
115HTable 1 is a summary of the DLSAP management primitives and parameters. The major
sequence of primitives at a single DLE is shown in 116HFigure 1.
Table 1 – Summary of DLSAP management primitives and parameters
Service Primitive Parameter
queue creation DL-CREATE request (in Queue DLS-user-identifier,
Maximum DLSDU size,
Maximum queue depth,
out Status,
Queue DL-identifier)
queue deletion DL-DELETE request (in Queue DL-identifier,
out Status)
DLSAP activation DL-BIND request (in DLSAP-address DLS-user-identifier,
Sending queue DL-identifier
Receiving queue DL-identifier,
QoS parameters,
out Status,
DLSAP-address DL-identifier)
DLSAP deactivation DL-UNBIND request (in DLSAP-address DL-identifier
out Status)
61158-3-17 © IEC:2007(E) – 15 –
DL-CREATE request
DL-BIND request
DL-UNITDATA request
or
DL-UNITDATA indication
DL-UNBIND request
DL-DELETE request
Figure 1 – Sequence of primitives for the DLSAP management DLS
5.5 Create
5.5.1 Function
The create queue DLS primitive may be used to create a limited-depth FIFO queue for later
constrained association with a DLSAP. The resulting FIFO queue initially will be empty.
5.5.2 Types of parameter
117HTable 2 lists the primitive and parameters of the create queue DLS.
Table 2 – DLSAP-management CREATE primitive and parameters
DL-CREATE Request
Parameter name input output
Queue DLS-user-identifier M
Maximum DLSDU size M
Maximum queue depth M
Status M
Queue DL-identifier C
5.5.2.1 Queue DLS-user-identifier
This parameter specifies a means of referring to the queue in output parameters of other local
DLS primitives that convey the name of the queue from the local DLE to the local DLS-user.
The naming-domain of the queue DLS-user-identifier is the DLS-user’s local-view.
5.5.2.2 Maximum DLSDU size
This parameter specifies an upper bound on the size (in octets) of DLSDUs that can be put
into the queue.
5.5.2.3 Maximum queue depth
This parameter specifies the maximum number of items in the associated queue.

– 16 – 61158-3-17 © IEC:2007(E)
5.5.2.4 Status
This parameter allows the DLS-user to determine whether the requested DLS was provided
successfully, or failed for the reason specified. The possible value conveyed in this parameter
is as follows:
a) “success”;
b) “failure — insufficient resources”;
c) “failure — parameter violates management constraint”;
d) “failure — number of requests violates management constraint”; or
e) “failure — reason unspecified”.
NOTE  Addition to, or refinement of, this list of values to convey more specific diagnostic and management
information is permitted.
5.5.2.5 Queue DL-identifier
This parameter is present when the Status parameter indicates that the DL-CREATE request
primitive was successful. The queue DL-identifier parameter gives the local DLS-user a
means of referring to the queue in input parameters of other local DLS primitives that convey
the name of the queue from the local DLS-user to the local DLE.
5.6 Delete
5.6.1 Function
The delete queue DLS primitive may be used to delete a queue created by an earlier create
queue DLS primitive.
5.6.2 Types of parameter
118HTable 3 lists the primitive and parameters of the delete queue DLS.
Table 3 – DLSAP-management DELETE primitive and parameters
DL-DELETE Request
Parameter name input output
Queue DL-identifier M
Status M
5.6.2.1 Queue DL-identifier
This parameter specifies the local queue to be deleted. Its value is the queue DL-identifier
returned by a successful prior DL-CREATE request primitive. The DLS-provider will release the
local DL-identifier and associated DLS-provider resources.
The DLS-user may not delete a queue that is still associated with a DLSAP.
5.6.2.2 Status
This parameter allows the DLS-user to determine whether the requested DLS was provided
successfully or failed for the reason specified. The value conveyed in this parameter is as
follows:
a) “success”;
b) “failure — resource in use”; or
c) “failure — reason unspecified”.
NOTE  Addition to, or refinement of, this list of values to convey more specific diagnostic and management
information is permitted.
61158-3-17 © IEC:2007(E) – 17 –
5.7 Bind
5.7.1 Function
The bind DLSAP-address DLS primitive is used
a) to associate a DLSAP-address with the DLSAP at which the primitive is invoked;
b) to associate previously created limited depth FIFO queues with the various priorities and
directions of potential data transfer at the specified DLSAP-address; and
c) to specify values for some Quality of Service (QoS) attributes for connectionless data
transfer services using the specified DLSAP-address.
5.7.2 Types of parameter
119HTable 4 lists the primitive and parameters of the Bind DLSAP-address DLS.
Table 4 – DLSAP management BIND primitive and parameters
DL-BIND Request
Parameter name input output
DLSAP-address DLS-user-identifier M
Sending queue DL-identifier M
Receiving queue DL-identifier M
QoS parameters
DL Service subtype M
DLL maximum confirm delay U
DLL priority U
Authentication level U
Maximum residual error rate U
Transmission Timing Window U
Status M
DLSAP-address DL-identifier C

5.7.2.1 DLSAP-address DLS-user-identifier
This parameter specifies a means of referring to the DLSAP-address in output parameters of
other local DLS primitives that convey the name of the DLSAP-address from the local DLE to
the local DLS-user.
5.7.2.2 Sending queue DL-identifier
This parameter specifies the local DL-identifier for sending, which has been returned by a successful
prior DL-CREATE request primitive that created a queue, which has not yet been deleted.
5.7.2.3 Receiving queue DL-identifier
This parameter specifies the local DL-identifier for receiving, which has been returned by a
successful prior DL-CREATE request primitive that created a queue, which has not yet been
deleted.
5.7.2.4 QoS parameters
The DLS-user may specify values for some of the QoS parameters that apply to
connectionless data transmission. If a value is not specified, the default value set by DL-
management is applied for the DLSAP

– 18 – 61158-3-17 © IEC:2007(E)
5.7.2.5 DL Service subtype
This parameter specifies service subtype of the DLSAP, and the value conveyed in this
parameter is as follows.
a) “UUS” -- Unacknowledged Unitdata transfer Service
b) “AUS” -- Acknowledged Unitdata transfer Service
c) “ASS” -- Acknowledged Sequence of unitdata transfer Service
d) “MUS” – Multipoint Unitdata transfer Service
e) “MSS” – Multipoint Sequence of unitdata transfer Service
The function of each service subtype is specified in Clause 3.
5.7.2.6 DLL maximum confirm delay
This parameter specifies the value of the maximum confirm delay.
5.7.2.7 DLL priority
This parameter specifies the value of the DLL priority.
5.7.2.8 Authentication level
This parameter specifies the level of the DLL authentication.
5.7.2.9 Maximum residual error rate
This parameter specifies a value of the permissible residual error rate.
5.7.2.10 Transmission Timing Window
This parameter specifies the timing window within the macro cycle. It consists of the starting
time in the macro cycle and the time duration when DLE is permitted to transmit DL-UNITDATA
DLPDUs.
5.7.2.11 Status
This parameter allows the DLS-user to determine whether the requested DLS was provided
successfully or failed for the reason specified. The possible value conveyed in this parameter
is as follows:
a) “success”;
b) “failure — insufficient resources”;
c) “failure — DLSAP-address invalid or unavailable”;
d) “failure — invalid queue binding”;
e) “failure — requested QoS attribute is not available”; or
f) “failure — reason unspecified”.
NOTE  Addition to, or refinement of, this list of values to convey more specific diagnostic and management
information is permitted.
5.7.2.12 DLSAP-address DL-identifier
The DLSAP-address DL-identifier parameter is present when the status parameter indicates
that the DL-BIND request primitive was successful. The DLSAP-address DL-identifier
parameter gives the local DLS-user a means of referring to the DLSAP-address in input
parameters of other local DLS primitives that convey the name of the DLSAP-address from
the local DLS-user to the local DLE.

61158-3-17 © IEC:2007(E) – 19 –
The naming-domain of the DLSAP-address DL-identifier is the DL-local-view.
5.8 Unbind
5.8.1 Function
The unbind DLSAP-address DLS primitive is used to unbind a DLSAP-address from the
invoking DLSAP. Any queues that were bound explicitly to the DLSAP-address are also
unbound from that DLSAP-address at the same time.
5.8.2 Types of parameter
120HTable 5 lists the primitive and parameter of the unbind DLSAP-address DLS.
Table 5 – DLSAP management UNBIND primitive and parameter
DL-UNBIND Request
Parameter name input output
DLSAP-address DL-identifier M
Status M
5.8.2.1 DLSAP-address DL-identifier
This parameter specifies the local DL-identifier returned by a successful prior DL-BIND request
primitive. The DLS-provider unbinds the local DL-identifier, its associated DLSAP-address,
and any associated queues from the invoking DLSAP and terminates all outstanding DL-
UNITDATA requests associated with that DLSAP-address.
5.8.2.2 Status
This parameter allows the DLS-user to determine whether the requested DLS was provided
successfully, or failed for the reason specified. The possible value conveyed in this parameter
is as follows:
a) “success”;
b) “failure – reason unspecified”.
NOTE  Addition to, or refinement of, this list of values to convey more specific diagnostic and management
information is permitted.
6 Connectionless-mode data-link service
6.1 Overview
This clause provides a conceptual definition of the services provided by the DLS-provider to
the DLS-
...
