EN 61076-3-112:2006

SLOVENSKI SIST EN 61076-3-112:2006

STANDARD
oct 2006
Konektorji za elektronsko opremo – 3-112. del: Pravokotni konektorji –
Podrobna specifikacija za pravokotne konektorje s štirimi kontakti za visoko
zmogljivo serijsko vodilo za porabniško avdio/video opremo (IEC 61076-3-
112:2006)
Connectors for electronic equipment – Part 3-112: Rectangular connectors – Detail
specification for rectangular connectors with four contacts for high performance
serial bus for consumer audio/video equipment (IEC 61076-3-112:2006)
ICS 31.220.10 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

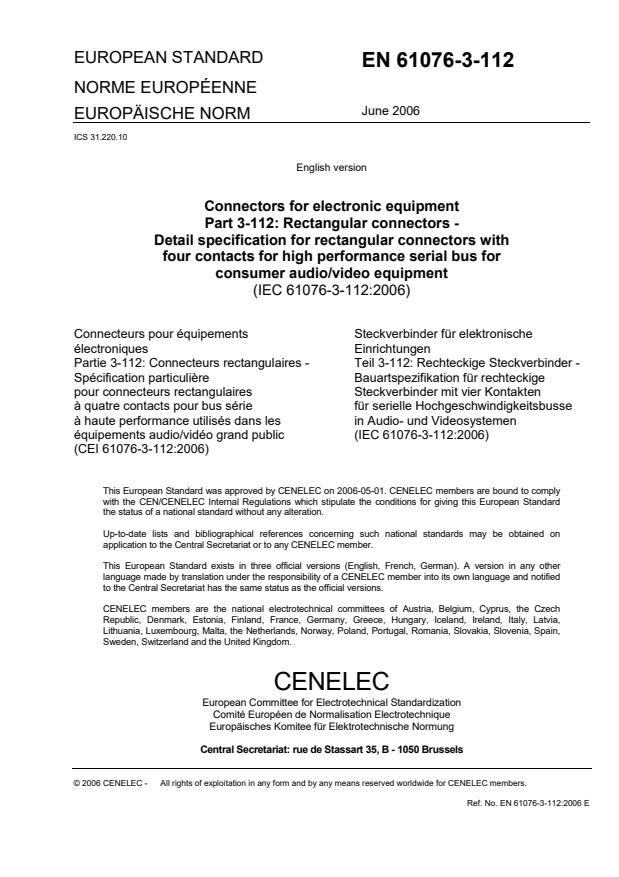

EUROPEAN STANDARD
EN 61076-3-112
NORME EUROPÉENNE
June 2006
EUROPÄISCHE NORM
ICS 31.220.10
English version
Connectors for electronic equipment
Part 3-112: Rectangular connectors -
Detail specification for rectangular connectors with
four contacts for high performance serial bus for
consumer audio/video equipment
(IEC 61076-3-112:2006)
Connecteurs pour équipements Steckverbinder für elektronische
électroniques Einrichtungen
Partie 3-112: Connecteurs rectangulaires - Teil 3-112: Rechteckige Steckverbinder -
Spécification particulière Bauartspezifikation für rechteckige
pour connecteurs rectangulaires Steckverbinder mit vier Kontakten
à quatre contacts pour bus série für serielle Hochgeschwindigkeitsbusse
à haute performance utilisés dans les in Audio- und Videosystemen
équipements audio/vidéo grand public (IEC 61076-3-112:2006)
(CEI 61076-3-112:2006)
This European Standard was approved by CENELEC on 2006-05-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2006 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61076-3-112:2006 E

Foreword
The text of document 48B/1620/FDIS, future edition 1 of IEC 61076-3-112, prepared by SC 48B,
Connectors, of IEC TC 48, Electromechanical components and mechanical structures for electronic
equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 61076-3-112 on 2006-05-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2007-02-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2009-05-01
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61076-3-112:2006 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 61076-3-112:2006
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60512 Series Connectors for electronic equipment - Tests EN 60512 Series
and measurements
1) 2)
IEC 60512-1-100 - Connectors for electronic equipment - Tests EN 60512-1-100 2006
and measurements -
Part 1-100: General - Applicable publications

1) 2)
IEC 61000-4-1 - Electromagnetic compatibility (EMC) - EN 61000-4-1 2000
Part 4-1: Testing and measurement
techniques - Overview of IEC 61000-4 series

1) 2)
IEC 61000-4-2 - Electromagnetic compatibility (EMC) - EN 61000-4-2 1995
Part 4-2: Testing and measurement
techniques - Electrostatic discharge immunity
test
1) 2)
IEC 61076-1 - Connectors for electronic equipment - EN 61076-1 2006
Product requirements -
Part 1: Generic specification
IEC 61076-3 1999 Connectors for use in d.c., low-frequency EN 61076-3 2000
analogue and digital high-speed data
applications -
Part 3: Rectangular connectors with assessed
quality - Sectional specification

IEC 62197-1 2006 Connectors for electronic equipment - Quality EN 62197-1 2006
assessment requirements -
Part 1: Generic specification
1)
Undated reference.
2)
Valid edition at date of issue.

NORME CEI
INTERNATIONALE
IEC
61076-3-112
INTERNATIONAL
Première édition
STANDARD
First edition
2006-04
Connecteurs pour équipements électroniques –
Partie 3-112:
Connecteurs rectangulaires –
Spécification particulière pour connecteurs
rectangulaires à quatre contacts pour bus
série à haute performance utilisés dans les
équipements audio/vidéo grand public

Connectors for electronic equipment –
Part 3-112:
Rectangular connectors –
Detail specification for rectangular connectors
with four contacts for high performance serial
bus for consumer audio/video equipment

 IEC 2006 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
W
PRICE CODE
Commission Electrotechnique Internationale
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

61076-3-112  IEC:2006 – 3 –
CONTENTS
FOREWORD.7

1 General information .11
1.1 Scope.11
1.2 Recommended method of mounting.11
1.3 Ratings and characteristics.11
1.4 Normative references .13
1.5 Marking .13
1.6 IEC type designation.15
1.7 Ordering information.15
2 Technical information.15
2.1 Definitions .15
2.2 Survey of connector styles (see Table 1).17
2.3 Information on application.17
2.4 Contact arrangements .19
3 Dimensional information .19
3.1 General .19
3.2 Isometric view (see Figure 3) .21
3.3 Engagement (mating) information .21
3.4 Fixed connectors (see Figures 9 and 10) .31
3.5 Free connectors (see Figures 11 and 12) .33
3.6 Accessories.35
3.7 Mounting information for fixed connectors .35
3.8 Gauges .37
4 Characteristics.37
4.1 Climatic category (see Table 4).37
4.2 Electrical characteristics .37
4.3 Mechanical characteristics.39
5 Test schedule .41
5.1 General .41
5.2 Test schedules .45
6 Quality assessment procedures .59

Annex A (normative) Cable flexing test .61
Annex B (normative) Signal impedance .63
Annex C (normative) Crosstalk .67

Figure 1 – Free connector .19
Figure 2 – Fixed connector.19
Figure 3 – Isometric view .21
Figure 4 – Free connector .23
Figure 5 – Free connector section details .25
Figure 6 – Fixed connector.27
Figure 7 – Fixed connector cross section A-A .27

61076-3-112  IEC:2006 – 5 –
Figure 8 – Cross-section of free and fixed contacts .29
Figure 9 – Fixed connector, style A.31
Figure 10 – Fixed connector, style B.31
Figure 11 – Free male connector, style C .33
Figure 12 – Free male connector, style D .33
Figure 13 – Hole pattern for fixed connector, style A.35
Figure 14 – Hole pattern for fixed connector, style B.37
Figure 15 – Arrangement for contact resistance measurement.41
Figure 16 – Arrangement for vibration and shock tests .43
Figure 17 – Wiring arrangement for voltage proof and insulation resistance .43
Figure A.1– Fixture for cable flexing test.61
Figure B.1 – Signal pairs impedance setup calibration .63
Figure B.2 – Signal pairs impedance measurement configuration.65
Figure C.1 – Crosstalk setup calibration .67
Figure C.2 – Crosstalk measurement.69

Table 1 – Connector styles .17
Table 2 – Type of termination on fixed connector.31
Table 3 – Types of terminations on free connector.35
Table 4 – Performance levels .37
Table 5 – Minimum creepage and clearance distances .39
Table 6 – Test group A.45
Table 7 – Test group B.47
Table 8 – Test group C.49
Table 9 – Test group D.51
Table 10 – Test group E.53
Table 11 – Test group F .55
Table 12 – Test group G .57
Table 13 – Test group H.59
Table B.1 – Connection matrix for signal pairs impedance tests.65
Table C.1 – Connection matrix for crosstalk tests between signal pairs.71

61076-3-112  IEC:2006 – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRONIC EQUIPMENT –

Part 3-112: Rectangular connectors –
Detail specification for rectangular connectors with four contacts
for high performance serial bus for consumer audio/video equipment

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61076-3-112 has been prepared by subcommittee 48B: Connectors,
of IEC technical committee 48: Electromechanical components and mechanical structures for
electronic equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
48B/1620/FDIS 48B/1670/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

61076-3-112  IEC:2006 – 9 –
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The list of all parts of IEC 61076 series, under the general title Connectors for electronic
equipment can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
61076-3-112  IEC:2006 – 11 –
CONNECTORS FOR ELECTRONIC EQUIPMENT –

Part 3-112: Rectangular connectors –
Detail specification for rectangular connectors with four contacts
for high performance serial bus for consumer audio/video equipment

IEC SC48B – Connectors
IEC 61076-3-112
Specification available from IEC General secretariat or from

the address shown on the inside cover.

Connectors in accordance with Generic specification

IEC 61076-1
Two part connectors for
printed boards.
The fixed board connector is
suitable for mounting on
printed boards.
The free cable connector is
suitable for cable and is over
moulded or insulated with
moulded covers.
Information on the availability of components qualified to this detail specification is given in
the qualified products lists.
1 General
1.1 Scope
These connectors are designed based on IEEE standard 1394a-2000 and applicable for high
performance serial bus used for consumer audio/video equipment. These connectors consist of
fixed and free connectors having four contacts.
1.2 Recommended method of mounting
The fixed connector is mounted on the printed circuit board with surface mount solder tag and
dip solder tag having board lock.
1.2.1 Number of contacts or contact cavities
The connectors in this detail specification have four contacts.
1.3 Ratings and characteristics

Rated voltage: 10 V a.c./d.c.
Insulation resistance: 100 MΩ minimum
Climatic category: 55/085/4
61076-3-112  IEC:2006 – 13 –
1.4 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 60512 (all parts), Connectors for electric equipment – Tests and measurements
IEC 60512-1-100, Connectors for electric equipment – Tests and measurements – Part 1-100:
General – Applicable publications
IEC 61000-4-1, Electromagnetic compatibility (EMC) – Part 4-1: Testing and measurement
techniques – Overview of IEC 61000-4 series
IEC 61000-4-2, Electromagnetic compatibility (EMC) – Part 4-2: Testing and measurement
techniques – Electrostatic discharge immunity test
IEC 61076-1, Connectors for electronic equipment – Product requirements – Part 1: Generic
specification
IEC 61076-3:1999, Connectors for use in d.c., low-frequency analogue and digital high-speed
data applications – Part 3: Rectangular connectors with assessed quality – Sectional
specification
IEC 62197-1:2006, Connectors for electronic equipment – Quality assessment requirements –
Part 1: Generic specification
1.5 Marking
The connector and the package shall be marked the following information.
On the connector:
a) mark of origin (manufacturer’s name or mark);
b) mark indicating mating direction (see Figure 12).
On the package:
a) mark of origin (manufacturer’s name or mark);
b) year and month (or week) of manufacture;
c) IEC type designation (see 1.6) or manufacturer’s part number.
If a manufacturer’s part number is used, a cross-reference list between the manufacturer’s and
IEC designations should be included in the catalogue or specification sheet.

61076-3-112  IEC:2006 – 15 –
1.6 IEC type designation
The designation shall be derived from 2.5 of IEC 61076-3:

L N N N L L L L
IEC 61076-3-112
Style of connector
Fixed connectors, female, right angle
A
Fixed connectors, female, straight
B
Free connectors, male, right angle
C
Free connectors, male, straight
D
Number of contacts 004 Board retention
A Retention leg
B Others
Type of contacts
Male M
Female F
Board thickness
A 0,8 mm
Type of termination B 1,2 mm
Solder tag T C 1,6 mm
Solder bucket B D Not specified

“L” stand for letter. ”N” stands for number.
Example: IEC 61076-3-112-A004FTBA
Fixed connectors, female, right angle, 4 contacts, female contact, solder tag, board thickness
1,2 mm, retention leg.
1.7 Ordering information
For ordering connectors according to this detail specification, the type designation described in
1.6 shall be used.
The manufacturer may use his own part number, provided that a cross-reference list is made
available.
2 Technical information
2.1 Terms and definitions
No supplementary terms and definitions are used in this standard.

61076-3-112  IEC:2006 – 17 –
2.2 Survey of connector styles (see Table 1)
Table 1 – Connector styles
Style
Description
A Fixed connectors, female, shielded with metal shell, right-angle with keying feature
B Fixed connectors, female, shielded with metal shell, straight with keying feature
C Free connectors, male, shielded with metal shell, right angle with keying feature and wire
termination
D Free connectors, male, shielded with metal shell, straight with keying feature and wire termination

2.3 Information on application
2.3.1 Complete connectors (pairs)
A complete connector consists of free connector and fixed connector, every connector with
metal shell having keying feature and non removable contact on 0,8 mm pitch single row.
These connectors are mainly used for consumer audio/video equipment.
2.3.2 Fixed connectors
There are two connector styles, style A and style B
...
