Primary batteries - Part 2: Physical and electrical specifications

Superseded by EN 60086-1:2007

Primärbatterien - Teil 2: Physikalische und elektrische Spezifikationen

Piles électriques - Partie 2: Spécifications physiques et électriques

Primary batteries - Part 2: Physical and electrical specifications

General Information

Status
Withdrawn
Publication Date
17-Oct-2001
Withdrawal Date
30-Sep-2004
Technical Committee
Drafting Committee
Parallel Committee
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
01-Feb-2010
Completion Date
01-Feb-2010

Relations

Buy Standard

Amendment
EN 60086-2:2002/A1:2002
English language
9 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI SIST EN 60086-2:2002/A1:2002
prva izdaja
STANDARD
september 2002
Primary batteries - Part 2: Physical and electrical specifications
ICS 29.220.10 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 60086-2/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2001
ICS 29.220.10
English version
Primary batteries
Part 2: Physical and electrical specifications
(IEC 60086-2:2000/A1:2001)
Piles électriques Primärbatterien
Partie 2: Spécifications physiques et Teil 2: Physikalische und elektrische
électriques Spezifikationen
(CEI 60086-2:2000/A1:2001) (IEC 60086-2:2000/A1:2001)
This amendment A1 modifies the European Standard EN 60086-2:2001; it was approved by CENELEC
on 2001-10-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this amendment the status of a national standard without any
alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands,
Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2001 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60086-2:2001/A1:2001 E

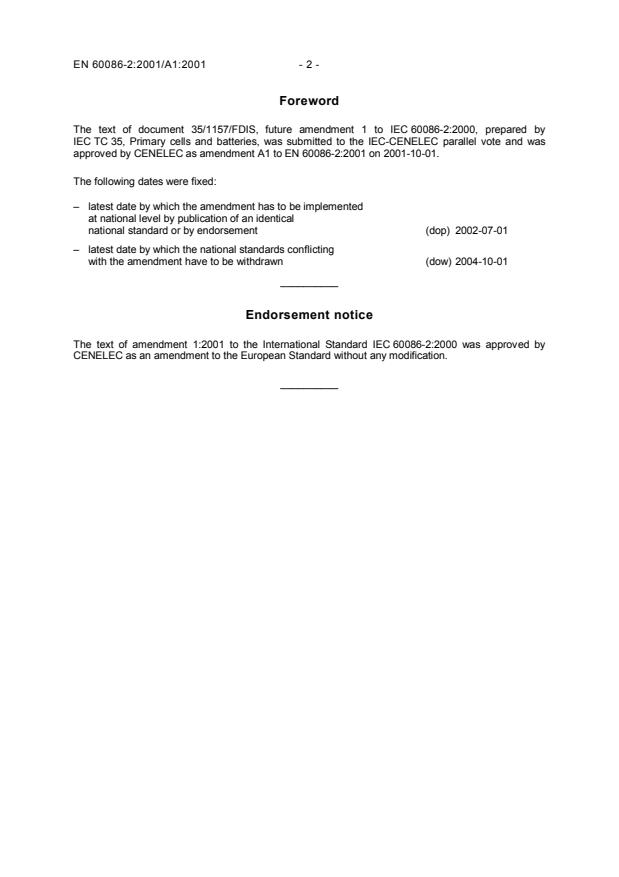

Foreword
The text of document 35/1157/FDIS, future amendment 1 to IEC 60086-2:2000, prepared by
IEC TC 35, Primary cells and batteries, was submitted to the IEC-CENELEC parallel vote and was
approved by CENELEC as amendment A1 to EN 60086-2:2001 on 2001-10-01.
The following dates were fixed:
– latest date by which the amendment has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2002-07-01
– latest date by which the national standards conflicting
with the amendment have to be withdrawn (dow) 2004-10-01
__________
Endorsement notice
The text of amendment 1:2001 to the International Standard IEC 60086-2:2000 was approved by
CENELEC as an amendment to the European Standard without any modification.
__________
INTERNATIONAL IEC
STANDARD
60086-2
AMENDMENT 1
2001-07
Amendment 1
Primary batteries –
Part 2:
Physical and electrical specifications
 IEC 2001  Copyright - all rights reserved
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http://www.iec.ch
Commission Electrotechnique Internationale
PRICE CODE
G
International Electrotechnical Commission
For price, see current catalogue

– 2 – 60086-2 Amend. 1  IEC:2001(E)
FOREWORD
This amendment has been prepared by IEC technical committee 35: Primary cells and
batteries.
The text of this amendment is based on the following documents:
FDIS Report on voting
35/1157/FDIS 35/1163/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until 2002. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
A bilingual version of this amendment may be issued at a later date.
_____________
This amendment replaces the data corresponding to R03, R6C, R6P, R6S, R14C, R14P,
R14S, R20C, R20P, R20S, LR03, LR6, LR14, LR20, 6F22, 6LR61.
Replace pages 11, 12, 13, 14 and 41 of IEC 60086-2, tenth edition, by the following new
pages:
60086-2 Amend. 1  IEC:2001(E)          – 11 –
PHYSICAL AND ELECTRICAL SPECIFICATIONS CATEGORY 1 BATTERIES
Dimensions
Discharge conditions
Electro- mm
a
Vn MAD
chemical Designation Applications
AB CE F G ∅∅P R EV
V (initial)
system
Daily period
V
Max. Min. Min. Max. Max. Min. Max. Min. Max. Ω
300 12 h 0,9 76 h Hearing aids
(see note)
R1
1,5 30,2 29,1 5,0 0,2 4,0 0,5 12,0 10,9 0,5
5,1 5 min 0,9 57 min Portable lighting
b
5,1 0,9 45 min Portable lighting
Personal cassette player
10 1 h 0,9 1,4 h
and tape recorder
R03
1,5 44,5 43,3 4,3 0,5 3,8 0,8 10,5 9,5 0,4 75 4 h 0,9 20 h Radio
15 s per min
24 1,0 4 h Remote control
8 h per day
3,6 c 0,9 120 pulses Pulse test
43 4 h 0,9 25 h Radio
3,9 1 h 0,8 47 min Motor/toy
Personal cassette player
10 1 h 0,9 3,5 h
R6C
1,5 50,5 49,2 7,0 0,5 5,5 1,0 14,5 13,5 0,5 and tape recorder
(high capacity)
15 s per min
24 1,0 10,9 h Remote control
8 h per day
1,8 c 0,9 46 pulses Pulse test
43 4 h 0,9 27 h Radio
3,9 1 h 0,8 60 min Motor/toy
Personal cassette player
10 1 h 0,9 4,1 h
R6P
1,5 50,5 49,2 7,0 0,5 5,5 1,0 14,5 13,5 0,5 and tape recorder
(high power)
15 s per min
24 1,0 11 h Remote control
8 h per day
1,8 c 0,9 75 pulses Pulse test
R6S
1,5 50,5 49,2 7,0 0,5 5,5 1,0 14,5 13,5 0,5 43 4 h 0,9 22 h Radio
(standard)
NOTE Delayed discharge performance after 12
...
