EN 50632-1:2015

SLOVENSKI STANDARD
01-december-2015
Elektromotorna orodja - Postopek meritve prahu - 1. del: Splošne zahteve
Electric motor-operated tools - Dust measurement Procedure - Part 1: General
requirement
Ta slovenski standard je istoveten z: EN 50632-1:2015
ICS:
25.140.20 (OHNWULþQDRURGMD Electric tools
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 50632-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2015
ICS 25.140.20
English Version
Electric motor-operated tools - Dust measurement Procedure -
Part 1: General requirements
Outils électriques à moteur - Procédure de mesure de la Motorbetriebene Elektrowerkzeuge - Staubmessverfahren -
poussière - Partie 1: Exigences générales Teil 1: Allgemeine Anforderungen
This European Standard was approved by CENELEC on 2015-08-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50632-1:2015 E

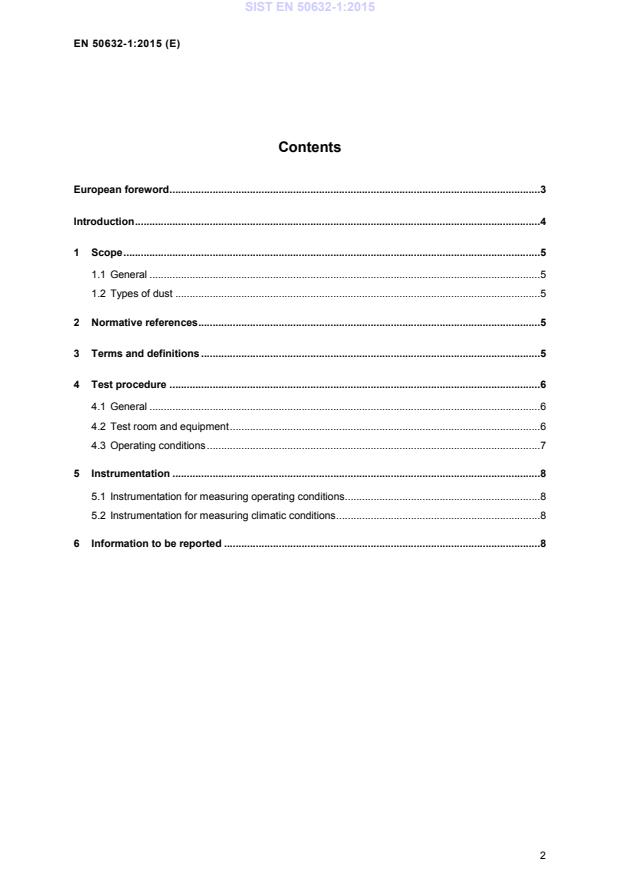

Contents
European foreword . 3
Introduction . 4
1 Scope . 5
1.1 General . 5
1.2 Types of dust . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Test procedure . 6
4.1 General . 6
4.2 Test room and equipment . 6
4.3 Operating conditions . 7
5 Instrumentation . 8
5.1 Instrumentation for measuring operating conditions . 8
5.2 Instrumentation for measuring climatic conditions . 8
6 Information to be reported . 8

European foreword
This document (EN 50632-1:2015) has been prepared by CLC/TC 116 “Safety of motor-operated
electric tools”.
The following dates are fixed:

(dop) 2016-08-03
• latest date by which this document has to be
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2017-08-03
conflicting with this document have to
be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This European Standard is divided into three parts:
Part 1: General requirements for the dust measurement which are common to electric motor-operated
tools (for the purpose of this standard referred to simply as tools);
Part 2 or 3: Requirements for the dust measurement for particular types of tools, which either
supplement or modify the requirements given in Part 1 to account for the particular characteristics of
these specific tools.
This Part 1 is to be used in conjunction with the appropriate Part 2 or 3 which contains clauses that
supplement or modify the corresponding clauses in Part 1 to provide the relevant requirements for
each type of product.
The following print types are used:
- requirements; in roman type
- test specifications: in italic type;
- notes: in smaller roman type.
The terms defined in Clause 3 are printed in bold typeface.
Introduction
Inhalable dust emitted by electric motor-operated tools may present a hazard to the operator and
other exposed persons.
Therefore, this standard specifies a procedure how to measure the dust concentration produced by an
electric power tool under standardized conditions representing typical applications. However, the dust
concentration during actual use of the power tool may differ from the dust concentration measured in
accordance with this standard depending on the ways in which the tool is used.
The results of dust measurements can be used:
- for a declaration of the dust emission;
- for comparing the dust emission from tools of the same type;
- in a preliminary assessment of dust exposure at a workplace.
For all purposes, it is important to specify measurement procedures with known accuracy so that the
results of measurements taken by different laboratories can be compared.
The measurements of dust concentration are made in accordance with the standard EN 1093-9 for
the test room.
1 Scope
1.1 General
This European Standard specifies general requirements for the dust measurement of electric motor-
operated tools supplied from mains or from batteries. This European Standard applies to those tools
with and without dust extraction unit where dust such as mineral dust containing silica or wood dust
is expected.
1.2 Types of dust
Dust is a disperse distribution of solid substances in gases, particularly air, resulting from mechanical
processes. According to EN 481, two size categories are to be differentiated: the inhalable dust and
the respirable dust fraction. Inhalable dust refers to the entire inhalable fraction of the dust through
mouth and/or nose. Respirable dust relates to the fraction of the inhalable dust that can reach the
pulmonary alveoli due to its small particle size.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 481, Workplace atmospheres - Size fraction definitions for measurement of airborne particles
EN 1093-9, Safety of machinery – Evaluation of the emission of airborne hazardous substances –
Part 9: Pollutant concentration parameter, room method
EN 13205 (all parts), Workplace exposure – Assessment of sampler performance for measurement of
airborne particle concentrations
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
dust
distribution of solid materials in gases, generated by mechanical processes
3.2
inhalable dust
dust fraction which can be taken up over the respiratory system in accordance with EN 481
3.3
respirable dust
dust fraction which can reach the alveoli and bronchia in accord
...
