Overview
EN 60811-602:2012 is a European standard developed by CLC based on the international IEC 60811-602:2012. It specifies test methods for physical evaluation of oil separation in filling compounds used in electric and optical fibre cables, focusing on non-metallic materials. This standard replaces Clause 5 of the withdrawn EN 60811-5-1:1999 + A1:2004, without technical changes. EN 60811-602:2012 must be read in conjunction with EN 60811-100:2012, which provides general testing guidelines for cable non-metallic materials.
The key aim is to assess the stability and behavior of filling compounds, crucial for cable durability and performance where oil separation can affect insulation and long-term material integrity.
Key Topics
Scope and Application
EN 60811-602:2012 applies to electric and optical fibre cables, targeting the test methods for non-metallic filling compounds. This ensures industry-wide consistency in quality control and research on cable materials.Test Methodology
The procedure involves heating the filling compound to its clarity point, filling a specialized angle box apparatus, followed by controlled cooling and reheating to 50 °C. The focus is on measuring the distance oil separates and spreads within the test box. This physical test evaluates oil migration tendencies under thermal stress.Apparatus and Procedure
The apparatus comprises an angle box with two rectangular cases made from materials that do not impede oil movement. The test involves a specific sequence:- Heating the compound to melt and stir.
- Pouring into the box and heating at about 100 °C.
- Slow cooling to room temperature over 24 hours.
- Rotating the box and reheating to 50 ± 2 °C for 24 hours.
- Measuring oil spread distance, which should not exceed 5 mm (Annex A normative requirement).
Reporting
Results and observations are documented following the guidelines in EN 60811-100:2012, ensuring standardized reporting across labs and manufacturers.Standardization and Compliance
This standard supports compliance with the Low Voltage Directive (LVD - 2006/95/EC) by defining safety-related testing for cable filling materials. It also helps manufacturers meet regulatory requirements and quality benchmarks.
Applications
Cable Manufacturing Quality Control
Ensures that filling compounds used in cable insulation and sheathing do not exhibit excessive oil separation, which can compromise electrical performance and mechanical strength.Research and Development
Supports material scientists and engineers in designing improved filling compounds with optimized oil retention, enhancing cable lifespan and reliability.Industry Standardization
By adopting EN 60811-602:2012, cable producers and testing laboratories can harmonize methods for evaluating compound stability, facilitating market access across CENELEC member countries.Optical Fibre and Energy Cables
The test method is widely applicable for all types of cables employing non-metallic filling compounds, including energy transmission, telecommunication, offshore, and shipboard cables.
Related Standards
EN 60811-100:2012: General test methods for non-metallic materials in electric and optical fibre cables. EN 60811-602 must be used in conjunction with this standard for proper application.
EN 60811-5-1 (withdrawn): The previous standard part that EN 60811-602 replaces with updated test procedures and clarifications.
IEC 60811 series: Comprehensive series of international standards defining test methods for non-metallic materials in cables; essential for material and product characterization.
Low Voltage Directive (LVD, 2006/95/EC): EN 60811-602 contributes to fulfilling the safety objectives of electrical equipment designed for specific voltage limits governed under LVD.
Keywords: EN 60811-602:2012, IEC 60811-602, cable filling compound test, oil separation tests, non-metallic materials testing, electric cables standards, optical fibre cable testing, filling compound stability, cable material quality control, angle box oil separation, CENELEC cable standards, low voltage directive compliance.
Frequently Asked Questions
EN 60811-602:2012 is a standard published by CLC. Its full title is "Electric and optical fibre cables - Test methods for non-metallic materials - Part 602: Physical tests - Separation of oil in filling compounds". This standard covers: IEC 60811-602:2012 gives the test methods for separation of oil in filling compounds. IEC 60811-602:2012 cancels and replaces Clause 5 of IEC 60811-5-1:1990, which is withdrawn. Full details of the replacements are shown in Annex A of IEC 60811-100:2012. There are no specific technical changes with respect to the previous edition, but see the Foreword to IEC 60811-100:2012. This publication is to be read in conjunction with IEC 60811-100:2012.
IEC 60811-602:2012 gives the test methods for separation of oil in filling compounds. IEC 60811-602:2012 cancels and replaces Clause 5 of IEC 60811-5-1:1990, which is withdrawn. Full details of the replacements are shown in Annex A of IEC 60811-100:2012. There are no specific technical changes with respect to the previous edition, but see the Foreword to IEC 60811-100:2012. This publication is to be read in conjunction with IEC 60811-100:2012.
EN 60811-602:2012 is classified under the following ICS (International Classification for Standards) categories: 29.035.01 - Insulating materials in general; 29.060.20 - Cables. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 60811-602:2012 has the following relationships with other standards: It is inter standard links to EN 60811-5-1:1999, EN 60811-5-1:1999/A1:2004. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 60811-602:2012 is associated with the following European legislation: EU Directives/Regulations: 2006/95/EC, 2014/35/EU. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 60811-602:2012 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2012
(OHNWULþQLLQRSWLþQLNDEOL3UHVNXãHYDOQHPHWRGH]DQHNRYLQVNHPDWHULDOH
GHO )L]LþQLSUHVNXVL/RþHYDQMHROMDL]SROQLOQLK]PHVL
Electric and optical fibre cables - Test methods for non-metallic materials - Part 602:
Physical tests - Separation of oil in filling compounds
Kabel, isolierte Leitungen und Glasfaserkabel - Prüfverfahren für nichtmetallene
Werkstoffe - Teil 602: Physikalische Prüfungen - Ölabscheidung von Füllmassen
Câbles électriques et câbles à fibres optiques - Méthodes d'essai pour les matériaux non
-métalliques - Partie 602: Essais physiques - Séparation d'huile des matières de
remplissage
Ta slovenski standard je istoveten z: EN 60811-602:2012
ICS:
29.035.01 Izolacijski materiali na Insulating materials in
splošno general
29.060.20 Kabli Cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 60811-602
NORME EUROPÉENNE
June 2012
EUROPÄISCHE NORM
ICS 29.035.01; 29.060.20 Supersedes EN 60811-5-1:1999 (partially) + A1:2004 (partially)
English version
Electric and optical fibre cables -
Test methods for non-metallic materials -
Part 602: Physical tests -
Separation of oil in filling compounds
(IEC 60811-602:2012)
Câbles électriques et à fibres optiques - Kabel, isolierte Leitungen und
Méthodes d'essai pour les matériaux non- Glasfaserkabel -
métalliques - Prüfverfahren für nichtmetallene
Partie 602: Essais physiques - Werkstoffe -
Séparation d'huile dans les matières de Teil 602: Physikalische Prüfungen -
remplissage Ölabscheidung von Füllmassen
(CEI 60811-602:2012) (IEC 60811-602:2012)
This European Standard was approved by CENELEC on 2012-04-17. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60811-602:2012 E

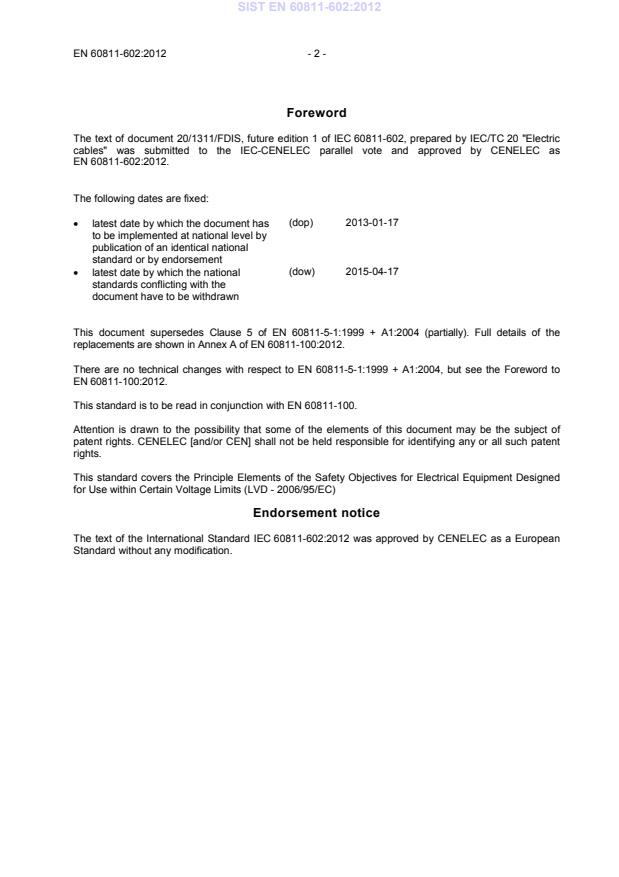

Foreword
