EN 50377-10-2:2005

STANDARDKonektorski pribor in povezovalne komponente za uporabo v komunikacijskih sistemih z optičnimi vlakni – Specifikacije izdelka – 10-2. del: Tip MU-APC, zaključen na enorodnem vlaknu kategorije B1 po IEC 60793-2Connectors sets and interconnect components to be used in optical fibre communication systems - Product specifications - Part 10-2: MU-APC single mode terminated on IEC 60793-2 category B1 fibre©
Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljenoReferenčna številkaSIST EN 50377-10-2:2005(en)ICS33.180.20

EUROPEAN STANDARD
EN 50377-10-2 NORME EUROPÉENNE EUROPÄISCHE NORM
May 2005 CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50377-10-2:2005 E
ICS 33.180.20
English version
Connectors sets and interconnect components
to be used in optical fibre communication systems – Product specifications Part 10-2: MU-APC singlemode terminated on IEC 60793-2
category B1 fibre
Jeux de connecteurs et composants d'interconnexion à utiliser dans
les systèmes de communication
par fibres optiques – Spécifications de produit Partie 10-2: Type MU-APC cablé
sur une fibre unimodale de la catégorie B1 de la CEI 60793-2
Steckverbindersätze und Verbindungs-bauelemente für Lichtwellenleiter-Datenübertragungssysteme – Produktnormen Teil 10-2: Bauart MU-APC zum Anschluss an Einmodenfasern der Kategorie B1.1 nach IEC 60793-50
This European Standard was approved by CENELEC on 2004-12-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

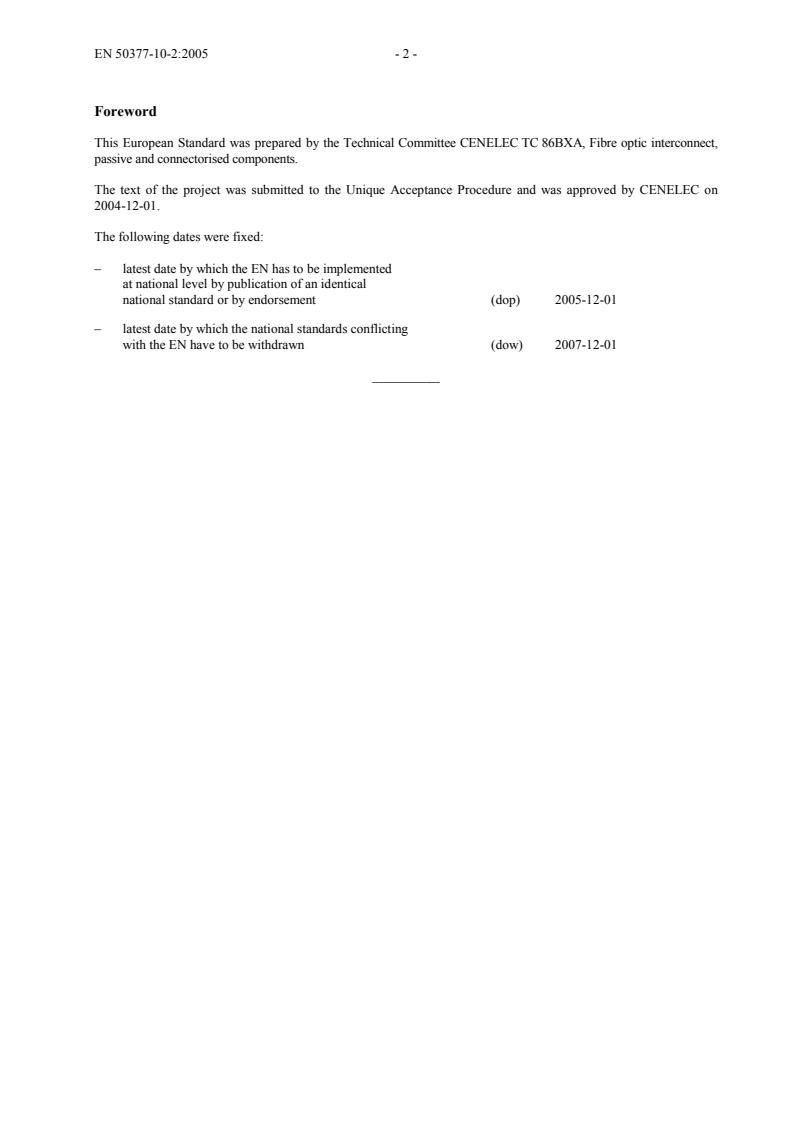

Foreword
This European Standard was prepared by the Technical Committee CENELEC TC 86BXA, Fibre optic interconnect, passive and connectorised components.
The text of the project was submitted to the Unique Acceptance Procedure and was approved by CENELEC on 2004-12-01.
The following dates were fixed:
– latest date by which the EN has to be implemented at national level by publication of an identical national standard or by endorsement
(dop)
2005-12-01 – latest date by which the national standards conflicting with the EN have to be withdrawn
(dow)
2007-12-01 __________
- 3 - EN 50377-10-2:2005
PRODUCT SPECIFICATION FOR CONNECTOR SET TO BE USED IN SINGLE MODE OPTICAL FIBRE COMMUNICATION SYSTEMS
Type: MU-APC singlemode terminated on IEC 60793-2 category B1 fibre
Description
Performance Coupling mechanism: Configuration:
Fibre category:
Cable type
push-pull
plug/adaptor/plug
IEC 60793-2-50 type B1
see Table 3
Application:
Attenuation Grades: (Random Mate)
Return Loss:
For use in EN Category U and ES 200-671 environments (see 1.3)
P: <0,35 dB mean.
<1,0 dB for >97% of measurements Q: <0,30 dB mean. <0,60 dB for >99% of measurements
V: ≥ 55 dB unmated Related documents:
IEC 61754-6
Fibre optic connector interfaces - Part 6: Type MU connector family EN 61300-series Fibre optic interconnecting devices and passive components – Basic test and measurement procedures IEC 60794-2
Optical Fibre Cables - Part 2: Indoor cables – Sectional specification IEC 61753-1-1
Fibre optic interconnecting devices and passive components performance standard – Part 1-1: General and guidance - Interconnecting devices (connectors) EN 186000
Generic Specification – connector sets for optical fibres and cables ES 200 671
Transmission and Multiplexing (TM) – Passive optical components – Optical fibre connectors for single-mode optical fibre communication systems – Common requirements and conformance testing EN 300 019-series
Equipment Engineering (EE) – Environmental conditions and environmental tests for telecommunications equipment IEC 60793-2 -50
Optical Fibre Cables - Part 2-50: Product Specifications
Outline and maximum dimensions:
66 41 5378
Contents
1 Scope.6
1.1 Product definition.6
1.2 Intermateability.6
1.3 Operating environment.6
1.4 Reliability.6
1.5 Quality assurance.6 2 Normative references.7 3 Description.8
3.1 Plug.8
3.2 Adaptor.8
3.3 Materials.8
3.4 Dimensions.8
3.5 Colour and marking.8 4 Variants.9
4.1 Terminated plug.9
4.2 Adaptor.9
4.2.1 Identification of variants.9 5 Dimensional requirements.10
5.1 Outline dimensions.10
5.1.1 Plug variants.10
5.1.2 Adaptor variants.11
5.2 Mating face and other limit dimensions.13
5.2.1 Plug.13
5.2.2 Ferrule endface geometry after termination.15
5.2.3 Positioning of fibre core centre.16
5.2.4 Control of fibre axis.17
5.2.5 Adaptor.18
5.2.6 Pin gauge for adaptor.20 6 Tests.21
6.1 Sample size.21
6.2 Test and measurement methods.21
6.3 Test sequence.21
6.4 Pass/fail criteria.21 7 Test report.21 8 Testing requirements.22
8.1 Dimensional and marking requirements.22
8.2 Optical performance requirements.22
8.3 Mechanical performance requirements.24
8.4 Environmental performance requirements.28
Annex A (normative) Reference connector details.31 Annex B (normative) Sample size and product sourcing requirements.32
Figures Figure 1 - Outline dimensions – Plug.10 Figure 2 – Outline dimensions – Adaptor.12 Figure 3 - Plug mating face and other limit dimensions.13 Figure 4 - Ferrule endface geometry after termination.15 Figure 5 - Positioning of fibre core to ferrule centre and connector key.16 Figure 6 - Allowable angle of fibre axis versus position of fibre core.17 Figure 7 - Mating face and other limit dimensions – Adaptor.18 Figure 8 - Pin gauge for adaptor.20
Tables Table 1 - Ensured level of random attenuation.6 Table 2 - Preferred colour scheme.8 Table 3 - Plug variants.9

- 5 - EN 50377-10-2:2005
Table 4 - Adaptor variants.9 Table 5 - Grade P plug variants.9 Table 6 - Grade Q plug variants.9 Table 7 - Adaptor variants.9 Table 8 - Optical performance requirements.22 Table 9 - Mechanical performance requirements.24 Table 10 - Environmental performance requirements.28

1 Scope
1.1 Product definition
This European Standard contains the initial, start of life dimensional, optical, mechanical and environmental performance requirements which a terminated and assembled singlemode resilient alignment sleeve MU-APC simplex connector set (plug adaptor plug) must meet in order for it to be categorised as an EN standard product.
Since different variants and grades of performance are permitted, product marking details are given in Section 3.5.
1.2 Intermateability
Although all products conforming to the requirements of this specification will intermate, the resulting level of random attenuation performance will only be ensured in accordance with Table 1. The intention is that this will be true irrespective of the manufacturing source(s) of the product.
In all cases, the intermating of plug variants having different attenuation or return loss grades will result in an uncertain level of random attenuation performance. When intermating plug variants having different return loss grades, the resulting level of return loss can not be assured to be any better than the worst return loss grade
Similarly, the intermating of a grade P plug with a grade Q plug will result in an uncertain level of random attenuation performance.
Table 1 - Ensured level of random attenuation
Plug variant/Attenuation grade P Q P P P Q P Q
1.3 Operating environment
The tests selected combined with the severities and durations are representative of an IEC Category U environment and the ES 200 671 environment.
1.4 Reliability
Whilst the anticipated service life expectancy of the product in this environment is 20 years, compliance with this specification does not guarantee the reliability of the product. This should be predicted using a recognised reliability assessment programme.
1.5 Quality assurance
Compliance with this specification does not guarantee the manufacturing consistency of the product. This should be maintained using a recognised quality assurance programme.

- 7 - EN 50377-10-2:2005
2 Normative references
IEC 61754-6 Fibre optic connector interfaces dimensions - Part 6: Type MU connector family EN 61300 series Fibre optic interconnecting devices and passive components - Basic test and measurement procedures (IEC 61300 series) EN 61300-2-1 Part 2-1: Tests - Vibration (sinusoidal) (IEC 61300-2-1) EN 61300-2-2 Part 2-2: Tests - Mating durability (IEC 61300-2-2) EN 61300-2-4 Part 2-4: Tests - Fibre/cable retention (IEC 61300-2-4) EN 61300-2-5 Part 2-5: Tests – Torsion/twist (IEC 61300-2-5) EN 61300-2-6 Part 2-6: Tests - Tensile strength of coupling mechanism (IEC 61300-2-6) EN 61300-2-7 Part 2-7: Tests – Bending moment (IEC 61300-2-7) EN 61300-2-12 Part 2-12: Tests – Impact (IEC 61300-2-12) EN 61300-2-17 Part 2-17: Tests – Cold (IEC 61300-2-17) EN 61300-2-18 Part 2-18: Tests - Dry heat - High temperature endurance (IEC 61300-2-18) EN 61300-2-19 Part 2-19: Tests - Damp heat (steady state) (IEC 61300-2-19) EN 61300-2-21 Part 2-21: Tests – Composite temperature-humidity cyclic test (IEC 61300-2-21) EN 61300-2-22 Part 2-22: Tests - Change of temperature (IEC 61300-2-22) EN 61300-2-26 Part 2-26: Tests – salt mist (IEC 61300-2-26) EN 61300-2-27 Part 2-27: Tests – Dust – Laminar flow (IEC 61300-2-27) EN 61300-2-42 Part 2-42: Tests - Static side load for connectors (IEC 61300-2-42) EN 61300-2-46 Part 2-46 Test Dampheat Cyclic EN 61300-3-3 Part 3-3: Examinations and measurements -
Monitoring change in attenuation and in return loss (multiple paths) (IEC 61300-3-3) EN 61300-3-4 Part 3-4: Examinations and measurements – Attenuation (IEC 61300-3-4) EN 61300-3-6 Part 3-6: Examinations and measurements - Return loss (IEC 61300-3-6) EN 61300-3-23 Part 3-23: Examination and measurements - Fibre position relative to ferrule endface (IEC 61300-3-23) EN 61300-3-28 Part 3-28: Examination and measurements - Transient loss (IEC 61300-3-28) EN 61300-3-34 Part 3-34: Examinations and measurements - Attenuation of random mated connectors (IEC 61300-3-34) EN 61753-1-1 Fibre optic interconnecting devices and passive components performance standard - Part 1-1: General and guidance - Interconnecting devices (connectors) (IEC 61753-1-1) EN 186000-1 Generic Specification: Connector sets for optical fibres and cables – Part 1: Requirements, test methods and qualification approval procedures EN 300 019-series Equipment Engineering (EE) – Environmental conditions and environmental tests for telecommunications equipment ES 200 671 Transmission and Multiplexing (TM) – Passive optical components – Optical fibre connectors for single-mode optical fibre communication systems – Common requirements and conformance testing IEC 60793-2-50 Optical fibres - Part 2-50: Product specifications – Sectional specification for class B single-mode fibres IEC 60794-2 Optical fibre cables - Part 2: Indoor cables - Sectional specification

3 Description
The MU-APC
connector is a single position plug connector set of plug adaptor plug configuration characterised by a cylindrical, spring loaded butting ferrule of 1,25 mm nominal diameter and a push-pull coupling mechanism. The optical alignment mechanism of the connectors is of a resilient sleeve style.
3.1 Plug
The plug features a cylindrical zirconia ferrule and a push-pull mechanism. It has a single male key which is used to limit and may be used to orientate, the relative rotation between mated connectors.
A cover (dustcap) to protect the ferrule endface when the connector is in the unmated condition shall be provided.
Alternative materials may be used for the ferrule that have directly compatible material properties to the specified materials but the endface and performance requirements must be met under all conditions
3.2 Adaptor
The adaptor has a zirconia ceramic resilient alignment sleeve. The mounting styles are duplex rectangular flange with snap-latches with a panel cut out as SC connector and simplex rectangular flange with snap-latches.
Covers (dustcaps) shall be provided to protect each port of the adaptor.
Alternative material may be used for the sleeve that have directly compatible material properties to zirconia but the performance requirements must be met under all conditions
3.3 Materials
Materials which are not specified or which are not specifically described are left to the discretion of the manufacturer.
3.4 Dimensions
Outline dimensions and other dimensions necessary to ensure intermateability or which affect performance are specified. All other dimensions are left to the discretion of the manufacturer. Where the mating face limit dimensions are not in agreement with an IEC Interface Standard this is clearly stated.
3.5. Colour and marking
Marking of the product shall be in accordance with 2.6.2 of EN 186000-1 in the following order of precedence:
a) Identification of manufacturer; b) Manufacturing date code: year/week; c) Manufacturers part number; d) Variant identification number;
The following colour scheme is preferred:
Table 2 - Preferred colour scheme
Adaptor Delatch Housing Green Green

- 9 - EN 50377-10-2:2005
4 Variants
4.1 Terminated plug
The following variants are permitted:
Table 3 - Plug variants
Variant No.
Fibre/Cable mm
Structure
Note
P01 ∅
0,7 - 1,4
Buffered fibre 1 Fibre P02 ∅ 1,6 ± 0,2 Reinforced Cable 1 Fibre P03 ∅ 2,0 ± 0,2 Reinforced Cable 1 Fibre Q01 ∅
0,7 - 1,4
Buffered fibre 1 Fibre Q02 ∅ 1,6 ± 0,2 Reinforced Cable 1 Fibre Q03 ∅ 2,0 ± 0,2 Reinforced Cable 1 Fibre
4.2 Adaptor
The following variants are permitted:
Table 4 - Adaptor variants
Variant No. Format A01 Simplex A02 Rectangular flange - duplex
4.2.1
Identification of variants
Table 5 - Grade P plug variants
Variant number Performance grade
(Return loss) Identification number P01 V EN 50377-10-2-P01-V P02 V EN 50377-10-2-P02-V P03 V EN 50377-10-2-P03-V
Table 6 - Grade Q plug variants
Variant number Performance grade
(Return loss) Identification number Q01 V EN 50377-10-2-Q01-V Q02 V EN 50377-10-2-Q02-V Q03 V EN 50377-10-2-Q03-V
Table 7 - Adaptor variants
Variant number Identification number A01 50377-10-2-A01 A02 50377-10-2-A02

5 Dimensional requirements
5.1 Outline dimensions
5.1.1 Plug variants
Variants No. P01/Q01
...
