Flow battery energy systems for stationary applications - Part 2-2: Safety requirements

IEC 62932-2-2:2020 applies to flow battery systems for stationary applications and their installations with a maximum voltage not exceeding 1 500 V DC in compliance with IEC 62932-1. This document defines the requirements and test methods for risk reduction and protection measures against significant hazards relevant to flow battery systems, to persons, property and the environment, or to a combination of them. This document is applicable to stationary flow battery systems intended for indoor and outdoor commercial and industrial use in non-hazardous (unclassified) areas. This document covers significant hazards, hazardous situations and events, with the exception of those associated with natural disaster, relevant to flow battery systems, when they are used as intended and under the conditions foreseen by the manufacturer including reasonably foreseeable misuse thereof. The requirements described in this document are not intended to constrain innovations. When considering fluids, materials, designs or constructions not specifically dealt with in this document, these alternatives are evaluated as to their ability to yield levels of safety equivalent to those specified in this document.

Flussbatterie-Systeme für stationäre Anwendungen – Teil 2-2: Sicherheitsanforderungen

Systèmes de production d’énergie de batteries d’accumulateurs à circulation d'électrolyte pour applications stationnaires – Partie 2-2: Exigences de sécurité

L’IEC 62932-2-2:2020 s’applique aux systèmes de batteries d’accumulateurs à circulation d’électrolyte pour les applications stationnaires et à leurs installations avec une tension maximale ne dépassant pas 1 500 V en courant continu conformément à l’IEC 62932-1. Le présent document définit les exigences et les méthodes d’essai pour la réduction du risque, ainsi que les mesures de protection contre les dangers significatifs, concernant les systèmes de batteries d’accumulateurs à circulation d’électrolyte, les personnes, les biens et l’environnement, ou une combinaison de ces facteurs. Le présent document est applicable aux systèmes de batteries d’accumulateurs à circulation d’électrolyte stationnaires destinés à une utilisation commerciale et industrielle à l’intérieur et à l’extérieur dans des emplacements (non classés) non dangereux. Le présent document couvre les dangers, ainsi que les situations et événements dangereux significatifs, à l’exception de ceux associés à une catastrophe naturelle, concernant les systèmes de batteries d’accumulateurs à circulation d’électrolyte, lorsqu’ils sont utilisés tel que prévu et dans les conditions prévues par le fabricant, y compris leur mauvaise utilisation raisonnablement prévisible. Les exigences décrites dans le présent document ne sont pas destinées à limiter les innovations. La prise en compte des fluides, matériaux, conceptions ou constructions dont le présent document ne traite pas particulièrement évalue ces variantes quant à leur capacité à produire des niveaux de sécurité équivalant à ceux spécifiés dans le présent document.

Sistemi pretočnih baterij za vgrajeno opremo - 2-2. del: Varnostne zahteve

General Information

Status
Published
Publication Date
16-Apr-2020
Current Stage
6060 - Document made available - Publishing
Start Date
17-Apr-2020
Completion Date
17-Apr-2020

Buy Standard

Standard
EN IEC 62932-2-2:2020
English language
33 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-julij-2020
Sistemi pretočnih baterij za vgrajeno opremo - 2-2. del: Varnostne zahteve
Flow Battery Systems for Stationary applications - Part 2-2: Safety requirements
Ta slovenski standard je istoveten z: EN IEC 62932-2-2:2020
ICS:
29.220.99 Drugi členi in baterije Other cells and batteries
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 62932-2-2

NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2020
ICS 29.220.99
English Version
Flow battery energy systems for stationary applications - Part 2-
2: Safety requirements
(IEC 62932-2-2:2020)
Systèmes de production d’énergie de batteries Flussbatterie-Systeme für stationäre Anwendungen - Teil 2-
d’accumulateurs à circulation d'électrolyte pour applications 2: Sicherheitsanforderungen
stationnaires - Partie 2-2: Exigences de sécurité (IEC 62932-2-2:2020)
(IEC 62932-2-2:2020)
This European Standard was approved by CENELEC on 2020-03-24. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62932-2-2:2020 E

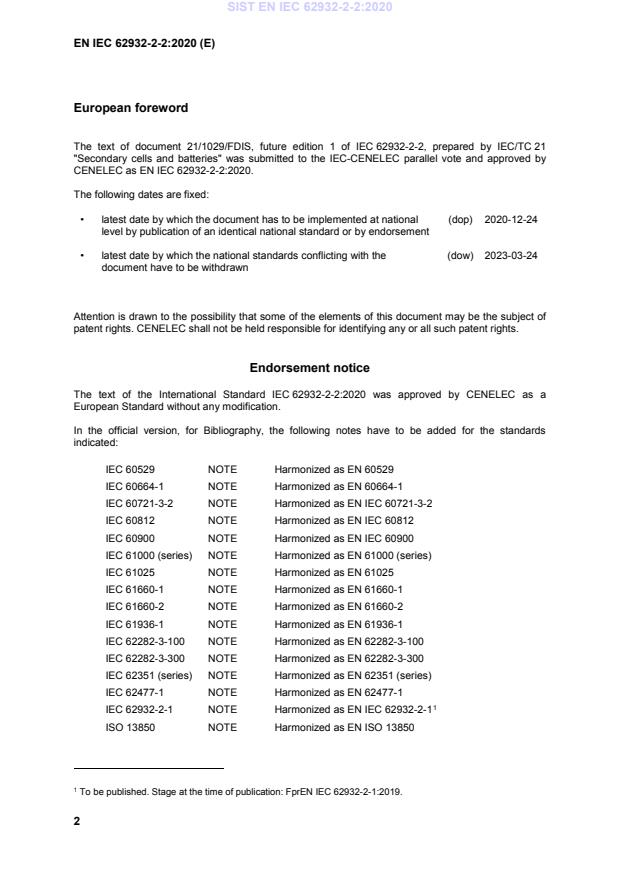

European foreword
The text of document 21/1029/FDIS, future edition 1 of IEC 62932-2-2, prepared by IEC/TC 21
"Secondary cells and batteries" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 62932-2-2:2020.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2020-12-24
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2023-03-24
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Endorsement notice
The text of the International Standard IEC 62932-2-2:2020 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60529 NOTE Harmonized as EN 60529
IEC 60664-1 NOTE Harmonized as EN 60664-1
IEC 60721-3-2 NOTE Harmonized as EN IEC 60721-3-2
IEC 60812 NOTE Harmonized as EN IEC 60812
IEC 60900 NOTE Harmonized as EN IEC 60900
IEC 61000 (series) NOTE Harmonized as EN 61000 (series)
IEC 61025 NOTE Harmonized as EN 61025
IEC 61660-1 NOTE Harmonized as EN 61660-1
IEC 61660-2 NOTE Harmonized as EN 61660-2
IEC 61936-1 NOTE Harmonized as EN 61936-1
IEC 62282-3-100 NOTE Harmonized as EN 62282-3-100
IEC 62282-3-300 NOTE Harmonized as EN 62282-3-300
IEC 62351 (series) NOTE Harmonized as EN 62351 (series)
IEC 62477-1 NOTE Harmonized as EN 62477-1
IEC 62932-2-1 NOTE Harmonized as EN IEC 62932-2-1
ISO 13850 NOTE Harmonized as EN ISO 13850

To be published. Stage at the time of publication: FprEN IEC 62932-2-1:2019.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60079-10-1 - Explosive atmospheres - Part 10-1: EN 60079-10-1 -
Classification of areas - Explosive gas
atmospheres
IEC 60364-4-41 - Low-voltage electrical installations - Part 4-41: HD 60364-4-41 -
Protection for safety - Protection against
electric shock
IEC 60364-4-43 - Low-voltage electrical installations - Part 4-43: HD 60364-4-43 -
Protection for safety - Protection against
overcurrent
IEC 60364-6 - Low voltage electrical installations - Part 6: HD 60364-6 -
Verification
IEC 61936-1 - Power installations exceeding 1 kV a.c. - Part EN 61936-1 -
1: Common rules
IEC 62485-2 2010 Safety requirements for secondary batteries EN IEC 62485-2 2018
and battery installations - Part 2: Stationary
batteries
IEC 62932-1 - Flow battery energy systems for stationary - -
applications - Part 1: Terminology and general
aspects
ISO 7010 - Graphical symbols - Safety colours and safety - -
signs - Registered safety signs

IEC 62932-2-2 ®
Edition 1.0 2020-02
INTERNATIONAL
STANDARD
Flow battery energy systems for stationary applications –

Part 2-2: Safety requirements
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.220.99 ISBN 978-2-8322-7854-3

– 2 – IEC 62932-2-2:2020 © IEC 2020
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms, definitions and abbreviated terms . 9
3.1 Terms and definitions . 9
3.2 Abbreviated terms . 9
4 Procedure of the risk analysis . 9
5 Safety requirements and protective measures . 10
5.1 General . 10
5.2 Risk information . 10
5.3 Electrical hazards . 10
5.3.1 Electrical shock . 10
5.3.2 Short-circuits . 10
5.3.3 Leakage currents . 11
5.4 Hazards of gaseous emissions . 11
5.4.1 General . 11
5.4.2 Harmful gas . 12
5.4.3 Ventilation . 13
5.4.4 Warning sign . 13
5.4.5 Close vicinity to emissions . 14
5.5 Hazard posed by liquids . 14
5.5.1 General . 14
5.5.2 Detection of electrolyte leakage . 14
5.5.3 Protective measures against leakage . 14
5.5.4 Specific information . 14
5.5.5 Flow path identification . 15
5.6 Hazards of mechanical cause . 15
5.7 Operational hazards and measures . 15
5.7.1 General . 15
5.7.2 Start . 15
5.7.3 Remote monitoring and control systems . 16
5.7.4 Protection . 16
5.7.5 Auxiliary power failure . 16
6 Instructions . 16
7 Identification labels or marking . 16
7.1 Name plate information . 16
7.2 Warning label information and location . 17
8 Transport, storage, disposal and environmental aspects . 17
8.1 Packing and transport . 17
8.2 Dismantling, disposal, and recycling . 17
9 Inspection . 17
10 Maintenance . 18
11 Verification tests for protective measures . 18

IEC 62932-2-2:2020 © IEC 2020 – 3 –
11.1 General . 18
11.1.1 Tests . 18
11.1.2 Test object . 19
11.1.3 Test category . 19
11.2 Dielectric strength of the parts in contact with the fluid . 19
11.2.1 Requirements . 19
11.2.2 Category . 19
11.2.3 Number of samples . 19
11.2.4 Test and acceptance criteria . 19
11.3 Operational sequence . 19
11.3.1 Requirements . 19
11.3.2 Category . 19
11.3.3 Number of samples . 19
11.3.4 Test . 20
11.3.5 Acceptance criteria . 20
11.4 Emergency stop . 20
11.4.1 Requirement .
...
