EN IEC 60216-6:2023
(Main)Electrical insulating materials - Thermal endurance properties - Part 6: Determination of thermal endurance indices (TI and RTI) of an insulating material using the fixed time frame method
Electrical insulating materials - Thermal endurance properties - Part 6: Determination of thermal endurance indices (TI and RTI) of an insulating material using the fixed time frame method
This part of IEC 60216 specifies the experimental and calculation procedures for deriving the thermal endurance characteristics, temperature index (TI) and relative temperature index (RTI) of an electrical insulating material (EIM) using the "fixed time frame method (FTFM)". In this protocol, the ageing takes place for a small number of fixed times, using the appropriate number of ageing temperatures throughout each time, the properties of the specimens being measured at the end of the relevant time interval. This differs from the procedure of IEC 60216-1, where ageing is conducted at a small number of fixed temperatures, property measurement taking place after ageing times dependent on the progress of ageing. The diagnostic tests employed in the fixed time frame method are restricted to destructive tests. The method has not yet been applied to non-destructive or proof test procedures. Both the TI and the RTI determined according to the FTFM protocol are derived from experimental data obtained in accordance with the instructions of IEC 60216-1 and IEC 60216-2 as modified in this part of IEC 60216. The calculation procedures and statistical tests are modified from those of IEC 60216-3 and IEC 60216-5.
Elektroisolierstoffe - Eigenschaften hinsichtlich des thermischen Langzeitverhaltens - Teil 6: Bestimmung der thermischen Langzeitkennwerte (TI und RTI) eines Isolierstoffes unter Anwendung des Festzeitrahmenverfahrens
Matériaux isolants électriques - Propriétés d'endurance thermique - Partie 6: Détermination des indices d’endurance thermique (IT et ITR) d’un matériau isolant en utilisant la méthode de trame de durées fixes
IEC 60216-6:2022 est disponible sous forme de IEC 60216-6:2022 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente. L’IEC 60216-6:2022 spécifie les procédures expérimentales et de calcul à utiliser pour déduire les caractéristiques d’endurance thermique, l’indice de température (IT) et l’indice de température relatif (ITR) d’un matériau isolant électrique (MIE) à l’aide de la "méthode de trame de durées fixes" (FTFM - fixed time frame method). Avec ce protocole, le vieillissement se produit après un petit nombre de durées déterminées, en utilisant le nombre approprié de températures de vieillissement tout au long de chaque durée pertinente, et les propriétés des éprouvettes sont mesurées à la fin de chaque intervalle de temps. Ce protocole diffère de la procédure de l’IEC 60216-1, dans laquelle le vieillissement est effectué à un petit nombre de températures déterminées, et le mesurage des propriétés des éprouvettes est effectué après des temps de vieillissement variables en fonction de la progression du vieillissement. Les essais de diagnostic utilisés dans la méthode de trame de durées fixes sont limités aux essais destructifs. La méthode n’a pas encore été appliquée aux essais non destructifs ni aux procédures d’essais d’épreuve. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - clarification de la définition des propriétés d’indice par rapport aux propriétés d’endurance; - remaniement complet de l’Annexe G et du programme correspondant.
Elektroizolacijski materiali - Lastnosti v zvezi s toplotno vzdržljivostjo - 6. del: Ugotavljanje indeksov toplotne vzdržljivosti (TI in RTI) izolacijskega materiala z uporabo metode fiksnih časovnih okvirov (IEC 60216-6:2022)
Ta del standarda IEC 60216 določa eksperimentalne in računske postopke za izpeljavo lastnosti toplotne vzdržljivosti, toplotnega indeksa (TI) in relativnega toplotnega indeksa (RTI) elektroizolacijskega materiala (EIM) z uporabo metode »fiksnih časovnih okvirov (FTFM)«.
Po tem protokolu staranje poteka v fiksnih časovnih okvirih ob različnih temperaturah staranja skozi vsak interval, lastnosti vzorcev pa se merijo na koncu ustreznega časovnega intervala. Postopek je drugačen od tistega v standardu IEC 60216-1, kjer se staranje izvaja pri majhnem številu fiksnih temperatur, meritve lastnosti pa se izvajajo po časih staranja, ki so odvisni od napredka staranja.
Diagnostični preskusi, uporabljeni pri metodi fiksnih časovnih okvirov, so omejeni na porušitvene preskuse. Metoda še ni bila uporabljena za neporušitvene ali dokazne postopke preskušanja.
Tako toplotni indeks kot relativni toplotni indeks, določena v skladu s protokolom fiksnih časovnih okvirov, izhajata iz eksperimentalnih podatkov, dobljenih v skladu z navodili iz standardov IEC 60216-1 in IEC 60216-2, kot sta spremenjena v tem delu IEC 60216. Računski postopki in statistični preskusi dopolnjujejo postopke iz standardov IEC 60216-3 in IEC 60216-5.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2023
Elektroizolacijski materiali - Lastnosti v zvezi s toplotno vzdržljivostjo - 6. del:
Ugotavljanje indeksov toplotne vzdržljivosti (TI in RTI) izolacijskega materiala z
uporabo metode fiksnih časovnih okvirov (IEC 60216-6:2022)
Electrical insulating materials - Thermal endurance properties - Part 6: Determination of
thermal endurance indices (TI and RTI) of an insulating material using the fixed time
frame method (IEC 60216-6:2022)
Elektroisolierstoffe - Eigenschaften hinsichtlich des thermischen Langzeitverhaltens - Teil
6: Bestimmung der thermischen Langzeitkennwerte (TI und RTI) eines Isolierstoffes
unter Anwendung des Festzeitrahmenverfahrens (IEC 60216-6:2022)
Matériaux isolants électriques - Propriétés d'endurance thermique - Partie 6:
Détermination des indices d’endurance thermique (IT et ITR) d’un matériau isolant en
utilisant la méthode de trame de durées fixes (IEC 60216-6:2022)
Ta slovenski standard je istoveten z: EN IEC 60216-6:2023
ICS:
29.035.01 Izolacijski materiali na Insulating materials in
splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 60216-6
NORME EUROPÉENNE
EUROPÄISCHE NORM January 2023
ICS 17.220.99; 29.035.01 Supersedes EN 60216-6:2006
English Version
Electrical insulating materials - Thermal endurance properties -
Part 6: Determination of thermal endurance indices (TI and RTI)
of an insulating material using the fixed time frame method
(IEC 60216-6:2022)
Matériaux isolants électriques - Propriétés d'endurance Elektroisolierstoffe - Eigenschaften hinsichtlich des
thermique - Partie 6: Détermination des indices thermischen Langzeitverhaltens - Teil 6: Bestimmung der
d'endurance thermique (IT et ITR) d'un matériau isolant en thermischen Langzeitkennwerte (TI und RTI) eines
utilisant la méthode de trame de durées fixes Isolierstoffes unter Anwendung des
(IEC 60216-6:2022) Festzeitrahmenverfahrens
(IEC 60216-6:2022)
This European Standard was approved by CENELEC on 2023-01-02. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60216-6:2023 E

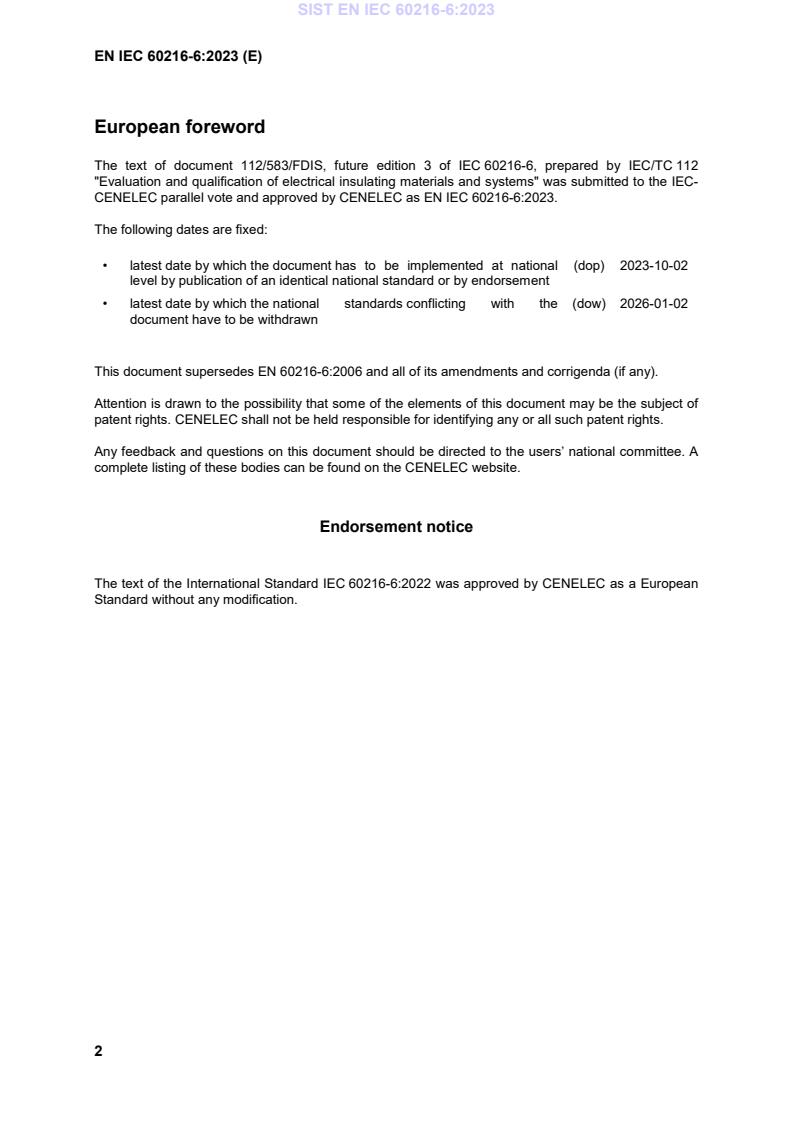

European foreword
The text of document 112/583/FDIS, future edition 3 of IEC 60216-6, prepared by IEC/TC 112
"Evaluation and qualification of electrical insulating materials and systems" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN IEC 60216-6:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-10-02
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-01-02
document have to be withdrawn
This document supersedes EN 60216-6:2006 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60216-6:2022 was approved by CENELEC as a European
Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60212 - Standard conditions for use prior to and EN 60212 -
during the testing of solid electrical
insulating materials
IEC 60216-1 2013 Electrical insulating materials - Thermal EN 60216-1 2013
endurance properties - Part 1: Ageing
procedures and evaluation of test results
IEC 60216-2 - Electrical insulating materials - Thermal EN 60216-2 -
endurance properties - Part 2:
Determination of thermal endurance
properties of electrical insulating materials
- Choice of test criteria
IEC 60216-3 2021 Electrical insulating materials - Thermal EN IEC 60216-3 2021
endurance properties - Part 3: Instructions
for calculating thermal endurance
characteristics
IEC 60216-4-1 - Electrical insulating materials - Thermal EN 60216-4-1 -
endurance properties - Part 4-1: Ageing
ovens - Single-chamber ovens
IEC 60216-4-2 - Electrical insulating materials - Thermal EN 60216-4-2 -
endurance properties - Part 4-2: Ageing
ovens - Precision ovens for use up to 300
°C
IEC 60216-4-3 - Electrical insulating materials - Thermal EN 60216-4-3 -
endurance properties - Part 4-3: Ageing
ovens - Multi-chamber ovens
IEC 60216-5 2022 Electrical insulating materials - Thermal EN 60216-5 2022
endurance properties - Part 5:
Determination of relative temperature index
(RTI) of an insulating material
IEC 60493-1 - Guide for the statistical analysis of ageing - -
test data - Part 1: Methods based on mean
values of normally distributed test results
IEC 60216-6 ®
Edition 3.0 2022-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Electrical insulating materials – Thermal endurance properties –
Part 6: Determination of thermal endurance indices (TI and RTI) of an insulating
material using the fixed time frame method
Matériaux isolants électriques – Propriétés d'endurance thermique –
Partie 6: Détermination des indices d’endurance thermique (IT et ITR) d’un
matériau isolant en utilisant la méthode de trame de durées fixes
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.220.99; 29.035.01 ISBN 978-2-8322-6022-7
– 2 – IEC 60216-6:2022 © IEC 2022
CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, symbols and abbreviated terms . 8
3.1 Terms and definitions . 8
3.2 Symbols and abbreviated terms . 11
4 FTFM protocol . 12
4.1 Principles of FTFM protocol . 12
4.2 Objective of FTFM protocol . 12
5 TI determination . 13
5.1 Ageing procedures . 13
5.2 Ageing times and temperatures . 13
5.3 Test specimens . 13
5.3.1 Preparation . 13
5.3.2 Number of specimens . 14
5.4 Diagnostic tests . 14
5.5 Selection of end-points . 15
5.6 Establishment of initial property value . 15
5.7 Ageing conditions . 15
5.7.1 Ageing ovens . 15
5.7.2 Environmental conditions . 15
5.7.3 Conditions for property measurement . 16
5.8 Procedure for ageing . 16
6 Calculation procedures . 16
6.1 General principles . 16
6.1.1 Thermal endurance calculation . 16
6.1.2 Property value – equivalent temperature transform (Calculation of
hypothetical ageing temperature derived from the value of a property) . 17
6.2 Precision of calculations . 17
6.3 Derivation of temperatures equivalent to property values . 17
6.3.1 General . 17
6.3.2 Preliminary calculations . 17
6.3.3 Regression calculations (property on temperature) . 18
6.3.4 Linearity test . 20
6.3.5 Estimation of end-point temperatures equivalent to property values . 21
6.4 Regression analysis (temperature on time) . 21
6.4.1 General . 21
6.4.2 Group means and variances . 21
6.4.3 General means and variances . 21
6.4.4 Regression . 22
6.5 Statistical tests . 23
6.5.1 Variance equality test . 23
6.5.2 Linearity test (F-test) . 24
6.5.3 Estimates of x and y and their confidence limits . 24
6.6 Thermal endurance graph . 26
7 Calculation and requirements for results . 26
IEC 60216-6:2022 © IEC 2022 – 3 –
7.1 Calculation of thermal endurance characteristics . 26
7.2 Reporting of results . 27
7.2.1 Summary of statistical tests and reporting . 27
7.2.2 Report format . 27
8 Report . 27
9 RTI de
...
