SLOVENSKI SIST EN 60086-2:2002/A2:2004

STANDARD
september 2004
Primarne baterije - 2. del: Fizične in električne specifikacije (standardizacija
CR15H270; brisanje BR17345 in PR43; preskusi za uporabo LR6, R6, LR03,
R03, LR14, R14, LR20, R20, baterije 6LR61 in 6F22; vrednosti MAD za R1)
Primary batteries - Part 2: Physical and electrical specifications (Standardisation of
CR15H270; Deletion of BR17345 and PR43; Applications tests for LR6, R6, LR03,
R03, LR14, R14, LR20, R20, 6LR61 and 6F22 batteries; MAD value for R1)
ICS 29.220.10 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 60086-2/A2
NORME EUROPÉENNE
EUROPÄISCHE NORM April 2004
ICS 29.220.10
English version
Primary batteries
Part 2: Physical and electrical specifications
(IEC 60086-2:2000/A2:2004)
Piles électriques Primärbatterien
Partie 2: Spécifications physiques Teil 2: Physikalische und elektrische
et électriques Spezifikationen
(CEI 60086-2:2000/A2:2004) (IEC 60086-2:2000/A2:2004)

This amendment A2 modifies the European Standard EN 60086-2:2001; it was approved by CENELEC
on 2004-04-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this amendment the status of a national standard without any
alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2004 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 60086-2:2001/A2:2004 E

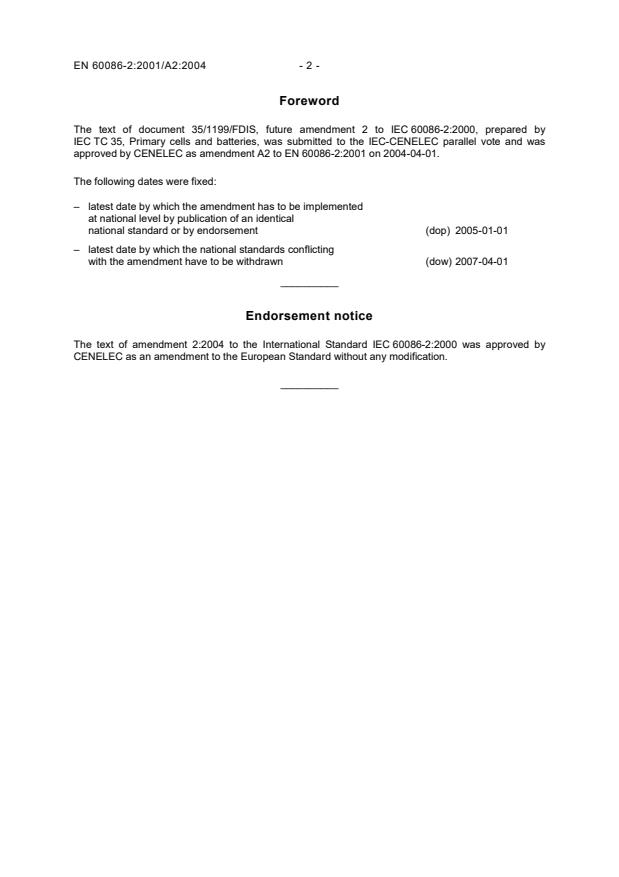

Foreword
The text of document 35/1199/FDIS, future amendment 2 to IEC 60086-2:2000, prepared by
IEC TC 35, Primary cells and batteries, was submitted to the IEC-CENELEC parallel vote and was
approved by CENELEC as amendment A2 to EN 60086-2:2001 on 2004-04-01.
The following dates were fixed:
– latest date by which the amendment has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2005-01-01
– latest date by which the national standards conflicting
with the amendment have to be withdrawn (dow) 2007-04-01
__________
Endorsement notice
The text of amendment 2:2004 to the International Standard IEC 60086-2:2000 was approved by
CENELEC as an amendment to the European Standard without any modification.
__________
INTERNATIONAL IEC
STANDARD 60086-2
AMENDMENT 2
2004-02
Amendment 2
Primary batteries –
Part 2:
Physical and electrical specifications
 IEC 2004 Droits de reproduction réservés  Copyright - all rights reserved
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale R

International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue

60086-2 Amend.2  IEC:2004(E)
– 2 –
FOREWORD
This amendment has been prepared by IEC technical committee 35: Primary cells and
batteries.
The text of this amendment is based on the following documents:
FDIS Report on voting
35/1199/FDIS 35/1203/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until 2005. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
_____________
This amendment replaces the data corresponding to addition of CR15H270, Figure 5 –
Gauge, and deletion of BR17345 and PR43, and also the data corresponding to R1, LR6,
LR14 and LR20.
Replace pages 9, 11, 12, 13, 14, 15, 16, 17, 20, 21, 24 and 28 by the following new pages
carrying the same numbers.
Insert after page 21, the new page 21bis.
Replace pages 45, 47, 48 and 50 by the following new pages carrying the same numbers.

Global replacement
Replace all footnote “a” references in the remaining unchanged tables from
a
“ Standard conditions.”
with
a
“ Standard conditions (see IEC 60086-1, 6.1, Table 4, Initial discharge test).”

– 9 –
60086-2 Amend.2  IEC:2004(E)
b) Category 2: Round batteries
CR14250, CR15H270, CR17345, CR17450
BR17335
c) Category 3: Round batteries according to figure 2 and figure 3
LR9, LR53
CR11108
d) Category 4: Round batteries according to figure 4
PR70, PR41, PR48, PR44
LR41, LR55, LR54, LR43, LR44
SR62, SR63, SR65, SR64, SR60, SR67, SR66, SR58, SR68, SR59, SR69, SR41, SR57,
SR55, SR48, SR56, SR54, SR42, SR43, SR44
CR1025, CR1216, CR1220, CR1616, CR2012, CR1620, CR2016, CR2025, CR2320,
CR2032,CR2330, CR2430, CR2354, CR3032, CR2450
BR1225, BR2016, BR2020, BR2320, BR2325, BR3032
e) Category 5: Other round batteries – Miscellaneous
R40
4LR44
2CR13252
4SR44
5AR40
f) Category 6: Non-round batteries – Miscellaneous
S4
3R12C, 3R12P, 3R12S, 3LR12
4LR61
BR-P2, CR-P2
2CR5
2EP3863
4R25X, 4LR25X
4R25Y
4R25-2, 4LR25-2
6AS4
6AS6
6F22, 6LR61
6F100
6.8 Drawings of round batteries which correspond to figures 1a and 1b, figure 2, figure 3 and
figure 4 are prepared by reduction or enlargement of the relevant original drawings. The other
drawings are prepared by reduction or enlargement of conventional specification drawings.
In each case the drawings show the shape of the relevant batteries. Dimensions for each
battery are shown in the tables.
7 Specification tables and sheets
NOTE See annex C for ease of locating battery sizes.
