EN IEC 60974-1:2022/A11:2022

SLOVENSKI STANDARD
01-februar-2023
Oprema za obločno varjenje - 1. del: Viri varilnega toka - Dopolnilo A11
Arc welding equipment - Part 1: Welding power sources
Lichtbogenschweißeinrichtungen - Teil 1: Schweißstromquellen
Matériel de soudage à l'arc - Partie 1: Sources de courant de soudage
Ta slovenski standard je istoveten z: EN IEC 60974-1:2022/A11:2022
ICS:
25.160.30 Varilna oprema Welding equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60974-1:2022/A11

NORME EUROPÉENNE
EUROPÄISCHE NORM December 2022
ICS 25.160.30
English Version
Arc welding equipment - Part 1: Welding power sources
Matériel de soudage à l'arc - Partie 1: Sources de courant Lichtbogenschweißeinrichtungen - Teil 1:
de soudage Schweißstromquellen
This amendment A11 modifies the European Standard EN IEC 60974-1:2022; it was approved by CENELEC on 2022-10-25. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 60974-1:2022/A11:2022 E

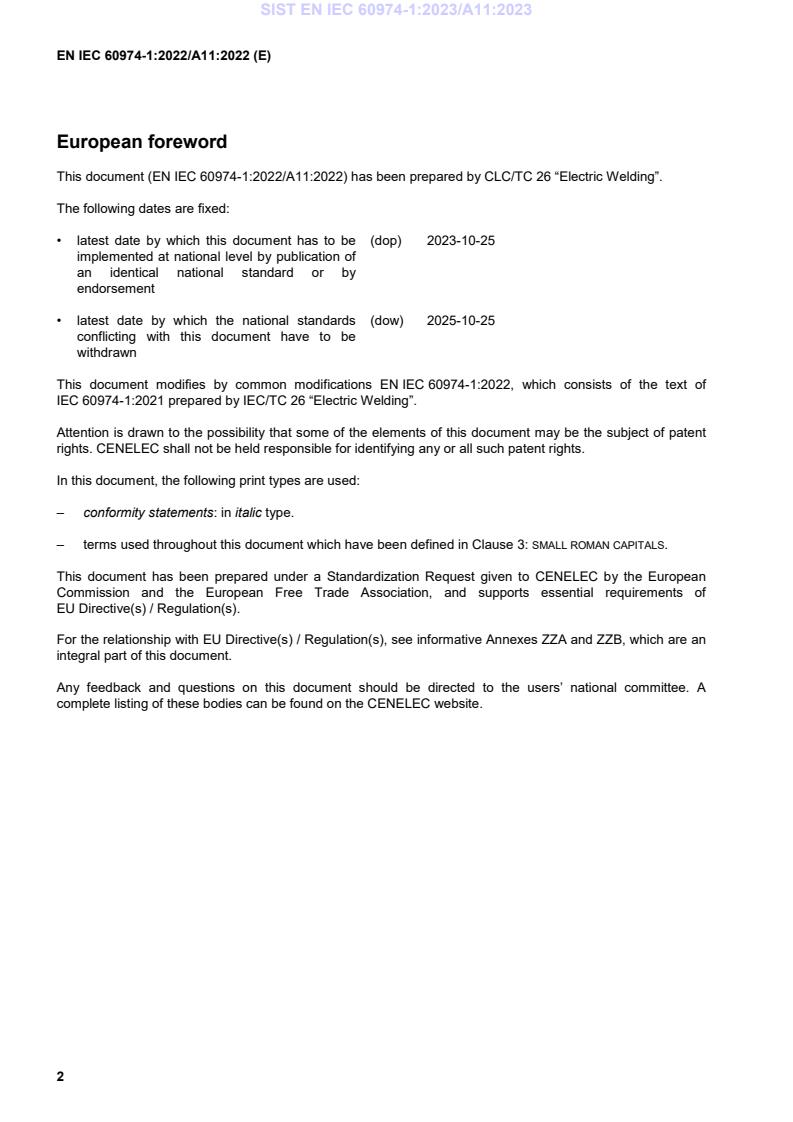

European foreword
This document (EN IEC 60974-1:2022/A11:2022) has been prepared by CLC/TC 26 “Electric Welding”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2023-10-25
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2025-10-25
conflicting with this document have to be
withdrawn
This document modifies by common modifications EN IEC 60974-1:2022, which consists of the text of
IEC 60974-1:2021 prepared by IEC/TC 26 “Electric Welding”.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
In this document, the following print types are used:
– conformity statements: in italic type.
– terms used throughout this document which have been defined in Clause 3: SMALL ROMAN CAPITALS.
This document has been prepared under a Standardization Request given to CENELEC by the European
Commission and the European Free Trade Association, and supports essential requirements of
EU Directive(s) / Regulation(s).
For the relationship with EU Directive(s) / Regulation(s), see informative Annexes ZZA and ZZB, which are an
integral part of this document.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
1 Modification to 15.3, “Contents”
Replace NOTE 1
NOTE 1 National or local regulation (e.g. Commission Regulation (EU) 2019/1784) may require to provide the year of
manufacture on the RATING PLATE. Alternative methods like decoding the traceability number or retrieving the year of
manufacture by typing the traceability number into a web-tool provided by the manufacturer, is considered to fulfil the
requirement.
with the following text:
“Commission Regulation (EU) 2019/1784 requires to provide the year of manufacture on the RATING PLATE.
Alternative methods like decoding the traceability number or retrieving the year of manufacture by typing the
traceability number into a web-tool provided by the manufacturer, is considered to fulfil the requirement.”
Replace NOTE 2
NOTE 2 In addition, this symbol, of a suitable size, can be displayed on the front of the WELDING POWER SOURCE.
with the following text:
“
NOTE 1 In addition, this symbol, of a suitable size, can be displayed on the front of the WELDING POWER SOURCE.”
Replace NOTE 3
NOTE 3 If a WELDING POWER SOURCE is fitted with a HAZARD REDUCING DEVICE, this is the voltage measured before the
HAZARD REDUCING DEVICE has performed its function.
with the following text:
“
NOTE 2 If a WELDING POWER SOURCE is fitted with a HAZARD REDUCING DEVICE, this is the voltage measured before the
HAZARD REDUCING DEVICE has performed its function.”
2 Modification to 16.3.3, “Displayed value”
Replace the NOTE
NOTE Where a display is provided, Commission Regulation (EU) 2019/1784 requires to provide indication of the use of
welding wire or filler material in g/min or equivalent standardized units of measurement, Providing the wire-feed speed in
m/min, or optionally in inch/min, is considered to fulfil the requirement.
with the following text:
“Where a display is provided, Commission Regulation (EU) 2019/1784 requires to provide indication of the
use of welding wire or filler material in g/min or equivalent standardized units of measurement. Providing the
wire-feed speed in m/min, is considered to fulfil the requirement.”
3 Modification to Annex M, “Efficiency and IDLE STATE power measurement”
Replace the heading of Annex M
Annex M
(informative)
Efficiency and IDLE STATE power measurement
with the following:
“Annex M
(normative)
Efficiency and IDLE STATE power measurement”
In M.1.3.2, “Supply voltage waveform”, replace the NOTE
NOTE Power supplies meeting IEC 61000-3-2 are likely to meet the above requirements.
with the following text:
“
NOTE Power supplies meeting IEC 61000-3-2 or IEC 61000-3-12 could meet the above requirements.”
4 Modification to the Bibliography
Add the following new entry to the Bibliography:
IEC 61000-3-12, Electromagnetic compatibility (EMC) – Part 3-12: Limits – Limits for harmonic currents
produced by equipment connected to public low-voltage systems with input current > 16 A and ≤ 75 A per
phase
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-151 2001 International Electrotechnical Vocabulary (IEV) - -
– Part 151: Electrical and magnetic devices
(available at: http://www.electropedia.org)
IEC 60050-851 2008 International Electrotechnical Vocabulary (IEV) - -
– Part 851: Electric welding (available at:
http://www.elec
...
