EUROPEAN STANDARD
EN 60335-2-68/A1
NORME EUROPÉENNE
March 2006
EUROPÄISCHE NORM
ICS 97.020 Incorporates Corrigendum December 2006

English version
Household and similar electrical appliances -
Safety
Part 2-68: Particular requirements for spray extraction appliances,
for industrial and commercial use
(IEC 60335-2-68:2002/A1:2005)
Appareils électrodomestiques  Sicherheit elektrischer Geräte für den
et analogues - Hausgebrauch und ähnliche Zwecke
Sécurité Teil 2-68: Besondere Anforderungen
Partie 2-68: Règles particulières für Sprühextraktionsmaschinen
pour les appareils de nettoyage für industrielle und gewerbliche Zwecke
par pulvérisation et aspiration, (IEC 60335-2-68:2002/A1:2005)
à usage industriel et commercial
(CEI 60335-2-68:2002/A1:2005)
This amendment A1 modifies the European Standard EN 60335-2-68:2003; it was approved by CENELEC
on 2005-12-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this amendment the status of a national standard without any
alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2006 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60335-2-68:2003/A1:2006 E

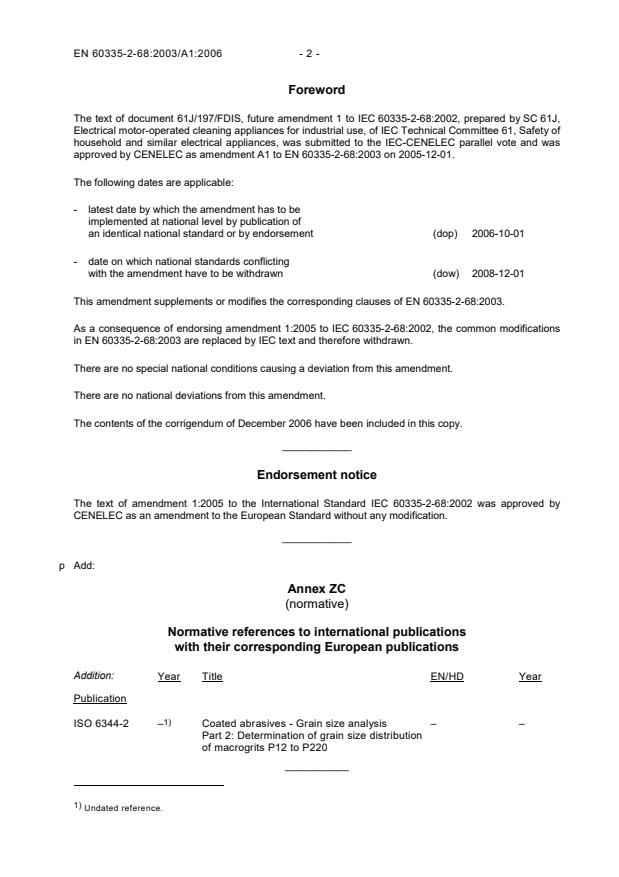

Foreword
The text of document 61J/197/FDIS, future amendment 1 to IEC 60335-2-68:2002, prepared by SC 61J,
Electrical motor-operated cleaning appliances for industrial use, of IEC Technical Committee 61, Safety of
household and similar electrical appliances, was submitted to the IEC-CENELEC parallel vote and was
approved by CENELEC as amendment A1 to EN 60335-2-68:2003 on 2005-12-01.
The following dates are applicable:
- latest date by which the amendment has to be
implemented at national level by publication of
an identical national standard or by endorsement (dop) 2006-10-01
- date on which national standards conflicting
with the amendment have to be withdrawn (dow) 2008-12-01
This amendment supplements or modifies the corresponding clauses of EN 60335-2-68:2003.
As a consequence of endorsing amendment 1:2005 to IEC 60335-2-68:2002, the common modifications
in EN 60335-2-68:2003 are replaced by IEC text and therefore withdrawn.
There are no special national conditions causing a deviation from this amendment.
There are no national deviations from this amendment.
The contents of the corrigendum of December 2006 have been included in this copy.
____________
Endorsement notice
The text of amendment 1:2005 to the International Standard IEC 60335-2-68:2002 was approved by
CENELEC as an amendment to the European Standard without any modification.
____________
p Add:
Annex ZC
(normative)
Normative references to international publications
with their corresponding European publications
Addition:
Year Title EN/HD Year
Publication
1)
ISO 6344-2 – Coated abrasives - Grain size analysis – –
Part 2: Determination of grain size distribution
of macrogrits P12 to P220
___________
1)
Undated reference.
INTERNATIONAL IEC
STANDARD 60335-2-68
AMENDMENT 1
2005-10
Amendment 1
Household and similar electrical appliances –
Safety –
Part 2-68:
Particular requirements for spray extraction
appliances, for industrial and commercial use

 IEC 2005 Droits de reproduction réservés  Copyright - all rights reserved
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale L

International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue

– 2 – 60335-2-68 Amend. 1  IEC:2005(E)
FOREWORD
This amendment has been prepared by subcommittee 61J: Electrical motor-operated cleaning
appliances for industrial use, of IEC technical committee 61: Safety of household and similar
electrical appliances.
The text of this amendment is based on the following documents:
FDIS Report on voting
61J/197/FDIS 61J/210/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
CONTENTS
Add, in the list of figures, the titles of the new Figures 102 to 105 as follows:
Figure 102 – Apparatus for testing the abrasion resistance of current-carrying hoses
Figure 103 – Apparatus for testing the resistance to flexing of current-carrying hoses
Figure 104 – Configuration of the hose for the freezing treatment
Figure 105 – Flexing positions for the hose after removal from the freezing cabinet
FOREWORD
Add to the list of differences existing in some countries the following new item:
– 7.12: No requirements for sound marking exist (USA).

INTRODUCTION
Replace the second sentence of the second paragraph by the following:
It also covers abnormal situations that can be expected in practice and takes into account the
way in which electromagnetic phenomena can affect the safe operation of appliances.

60335-2-68 Amend. 1  IEC:2005(E) – 3 –
2 Normative references
Add the following references:
IEC 60704-2-1, Household and similar electrical appliances – Test code for the determination
of airborne acoustical noise – Part 2-1: Particular requirements for vacuum cleaners
ISO 6344-2, Coated abrasives – Grain size analysis – Part 2: Determination of grain size
distribution of macrogrits P12 to P220
3 Definitions
st
3.1.9 Add, after the 1 paragraph, the following new paragraph:
Power outlets for accessories are loaded with a resistive load in accordance with the marking.
Add the following new definitions:
3.108
water-suction cleaning appliance
appliance for aspirating an aqueous solution that may contain foaming detergent
3.109
motorized cleaning head
accessory containing a motor that is supplied from the appliance and which is attached to the
end of a hand-held hose or tube
NOTE The main cleaning head permanently attached is not regarded as a motorized cleaning head.

7 Marking and instructions
7.1 Add the following note:
NOTE The use of bar on the nameplate to designate the maximum rated operating pressure is allowed
Add the following subclause:
7.6 Addition:
[symbol IEC 60417-5935 (DB:2002-10)] motorized cleaning head
for water-suction cleaning
7.12 Replace the existing text by the following new text:
Addition:
The front cover of the instruction manual shall include the substance of the following:
CAUTION Read the instruction manual before using the appliance.
This wording may be replaced by symbols ISO 7000-0434 (DB:2004-01) and ISO 7000-1641
(DB 2004-01). If these symbols are used, their meaning is to be explained in the instructions
for use.
– 4 – 60335-2-68 Amend. 1  IEC:2005(E)
The instruction manual shall give details regarding the following, as applicable:
– the precautions to be taken when using the appliance under specific conditions such as
handling flammable liquids or dust, and dust hazardous to health;
– a statement that the appliance is to be disconnected from its power source during cleaning
or maintenance and when replacing parts or converting the appliance to another function,
• for mains operated appliances, the plug is to be removed from the socket-outlet,
• for battery operated appliances, the key of the supply switch is to be removed or an
equivalent disconnection is to be made;
The instruction manual shall state the A-weighted sound pressure level L in dB(A) emitted
PA
by the appliance, measured in accordance with IEC 60704-2-1. If the A-weighted sound
pressure level exceeds 85 dB(A), it shall also state the sound power level L in dB(A) and
WA
that appropriate ear protection has to be used.
The instruction manual shall include the substance of the following:
This appliance is suitable for commercial use, for example in hotels, schools, hospitals,
factories, shops, offices and rental businesses.
The instruction manual for mains operated appliances shall include the substance of the
following:
– do not allow the rotating brushes to come into contact with the supply cord;
– regularly examine the supply cord for damage, such as cracking or ageing. If damage is
found, replace the cord before further use;
– only replace the supply cord with the type specified in the instruction manual;
– only use the socket outlet on the appliance for purposes specified in the instruction
manual.
The instruction manual shall state the substance of the following:
– CAUTION  If foam or liquid escapes from the appliance, switch off immediately;
– regularly clean the water level limiting device in accordance with the instructions and
examine it for signs of damage.
If the symbol specified in 7.6, indicating that the motorized cleaning head can be used for
water suction, is marked on the appliance its meaning shall be explained.
The instructions for appliances having a current-carrying hose operating at other than safety
extra-low voltage shall include the substance of the following:
CAUTION: This hose contains electrical connections:
– do not use to collect water;
– do not immerse in water for cleaning;
– the hose should be checked regularly and must not be used if damaged.
If symbol IEC 60417-5935 (DB:2002-10) is used, its meaning shall be explained.
Add the following subclauses:
7.14 Addition:
The height of symbol IEC 60417-5935 shall be at least 15 mm.
Compliance is checked by measurement.

60335-2-68 Amend. 1  IEC:2005(E) – 5 –
7.101 Motorized cleaning heads shall be marked with
– rated voltage or rated voltage range in volts;
– rated power input in watts;
– name, trade mark or identification mark of the manufacturer or responsible vendor;
– model or type reference.
Motorized cleaning heads for water-suction cleaning appliances, except those of class III
construction having a working voltage up to 24 V shall be marked with symbol
IEC 60417-5935.
NOTE This symbol is an information sign and, except for the colours, the rules of ISO 3864-1 apply.
Compliance is checked by inspection.
7.102 Appliance outlets for accessories shall be marked with the maximum load in watts.
NOTE This marking may be on the appliance close to the appliance outlet.
Compliance is checked by inspection.
10 Power input and current
Replace the existing text by the following:
This clause of Part 1 is applicable except as follows.
10.1 Addition:
The power input of motorized cleaning heads is measured separately.
15 Moisture resistance
15.2 Replace the existing text after Note 101 by the following new text:
Nozzles and motorized cleaning heads of water-suction cleaning appliances are placed in
a container, the base of which is level with the surface supporting the appliance. The
container is filled with a detergent solution to a level of 5 mm above its base, this level being
maintained throughout the test.
The solution consists of 20 g of NaCl and 1 ml of a solution of 28 % by mass of dodecyl
sodium sulphate in each 8 l of water.
The appliance is operated until its liquid container is completely full and for a further 5 min.
NOTE 102 The solution is to be stored in a cool atmosphere and used within seven days of its preparation.
NOTE 103 The chemical designation of dodecyl sodium sulphate is C12H25NaSO4.
NOTE 104 If it is not possible to overfill the container for soiled liquid owing to the construction of the appliance,
the test specified in 19.101 is considered to be adequate.
After each of these tests, the appliance shall withstand the electric strength test of 16.3.
Inspection shall show that there is no trace of liquid on insulation that could result in a
reduction of clearances or creepage distances below the values specified in Clause 29.
NOTE 105 The appliance is allowed to stand in normal test room atmosphere for 24h before being subjected to
the test of 15.3
– 6 – 60335-2-68 Amend. 1  IEC:2005(E)
Add the following subclause:
15.101 Motorized cleaning heads of water suction cleaning appliances shall be resistant
to liquids that may come into contact with them.
Compliance is checked by the following tests.
The motorized cleaning head is subjected to an impact test as described in IEC 60068-2-75,
the value of the impact being 2 J. The motorized cleaning head is rigidly supported and
three blows are applied
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
