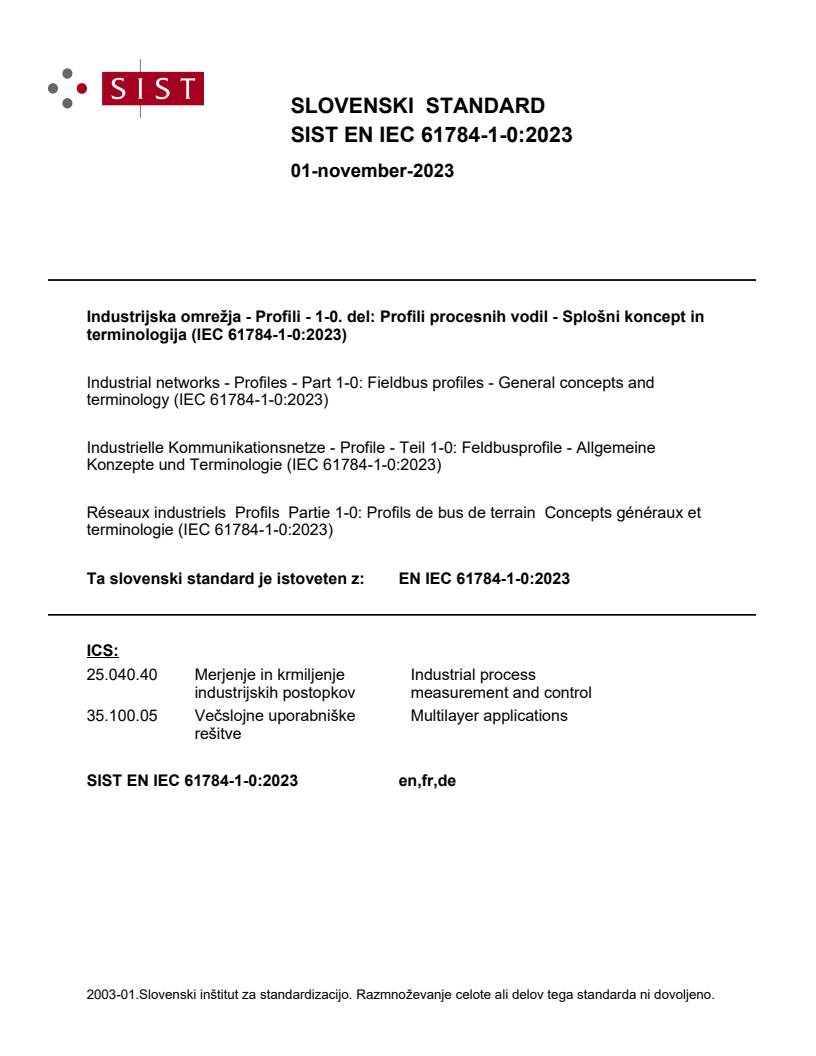

EN IEC 61784-1-0:2023

SLOVENSKI STANDARD
01-november-2023
Industrijska omrežja - Profili - 1-0. del: Profili procesnih vodil - Splošni koncept in
terminologija (IEC 61784-1-0:2023)
Industrial networks - Profiles - Part 1-0: Fieldbus profiles - General concepts and
terminology (IEC 61784-1-0:2023)
Industrielle Kommunikationsnetze - Profile - Teil 1-0: Feldbusprofile - Allgemeine
Konzepte und Terminologie (IEC 61784-1-0:2023)
Réseaux industriels Profils Partie 1-0: Profils de bus de terrain Concepts généraux et
terminologie (IEC 61784-1-0:2023)
Ta slovenski standard je istoveten z: EN IEC 61784-1-0:2023
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.100.05 Večslojne uporabniške Multilayer applications
rešitve
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 61784-1-0

NORME EUROPÉENNE
EUROPÄISCHE NORM May 2023
ICS 35.100.20; 35.240.50 Supersedes EN IEC 61784-1:2019 (partially)
English Version
Industrial networks - Profiles - Part 1-0: Fieldbus profiles -
General concepts and terminology
(IEC 61784-1-0:2023)
Réseaux industriels - Profils - Partie 1-0: Profils de bus de Industrielle Kommunikationsnetze - Profile - Teil 1-0:
terrain - Concepts généraux et terminologie Feldbusprofile - Allgemeine Konzepte und Terminologie
(IEC 61784-1-0:2023) (IEC 61784-1-0:2023)
This European Standard was approved by CENELEC on 2023-04-28. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61784-1:2023 E

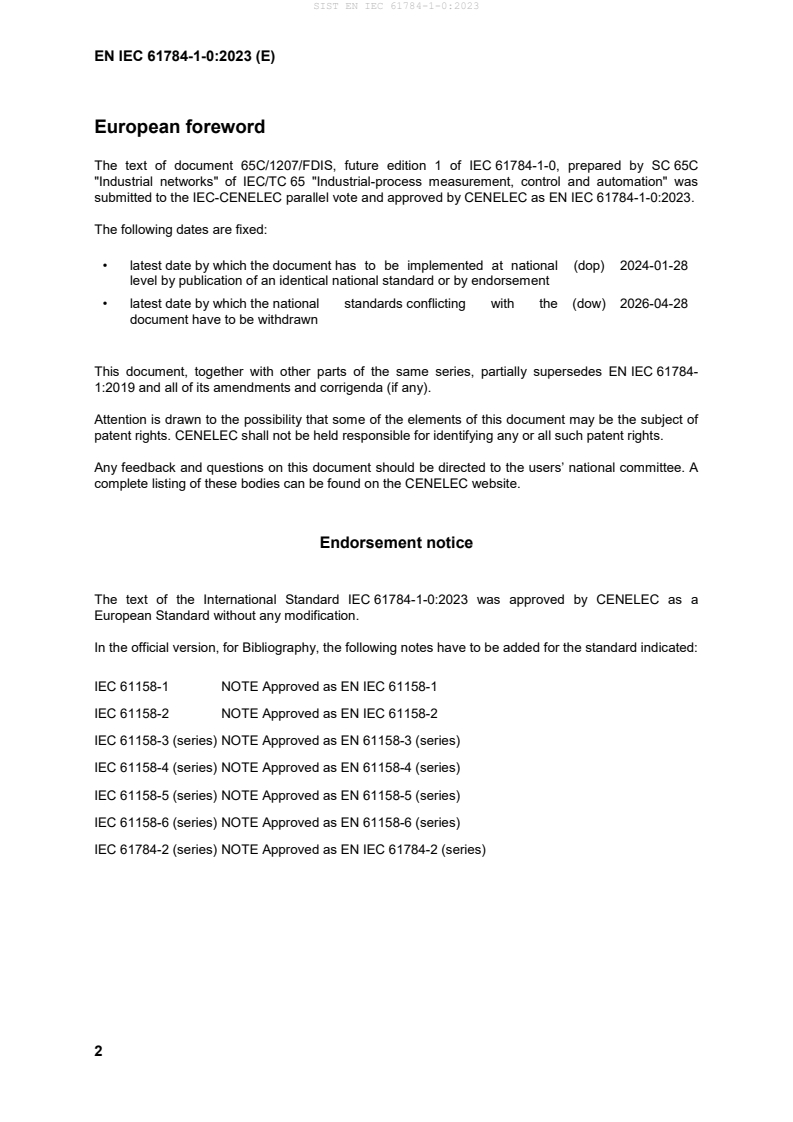

European foreword
The text of document 65C/1207/FDIS, future edition 1 of IEC 61784-1-0, prepared by SC 65C
"Industrial networks" of IEC/TC 65 "Industrial-process measurement, control and automation" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 61784-1-0:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-01-28
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-04-28
document have to be withdrawn
This document, together with other parts of the same series, partially supersedes EN IEC 61784-
1:2019 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61784-1-0:2023 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 61158-1 NOTE Approved as EN IEC 61158-1
IEC 61158-2 NOTE Approved as EN IEC 61158-2
IEC 61158-3 (series) NOTE Approved as EN 61158-3 (series)
IEC 61158-4 (series) NOTE Approved as EN 61158-4 (series)
IEC 61158-5 (series) NOTE Approved as EN 61158-5 (series)
IEC 61158-6 (series) NOTE Approved as EN 61158-6 (series)
IEC 61784-2 (series) NOTE Approved as EN IEC 61784-2 (series)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 61158 series Industrial communication networks - EN IEC 61158 series
Fieldbus specifications
IEC 61784-1 series Industrial communication networks - EN IEC 61784-1 series
Profiles Part 1: Fieldbus profiles
IEC 61784-1-1 2023 Industrial networks - Profiles - Part 1-1: EN IEC 61784-1-1 2023
Fieldbus profiles - Communication Profile
Family 1
IEC 61784-1-2 2023 Industrial networks - Profiles - Part 1-2: EN IEC 61784-1-2 2023
Fieldbus profiles - Communication Profile
Family 2
IEC 61784-1-3 2023 Industrial networks - Profiles - Part 1-3: EN IEC 61784-1-3 2023
Fieldbus profiles - Communication Profile
Family 3
IEC 61784-1-4 2023 Industrial networks - Profiles - Part 1-4: EN IEC 67184-1-4 2023
Fieldbus profiles - Communication Profile
Family 4
IEC 61784-1-5 2023 Industrial networks - Profiles - Part 1-5: EN IEC 61784-1-5 2023
Fieldbus profiles - Communication Profile
Family 5
IEC 61784-1-6 2023 Industrial networks - Profiles - Part 1-6: EN IEC 61784-1-6 2023
Fieldbus profiles - Communication Profile
Family 6
IEC 61784-1-8 2023 Industrial networks - Profiles - Part 1-8: EN IEC 61784-1-8 2023
Fieldbus profiles - Communication Profile
Family 8
IEC 61784-1-9 2023 Industrial networks - Profiles - Part 1-9: EN IEC 61784-1-9 2023
Fieldbus profiles - Communication Profile
Family 9
IEC 61784-1-16 2023 Industrial networks - Profiles - Part 1-16: EN IEC 61784-1-16 2023
Fieldbus profiles - Communication Profile
Family 16
IEC 61784-1-19 2023 Industrial networks - Profiles - Part 1-19: EN IEC 61784-1-19 2023
Fieldbus profiles - Communication Profile
Family 19
IEC 61784-1-22 2023 Industrial networks - Profiles - Part 1-22: EN IEC 61784-1-22 2023
Fieldbus profiles - Communication Profile
Family 22
IEC 61784-1-0 ®
Edition 1.0 2023-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Industrial networks – Profiles –
Part 1-0: Fieldbus profiles – General concepts and terminology
Réseaux industriels – Profils –
Partie 1-0: Profils de bus de terrain – Concepts généraux et terminologie
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 35.100.20; 35.240.50 ISBN 978-2-8322-6590-1
– 2 – IEC 61784-1-0:2023 © IEC 2023
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, abbreviated terms, symbols, and conventions . 7
3.1 Terms and definitions . 7
3.2 Abbreviations and symbols . 7
3.2.1 IEC 61158 abbreviations and symbols . 7
3.2.2 Other abbreviations and symbols . 7
3.3 Conventions . 8
3.3.1 Conventions common to all layers . 8
3.3.2 Physical layer . 10
3.3.3 Data-link layer . 10
3.3.4 Application layer . 10
4 Conformance to communication profiles . 11
5 Communication profiles and communication profile families . 11
Annex A (informative) Added value of the IEC 61784-1 series . 14
Bibliography . 15

Figure 1 – Communication profile families and profiles . 12

Table 1 – Layout of profile (sub)clause selection tables . 8
Table 2 – Contents of (sub)clause selection tables . 8
Table 3 – Layout of service selection tables . 9
Table 4 – Contents of service selection tables . 9
Table 5 – Layout of parameter selection tables . 9
Table 6 – Contents of parameter selection tables. 9
Table 7 – Layout of class attribute selection tables . 10
Table 8 – Contents of class attribute selection tables . 10
Table 9 – Relations of Communication Profile Families to Type numbers . 13

IEC 61784-1-0:2023 © IEC 2023 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL NETWORKS –
PROFILES –
Part 1-0: Fieldbus profiles –
General concepts and terminology

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
Attention is drawn to the fact that the use of some of the associated protocol types is restricted
by their intellectual-property-right holders. In all cases, the commitment to limited release of
intellectual-property-rights made by the holders of those rights permits a layer protocol type to
be used with other layer protocols of the same type, or in other type combinations explicitly
authorized by their respective intellectual property right holders.
NOTE Combinations of protocol types are specified in the IEC 61784-1 series and the IEC 61784-2 series.
IEC 61784-1-0 has been prepared by subcommittee 65C: Industrial networks, of IEC technical
committee 65: Industrial-process measurement, control and automation. It is an International
Standard.
This first edition, together with the other parts of the same series, cancels and replaces the fifth
edition of IEC 61784-1 published in 2019. This first edition constitutes a technical revision.

– 4 – IEC 61784-1-0:2023 © IEC 2023
This edition includes the following significant technical changes with respect to
IEC 61784-1:2019:
a) split of the original IEC 61784-1 into several subparts, one subpart for the material of a
generic nature, and one subpart for each Communication Profile Family specified in the
original document;
b) move most contents of the original scope into a new dedicated subclause;
c) addition of a new Communication Profile Family (CPF 22).
The text of this International Standard is based on the following documents:
Draft Report on voting
65C/1207/FDIS 65C/1236/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 61784-1 series, published under the general title Industrial networks
– Profiles – Part 1: Fieldbus profiles, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IEC 61784-1-0:2023 © IEC 2023 – 5 –
INTRODUCTION
The IEC 61784-1 series provides a set of Communication Profiles (CP) in the sense of
ISO/IEC TR 10000-1. These answer the need of identifying the protocol families co-existing
within the IEC 61158 series, as a result of the international harmonization of fieldbus
technologies available on the market. More specifically, these profiles help to correctly state
the compliance with the IEC 61158 series, and to avoid the spreading of divergent
implementations, which would limit its use, clearness and understanding. Additional profiles to
address specific market c
...
