EN 62005-4:1999
(Main)Reliability of fibre optic interconnecting devices and passive optical components - Part 4: Product screening
Reliability of fibre optic interconnecting devices and passive optical components - Part 4: Product screening
Describes product screening. A proper product screen is actually a process, not a test. As a process, it is maintained and constantly validated to ensure it achieves the purpose for which it was defined. This process is applied to a product in order to induce products with a known failure mechanism, to fail in a controlled situation before the product is deployed in the field. If this process is properly applied, then all infant mortality failures in the field, associated with the failure mechanism(s) for the screen, will be eliminated.
Betriebszuverlässigkeit von Lichtwellenleitern - Verbindungselemente und passive Bauteile - Teil 4: Produktsortierprüfung
Fiabilité des dispositifs d'interconnexion et des composants optiques passifs à fibres optiques - Partie 4: Sélection des produits
Spécifie une méthode pour la sélection des produits. Cette sélection des produits correcte est en fait un processus et non pas un essai. A ce titre, il convient qu'il soit entretenu et constamment validé, afin de s'assurer qu'il atteint l'objectif pour lequel il a été défini. Cette norme est applicable à un produit afin de conduire des produits ayant un mécanisme de défaillance connu, à avoir une défaillance dans le cadre d'une situation contrôlée, avant que le produit ne soit déployé sur le terrain. S'il est correctement appliqué, toutes les défaillances de moralité initiale sur le terrain, associées aux mécanismes de défaillance pour le tri, seront éliminées.
Reliability of fibre optic interconnecting devices and passive optical components - Part 4: Product screening (IEC 62005-4:1999)
General Information
- Status
- Published
- Publication Date
- 08-Nov-1999
- Withdrawal Date
- 30-Sep-2002
- Drafting Committee
- IEC/SC 86B - IEC_SC_86B
- Parallel Committee
- IEC/SC 86B - IEC_SC_86B
- Current Stage
- 6060 - Document made available - Publishing
- Start Date
- 09-Nov-1999
- Completion Date
- 21-Jan-2026
Overview
EN 62005-4:1999 (CLC/IEC) defines the principles and practical approach to product screening for fibre optic interconnecting devices and passive optical components. The standard treats screening as a controlled, maintained process rather than a single test. The primary objective is to induce and remove failures tied to known mechanisms so that infant‑mortality failures are eliminated before field deployment, improving overall product reliability.
Screening is illustrated using the classical bathtub curve of failure rates versus time: when properly applied, screening reduces early-life failures without degrading normal life or wear-out characteristics.
Key Topics
- Screen as a process, not a test: Screening requires continuous validation, monitoring and adjustment to remain effective and harmless to good units.
- Failure‑mechanism focus: A screen must be based on a clear understanding of the failure mechanism(s) it targets; effective screening cannot be designed without that identification.
- Design and implementation steps:
- Identify acceleration stresses relevant to the failure mechanism(s).
- Determine safe stress limits for materials and design.
- Select the earliest feasible point in manufacturing to apply the screen.
- Validate effectiveness and ensure no degradation of good parts.
- Monitor fallout and revalidate continuously.
- Types of screens (illustrative examples):
- Thermal exposure (prolonged temperature)
- Thermal cycling
- Humidity
- Mechanical shock, tension, and vibration
- Screen versus test: Unlike routine quality testing where failures are undesirable, screening accepts and expects some failures as a means to remove defective units. Screening is typically applied to 100% of production.
Applications
EN 62005-4:1999 is applicable to manufacturers, test engineers and quality teams responsible for:
- Implementing screening processes for fibre optic connectors, adaptors, couplers and other passive optical components.
- Designing proof tests or burn‑in operations that intentionally accelerate known failure modes.
- Reducing field infant‑mortality failures and improving customer confidence and system uptime.
Practical benefits include earlier detection and controlled removal of defective parts, reduced returns and warranty costs, and a clearer decision framework when choosing between screening and product redesign.
Related Standards
- EN/IEC reliability standards for fibre optic components and test methods (refer to your national or IEC catalogue for exact cross-references).
Notes:
- Screening is an optional alternative to redesign; the choice should be made based on economics, customer expectations and product use.
- Ongoing validation is essential: if process or materials change, screening parameters may need adjustment or may be removed when no longer required.
Keywords: EN 62005-4:1999, product screening, fibre optic interconnecting devices, passive optical components, infant mortality, screen validation, thermal cycling, proof test.
Frequently Asked Questions
EN 62005-4:1999 is a standard published by CLC. Its full title is "Reliability of fibre optic interconnecting devices and passive optical components - Part 4: Product screening". This standard covers: Describes product screening. A proper product screen is actually a process, not a test. As a process, it is maintained and constantly validated to ensure it achieves the purpose for which it was defined. This process is applied to a product in order to induce products with a known failure mechanism, to fail in a controlled situation before the product is deployed in the field. If this process is properly applied, then all infant mortality failures in the field, associated with the failure mechanism(s) for the screen, will be eliminated.
Describes product screening. A proper product screen is actually a process, not a test. As a process, it is maintained and constantly validated to ensure it achieves the purpose for which it was defined. This process is applied to a product in order to induce products with a known failure mechanism, to fail in a controlled situation before the product is deployed in the field. If this process is properly applied, then all infant mortality failures in the field, associated with the failure mechanism(s) for the screen, will be eliminated.
EN 62005-4:1999 is classified under the following ICS (International Classification for Standards) categories: 33.180.20 - Fibre optic interconnecting devices. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 62005-4:1999 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Reliability of fibre optic interconnecting devices and passive optical components - Part 4: Product screening (IEC 62005-4:1999)Betriebszuverlässigkeit von Lichtwellenleitern - Verbindungselemente und passive Bauteile -- Teil 4: ProduktsortierprüfungFiabilité des dispositifs d'interconnexion et des composants optiques passifs à fibres optiques -- Partie 4: Sélection des produitsReliability of fibre optic interconnecting devices and passive optical components -- Part 4: Product screening33.180.20Fibre optic interconnecting devicesICS:Ta slovenski standard je istoveten z:EN 62005-4:1999SIST EN 62005-4:2001en01-februar-2001SIST EN 62005-4:2001SLOVENSKI
STANDARD
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2000 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62005-4:1999 E EUROPEAN STANDARD
EN 62005-4 NORME EUROPÉENNE EUROPÄISCHE NORM
November 1999
ICS 33.180.20
English version
Reliability of fibre optic interconnecting devices and
passive optical components Part 4: Product screening (IEC 62005-4:1999)
Fiabilité des dispositifs d'interconnexion et des composants optiques passifs à fibres optiques Partie 4: Sélection des produits (CEI 62005-4:1999) Betriebszuverlässigkeit von Lichtwellenleitern
Verbindungselemente und
passive Bauteile Teil 4: Produktsortierprüfung (IEC 62005-4:1999)
This European Standard was approved by CENELEC on 1999-10-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.

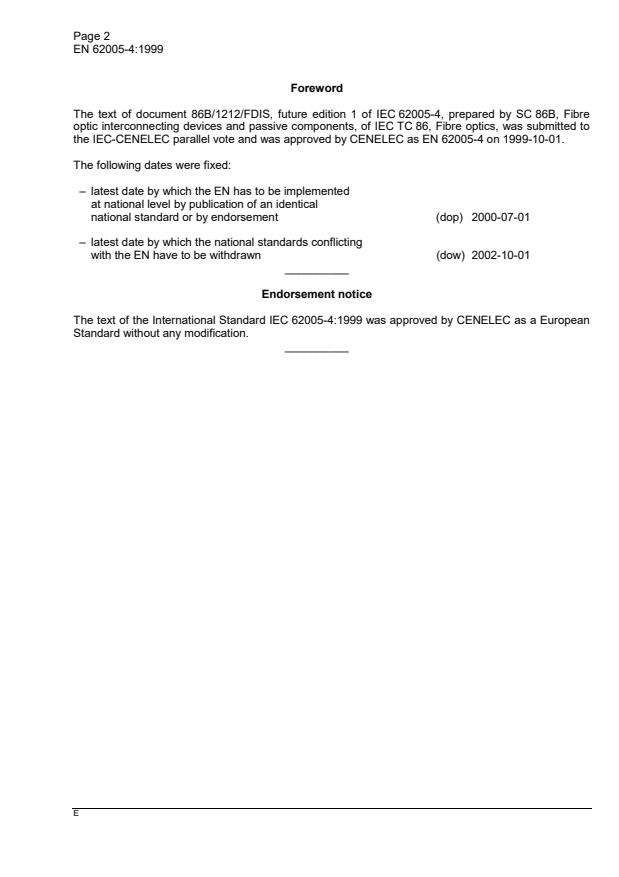

E Page 2 EN 62005-4:1999
Foreword
The text of document 86B/1212/FDIS, future edition 1 of IEC 62005-4, prepared by SC 86B, Fibre optic interconnecting devices and passive components, of IEC TC 86, Fibre optics, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 62005-4 on 1999-10-01.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2000-07-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2002-10-01
__________
Endorsement notice
The text of the International Standard IEC 62005-4:1999 was approved by CENELEC as a European Standard without any modification.
__________
NORMEINTERNATIONALECEIIECINTERNATIONALSTANDARD62005-4Première éditionFirst edition1999-08Fiabilité des dispositifs d'interconnexion et descomposants optiques passifs à fibres optiques –Partie 4:Sélection des produitsReliability of fibre optic interconnecting devicesand passive optical components –Part 4:Product screening Commission Electrotechnique Internationale International Electrotechnical CommissionPour prix, voir catalogue en vigueurFor price, see current catalogueÓ IEC 1999
Droits de reproduction réservés
¾
Copyright - all rights reservedAucune partie de cette publication ne peut être reproduite niutilisée sous quelque forme que ce soit et par aucun procédé,électronique ou mécanique, y compris la photo-copie et lesmicrofilms, sans l'accord écrit de l'éditeur.No part of this publication may be reproduced or utilized inany form or by any means, electronic or mechanical,including photocopying and microfilm, without permission inwriting from the publisher.International Electrotechnical Commission3, rue de Varembé
Geneva, SwitzerlandTelefax: +41 22 919 0300e-mail: inmail@iec.ch IEC web site
http://www.iec.chCODE PRIXPRICE CODEE
62005-4 ã IEC:1999– 3 –INTERNATIONAL ELECTROTECHNICAL COMMISSION___________RELIABILITY OF FIBRE OPTIC INTERCONNECTING DEVICES ANDPASSIVE OPTICAL COMPONENTS –Part 4: Product screeningFOREWORD1)The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprisingall national electrotechnical committees (IEC National Committees). The object of the IEC is to promoteinternational co-operation on all questions concerning standardization in the electrical and electronic fields. Tothis end and in addition to other activities, the IEC publishes International Standards. Their preparation isentrusted to technical committees; any IEC National Committee interested in the subject dealt with mayparticipate in this preparatory work. International, governmental and non-governmental organizations liaisingwith the IEC also participate in this preparation. The IEC collaborates closely with the International Organizationfor Standardization (ISO) in accordance with conditions determined by agreement between the twoorganizations.2)The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, aninternational consensus of opinion on the relevant subjects since each technical committee has representationfrom all interested National Committees.3)The documents produced have the form of recommendations for international use and are published in the formof standards, technical reports or guides and they are accepted by the National Committees in that sense.4)In order to promote international unification, IEC National Committees undertake to apply IEC InternationalStandards transparently to the maximum extent possible in their national and regional standards. Anydivergence between the IEC Standard and the corresponding national or regional standard shall be clearlyindicated in the latter.5)The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for anyequipment declared to be in conformity with one of its standards.6)
Attention is drawn to the possibility that some of the elements of this International Standard may be the subjectof patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.International Standard IEC 62005-4 has been prepared by subcommittee 86B: Fibre opticinterconnecting devices and passive components, of IEC technical committee 86: Fibre optics.The text of this standard is based on the following documents:FDISReport on voting86B/1212/FDIS86B/1249/RVDFull information on the votin
...
