EN 61753-088-2:2013

SLOVENSKI STANDARD
01-oktober-2013
2SWLþQLVSRMQLHOHPHQWLLQSDVLYQHNRPSRQHQWH7HKQLþQLVWDQGDUGGHO
1DSUDYH/$1:'0]DHQRURGQDRSWLþQDYODNQDEUH]NRQHNWRUMHY]PHGNDQDOVNLP
UD]PLNRP*+]]DNDWHJRULMR&1DG]RURYDQRRNROMH
Fibre optic interconnecting devices and passive components -Performance standard -
Part 088-2: Non connectorised single-mode fibre optic LAN WDM devices with channel
spacing of 800 GHz for category C - Controlled environment
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Betriebsverhalten - Teil
088-2: Nicht mit Steckverbindern versehene Einmoden LWL-LAN-WDM-Geräte mit
Kanalweiten von 800 GHz für Kategorie C - Kontrollierte Umgebung
Ta slovenski standard je istoveten z: EN 61753-088-2:2013
ICS:
33.180.20 3RYH]RYDOQHQDSUDYH]D Fibre optic interconnecting
RSWLþQDYODNQD devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61753-088-2
NORME EUROPÉENNE
June 2013
EUROPÄISCHE NORM
ICS 33.180.20
English version
Fibre optic interconnecting devices and passive components -
Performance standard -
Part 088-2: Non-connectorized single-mode fibre optic LAN WDM devices
with channel spacing of 800 GHz for category C -
Controlled environments
(IEC 61753-088-2:2013)
Dispositifs d’interconnexion et Lichtwellenleiter -
composants passifs à fibres optiques - Verbindungselemente und passive
Norme de performance - Bauteile - Betriebsverhalten -
Partie 088-2: Dispositifs LAN WDM à Teil 088-2: Nicht mit Steckverbindern
fibres optiques unimodales, non versehene Einmoden LWL-LAN-WDM-
connectorisés, avec un espacement entre Geräte mit Kanalweiten von 800 GHz für
canaux de 800 GHz, pour catégorie C - Kategorie C - Kontrollierte Umgebung
Environnements contrôlés (IEC 61753-088-2:2013)
(CEI 61753-088-2:2013)
This European Standard was approved by CENELEC on 2013-04-22. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61753-088-2:2013 E

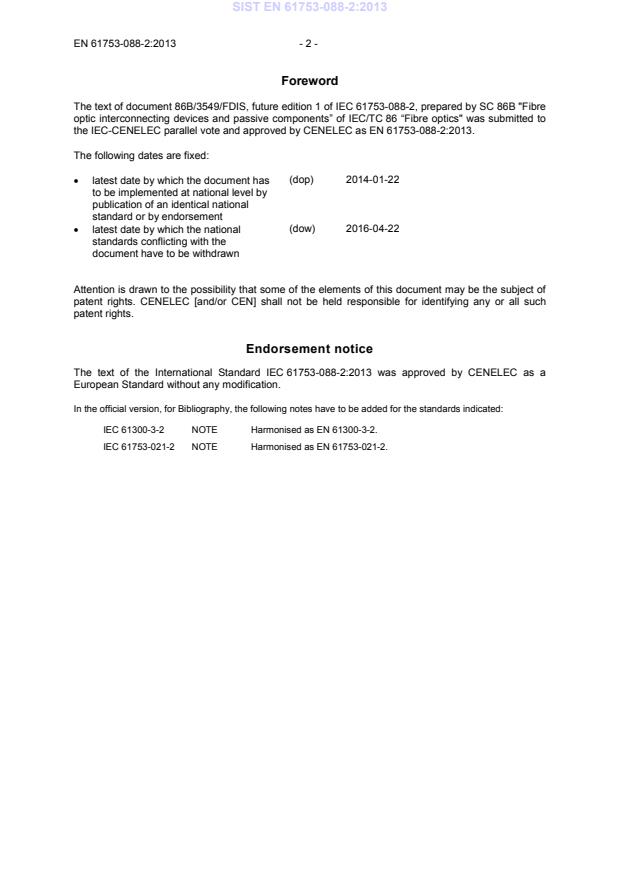

Foreword
The text of document 86B/3549/FDIS, future edition 1 of IEC 61753-088-2, prepared by SC 86B "Fibre
optic interconnecting devices and passive components” of IEC/TC 86 “Fibre optics" was submitted to
the IEC-CENELEC parallel vote and approved by CENELEC as EN 61753-088-2:2013.
The following dates are fixed:
(dop) 2014-01-22
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2016-04-22
• latest date by which the national
standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 61753-088-2:2013 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 61300-3-2 NOTE Harmonised as EN 61300-3-2.
IEC 61753-021-2 NOTE Harmonised as EN 61753-021-2.

- 3 - EN 61753-088-2:2013
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60793-2-50 - Optical fibres - EN 60793-2-50 -
Part 2-50: Product specifications - Sectional
specification for class B single-mode fibres

IEC 61300 Series Fibre optic interconnecting devices and EN 61300 Series
passive components - Basic test and
measurement procedures
IEC 61300-2-1 - Fibre optic interconnecting devices and EN 61300-2-1 -
passive components - Basic test and
measurement procedures -
Part 2-1: Tests - Vibration (sinusoidal)

IEC 61300-2-4 - Fibre optic interconnecting devices and EN 61300-2-4 -
passive components - Basic test and
measurement procedures -
Part 2-4: Tests - Fibre/cable retention

IEC 61300-2-9 - Fibre optic interconnecting devices and EN 61300-2-9 -
passive components - Basic test and
measurement procedures -
Part 2-9: Tests - Shock
IEC 61300-2-17 - Fibre optic interconnecting devices and EN 61300-2-17 -
passive components - Basic test and
measurement procedures -
Part 2-17: Tests - Cold
IEC 61300-2-18 - Fibre optic interconnecting devices and EN 61300-2-18 -
passive components - Basic test and
measurement procedures -
Part 2-18: Tests - Dry heat - High
temperature endurance
IEC 61300-2-19 - Fibre optic interconnecting devices and EN 61300-2-19 -
passive components - Basic test and
measurement procedures -
Part 2-19: Tests - Damp heat (steady state)

IEC 61300-2-22 - Fibre optic interconnecting devices and EN 61300-2-22 -
passive components - Basic test and
measurement procedures -
Part 2-22: Tests - Change of temperature

IEC 61300-2-42 - Fibre optic interconnecting devices and EN 61300-2-42 -
passive components - Basic test and
measurement procedures -
Part 2-42: Tests - Static side load for
connectors
Publication Year Title EN/HD Year
IEC 61300-3-7 - Fibre optic interconnecting devices and EN 61300-3-7 -
passive components - Basic test and
measurement procedures -
Part 3-7: Examinations and measurements -
Wavelength dependence of attenuation and
return loss of single mode components

IEC 61300-3-20 - Fibre optic interconnecting devices and EN 61300-3-20 -
passive components - Basic test and
measurement procedures -
Part 3-20: Examinations and measurements
- Directivity of fibre optic branching devices

IEC 61300-3-28 - Fibre optic interconnecting devices and EN 61300-3-28 -
passive components - Basic test and
measurement procedures -
Part 3-28: Examinations and measurements
- Transient loss
IEC 61300-3-29 - Fibre optic interconnecting devices and EN 61300-3-29 -
passive components - Basic test and
measurement procedures -
Part 3-29: Examinations and measurements
- Measurement techniques for characterising
the amplitude of the spectral transfer
function of DWDM components
IEC 61753-1 2007 Fibre optic interconnecting devices and EN 61753-1 2007
passive components performance standard -
Part 1: General and guidance for
performance standards
IEC 62074-1 - Fibre optic interconnecting devices and EN 62074-1 -
passive components - Fibre optic WDM
devices -
Part 1: Generic specification
ITU-T - Optical transport network physical layer - -
Recommendation interfaces
G.959.1
IEEE P802.3ba - Carrier Sense Multiple Access with Collision - -
Detection (CSMA/CD) Access Method and
Physical Layer Specifications
IEC 61753-088-2 ®
Edition 1.0 2013-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Performance

standard –
Part 088-2: Non-connectorized single-mode fibre optic LAN WDM devices with

channel spacing of 800 GHz for category C – Controlled environments

Dispositifs d’interconnexion et composants passifs à fibres optiques – Norme

de performance –
Partie 088-2: Dispositifs LAN WDM à fibres optiques unimodales, non

connectorisés, avec un espacement entre canaux de 800 GHz, pour catégorie C

– Environnements contrôlés
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX T
ICS 33.180.20 ISBN 978-2-83220-653-9

– 2 – 61753-088-2 © IEC:2013
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Test conditions . 8
5 Test report . 8
6 Reference components . 9
7 Performance requirements . 9
7.1 Channel requirements . 9
7.2 Dimensions . 9
7.3 Test details and requirements . 9
Annex A (normative) Sample size . 15
Annex B (informative) Logarithmic transfer matrix for an integrated 1 × 4 LAN WDM
device . 16
Annex C (informative) Logarithmic transfer matrix for an individual 1 × 2 LAN WDM
device . 18
Annex D (informative) General information for applications of integrated 1 × 4 LAN
WDM devices . 22
Annex E (informative) General information for internal configurations of integrated 1 ×
4 LAN WDM devices . 23
Bibliography . 25

Figure 1 – Configuration of integrated 1 × 4 LAN WDM device . 8
Figure 2 – Configuration of individual 1 × 2 LAN WDM device . 8
Figure D.1 – Block diagram for 100GBASE-LR4 and 100GBASE-ER4 transmit/receive
paths . 22
Figure E.1 – Configuration example of serial-type integrated 1 × 4 LAN WDM device
(DEMUX) . 23
Figure E.2 – Configuration example of serial-type integrated 1 × 4 LAN WDM device
(MUX) . 23
Figure E.3 – Configuration example of tree-type integrated 1 × 4 LAN WDM device
(MUX/DEMUX) . 24

Table 1 – Channel requirements . 9
Table 2 – Test details and requirements . 10
Table A.1 – Number of samples for each test . 15
Table B.1 – Logarithmic transfer matrix for channel 1: Frequency range of 231,584 –
231,216 THz (≈1 294,53 – 1 296,59 nm) . 16
Table B.2 – Logarithmic transfer matrix for channel 2: Frequency range of 230,784 –
230,416 THz (≈1 299,02 – 1 301,09 nm) . 16
Table B.3 – Logarithmic transfer matrix for channel 3: Frequency range of 229,984 –
229,616 THz (≈1 303,54 – 1 305,63 nm) . 16
Table B.4 – Logarithmic transfer matrix for channel 4: Frequency range of 229,184 –
228,816 THz (≈1 308,09 – 1 310,19 nm) . 17

61753-088-2 © IEC:2013 – 3 –
Table C.1 – Logarithmic transfer matrix for channel 1: Frequency range of 231,584 –
231,216 THz (≈1 294,53 – 1 296,59 nm) . 18
Table C.2 – Logarithmic transfer matrix for channel 2: Frequency range of 230,784 –
230,416 THz (≈1 299,02 – 1 301,09 nm) . 18
Table C.3 – Logarithmic transfer matrix for channel 3: Frequency range of 229,984 –
229,616 THz (≈1 303,54 – 1 305,63 nm) . 18
Table C.4 – Logarithmic transfer matrix for channel 4: Frequency range of 229,184 –
228,816 THz (≈1 308,09 – 1 310,19 nm) . 18
Table C.5 – Logarithmic transfer matrix for channel 1: Frequency range of 231,584 –
231,216 THz (≈1 294,53 – 1 296,59 nm) . 19
Table C.6 – Logarithmic transfer matrix for channel 2: Frequency range of 230,784 –
230,416 THz (≈1 299,02 – 1 301,09 nm) . 19
Table C.7 – Logarithmic transfer matrix for channel 3: Frequency range of 229,984 –
229,616 THz (≈1 303,54 – 1 305,63 nm) . 19
Table C.8 – Logarithmic transfer matrix for channel 4: Frequency range of 229,184 –
228,816 THz (≈1 308,09 – 1 310,19 nm) . 19
Table C.9 – Logarithmic transfer matrix for channel 1: Frequency range of 231,584 –
231,216 THz (≈1 294,53 – 1 296,59 nm) . 19
Table C.10 – Logarithmic transfer matrix for channel 2: Frequency range of 230,784 –
230,416 THz (≈1 299,02 – 1 301,09 nm) . 20
Table C.11 – Logarithmic transfer matrix for channel 3: Frequency range of 229,984 –
229,616 THz (≈1 303,54 – 1 305,63 nm) . 20
Table C.12 – Logarithmic transfer matrix for channel 4: Frequency range of 229,184 –
228,816 THz (≈1 308,09 – 1 310,19 nm) . 20
Table C.13 – Logarithmic transfer matrix for channel 1: Frequency range of 231,584 –
231,216 THz (≈1 294,53 – 1 296,59 nm) . 20
Table C.14 – Logarithmic transfer matrix for channel 2: Frequency range of 230,784 –

230,416 THz (≈1 299,02 – 1 301,09 nm) . 20
Table C.15 – Logarithmic transfer matrix for channel 3: Frequency range of 229,984 –
229,616 THz (≈1 303,54 – 1 305,63 nm) . 21
Table C.16 – Logarithmic transfer matrix for channel 4: Frequency range of 229,184 –
228,816 THz (≈1 308,09 – 1 310,19 nm) . 21

– 4 – 61753-088-2 © IEC:2013
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
PERFORMANCE STANDARD –
Part 088-2: Non-connectorized single-mode fibre optic LAN WDM
devices with channel spacing of 800 GHz for category C –
Controlled environments
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61753-088-2 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components of IEC technical committee 86: Fibre optics.
This first edition of IEC 61753-088-2 cancels and replaces IEC/PAS 61753-088-2 published in
2010.
The text of this standard is based on the following documents:
FDIS Report on voting
86B/3549/FDIS 86B/3591/RVD
61753-088-2 © IEC:2013 – 5 –
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61753 series, published under the general title, Fibre optic
interconnecting devices and passive components performance standard, can be found on the
IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – 61753-088-2 © IEC:2013
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
PERFORMANCE STANDARD –
Part 088-2: Non-connectorized single-mode fibre optic LAN WDM
devices with channel spacing of 800 GHz for category C –
Controlled environments
1 Scope
This part of IEC 61753 contains the minimum initial test and measurement requirements and
severities which a non-connectorized single-mode fibre optic Local Area Network Wavelength
Division Multiplexing (LAN WDM) device with channel spacing of 800 GHz needs to satisfy in
order to be categorized as meeting the requirements of Category C – Controlled environments,
as defined in Annex A of IEC 61753-1:2007. The applications of LAN WDM devices are optical
MUX and DEMUX for 100GBASE-LR4 (required operating range of 2 m to 10 km) and
100GBASE-ER4 (required operating range of 2 m to 30 km) defined in IEEE P802.3ba, as
shown in Annex D. The requirements cover both an integrated 1 × 4 LAN WDM device and an
individual 1 × 2 LAN WDM device for cascaded module construction.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60793-2-50, Optical fibres – Part 2-50: Product specifications – Sectional specification for
class B single-mode fibres
IEC 61300 (all parts), Fibre optic interconnecting devices and passive components – Basic
test and measurement procedures
IEC 61300-2-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-1: Tests – Vibration (sinusoidal)
IEC 61300-2-4, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-4: Tests – Fibre/cable retention
IEC 61300-2-9, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-9: Tests – Shock
IEC 61300-2-17, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-17: Tests – Cold
IEC 61300-2-18, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-18: Tests – Dry heat – High temperature endurance
IEC 61300-2-19, Fibre optic interconnecting devic
...
