EN 60071-2:1997
(Main)Insulation co-ordination - Part 2: Application guide
Insulation co-ordination - Part 2: Application guide
Gives guidance for the determination of the rated withstand voltages for ranges I and II of EN 60071-1 and justifies the association of these rated values with the standardized highest voltages for equipment. It covers phase-to-phase, phase-to-earth and longitudinal insulation of three-phase systems with nominal voltages above 1kV
Isolationskoordination - Teil 2: Anwendungsrichtlinie
Coordination de l'isolement - Partie 2: Guide d'application
Donne des recommandations pour la détermination des tensions de tenue assignées pour les gammes I et II de la EN 60071-1 et justifie l'association de ces valeurs assignées avec les valeurs normalisées des tensions les plus élevées pour le matériel. Traite de l'isolement phase-terre, entre phases et longitudinal des reseaux triphasés de tension nominale supérieure à 1kV
Insulation co-ordination - Part 2: Application guide
General Information
Relations

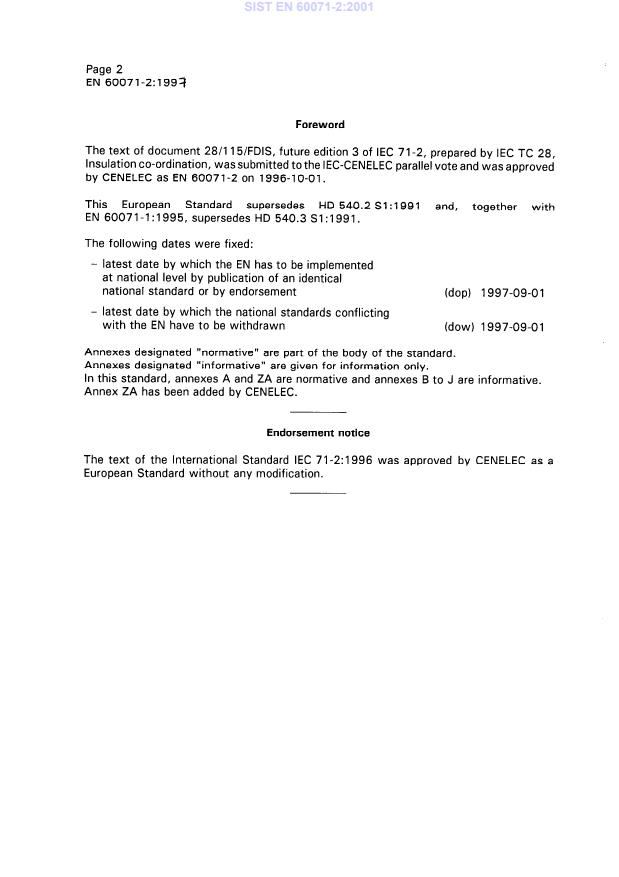

Standards Content (Sample)
SLOVENSKI STANDARD
01-februar-2001
Insulation co-ordination - Part 2: Application guide
Insulation co-ordination -- Part 2: Application guide
Isolationskoordination -- Teil 2: Anwendungsrichtlinie
Coordination de l'isolement -- Partie 2: Guide d'application
Ta slovenski standard je istoveten z: EN 60071-2:1997
ICS:
29.080.01 (OHNWULþQDL]RODFLMDQD Electrical insulation in
VSORãQR general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
SIS
...
