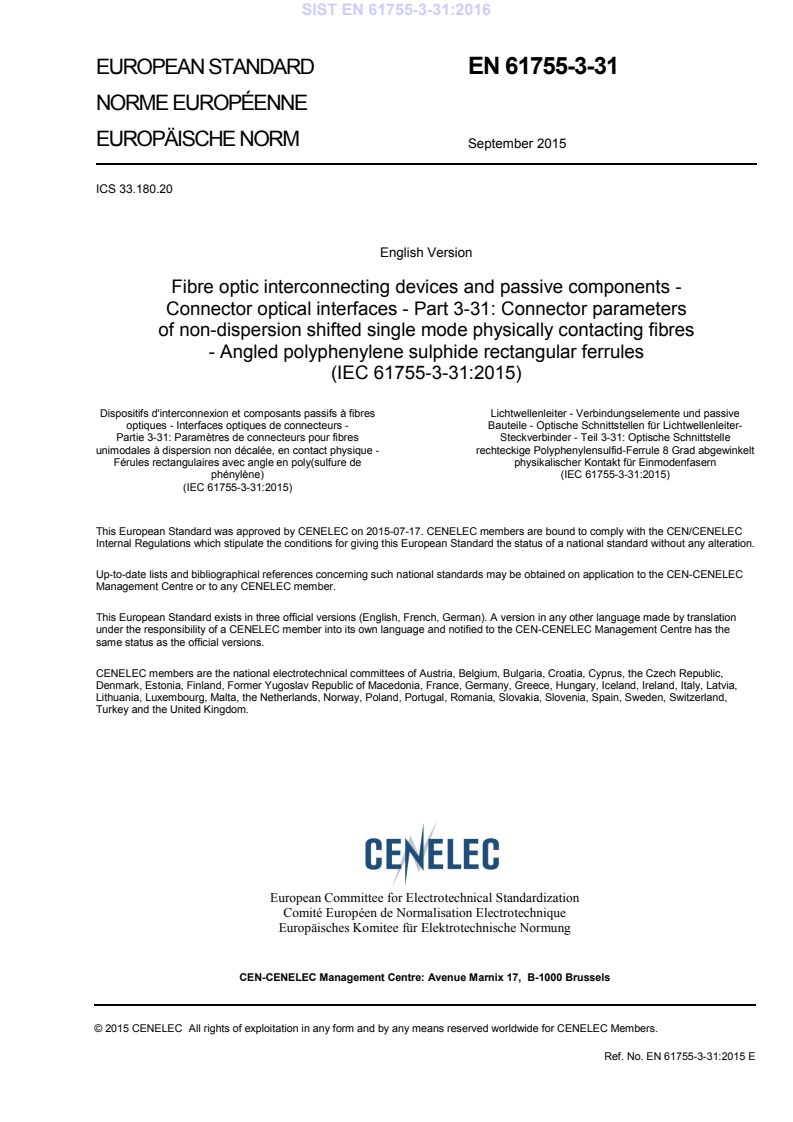

EUROPEAN STANDARD EN 61755-3-31

NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2015
ICS 33.180.20
English Version
Fibre optic interconnecting devices and passive components -
Connector optical interfaces - Part 3-31: Connector parameters
of non-dispersion shifted single mode physically contacting fibres
- Angled polyphenylene sulphide rectangular ferrules
(IEC 61755-3-31:2015)
Dispositifs d'interconnexion et composants passifs à fibres Lichtwellenleiter - Verbindungselemente und passive
optiques - Interfaces optiques de connecteurs - Bauteile - Optische Schnittstellen für Lichtwellenleiter-
Partie 3-31: Paramètres de connecteurs pour fibres Steckverbinder - Teil 3-31: Optische Schnittstelle
unimodales à dispersion non décalée, en contact physique - rechteckige Polyphenylensulfid-Ferrule 8 Grad abgewinkelt
Férules rectangulaires avec angle en poly(sulfure de physikalischer Kontakt für Einmodenfasern
phénylène) (IEC 61755-3-31:2015)
(IEC 61755-3-31:2015)
This European Standard was approved by CENELEC on 2015-07-17. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61755-3-31:2015 E

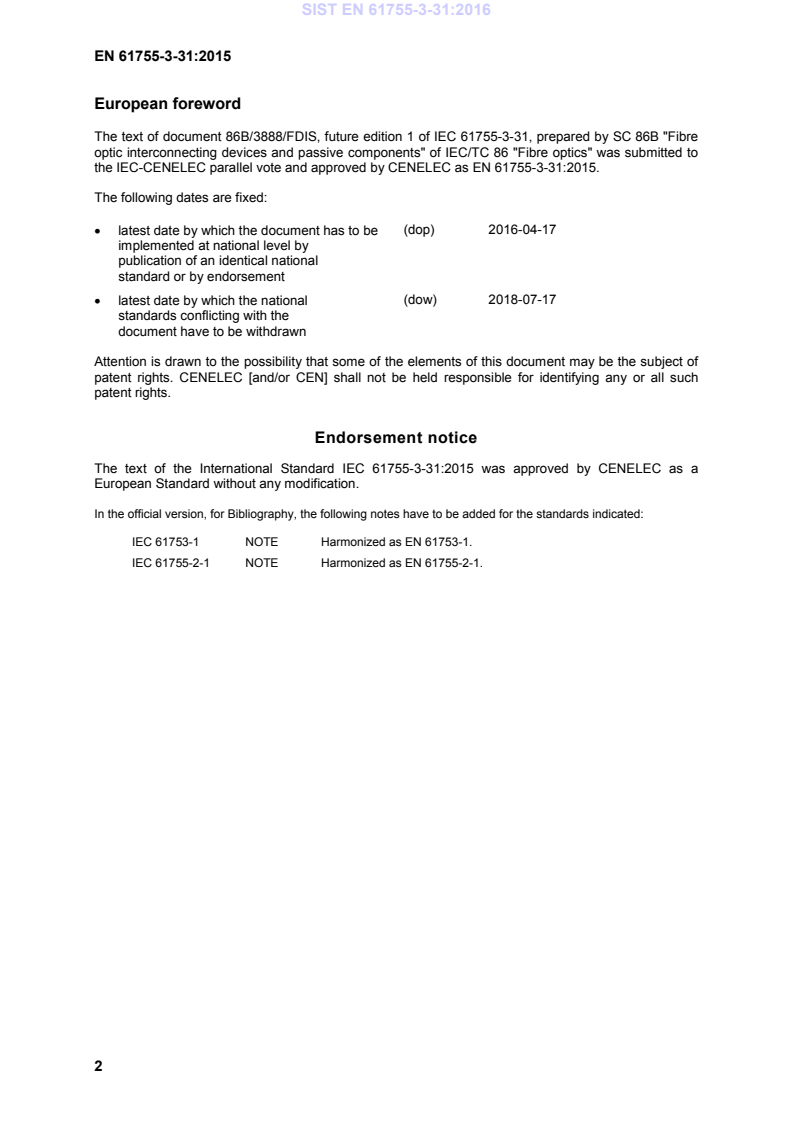

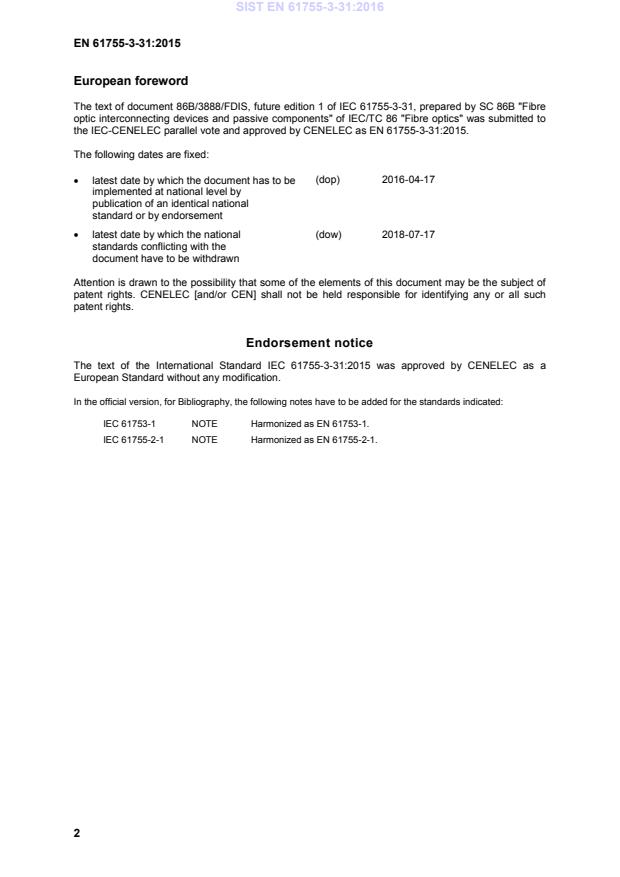

European foreword
The text of document 86B/3888/FDIS, future edition 1 of IEC 61755-3-31, prepared by SC 86B "Fibre
optic interconnecting devices and passive components" of IEC/TC 86 "Fibre optics" was submitted to
the IEC-CENELEC parallel vote and approved by CENELEC as EN 61755-3-31:2015.

The following dates are fixed:
(dop) 2016-04-17
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2018-07-17
standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 61755-3-31:2015 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 61753-1 NOTE Harmonized as EN 61753-1.
IEC 61755-2-1 NOTE Harmonized as EN 61755-2-1.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu
Publication Year Title EN/HD Year

IEC 60793-2-50 -  Optical fibres - EN 60793-2-50 -
Part 2-50: Product specifications -
Sectional specification for class B single-
mode fibres
IEC 61300-3-30 -  Fibre optic interconnecting devices and EN 61300-3-30 -
passive components - Basic test and
measurement procedures -
Part 3-30: Examinations and
measurements - Polish angle and fibre
position on single ferrule multifibre
connectors
IEC 61300-3-52 -  Fibre optic interconnecting devices and EN 61300-3-52 -
passive components - Basic test and
measurement procedures -
Part 3-52: Examinations and
measurements - Guide hole and alignment
pin deformation constant, CD for 8 degree
angled PC rectangular ferrule, single mode
fibres
IEC 61754 Series Fibre optic interconnecting devices and EN 61754 Series
passive components - Fibre optic
connector interfaces
IEC 61754-5 2005 Fibre optic connector interfaces - EN 61754-5 2005
Part 5: Type MT connector family
IEC 61754-7 2008 Fibre optic interconnecting devices and EN 61754-7 2008
passive components - Fibre optic
connector interfaces -
Part 7: Type MPO connector family
IEC 61754-7-1 2014 Fibre optic interconnecting devices and EN 61754-7-1 2014
passive components - Fibre optic
connector interfaces -
Part 7-1: Type MPO connector family -
One fibre row
IEC 61754-10 2005 Fibre optic connector interfaces - EN 61754-10 2005
Part 10: Type Mini-MPO connector family
IEC 61754-18 2001 Fibre optic connector interfaces - EN 61754-18 2002
Part 18: Type MT-RJ connector family + corr. April 2002
IEC 61755-1 -  Fibre optic connector optical interfaces - EN 61755-1 -
Part 1: Optical interfaces for single mode
non-dispersion shifted fibres - General and
guidance
IEC 61755-3-31 ®
Edition 1.0 2015-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fibre optic interconnecting devices and passive components – Connector

optical interfaces –
Part 3-31: Connector parameters of non-dispersion shifted single mode

physically contacting fibres – Angled polyphenylene sulphide rectangular

ferrules
Dispositifs d’interconnexion et composants passifs à fibres optiques –

Interfaces optiques de connecteurs –

Partie 3-31: Paramètres de connecteurs pour fibres unimodales à dispersion

non décalée, en contact physique – Férules rectangulaires avec angle en

poly(sulfure de phénylène)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20 ISBN 978-2-8322-2712-1

– 2 – IEC 61755-3-31:2015  IEC 2015
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Description . 6
4 Interface parameters . 6
Annex A (informative) Theoretical worst-case connector attenuation yield percentage . 16
Annex B (normative) Minus coplanarity . 19
Annex C (informative) Minimum normal force required to achieve physical contact . 20
Bibliography . 25

Figure 1 – Fibre numbering conventions . 7
Figure 2 – Interface dimensions related to lateral and angular offset . 8
Figure 3 – Alignment pin geometry . 8
Figure 4 – Interface dimensions related to longitudinal offset . 9
Figure A.1 – Monte Carlo simulation of Grade B performance for 12-fibre connectors . 16
Figure B.1 – Illustration of fibre line and minus coplanarity parameters . 19
Figure C.1 – Geometry limit, GL, needed to mate 12 fibres, as a function of absolute X-
angle, SX for different magnitudes of minus coplanarity and flat fibre tips. 21
Figure C.2 – Geometry limit, GL, needed to mate 12 fibres, as a function of absolute
X-angle, SX for different magnitudes of minus coplanarity and 1 mm fibre tips. . 21

Table 1 – Optical interface variant information . 7
Table 2 – Optical interface dimensions related to lateral and angular offset for optical
interface variant 1002 . 10
Table 3 – Optical interface dimensions related to lateral and angular offset for optical
interface variants 1104, 1108, 1112 . 11
Table 4 – Optical interface end face geometry dimensions related to physical contact
for optical interface variant 1002 . 12
Table 5 – Optical interface end face geometry dimensions related to physical contact
for optical interface variant 1104 . 13
Table 6 – Optical interface end face geometry dimensions related to physical contact
for optical interface variant 1108 . 14
Table 7 – Optical interface end face geometry dimensions related to physical contact
for optical interface variant 1112 . 15
Table A.1 – Grade B single channel vs. multi-fibre connector performance . 17
Table A.2 – Grade C single channel vs. multi-fibre connector performance . 17
Table A.3 – Grade D single channel vs. multi-fibre connector performance . 17
Table C.1 – Parameter constants for 4-fibre optical interface variant 1104 . 23
Table C.2 – Parameter constants for 8-fibre optical interface variant 1108 . 24
Table C.3 – Parameter constants for 12-fibre optical interface variant 1112 . 24

IEC 61755-3-31:2015  IEC 2015 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –
CONNECTOR OPTICAL INTERFACES –

Part 3-31: Connector parameters of non-dispersion
shifted single mode physically contacting fibres –
Angled polyphenylene sulphide rectangular ferrules

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61755-3-31 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.
The text of this standard is based on the following documents:
FDIS Report on voting
86B/3888FDIS 86B/3914/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 4 – IEC 61755-3-31:2015  IEC 2015
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61755 series, published under the general title Fibre optic
interconnecting devices and passive components –Connector optical interfaces, can be found
on the IEC website.
Future standards in this series will carry the new general title as cited above. Titles of existing
standards in this series will be updated at the time of the next edition.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
IEC 61755-3-31:2015  IEC 2015 – 5 –
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –
CONNECTOR OPTICAL INTERFACES –

Part 3-31: Connector parameters of non-dispersion
shifted single mode physically contacting fibres –
Angled polyphenylene sulphide rectangular ferrules

1 Scope
This part of IEC 61755 defines certain dimensional limits of an angled PC rectangular
polyphenylene sulphide (PPS) ferrule optical interface in order to meet specific requirements
for fibre-to-fibre interconnection. Ferrules made from the material specified in this standard
are suitable for use in categories C, U, E, and O as defined in IEC 61753-1.
Ferrule interface dimensions and features are contained in the IEC 61754 series, which deals
with fibre optic connector interfaces.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60793-2-50, Optical fibres – Part 2-50: Product specifications – Sectional specification for
class B single-mode fibres
IEC 61300-3-30, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-30: Examinations and measurements – Polish angle and
fibre position on single ferrule multifibre connectors
IEC 61300-3-52, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-52: Examinations and measurements – Guide hole and
alignment pin deformation constant, CD for 8 degree angled PC rectangular ferrule, single
mode fibres
IEC 61754 (all parts), Fibre optic interconnecting devices and passive components – Fibre
optic connector interfaces
IEC 61754-5:2005, Fibre optic connector interfaces – Part 5: Type MT connector family
IEC 61754-7:2008, Fibre optic interconnecting devices and passive components – Fibre optic
connector interfaces – Part 7: Type MPO connector family
IEC 61754-7-1:2014, Fibre optic interconnecting devices and passive components – Fibre
optic connector interfaces – Part 7-1: Type MPO connector family – One fibre row
IEC 61754-10:2005, Fibre optic connector interfaces – Part 10: Type Mini-MPO connector
family
IEC 61754-18:2001, Fibre optic connector interfaces – Part 18: Type MT-RJ connector family

– 6 – IEC 61755-3-31:2015  IEC 2015
IEC 61755-1, Fibre optic connector optical interfaces – Part 1: Optical interfaces for single
mode non-dispersion shifted fibres – General and guidance
3 Description
The performance of a single mode angled PC rectangular ferrule optical interface is
determined by the accuracy with which the optical datum targets of two mating ferrules are
aligned with each other. There are three conditions affecting the alignment of the optical
datum targets: lateral offset, angular offset, and longitudinal offset.
Parameters influencing the lateral and angular offset of the optical fibre axes include the
following:
– fibre hole deviation from designated location;
– fibre cladding diameter relative to fibre hole clearance;
– fibre hole angular misalignment;
– fibre core concentricity relative to the cladding diameter;
– alignment pin diameter relative to the guide hole clearance.
Parameters influencing the longitudinal offset of the optical fibre axes include the following:
– fibre protrusion;
– fibre array minus coplanarity;
– adjacent fibre height differential;
– end face angle in the x-axis;
– end face angle in the y-axis;
– end face radius in the x-axis;
– end face radius in the y-axis;
– fibre tip spherical radii;
– axial force on ferrule end face;
– ferrule and fibre material constants;
– frictional force of alignment pins in ferrule guide holes.
4 Interface parameters
This standard defines the dimensional limits of angled PC rectangular ferrules with a single
row of up to 12 fibres. The fibre centres are spaced with a nominal alignment pitch of 0,25 mm.
Interface variants, which identify nominal ferrule cross-sections and applicable fibre counts,
are given in Table 1. The fibre numbering conventions are illustrated in Figure 1.
Optical interface dimensions related to lateral and angular offset are defined in Figure 2 and
the alignment pin geometry is shown in Figure 3. The end face geometry parameters that
influence longitudinal offset are outlined in Figure 4.
The parameter values related to lateral and angular offset are given in Table 2 and Table 3.
End face geometry limits associated with longitudinal offset are specified in Table 4 to Table 7.

IEC 61755-3-31:2015Ó IEC 2015 – 7 –
Table 1 – Optical interface variant information
Nominal ferrule
Variant Number
a
cross section
b,c
number of fibres
(mm´ mm)
1002 2,45´ 4,4 2
1104 2,45´ 6,4 4
1108 2,45´ 6,4 8
1112 2,45´ 6,4 12
a
Refer to the applicable IEC 61754 series fibre optic connector interface standard for
dimensional requirements.
b
The four digit variant code describes a combination of material type, nominal ferrule
cross-section, and number of fibres. The first digit defines 1 for PPS ferrule
materials; the second digit represents 2,45 mm´ 4,4 mm with 0 and 2,45 mm´ 6,4
mm with 1; and the last two digits designates the number of fibres.
c
All ferrule materials for rectangular type ferrules are intended to be intermateable,
in the lowest specified performance category as described within IEC 61755-1,
provided that the last three digits of the variant number are the same. It is also
possible to mate ferrules with differ
...
