EN 61161:1994
(Main)Ultrasonic power measurement in liquids in the frequency range 0,5 MHz to 25 MHz
Ultrasonic power measurement in liquids in the frequency range 0,5 MHz to 25 MHz
Specifies a method of determining the total radiated acoustic power of ultrasonic transducters based on the use of a radiation force balance. Provides general principles for the use of radiation force balances in which an obstacle (target) intercepts the sound field to be measured.
Ultraschall-Leistungsmessung in Flüssigkeiten im Frequenzbereich von 0,5 MHz bis 25 MHz
Mesurage de puissance ultrasonore dans les liquides dans la gamme de fréquences de 0,5 MHz à 25 MHz
Prescrit une méthode pour déterminer la puissance totale ultrasonore émise des transducteurs ultrasonores, basée sur l'usage d'une balance à force de radiation. Etablit les principes généraux pour utiliser les balances à force de radiation dans lesquelles un obstacle dénommé cible intercepte le champ acoustique à mesurer.
Ultrasonic power measurement in liquids in the frequency range 0,5 MHz to 25 MHz (IEC 61161:1992)
General Information
Relations

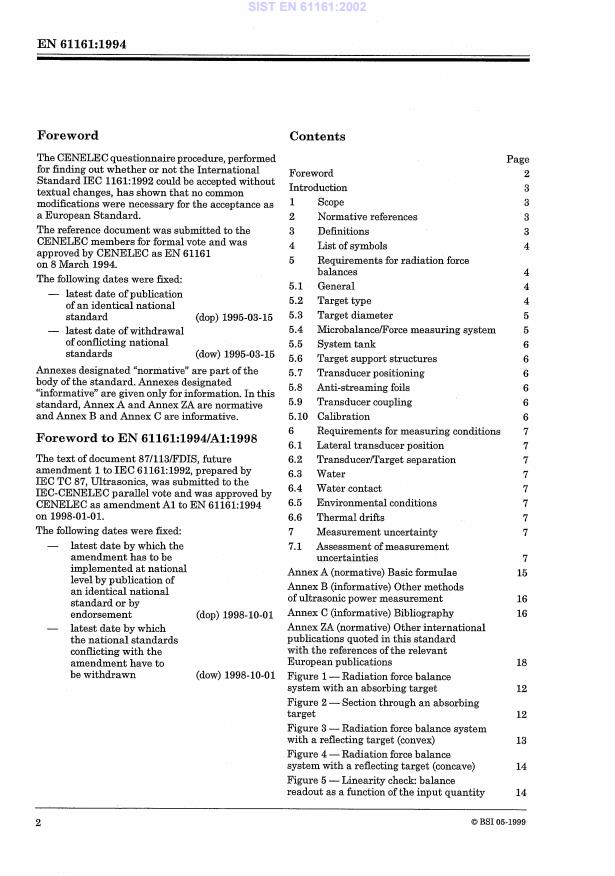

Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2002
Ultrasonic power measurement in liquids in the frequency range 0,5 MHz to 25
MHz (IEC 61161:1992)
Ultrasonic power measurement in liquids in the frequency range 0,5 MHz to 25 MHz
Ultraschall-Leistungsmessung in Flüssigkeiten im Frequenzbereich von 0,5 MHz bis 25
MHz
Mesurage de puissance ultrasonore dans les liquides dans la gamme de fréquences de
0,5 MHz à 25 MHz
Ta slovenski standard je istoveten z: EN 61161:1994
ICS:
17.140.50 Elektroakustika Electroacoustics
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
SI
...
