EN 60793-1-53:2014 (IEC 60793-1-53:2014) defines a practical water immersion test method for evaluating optical fibre performance when exposed to immersion in distilled or demineralized water. The standard targets sub-category A1a to A1d multimode fibres and class B and C single‑mode fibres, describing specimen preparation, test conditions, measurement routines and reporting. This edition harmonizes content with sectional fibre specifications and extends applicability to class C single‑mode fibres.
Key topics
- Scope and purpose
- Determine suitability of fibres to withstand immersion in distilled/demineralized water that may occur during use, storage or transport.
- Test environment
- Specimens immersed in a water tank (distilled/demineralized/de‑ionized water) with pH between 5.0 and 8.0.
- Water temperature: 23 °C ± 5 °C; immersion duration: 30 days (performed in accordance with IEC 60068-2-18, Test R).
- Specimen requirements
- Minimum specimen lengths: ≥ 1 000 m for A1a–A1d multimode fibres; ≥ 2 000 m for class B and C single‑mode fibres.
- Fibre coiling: loose coil, ends kept out of water, minimum bend diameter 150 mm to avoid macrobend effects.
- Measurements and procedures
- Optical attenuation measured before, during (after thermal stabilization) and after the test using IEC 60793-1-40 methods (Annex B insertion loss or Annex C backscattering) at wavelengths specified in the relevant product specification.
- Coating strip force measured before and after immersion per IEC 60793-1-32 to assess changes in strippability.
- Recovery period under standard atmospheric conditions: >12 h and ≤48 h, unless the detail specification requires otherwise.
- Pass/fail
- Applicable limits and acceptance criteria are given in the relevant sectional specifications (IEC 60793-2-10 for A1, IEC 60793-2-50 for B, IEC 60793-2-60 for C).
Applications and users
This standard is used by:
- Optical fibre manufacturers for product qualification and quality control.
- Test laboratories performing environmental and reliability testing.
- Procurement and specification engineers who need verified resistance to water immersion during transport, storage or deployment.
- Developers of product specifications and sectional fibre standards.
Keywords: water immersion tests, optical fibres, sub-category A1a to A1d multimode fibres, class B and C single-mode fibres, immersion in distilled or demineralized water.
Related standards
- IEC 60068-2-18 (Environmental testing - Tests R: Water)
- IEC 60793-1-32 (Coating strippability)
- IEC 60793-1-40 (Attenuation measurement methods)
- IEC 60793-2-10 / -2-50 / -2-60 (Sectional product specifications for A1, B, C fibres)
For compliance and pass/fail limits, consult the relevant IEC 60793‑2 sectional specification referenced above.
Frequently Asked Questions
EN 60793-1-53:2014 is a standard published by CLC. Its full title is "Optical fibres - Part 1-53: Measurement methods and test procedures - Water immersion tests". This standard covers: IEC 60793-1-53:2014 provides a practical method for evaluating fibre performance in a defined environment. The purpose of this standard is to define a test that determines the suitability of sub-category A1a to A1d multimode fibres and class B and C single-mode fibres to withstand the environmental condition of immersion in distilled or demineralized water which may occur in actual use, storage and/or transport. The test is primarily intended to permit the observation of effects of immersion in water over a given period. This procedure is conducted in accordance with IEC 60068-2-18, Test R. This second edition cancels and replaces the first edition, published in 2001, and constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: - harmonizing the content with sectional specifications of relevant fibre types; - extending the applicability of the standard to Class C single-mode fibres. Keywords: sub-category A1a to A1d multimode fibres, class B and C single-mode fibres, immersion in distilled or demineralized water
IEC 60793-1-53:2014 provides a practical method for evaluating fibre performance in a defined environment. The purpose of this standard is to define a test that determines the suitability of sub-category A1a to A1d multimode fibres and class B and C single-mode fibres to withstand the environmental condition of immersion in distilled or demineralized water which may occur in actual use, storage and/or transport. The test is primarily intended to permit the observation of effects of immersion in water over a given period. This procedure is conducted in accordance with IEC 60068-2-18, Test R. This second edition cancels and replaces the first edition, published in 2001, and constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: - harmonizing the content with sectional specifications of relevant fibre types; - extending the applicability of the standard to Class C single-mode fibres. Keywords: sub-category A1a to A1d multimode fibres, class B and C single-mode fibres, immersion in distilled or demineralized water
EN 60793-1-53:2014 is classified under the following ICS (International Classification for Standards) categories: 33.180.10 - Fibres and cables. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 60793-1-53:2014 has the following relationships with other standards: It is inter standard links to EN 60793-1-53:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 60793-1-53:2014 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

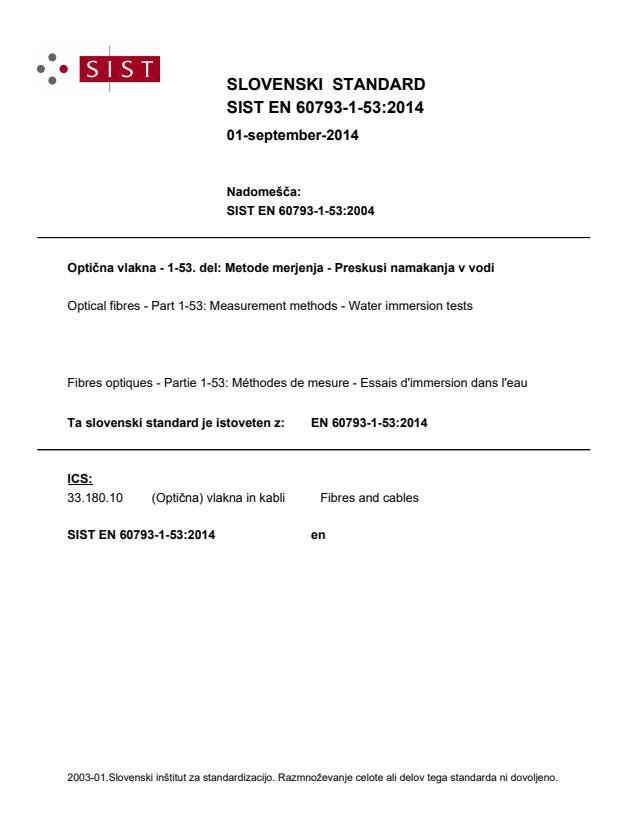

SLOVENSKI STANDARD
01-september-2014
1DGRPHãþD
SIST EN 60793-1-53:2004
2SWLþQDYODNQDGHO 0HWRGHPHUMHQMD3UHVNXVLQDPDNDQMDYYRGL
Optical fibres - Part 1-53: Measurement methods - Water immersion tests
Fibres optiques - Partie 1-53: Méthodes de mesure - Essais d'immersion dans l'eau
Ta slovenski standard je istoveten z: EN 60793-1-53:2014
ICS:
33.180.10 2SWLþQD YODNQDLQNDEOL Fibres and cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

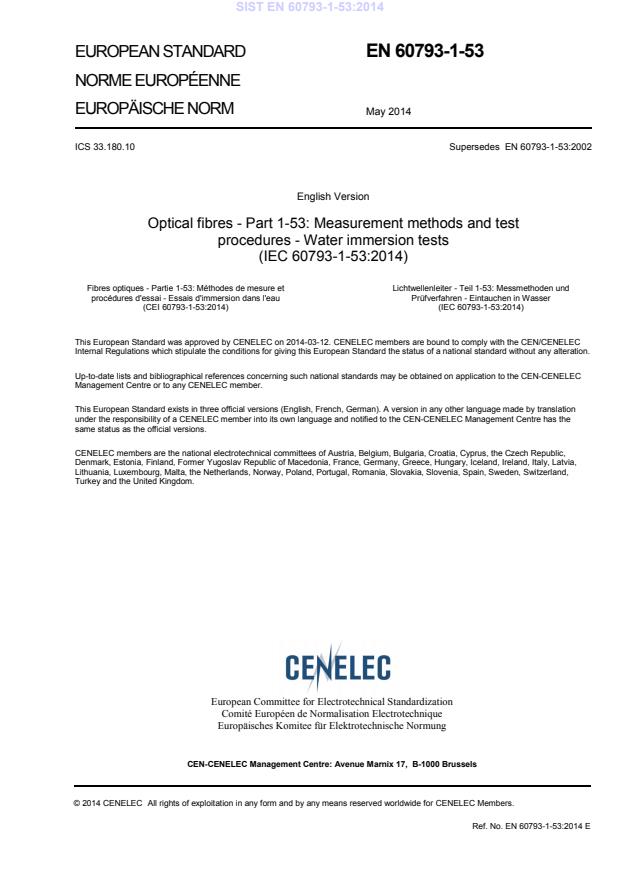

EUROPEAN STANDARD EN 60793-1-53
