EN 60974-5:2013

SLOVENSKI STANDARD
01-oktober-2013
1DGRPHãþD
SIST EN 60974-5:2008
2SUHPD]DREORþQRYDUMHQMHGHO3RGDMDOQLNLåLFH
Arc welding equipment - Part 5: Wire feeders
Lichtbogenschweißeinrichtungen - Teil 5: Drahtvorschubgeräte
Matériel de soudage à l'arc - Partie 5: Dévidoirs
Ta slovenski standard je istoveten z: EN 60974-5:2013
ICS:
25.160.30 Varilna oprema Welding equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60974-5
NORME EUROPÉENNE
August 2013
EUROPÄISCHE NORM
ICS 25.160 Supersedes EN 60974-5:2008

English version
Arc welding equipment -
Part 5: Wire feeders
(IEC 60974-5:2013)
Matériel de soudage à l'arc -  Lichtbogenschweißeinrichtungen -
Partie 5: Dévidoirs Teil 5: Drahtvorschubgeräte
(CEI 60974-5:2013) (IEC 60974-5:2013)

This European Standard was approved by CENELEC on 2013-06-27. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60974-5:2013 E

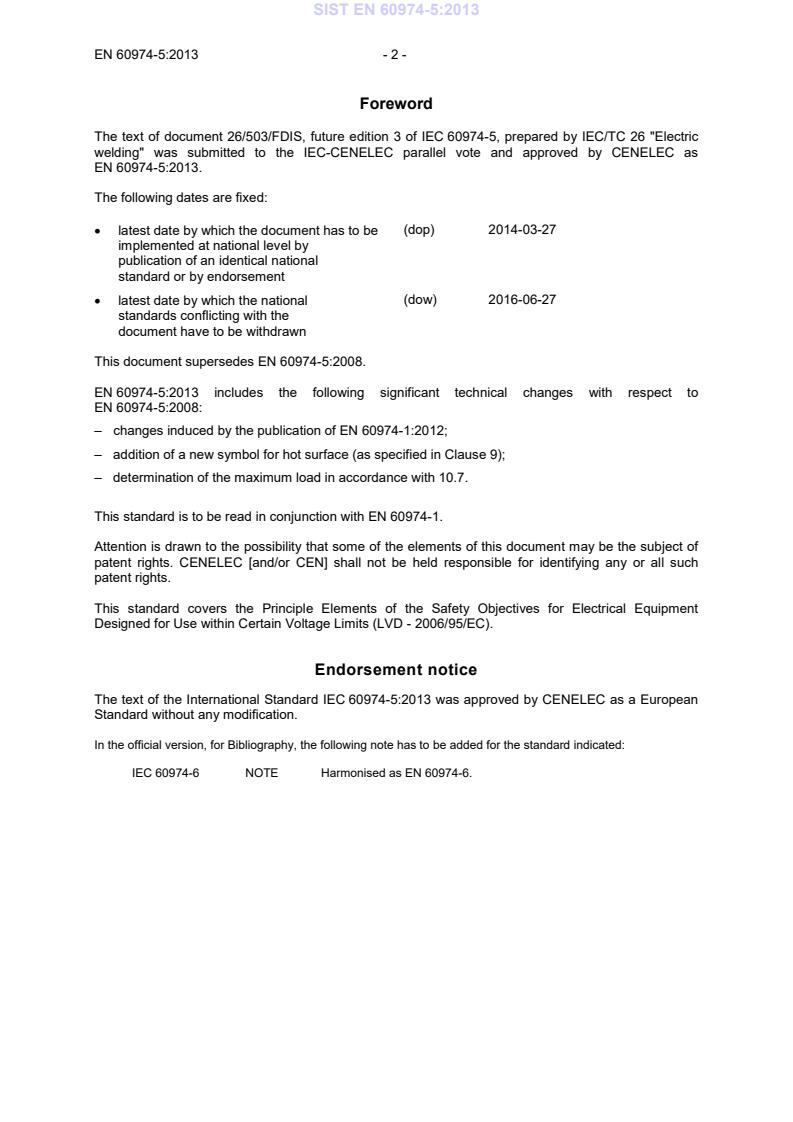

Foreword
The text of document 26/503/FDIS, future edition 3 of IEC 60974-5, prepared by IEC/TC 26 "Electric
welding" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2014-03-27
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-06-27
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60974-5:2008.

EN 60974-5:2008:
– changes induced by the publication of EN 60974-1:2012;
– addition of a new symbol for hot surface (as specified in Clause 9);
– determination of the maximum load in accordance with 10.7.

This standard is to be read in conjunction with EN 60974-1.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment
Designed for Use within Certain Voltage Limits (LVD - 2006/95/EC).

Endorsement notice
The text of the International Standard IEC 60974-5:2013 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:

IEC 60974-6 NOTE Harmonised as EN 60974-6.

- 3 - EN 60974-5:2013
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60050-195 - International Electrotechnical Vocabulary - -
(IEV) -
Chapter 195: Earthing and protection against
electric shock
IEC 60529 - Degrees of protection provided by EN 60529 -
enclosures (IP Code)
IEC 60974-1 2012 Arc welding equipment - EN 60974-1 2012
Part 1: Welding power sources
IEC 60974-7 - Arc welding equipment - EN 60974-7 -
Part 7:Torches
IEC 60974-10 - Arc welding equipment - EN 60974-10 -
Part 10: Electromagnetic compatibility (EMC)
requirements
IEC 61140 - Protection against electric shock - Common EN 61140 -
aspects for installation and equipment

IEC 60974-5 ®
Edition 3.0 2013-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Arc welding equipment –
Part 5: Wire feeders
Matériel de soudage à l’arc –
Partie 5: Dévidoirs
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX S
ICS 25.160 ISBN 978-2-83220-825-0

– 2 – 60974-5 © IEC:2013
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Environmental conditions . 7
5 Tests . 7
5.1 Test conditions . 7
5.2 Measuring instruments . 7
5.3 Conformity of components . 8
5.4 Type tests . 8
5.5 Routine tests . 8
6 Protection against electric shock . 8
6.1 Insulation . 8
6.2 Protection against electric shock in normal service (direct contact) . 8
6.2.1 Protection provided by the enclosure . 8
6.2.2 Capacitors . 9
6.2.3 Automatic discharge of supply circuit capacitors . 9
6.2.4 Isolation of the welding circuit . 9
6.2.5 Welding circuit touch current . 9
6.2.6 Touch current in normal condition . 9
6.3 Protection against electric shock in case of a fault condition (indirect contact) . 10
6.3.1 Protective provisions . 10
6.3.2 Isolation between windings of the supply circuit and the welding
circuit . 10
6.3.3 Internal conductors and connections . 10
6.3.4 Isolation of the welding circuit from the frame . 10
6.3.5 Touch current in fault condition . 10
6.4 Supply voltage . 10
6.5 Protective provisions . 10
6.6 Overcurrent protection of the supply circuit. 11
6.7 Cable anchorage . 11
6.8 Auxiliary power supply . 11
6.9 Inlet openings . 11
6.10 Control circuits . 11
6.11 Isolation of hanging means . 11
7 Liquid cooling system . 11
8 Shielding gas supply. 11
9 Thermal requirements . 12
10 Mechanical provisions . 12
10.1 Wire feeder . 12
10.2 Enclosure strength . 12
10.3 Handling means . 13
10.4 Drop withstand . 13
10.5 Tilting stability . 13
10.6 Filler wire supply . 13

60974-5 © IEC:2013 – 3 –
10.6.1 Filler wire supply mounting . 13
10.6.2 Wire spool retaining device . 13
10.6.3 Filler wire over-run . 13
10.7 Feeding . 14
10.8 Protection against mechanical hazards . 14
11 Rating plate . 15
11.1 General . 15
11.2 Description . 15
11.3 Contents. 15
12 Indication of wire-feed speed . 16
13 Instructions and markings . 16
13.1 Instructions . 16
13.2 Markings . 17
Annex A (normative) Determination of the variation in wire-feed speed . 18
Annex B (informative) Example for a rating plate of a stand-alone wire feeder . 20
Bibliography . 21

Figure 1 – Principle of the rating plate of stand-alone wire feeder . 15

Table 1 – Minimum degree of protection . 9

– 4 – 60974-5 © IEC:2013
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ARC WELDING EQUIPMENT –
Part 5: Wire feeders
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60974-5 has been prepared by IEC technical committee 26:
Electric welding.
This third edition cancels and replaces the second edition published in 2007 and constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
– changes induced by the publication of IEC 60974-1:2012;
– addition of a new symbol for hot surface (as specified in Clause 9);
– determination of the maximum load in accordance with 10.7.

60974-5 © IEC:2013 – 5 –
The text of this standard is based on the following documents:
FDIS Report on voting
26/503/FDIS 26/507/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This standard shall be used in conjunction with IEC 60974-1.
The list of all the parts of IEC 60974, under the general title Arc welding equipment, can be
found on the IEC web site.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – 60974-5 © IEC:2013
ARC WELDING EQUIPMENT –
Part 5: Wire feeders
1 Scope
This part of IEC 60974 specifies safety and performance requirements for industrial and
professional equipment used in arc welding and allied processes to feed filler wire.
The wire feeder may be a stand-alone unit which may be connected to a separate welding
power source or one where the welding power source and the wire feeder are housed in a
single enclosure.
The wire feeder may be suitable for manually or mechanically guided torches.
This part of IEC 60974 is not applicable to spool-on torches that are covered by IEC 60974-7.
This part of IEC 60974 is not applicable to wire feeders which are designed mainly for use by
laymen and design in accordance with IEC 60974-6.
NOTE 1 Typical allied processes are electric arc cutting and arc spraying.
NOTE 2 This standard does not include electromagnetic compatibility (EMC) requirements.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050-195, International Electrotechnical Vocabulary (IEV) – Part 195: Earthing and
protection against electric shock
IEC 60529, Degrees of protection provided by enclosures (IP Code)
IEC 60974-1:2012, Arc welding equipment – Part 1: Welding power sources
IEC 60974-7, Arc welding equipment – Part 7: Torches
IEC 60974-10, Arc welding equipment – Part 10: Electromagnetic compatibility (EMC)
requirements
IEC 61140, Protection against electric shock – Common aspects for installation and
equipment
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-195,
IEC 60974-1, and IEC 60974-7, as well as the following apply.

60974-5 © IEC:2013 – 7 –
3.1
drive roll
roll in contact with the filler wire and which transfers mechanical power to the filler wire
3.2
filler wire supply
source of filler wire and means for dispensing filler wire to the feeding mechanism
3.3
liner
replaceable component that guides the filler wire
3.4
maximum load
maximum value of the force required to feed the specified types and sizes of filler wires over
the rated speed range
3.5
rated speed range
speed range of the filler wire assigned by the manufacturer for each specified size of filler
wire
3.6
rated supply current
I
r.m.s. value of an input current to the wire feeder at maximum load
3.7
wire-feed control
electrical or mechanical apparatus, or both, which control(s) the speed of the filler wire, the
sequence of operations and other services as required
Note 1 to entry: The wire feed control may be integral with the wire feeder or in a separate enclosure.
3.8
wire feeder
equipment that delivers filler wire to the arc or weld zone which includes means to apply
motion to the filler wire
Note 1 to entry: The wire feeder may also include the wire-feed control, the filler wire supply, devices for gas
control, indicators and remote connectors.
4 Environmental conditions
As specified in Clause 4 of IEC 60974-1:2012.
5 Tests
5.1 Test conditions
As specified in 5.1 of IEC 60974-1:2012.
5.2 Measuring instruments
The accuracy of measuring instruments shall be:

– 8 – 60974-5 © IEC:2013
a) electrical measuring instruments: class 1 (±1 % of full-scale reading), except for the
measurement of insulation resistance and dielectric strength where the accuracy of the
instruments is not specified, but shall be taken into account for the measurement;
b) thermometer: ±2 K;
c) tachometer: ± 1 % of full-scale reading;
d) pressure measuring instruments: class 2,5 (±2,5 % of full-scale reading).
5.3 Conformity of components
As specified in 5.3 of IEC 60974-1:2012.
5.4 Type tests
All type tests given below shall be carried out on the same wire feeder.
As a condition of conformity the type tests given below shall be carried out in the following
sequence:
a) visual inspection (as defined in 3.7 of IEC 60974-1:2012);
b) insulation resistance (as specified in 6.1.4 of IEC 60974-1:2012 (preliminary check));
c) enclosure (as specified in 14.2 of IEC 60974-1:2012);
d) handling means (as specified in 10.3);
e) drop withstand (as specified in 10.4);
f) protection provided by the enclosure (as specified in 6.2.1);
g) insul
...
