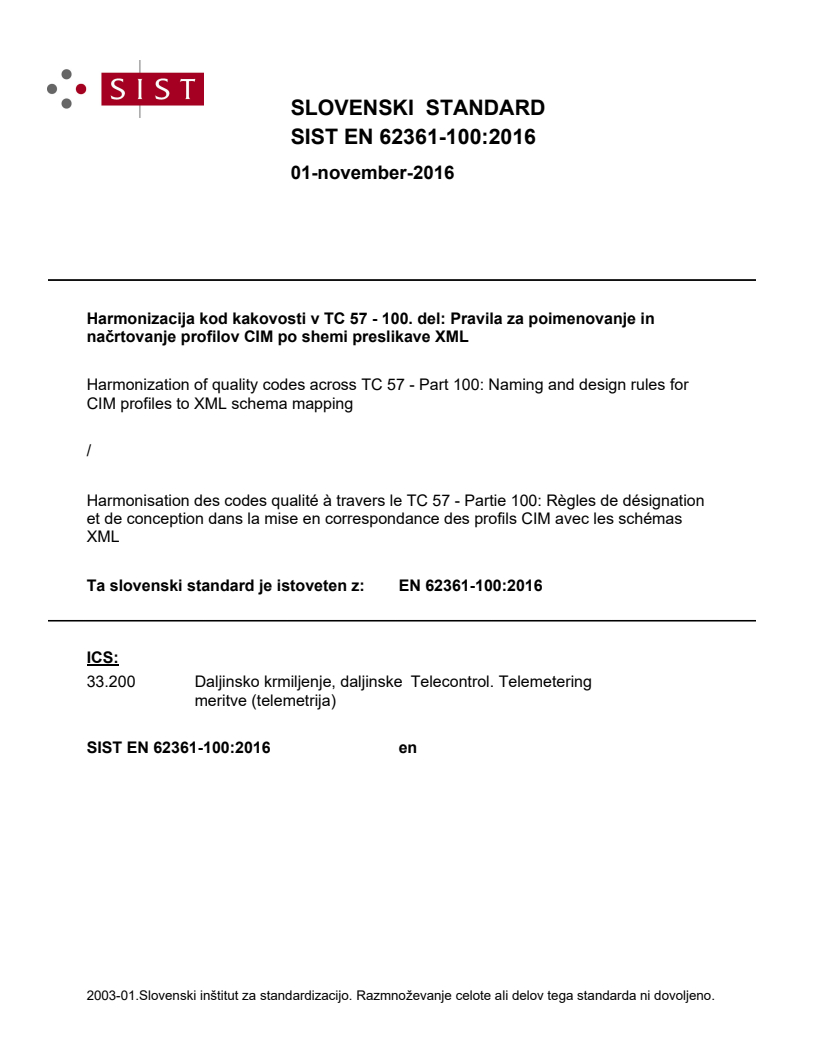

EN 62361-100:2016

SLOVENSKI STANDARD
01-november-2016
+DUPRQL]DFLMDNRGNDNRYRVWLY7&GHO3UDYLOD]DSRLPHQRYDQMHLQ
QDþUWRYDQMHSURILORY&,0SRVKHPLSUHVOLNDYH;0/
Harmonization of quality codes across TC 57 - Part 100: Naming and design rules for
CIM profiles to XML schema mapping
/
Harmonisation des codes qualité à travers le TC 57 - Partie 100: Règles de désignation
et de conception dans la mise en correspondance des profils CIM avec les schémas
XML
Ta slovenski standard je istoveten z: EN 62361-100:2016
ICS:
33.200 Daljinsko krmiljenje, daljinske Telecontrol. Telemetering
meritve (telemetrija)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

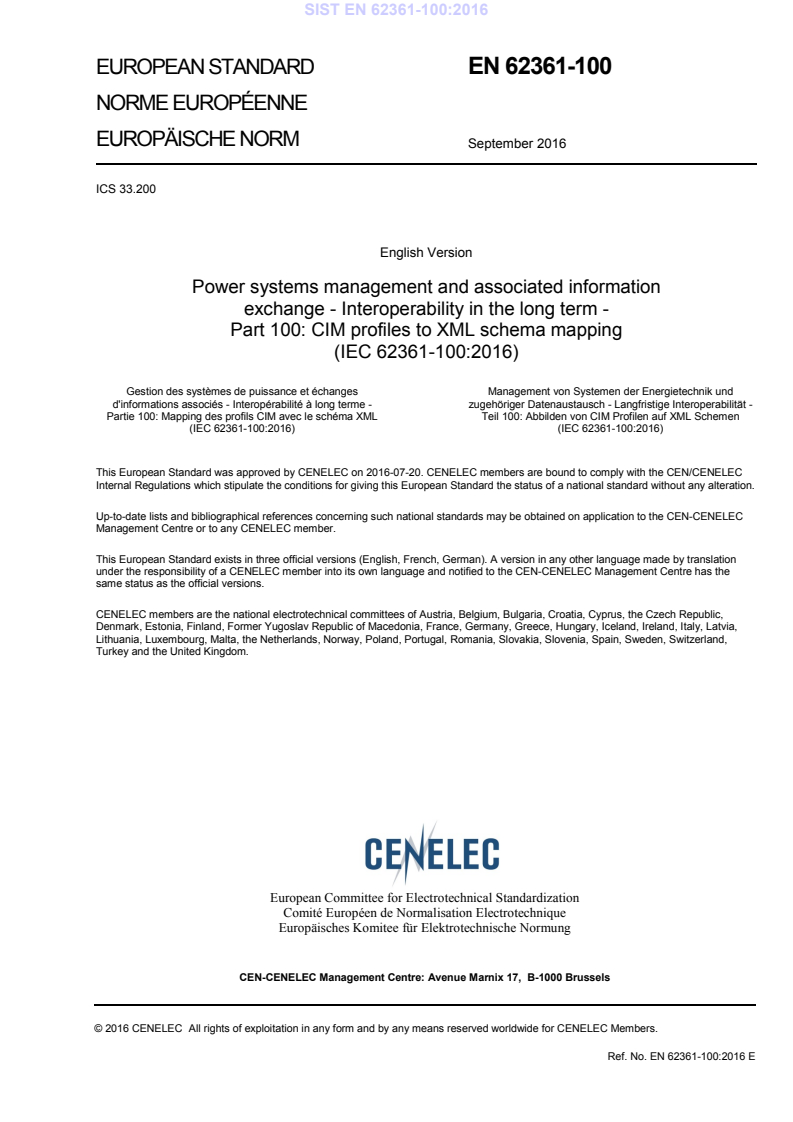

EUROPEAN STANDARD EN 62361-100

NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2016
ICS 33.200
English Version
Power systems management and associated information
exchange - Interoperability in the long term -
Part 100: CIM profiles to XML schema mapping
(IEC 62361-100:2016)
Gestion des systèmes de puissance et échanges Management von Systemen der Energietechnik und
d'informations associés - Interopérabilité à long terme - zugehöriger Datenaustausch - Langfristige Interoperabilität -
Partie 100: Mapping des profils CIM avec le schéma XML Teil 100: Abbilden von CIM Profilen auf XML Schemen
(IEC 62361-100:2016) (IEC 62361-100:2016)
This European Standard was approved by CENELEC on 2016-07-20. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62361-100:2016 E

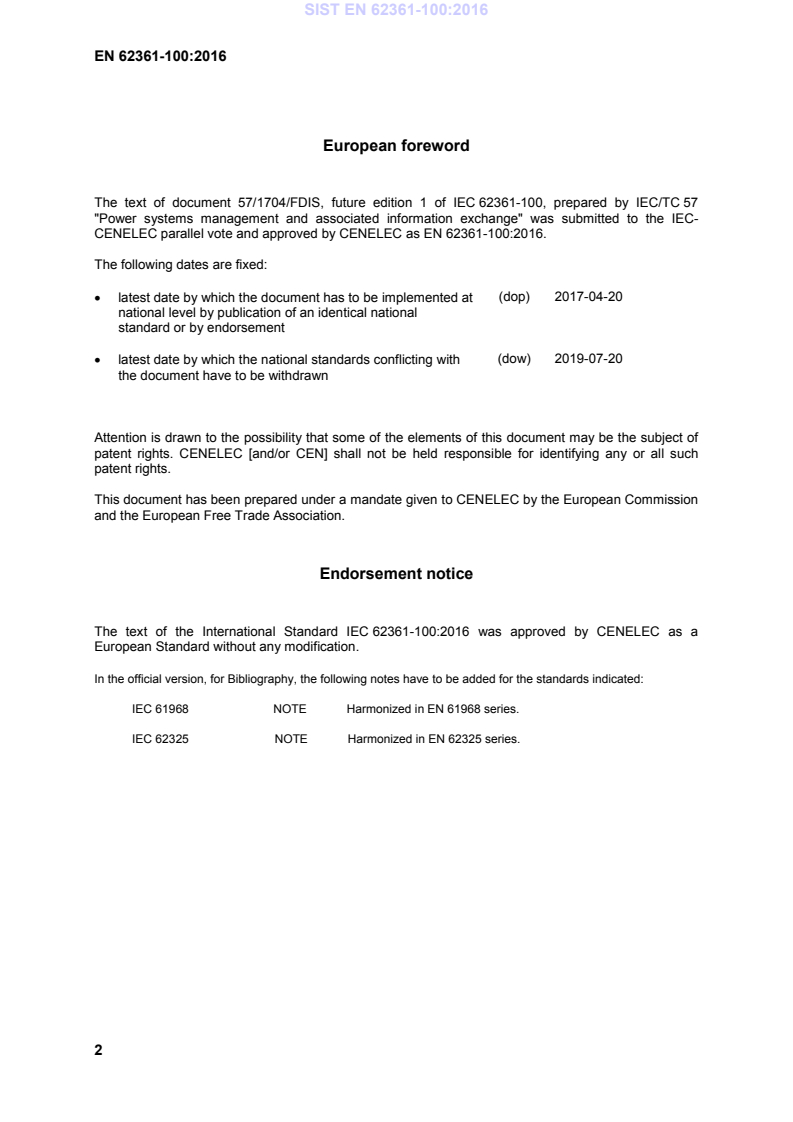

European foreword
The text of document 57/1704/FDIS, future edition 1 of IEC 62361-100, prepared by IEC/TC 57
"Power systems management and associated information exchange" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN 62361-100:2016.
The following dates are fixed:
(dop) 2017-04-20
• latest date by which the document has to be implemented at
national level by publication of an identical national
standard or by endorsement
(dow) 2019-07-20
• latest date by which the national standards conflicting with
the document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association.
Endorsement notice
The text of the International Standard IEC 62361-100:2016 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 61968 NOTE Harmonized in EN 61968 series.
IEC 62325 NOTE Harmonized in EN 62325 series.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is
available here: www.cenelec.eu.

Publication Year Title EN/HD Year
IEC 61968-11 -  Application integration at electric EN 61968-11 -
utilities - System interfaces for
distribution management -
Part 11: Common information model
(CIM) extensions for distribution
IEC/TS 61970-2 -  Energy management system application CLC/TS 61970-2 -
program interface (EMS-API) -
Part 2: Glossary
IEC 61970-301 -  Energy management system application EN 61970-301 -
program interface (EMS-API) -
Part 301: Common information model
(CIM) base
IEC 62325-301 -  Framework for energy market EN 62325-301 -
communications -
Part 301: Common information model
(CIM) extensions for markets
IEC 62325-450 2013 Framework for energy market EN 62325-450 2013
communications -
Part 450: Profile and context modelling
rules
W3C XML Schema 2004 XML Schema - - -
Part 1 Part 1: Structures
IETF RFC 3986 2005 Uniform Resource Identifier (URI): - -
Generic Syntax
IEC 62361-100 ®
Edition 1.0 2016-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Power systems management and associated information exchange –

Interoperability in the long term –

Part 100: CIM profiles to XML schema mapping

Gestion des systèmes de puissance et échanges d'informations associés –

Interopérabilité à long terme –

Partie 100: Mapping des profils CIM avec le schéma XML

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.200 ISBN 978-2-8322-3454-9

– 2 – IEC 62361-100:2016 © IEC 2016
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references. 8
3 Terms and definitions . 8
4 System context . 10
4.1 Profiling process . 10
4.2 CIM . 11
4.3 Contextual model . 11
4.4 Contextual model artefacts . 11
4.4.1 Contextual model artefacts and CIM subset . 11
4.4.2 Contextual model artefacts definition . 11
4.5 Mapping contextual model to XML schema . 14
4.5.1 General . 14
4.5.2 Traceability . 14
4.6 XML Schema Representation . 14
4.7 Namespaces . 15
5 Mapping specifications . 15
5.1 General . 15
5.1.1 Example . 15
5.1.2 Mapped name . 16
5.2 Profile mapping . 16
5.2.1 General . 16
5.2.2 Namespace and version . 17
5.2.3 Schema top level element . 17
5.2.4 Types . 18
5.2.5 Semantic annotation . 18
5.3 Structured classes . 19
5.4 Compound classes . 20
5.5 Basic types . 21
5.6 Simple types . 21
5.6.1 Mapping rules . 21
5.6.2 Possible facets . 22
5.7 Data Types mapping . 23
5.8 Enumeration classes mapping . 25
5.9 CodeList classes mapping . 26
5.10 Simple properties mapping . 27
5.11 Compound properties mapping . 28
5.12 Object properties . 29
5.12.1 Mapping rules overview . 29
5.12.2 Typed object properties mapping . 29
5.12.3 By reference object properties mapping . 29
5.12.4 Union object properties mapping . 30
5.13 Exclusive property group mapping . 32
5.14 Documentation and categorized documentation . 33
5.14.1 General mapping . 33

IEC 62361-100:2016 © IEC 2016 – 3 –
5.14.2 Documentation mapping . 33
5.14.3 Categorized documentation mapping . 33
5.14.4 Stereotype mapping . 33
5.15 Names . 34
5.16 Mapping order . 34
5.16.1 General mapping order basis . 34
5.16.2 Alphabetical based mapping order . 35
5.16.3 Business context based mapping order . 36
5.17 Changing name rules . 36
Annex A (normative)  Use of dedicated XML schemas for datatypes, enumerations
and codelists . 38
A.1 Context: . 38
A.2 Modular schema design and mapping: . 38
A.3 Artefact mapping . 39
A.3.1 General rule . 39
A.3.2 Datatype, enumeration or codelist mapping: . 39
A.3.3 Simple property mapping . 40
Annex B (informative) Contextual model representations . 41
Annex C (informative) Changing name rules examples . 42
C.1 Changing name rule context . 42
C.2 Changing name rules when using "union" super class . 42
C.2.1 General . 42
C.2.2 Changing name rule when CIM association end role name and CIM
super class name are the same . 42
C.2.3 Changing name rule when CIM association end role name is the CIM
super class name prefixed by a qualifier followed by an underscore . 43
C.2.4 Changing name rule when CIM association end role name and the CIM
super class name are completely different . 44
C.3 Changing name rules when using complex properties with the same name . 45
C.3.1 General . 45
C.3.2 Changing name rule when CIM association end role name and CIM
super class name are the same . 45
C.3.3 Changing name rule when CIM association end role name is the CIM
super class name prefixed by a qualifier followed by an underscore . 46
C.3.4 Changing name rule when CIM association end role name and the CIM
super class name are completely different . 48
Bibliography . 50

Figure 1 – Example XML Schema CIM-based profile . 16
Figure 2 – Example of alphabetical order . 34
Figure 3 – Example of business order . 34
Figure 4 – Example business context order of a schema . 36
Figure C.1 – Example of end role name matching super class name . 42
Figure C.2 – Contextual model end role name matching super class name . 43
Figure C.3 – Example of end role name with a qualifier . 43
Figure C.4 – Contextual model end role name with a qualifier . 44
Figure C.5 – End role name and super class name different . 44
Figure C.6 – Contextual model with end role name different from super class name . 45

– 4 – IEC 62361-100:2016 © IEC 2016
Figure C.7 – Example of end role name matching super class name . 46
Figure C.8 – Contextual model end role name matching super class name . 46
Figure C.9 – Example of end role name with a qualifier . 47
Figure C.10 – Contextual model end role name with a qualifier . 47
Figure C.11 – End role name and super class name different . 48
Figure C.12 – Contextual model with end role name different from super class name . 48

Table 1 – Contextual model artefacts . 12
Table 2 – Basic Types . 21
Table 3 – Facets . 23
Table B.1 – Contextual model representation . 41

IEC 62361-100:2016 © IEC 2016 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
POWER SYSTEMS MANAGEMENT AND ASSOCIATED INFORMATION
EXCHANGE – INTEROPERABILITY IN THE LONG TERM –

Part 100: CIM profiles to XML schema mapping

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62361-100 has been prepared by IEC technical committee 57:
Power systems management and associated information exchange.
This is the first edition of the standard.
The text of this standard is based on the following documents:
FDIS Report on voting
57/1704/FDIS 57/1735/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 6 – IEC 62361-100:2016 © IEC 2016
In this document, the following print types are used:
• Words printed in Arial Black apply to terms that are defined as contextual model artefacts
in 4.4.2,
• Words printed Courier New apply to terms that are used as XML Schema representation
(as defined in 4.6) or in XML examples,
• Words printed “between quotes” apply to terms that are used as tokens in the normative
clauses or that are defined as CIM artefacts.
A list of all parts of the IEC 62361 series, under the general title: Power systems management
and associated information exchange – Interoperability in the long term, can be found on the
IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
IEC 62361-100:2016 © IEC 2016 – 7 –
INTRODUCTION
The IEC 62361 series defines standards which address areas of interest that impact multiple
standards and provide consistency for implementations.
This part of the IEC 62361 series describes a mapping from CIM profiles to W3C XML
Schemas and defines the rules that CIM XML message payloads shall adhere to.
The principle objective of this part of IEC 62361 is to facilitate the exchange of information in
the form of XML documents whose semantics are defined by the IEC CIM and whose syntax
is defined by a W3C XML schema. This will facilitate the integration of all applications that
use the XML Schema message payloads developed by the WGs and implemented
independently by different vendors into their systems.
The common information model (CIM) specifies the basis for the semantics for message
payload exchanges defined by the IEC. The profile specifications, which are contained in
other parts of the IEC 62361 series, specify the content of the message payloads exchanged.
The format/syntax of those payloads is specified in this part of IEC 62361.

– 8 – IEC 62361-100:2016 © IEC 2016
POWER SYSTEMS MANAGEMENT AND ASSOCIATED INFORMATION
EXCHANGE – INTEROPERABILITY IN THE LONG TERM –

Part 100: CIM profiles to XML schema mapping

1 Scope
This part of IEC 62361 describes a mapping from CIM profiles to W3C XML Schemas.
The purpose of this mapping is to facilitate the exchange of information in the form of XML
documents whose semantics are defined by the IEC CIM and whose syntax is defined by a
W3C XML schema.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61968-11, Application integration at electric utilities – System interfaces for distribution
management – Part 11: Common information model (CIM) extensions for distribution
IEC TS 61970-2, Energy management system application program interface (EMS-API) –
Part 2: Glossary
IEC 61970-301, Energy management system application program interface (EMS-API) –
Part 301: Common information model (CIM) base
IEC 62325-301, Framework for energy market communications – Part 301: Common
information model (CIM) extensions for markets
IEC 62325-450:2013, Framework for energy market communications – Part 450: Profile and
context modelling rules
XML Schema Part 1: Structures Second Edition W3C Recommendation 28 October 2004
IETF RFC 3986 Uniform Resource Identifier (URI): Generic Syntax January 2005
Semantic Annotations for WSDL and XML Schema W3C Recommendation 28 August 2007
3 Terms and definitions
For the purposes of this document, the terms and definitions of IEC TS 61970-2 apply, as well
as the following.
NOTE Refer to the International Electrotechnical Vocabulary, IEC 60050, for general glossary definitions.
3.1
artefact
element of a model that represents objects of a given domain and their characteristics

IEC 62361-100:2016 © IEC 2016 – 9 –
3.2
canonical model
abstract model that represents all the major objects of a given domain (energy, electricity…)
with artefacts
3.3
common information model
CIM
canonical model (abstract model) that represents all the major objects in an electric utility
enterprise typically needed to model the operational aspects of a utility
Note 1 to entry: CIM is defined in the IEC 61968, IEC 61970 and IEC 62325 series.
Note 2 to entry: This note applies to the French language only.
3.4
contextual model
restricted subset of CIM artefacts
3.5
extensible markup language
XML
markup language that defines a set of rules for encoding documents in a format that is both
human-readable and machine-readable
Note 1 to entry: This is defined in the XML Specification produced by the World Wide Web Consortium (W3C).
Note 2 to entry: This note applies to the French language only.
3.6
profile
uniquely named subset of CIM classes, associations and attributes needed to accomplish a
specific type of interface
Note 1 to entry: A profile, as used in this document, is defined in IEC 62325-450:2013 and IEC 62361-101 .
3.7
resource description format
RDF
family of World Wide Web Consortium (W3C) specifications originally designed as a metadata
data model
Note 1 to entry: This term has come to be used as a general method for conceptual description or modelling of
information that is implemented in web resources, using a variety of syntax formats.
Note 2 to entry: This note applies to the French language only.
3.8
semantic annotation for WSDL and XML Schema
SAWSDL
set of extension attributes for the Web Services Description Language (WSDL) and XML
Schema definition language
Note 1 to entry: This note applies to the French language only.
___________
Under consideration.
– 10 – IEC 62361-100:2016 © IEC 2016
3.9
unified modelling language
UML
formal and comprehensive descriptive language with diagramming techniques used to
represent software systems, from requirements analysis, through design and implementation,
to documentation
Note 1 to entry: UML is a standard defined by the Object Management Group (OMG). UML is used to describe
CIM.
Note 2 to entry: This note applies to the French language only.
3.10
uniform resource indicator
URI
string of characters used to identify a name or a resource, enabling interaction with
representations of the resource over a network (typically the World Wide Web) using specific
protocols
Note 1 to entry: Schemes specifying a concrete syntax and associated protocols define each URI.
Note 2 to entry: This note applies to the French language only.
3.11
XML Schema
family of World Wide Web Consortium (W3C) specifications, used to define the structure,
content, and semantics of eXtensible Markup Language (XML) files
Note 1 to entry: XML Schemas are generally found in files with an “xsd” extension. XSD files are used to define
inter-application messages.
3.12
Web Ontology Language
OWL
family of knowledge representation languages for authoring ontologies, characterised by
formal semantics and RDF/XML-based serializations for the Semantic Web
Note 1 to entry: OWL is endorsed by the World Wide Web Consortium (W3C).
Note 2 to entry: This note applies to the French language only.
4 System context
4.1 Profiling process
The profiling process aim is to define a syntactic model that will govern instance data that are
exchanged in a given business context and whose semantic is defined by a canonical model
(like CIM). The profiling process is in simple form a two steps process:
• Defining a contextual model that is a subset of the canonical model (subset that could
include some restrictions). In this document, there is no assumption about the rules that
are used to complete this step, but the contextual model artefacts are described in
Table 1.
• Generating a syntactic model in the form of an XML Schema with a defined mapping of
contextual model artefacts: this is the purpose of this standard IEC 62361-100.
IEC 62361-100 defines how a contextual model artefact is mapped to XML Schema artefacts
(like element, simple and complex types). It does not define a mapping from canonical
model artefacts to XML Schema ones, but it keeps the fact that there is relation between
these two artefacts.
IEC 62361-100:2016 © IEC 2016 – 11 –
4.2 CIM
CIM is a canonical model that represents all the major objects in an electric utility enterprise
typically needed to model the operational aspects of a utility. This model includes public
classes and attributes for these objects, as well as the relationships between them. Classes,
attributes, relationships and attribute types like "Primitive", "enumeration", "CIMdatatype" and
"Compound" are the main CIM artefacts.
CIM is defined by IEC standards IEC 61968-11, IEC 61970-301 and IEC 62325-301.
The CIM may be augmented with project or application-specific extensions. In that case, the
references to the CIM in this subclause can be read as CIM with extensions.
4.3 Contextual model
The concept of a contextual model is borrowed from the UN/CEFACT modelling approach and
may be used in CIM standards formation. The contextual model may be any one of several
formats including OWL or a UML subset package.
No specific contextual modelling language is assumed by this specification. However, the
artefacts defined in Table 1 are used in this document when referring to the contextual model
and are assumed to be capable of expression in whichever language is used.
The mapping specifications (see Clause 5) apply to these contextual model artefacts which
could be represented in a number of languages. Two possible representations are given in the
appendices.
4.4 Contextual model artefacts
4.4.1 Contextual model artefacts and CIM subset
In Table 1, contextual artefacts are defined in relation to CIM artefacts. Here, the term subset
is used: a contextual artefact is a subset of some CIM artefact. Subset means that a
contextual artefact could have the same characteristics as its CIM counterpart or a subset of
these characteristics. Examples:
• “IdentifiedObject” class in CIM has four attributes (“mRID”, “aliasName”, “name” and
“description”) and one association “Names”, i.e. its characteristics. “IdentifiedObject”
structured class in contextual model could have the same characteristics as its CIM
counterpart or just some of them: so “IdentifiedObject” contextual artefact is defined as a
subset of “IdentifiedObject” CIM artefact.
• “name” attribute of CIM “IdentifiedObject” class has two characteristics: a cardinality that
is optional and a type that is a string. In contextual model, “name” simple property of
“IdentifiedObject” structured class could have the same characteristics as its CIM
counterpart or some more restricted ones: example, cardinality of “name” could be
restricted to mandatory and/or string length could be defined. So “name” contextual
artefact is defined as a subset of “name” CIM artefact.
• “Names” association end role name of CIM “IdentifiedObject” has one characteristic: a
cardinality that is 0 to many. In contextual model, “Names” object property of
“IdentifiedObject” structured class could have the same characteristic as its CIM
counterpart or a more restricted one: example, cardinality of “Names” could be restricted
to 1 or 1 to many. So “Names” contextual artefact is defined as a subset of “Names” CIM
artefact.
4.4.2 Contextual model artefacts definition
Contextual model artefacts are listed and defined in Table 1.

– 12 – IEC 62361-100:2016 © IEC 2016
Table 1 – Contextual model artefacts
Contextual model Definition
artefact
subset of a CIM class not stereotyped with "enumeration", "Primitive", "CIMDatatype" or
Structured class
"Compound".
A structured class may have zero or more object properties, compound properties and
simple properties.
Any subclass of a structured class is also a structured class.
relative to a given structured class, a more general structured class whose extent is a
Superclass
superset of the given structured class.
relative to a given structured class, a more specific structured class whose extent is a
Subclass
subset of the given structured class.
structured class that may have standalone instances which are not the referent of any
Root class
object property.
A contextual model may assign cardinality bounds to a root class limiting the number of
standalone instances that may occur.
subset of a non-stereotyped CIM superclass defined as a union of (some of) its
Union class
subclasses.
Each member of the union is defined as a structured class. Each of these is a subclass of
a single, given CIM class.
An instance of a union is an instance of one of its constituent structured classes.
Example: in CIM, “RegisteredResource” is a super class of “RegisteredLoad”,
“RegisteredTie” and “RegisteredGenerator”. In contextual model, “RegisteredResource”
could be a super class of some of these subclasses. When defined as a union,
“RegisteredResource” defined the set of the subclasses (“RegisteredLoad”,
“RegisteredTie”…) that are going to be used as the referent classes for the
“RegisteredResource” object property that in this case will be a union object
property (see below).
Note: this feature is used to get all the elements representing subclasses instances in a
random order.
subset of a CIM class defined as "Compound" with additional restrictions.
Compound class
An instance of a compound class is a structured value. It has one or more properties, but
it has no identity distinct from the combination of its property values.
CIM class defined as a "Primitive" (include "Integer", "Decimal", "Boolean", "Duration",
Basic type
"DateTime", "Date", "Time", "Float", "String").
A subset of the CIM “Float” class defined as a “Primitive” and marked as
“Single” or "Double" precision.
A subset of the CIM “String” class defined as a “Primitive” and marked as “normalized”,
“token”, “NMTOKEN”, “Name”, “NCName” and “anyURI” .
A basic type may be used directly in a contextual model without further definition.
The value range of each basic type is assumed to be that of the XML Schema Part II
Datatype integer, decimal, boolean, duration, datetime, date, time,
float, double, string, normalizedString, token, MNTOKEN, Name,
NCName and anyURI respectively.
subset of a CIM class defined as “Primitive” with additional restrictions.
Simple type
As defined above, the value range of such a CIM class is assumed to be one of the XML
Schema Part II datatypes defined above.
The additional restrictions narrow this value range by defining one or more facets for that
datatype (example: “TwentyFourChar_String” is a string whose maximum length is 24
characters).
A simple type instance does not have simple properties or object properties and has no
identity distinct from its value.

IEC 62361-100:2016 © IEC 2016 – 13 –
Contextual model Definition
artefact
subset of a CIM class defined as "CIMDatatype" with additional restrictions.
Data type
A data type is a class whose instances carry a value and other properties that give
meaning to this value. Data type value and other data type properties could be restricted
by additional constraints.
An instance of a data type class is a structured value. It has one or more properties, but
it has no identity distinct from the combination of its property values.
subset of an "enumeration" CIM class.
Enumeration
class
subset of an "enumeration" CIM class and marked as "CodeList".
CodeList class
Each instance of the enumeration is associated to a “code” whose type is one of the
"Basic type".
Simple property subset of a CIM class attribute with additional restrictions. The type of a simple
property is a Simple type, a Basic type, a Data type or an Enumeration Class.
subset of a CIM class attribute whose referent is a class defined as a "Compound".
Compound
property
subset of a CIM association with additional restrictions and a specific direction from
Object property
referring class to referent class.
The referent of an object property is an instance of a structured class.
The restrictions may narrow the referring or referent classes or place bounds on the
cardinality of the object property.
By-reference subset of a CIM association, as per object property, defined as by-reference. The
object property referent of a by-reference object property is either an instance of a structured class
or an external instance.
An external instance is assumed to exist but is not described in the present message.
Pragmatically, a"by-reference object property is implemented by quoting the
referent's identifier (example "mRID").
Union object object property defined as union whose referent class is a super class or an object
property whose referent class is a union class.
property
In CIM, “ResourceCapacity” has an association with “RegisteredResource”, super class of
“RegisteredLoad”, “RegisteredTie” and “RegisteredGenerator”. The association has two
end role names: “ResourceCapacity” and “RegisteredResource”. In contextual model,
“ResourceCapacity” could have the object property “RegisteredResource” whose
referent class is “RegisteredResource”. If this object property is marked as union or if the
“RegisteredResource” referent class is marked as union, then the “RegisteredResource”
object property is a union object property.
Note: this feature is used to get all the elements representing subclasses instances in a
random order.
Exclusive restriction on a structured class with respects to a group of properties such that only
one of the properties may appear in a given instance of the class.
property group
BasedOn property relation between a contextual model artefact (like structured class, property,
simple type or data type) with its corresponding CIM artefact (like "class", "attribute",
"association", "Primitive", "enumeration", "CIMDatatype", "Compound").
prose description accompanying a definition in the CIM or the contextual model.
Documentation
prose description accompanying a definition in the CIM or in the contextual model together
Categorized
with some classifying properties which indicate the category and purpose of the
documentation
description.
– 14 – IEC 62361-100:2016 © IEC 2016
Contextual model Definition
artefact
identifier associated with a contextual model class or property that qualifies its usage or
Stereotype
semantics, but not its XML Schema mapping.
The meaning of each stereotype must be provided in documentation accompanying the
contextual model.
4.5 Mapping contextual model to XML schema
4.5.1 General
The mapping determines:
• a single, standalone XML schema for a given contextual model;
• the syntax of the instance XML documents to be exchanged;
• the relationship between definitions in the XML schema and definitions in the contextual
model;
• the relationship between elements in the XML documents exchanged and the definitions in
the CIM.
The mapping is applied at design time to map a CIM profile to a W3C XML schema.
In this mapping, a profile defines the semantics of a single type of message payload that will
be encoded in XML.
Therefore:
• The syntax or semantics of any headers that may be added to the instance documents
when they are exchanged is not specified.
• Both the contextual model and its mapped XML schema are design artefacts and are not
necessarily required at the time instance XML documents are exchanged. But the
corresponding XML schema must be agreed and shared before the exchange.
• The method used to exchange instance XML documents is not specified.
4.5.2 Traceability
In this mapping, the relationships, between elements in the XML documents exchanged and
the definitions in the canonical model of which the contextual model is a subset, are
expressed. To keep track of these relationships, the mapping uses semantic annotation as
defined in "Semantic Annotations for WSDL and XML Schema W3C Recommendation". The
mapping to these semantic annotations is done with the contextual mod
...
