EUROPEAN STANDARD EN 50129
NORME EUROPÉENNE
EUROPÄISCHE NORM February 2003

ICS 93.100 Supersedes ENV 50129:1998

English version
Railway applications –
Communication, signalling and processing systems –
Safety related electronic systems for signalling

Applications ferroviaires –  Bahnanwendungen -
Systèmes de signalisation, Telekommunikationstechnik,
de télécommunications et de traitement - Signaltechnik und
Systèmes électroniques de sécurité Datenverarbeitungssysteme -
pour la signalisation Sicherheitsrelevante elektronische
Systeme für Signaltechnik
This European Standard was approved by CENELEC on 2002-12-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta,
Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2003 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 50129:2003 E

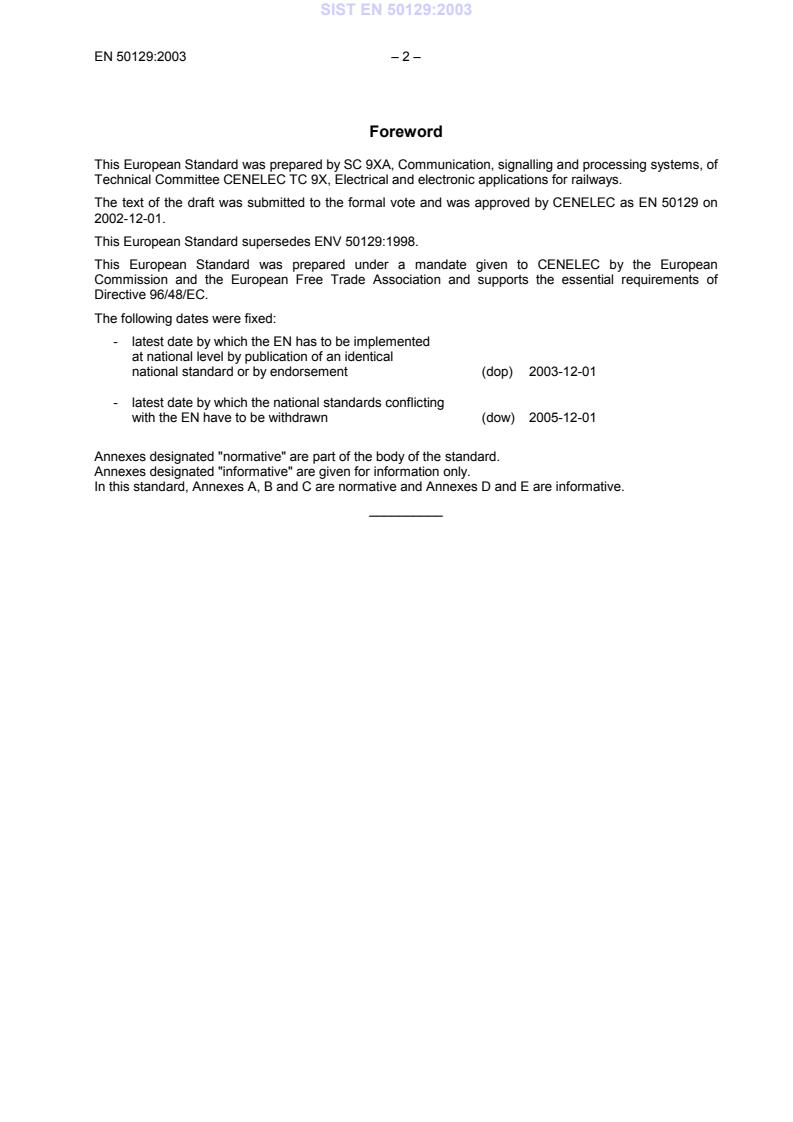

Foreword
This European Standard was prepared by SC 9XA, Communication, signalling and processing systems, of
Technical Committee CENELEC TC 9X, Electrical and electronic applications for railways.
The text of the draft was submitted to the formal vote and was approved by CENELEC as EN 50129 on
2002-12-01.
This European Standard supersedes ENV 50129:1998.
This European Standard was prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and supports the essential requirements of
Directive 96/48/EC.
The following dates were fixed:
- latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2003-12-01
- latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2005-12-01

Annexes designated "normative" are part of the body of the standard.
Annexes designated "informative" are given for information only.
In this standard, Annexes A, B and C are normative and Annexes D and E are informative.
__________
– 3 – EN 50129:2003
Contents
Page
Introduction.6
1 Scope.7
2 Normative references.8
3 Definitions and abbreviations.9
3.1 Definitions.9
3.2 Abbreviations.13
4 Overall framework of this standard.14
5 Conditions for safety acceptance and approval .15
5.1 The Safety Case.15
5.2 Evidence of quality management .17
5.3 Evidence of safety management .20
5.4 Evidence of functional and technical safety.24
5.5 Safety acceptance and approval .26
Annex A (normative) Safety Integrity Levels.30
A.1 Introduction.30
A.2 Safety requirements .30
A.3 Safety integrity.31
A.4 Allocation of safety integrity requirements.31
A.5 Safety Integrity Levels .39
Annex B (normative) Detailed technical requirements .42
B.1 Introduction.42
B.2 Assurance of correct functional operation.42
B.3 Effects of faults.44
B.4 Operation with external influences .50
B.5 Safety-related application conditions.51
B.6 Safety Qualification Tests.53
Annex C (normative) Identification of hardware component failure modes.55
C.1 Introduction.55
C.2 General procedure .55
C.3 Procedure for integrated circuits (including microprocessors) .55
C.4 Procedure for components with inherent physical properties.55
C.5 General notes concerning component failure modes.56
C.6 Additional general notes, concerning components with inherent physical properties .56
C.7 Specific notes concerning components with inherent physical properties .57

Annex D (informative) Supplementary technical information.77
D.1 Introduction.77
D.2 Achievement of physical internal independence .77
D.3 Achievement of physical external independence .78
D.4 Example of a method for single-fault analysis.79
D.5 Example of a method for multiple-fault analysis.80
Annex E (informative) Techniques and measures for safety-related electronic systems for
signalling for the avoidance of systematic faults and the control of random and systematic
faults .85
Bibliography.94
Figure 1 – Scope of the main CENELEC railway application standards .8
Figure 2 – Structure of EN 50129.15
Figure 3 – Structure of Safety Case .17
Figure 4 – Example of system life-cycle .19
Figure 5 – Example of design and validation portion of system life-cycle .21
Figure 6 – Arrangements for independence.22
Figure 7 – Structure of Technical Safety Report .26
Figure 8 – Safety acceptance and approval process.28
Figure 9 – Examples of dependencies between Safety Cases/Safety Approval.29
Figure A.1 – Safety requirements and safety integrity.30
Figure A.2 – Global process overview.32
Figure A.3 – Example risk analysis process.33
Figure A.4 – Definition of hazards with respect to the system boundary.34
Figure A.5 – Example hazard control process.36
Figure A.6 – Interpretation of failure and repair times .37
Figure A.7 – Treatment of functional independence by FTA.38
Figure A.8 – Relationship between SILs and techniques .40
Figure B.1 – Influences affecting the independence of items.46
Figure B.2 – Detection and negation of single faults .49
Figure D.1 – Example of a fault analysis method .81
Table A.1 – SIL-table.41
Table C.1 – Resistors .61
Table C.2 – Capacitors.62
Table C.3 – Electromagnetic components.63
Table C.4 – Diodes.66
Table C.5 – Transistors .67
Table C.6 – Controlled rectifiers .69
Table C.7 – Surge Suppressors .71
Table C.8 – Opto-electronic components.72
Table C.9 – Filters .73
Table C.10 – Interconnection assemblies .74

– 5 – EN 50129:2003
Table C.11 – Fuses .75
Table C.12 – Switches and push/pull buttons.75
Table C.13 – Lamps .75
Table C.14 – Batteries.75
Table C.15–Transducers/sensors (not including those with internal electronic circuitry).76
Table C.16 – Integrated circuits.76
Table D.1 - Examples of measures to detect faults in large-scale integrated circuits by means of periodic
on-line testing, with comparison (SW or HW), in a 2-out-of-n system.82
Table E.1 – Safety planning and quality assurance activities.86
Table E.2 – System requirements specification .87
Table E.3 – Safety organisation.87
Table E.4 – Architecture of system/sub-system/equipment .88
Table E.5 – Design features .89
Table E.6 – Failure and hazard analysis methods.90
Table E.7 – Design and development of system/sub-system/equipment.91
Table E.8 – Design phase documentation.91
Table E.9 – Verification and validation of the system and product design .92
Table E.10 – Application, operation and maintenance .93

Introduction
This document is the first European Standard defining requirements for the acceptance and approval of
safety-related electronic systems in the railway signalling field. Until now only some differing national
recommendations and general advice of the UIC (International Union of Railways) on this topic were in
existence.
Safety-related electronic systems for signalling include hardware and software aspects. To install
complete safety-related systems, both parts within the whole life-cycle of the system have to be taken into
account. The requirements for safety-related hardware and for the overall system are defined in this
standard. Other requirements are defined in associated CENELEC standards.
The aim of European railway authorities and European railway industry is to develop compatible railway
systems based on common standards. Therefore cross-acceptance of Safety Approvals for sub-systems
and equipment by the different national railway authorities is necessary. This document is the common
European base for safety acceptance and approval of electronic systems for railway signalling
applications.
Cross-acceptance is aimed at generic approval, not specific applications. Public procurement within the
European Community concerning safety-related electronic systems for railway signalling applications will
in future refer to this standard when it becomes an EN.
The standard consists of the main part (Clause 1 to Clause 5) and Annexes A, B, C, D and E. The
requirements defined in the main part of the standard and in Annexes A, B and C are normative, whilst
Annexes D and E are informative.
This standard is in line with, and uses relevant sections of EN 50126: "Railway applications: The
Specification and Demonstration of Dependability - Reliability, Availability, Maintainability and Safety
(RAMS)". This standard and EN 50126 are based on the system life-cycle and are in line with
EN 61508-1, which is replaced by the set of EN 50126/EN 50128/EN 50129, as far as Railway
Communication, Signalling and Processing Systems are involved. Meeting the requirements in these
standards is sufficient to ensure that further compliance to EN 61508-1 need not be evaluated.
Because this standard is concerned with the evidence to be presented for the acceptance of safety-
related systems, it specifies those life-cycle activities which shall be completed before the acceptance
stage, followed by additional planned activities to be carried out after the acceptance stage. Safety
justification for the whole of the life-cycle is therefore required.
This standard is concerned with what evidence is to be presented. Except where considered appropriate,
it does not specify who should carry out the necessary work, since this may vary in different
circumstances.
For safety-related systems which include programmable electronics, additional conditions for the software
are defined in EN 50128.
Additional requirements for safety-related data communication are defined in EN 50159-1 and
EN 50159-2.
– 7 – EN 50129:2003
1 Scope
This standard is applicable to safety-related electronic systems (including sub-systems and equipment) for
railway signalling applications.
The scope of this standard, and its relationship with other CENELEC standards, are shown in Figure 1.
This standard is intended to apply to all safety-related railway signalling systems/sub-system/equipment.
However, the hazard analysis and risk assessment processes defined in EN 50126 and this standard are
necessary for all railway signalling systems/sub-systems/equipment, in order to identify any safety
requirements. If analysis reveals that no safety requirements exist (i.e.: that the situation is non-safety-
related), and provided the conclusion is not revised as a consequence of later changes, this safety
standard ceases to be applicable.
This standard applies to the specification, design, construction, installation, acceptance, operation,
maintenance and modification/extension phases of complete signalling systems, and also to individual
sub-systems and equipment within the complete system. Annex C includes procedures relating to
electronic hardware components.
This standard applies to generic sub-systems and equipment (both application-independent and those
intended for a particular class of application), and also to systems/sub-systems/equipment for specific
applications.
This standard is not applicable to existing systems/sub-systems/equipment (i.e. those which had already
been accepted prior to the creation of this standard). However, as far as reasonably practicable, this
standard should be applied to modifications and extensions to existing systems, sub-systems and
equipment.
This standard is primarily applicable to systems/sub-systems/equipment which have been specifically
designed and manufactured for railway signalling applications. It should also be applied, as far as
reasonably practicable, to general-purpose or industrial equipment (e.g.: power supplies, modems, etc.),
which is procured for use as part of a safety-related signalling system. As a minimum, evidence shall be
provided in such cases to demonstrate
either that the equipment is not relied on for safety,
or that the equipment can be relied on for those functions which relate to safety.
This standard is applicable to the functional safety of railway signalling systems. It is not intended to deal
with the occupational health and safety of personnel; this subject is covered by other standards.

Total Railway System
Complete Railway
Signalling System
EN 50159
-1 and -2
(Communication)
EN 50126
(RAMS)
EN 50129
EN 50128
Individual Sub-System
(System
(Software)
Safety)
Individual Item of Equipment
Figure 1 – Scope of the main CENELEC railway application standards

2 Normative references
This European Standard incorporates, by dated or undated reference, provisions from other publications.
These normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this European Standard only when incorporated in it by amendment or revision. For undated
references the latest edition of the publication referred to applies (including amendments).
NOTE  Additional informative references are included in Bibliography.

EN 50121 Series Railway applications – Electromagnetic compatibility
EN 50124-1 Railway applications – Insulation coordination – Part 1: Basic requirements -
Clearances and creepage distances for all electrical and electronic equipment
EN 50124-2 Railway applications – Insulation coordination – Part 2: Overvoltages and related
protection
EN 50125-1 Railway applications – Environmental conditions for equipment – Part 1: Equipment
on board rolling stock
EN 50125-3 Railway applications – Environmental conditions for equipment – Part 3: Equipment
for signalling and communications
EN 50126 Railway applications – The specification and demonstration of Reliability,
Availability, Maintainability and Safety (RAMS)

– 9 – EN 50129:2003
EN 50128 Railway applications – Communication, signalling and processing systems –
Software for railway control and protection systems
EN 50155 Railway applications – Electronic equipment used on rolling stock
EN 50159-1 Railway applications – Communication, signalling and processing systems
Part 1: Safety-related communication in closed transmission systems
EN 50159-2 Railway applications – Communication, signalling and processing systems
Part 2: Safety related communication in open transmission systems
EN 61508-1 Functional safety of electrical/electronic/ programmable electronic safety-related
systems - Part 1: General requirements (IEC 61508-1)
IEC 60664 Series Insulation coordination for equipment within low-voltage systems
3 Definitions and abbreviations
3.1 Definitions
For the purposes of this standard, the following definitions apply:
3.1.1
accident
an unintended event or series of events that results in death, injury, loss of a system or service, or
environmental damage
3.1.2
assessment
the process of analysis to determine whether the design authority and the validator have achieved a
product that meets the specified requirements and to form a judgement as to whether the product is fit for
its intended purpose
3.1.3
authorisation
the formal permission to use a product within specified application constraints
3.1.4
availability
the ability of a product to be in a state to perform a required function under given conditions at a given
instant of time or over a given time interval assuming that the required external resources are provided
3.1.5
can
is possible
3.1.6
causal analysis
analysis of the reasons how and why a particular hazard may come into existence
3.1.7
common-cause failure
failure common to items which are intended to be independent
3.1.8
consequence analysis
analysis of events which are likely to happen after a hazard has occurred
3.1.9
configuration
the structuring and interconnection of the hardware and software of a system for its intended application
3.1.10
cross-acceptance
the status achieved by a product that has been accepted by one authority to the relevant European
Standards and is acceptable to other authorities without the necessity for further assessment

3.1.11
design
the activity applied in order to analyse and transform specified requirements into acceptable design
solutions which have the required safety integrity
3.1.12
design authority
the body responsible for the formulation of a design solution to fulfil the specified requirements and for
overseeing the subsequent development and setting-to-work of a system in its intended environment
3.1.13
diversity
a means of achieving all or part of the specified requirements in more than one independent and
dissimilar manner
3.1.14
equipment
a functional physical item
3.1.15
error
a deviation from the intended design which could result in unintended system behaviour or failure
3.1.16
fail-safe
a concept which is incorporated into the design of a product such that, in the event of a failure, it enters or
remains in a safe state
3.1.17
failure
a deviation from the specified performance of a system. A failure is the consequence of a fault or error in
the system
3.1.18
fault
an abnormal condition that could lead to an error in a system. A fault can be random or systematic
3.1.19
fault detection time
time span which begins at the instant when a fault occurs and ends when the existence of the fault is
detected
3.1.20
function
a mode of action or activity by which a product fulfils its purpose
3.1.21
hazard
a condition that could lead to an accident
3.1.22
hazard analysis
the process of identifying hazards and analysing their causes, and the derivation of requirements to limit
the likelihood and consequences of hazards to a tolerable level
3.1.23
hazard log
the document in which all safety management activities, hazards identified, decisions made and solutions
adopted, are recorded or referenced
3.1.24
human error
a human action (mistake), which can result in unintended system behaviour/failure
3.1.25
implementation
the activity applied in order to transform the specified designs into their physical realisation

– 11 – EN 50129:2003
3.1.26
independence (functional)
freedom from any mechanism which can affect the correct operation of more than one function as a result
of either systematic or random failure
3.1.27
independence (human)
freedom from involvement in the same intellectual, commercial and/or management entity
3.1.28
independence (physical)
freedom from any mechanism which can affect the correct operation of more than one system/sub-
system/equipment as a result of random failures
3.1.29
individual risk
a risk which is related to a single individual only
3.1.30
maintainability
the probability that a given active maintenance action, for an item under given conditions of use can be
carried out within a stated time interval when the maintenance is performed under stated conditions and
using stated procedures and resources
3.1.31
maintenance
the combination of all technical and administrative actions, including supervision actions, intended to
retain an item in, or restore it to, a state in which it can perform its required function
3.1.32
may
is permissible
3.1.33
negation
enforcement of a safe state following detection of a hazardous fault
3.1.34
negation time
time span which begins when the existence of a fault is detected and ends when a safe state is enforced
3.1.35
product
a collection of elements, interconnected to form a system/sub-system/equipment, in a manner which
meets the specified requirements
3.1.36
quality
a user perception of the attributes of a product
3.1.37
railway authority
the body with the overall accountability to a safety authority for operating a safe railway system
3.1.38
random failure integrity
the degree to which a system is free from hazardous random faults
3.1.39
random fault
unpredictable occurrence of a fault
3.1.40
redundancy
the provision of one or more additional measures, usually identical, to provide fault tolerance

3.1.41
reliability
the ability of an item to perform a required function under given conditions for a given period of time
3.1.42
repair
measures for re-establishing the required state of a system/sub-system/equipment after a fault/failure
3.1.43
risk
the combination of the frequency, or probability, and the consequence of a specified hazardous event
3.1.44
safe state
a condition which continues to preserve safety
3.1.45
safety
freedom from unacceptable levels of risk of harm
3.1.46
safety acceptance
the safety status given to a product by the final user
3.1.47
safety approval
the safety status given to a product by the requisite authority when the product has fulfilled a set of pre-
determined conditions
3.1.48
safety authority
the body responsible for delivering the authorisation for the operation of the safety related system
3.1.49
safety case
the documented demonstration that the product complies with the specified safety requirements
3.1.50
safety integrity
the ability of a safety-related system to achieve its required safety functions under all the stated conditions
within a stated operational environment and within a stated period of time
3.1.51
Safety Integrity Level
a number which indicates the required degree of confidence that a system will meet its specified safety
functions with respect to systematic failures
3.1.52
safety life-cycle
the additional series of activities carried out in conjunction with the system life-cycle for safety-related
systems
3.1.53
safety management
the management structure which ensures that the safety process is properly implemented
3.1.54
safety plan
the implementation details of how the safety requirements of the project will be achieved
3.1.55
safety process
the series of procedures that are followed to enable all safety requirements of a product to be identified
and met
– 13 – EN 50129:2003
3.1.56
safety-related
carries responsibility for safety
3.1.57
shall
is mandatory
3.1.58
should
is recommended
3.1.59
signalling system
particular kind of system used on a railway to control and protect the operation of trains
3.1.60
stress profile
the degree and number of external influences which a product can withstand whilst performing its required
functionality
3.1.61
sub-system
a portion of a system which fulfils a specialised function
3.1.62
system
a set of sub-systems which interact according to a design
3.1.63
systematic failure integrity
the degree to which a system is free from unidentified hazardous errors and the causes thereof
3.1.64
systematic fault
an inherent fault in the specification, design, construction, installation, operation or maintenance of a
system, sub-system or equipment
3.1.65
system life-cycle
the series of activities occurring during a period of time that starts when a system is conceived and ends
at decommissioning when the system is no longer available for use
3.1.66
technical safety report
documented technical evidence for the safety of the design of a system/sub-system/equipment
3.1.67
validation
the activity applied in order to demonstrate, by test and analysis, that the product meets in all respects its
specified requirements
3.1.68
verification
the activity of determination, by analysis and test, at each phase of the life-cycle, that the requirements of
the phase under consideration meet the output of the previous phase and that the output of the phase
under consideration fulfils its requirements
3.2 Abbreviations
For the purposes of this standard, the following abbreviations apply:
3.2.1 AC alternating current
3.2.2 ATP Automatic Train Protection
3.2.3 CENELEC European Committee for Electrotechnical Standardisation

3.2.4 CCF common-cause failure
3.2.5 DC direct current
3.2.6 EMC electromagnetic compatibility
3.2.7 EMI electromagnetic interference
3.2.8 EN European Standard (Europäische Norm)
3.2.9 ESD electrostatic discharge
3.2.10 FET field effect transistor
3.2.11 FMEA Failure Modes and Effects Analysis
3.2.12 FR Failure rate
3.2.12 FTA Fault Tree Analysis
3.2.14 H  Hazard
3.2.15 HW Hardware
3.2.16 IEC International Electrotechnical Commission
3.2.17 IRSE Institution of Railway Signal Engineers
3.2.18 ISO International Standards Organisation
3.2.19 RAMS reliability, availability, maintainability and safety
3.2.20 SCR silicon controlled rectifier
3.2.21 SDR Safe down rate
3.2.22 SDT Safe down time
3.2.23 SIL Safety Integrity Level
3.2.24 SW software
3.2.25 THR tolerable hazard rate
3.2.26 UIC International Union of Railways
3.2.27 VDR voltage-dependent resistor
4 Overall framework of this standard
Clause 5 of this European Standard requires that a systematic, documented approach be taken to
- evidence of quality management,
- evidence of safety management,
- evidence of functional and technical safety,
- safety acceptance and approval.
Annex A (normative) defines the interpretation and use of Safety Integrity Levels.
Annex B (normative) contains detailed technical requirements for safety-related systems/sub-
systems/equipment.
Annex C (normative) contains procedures and information for identifying the credible failure modes of
hardware components.
Annex D (informative) contains supplementary technical information.
Annex E (informative) contains tables of techniques/measures to be used for various levels of safety
integrity.
Bibliography contains references to documents that have been consulted during the
preparation of this standard.
– 15 – EN 50129:2003
The structure of this standard is summarised in Figure 2.

EN 50129
Clause 1 Clause 2 Clause 3 Clause 4 Clause 5

5.1 5.2 5.3 5.4 5.5
Normative
Annex A Annex B
B.1 B.2 B.3 B.4 B.5 B.6
Annex C
Bibliography Annex D Annex E
Informative
Figure 2 – Structure of EN 50129

5 Conditions for safety acceptance and approval
5.1   The Safety Case
This standard defines the conditions that shall be satisfied in order that a safety-related electronic railway
system/sub-system/equipment can be accepted as adequately safe for its intended application.
The conditions for safety acceptance are presented in this standard under three headings, namely
- 5.2 Evidence of quality management,
- 5.3 Evidence of safety management,
- 5.4 Evidence of functional and technical safety.
All of these conditions shall be satisfied, at equipment, sub-system and system levels, before the safety-
related system can be accepted as adequately safe.
The documentary evidence that these conditions have been satisfied shall be included in a structured
safety justification document, known as the Safety Case. The Safety Case forms part of the overall
documentary evidence to be submitted to the relevant safety authority in order to obtain safety approval
for a generic product, a class of application or a specific application. For an explanation of the safety
approval process, see 5.5 of this standard.

The Safety Case contains the documented safety evidence for the system/sub-system/equipment, and
shall be structured as follows:
Part 1 Definition of System (or sub-system/equipment)
This shall precisely define or reference the system/sub-system/equipment to which the Safety Case
refers, including version numbers and modification status of all requirements, design and application
documentation.
Part 2 Quality Management Report
This shall contain the evidence of quality management, as specified in 5.2 of this standard.
Part 3 Safety Management Report
This shall contain the evidence of safety management, as specified in 5.3 of this standard.
Part 4 Technical Safety Report
This shall contain the evidence of functional and technical Safety, as specified in 5.4 of this standard.
Part 5 Related Safety Cases
This shall contain references to the Safety Cases of any sub-systems or equipment on which the main
Safety Case depends.
It shall also demonstrate that all the safety-related application conditions specified in each of the related
sub-system/equipment Safety Cases are
either fulfilled in the main Safety Case,
or carried forward into the safety-related application conditions of the main Safety Case.

Part 6 Conclusion
This shall summarise the evidence presented in the previous parts of the Safety Case, and argue that the
relevant system/sub-system/equipment is adequately safe, subject to compliance with the specified
application conditions.
The structure of the Safety Case is illustrated in Figure 3.
Large volumes of detailed evidence and supporting documentation need not be included in the Safety
Case and in its parts, provided precise references are given to such documents and provided the base
concepts used and the approaches taken are clearly specified.

– 17 – EN 50129:2003
Part 6: Conclusion
Part 5: Related
Safety Cases
Part 4: Technical
Safety Report
Part 3: Safety
Management Report
Part 2: Quality
Management Report
Part 1: Definition of System
SAFETY
CASE
Figure 3 – Structure of Safety Case
5.2   Evidence of quality management
The first condition for safety acceptance that shall be satisfied is that the quality of the system, sub-system
or equipment has been, and shall continue to be, controlled by an effective quality management system
throughout its life-cycle. Documentary evidence to demonstrate this shall be provided in the Quality
Management Report, which forms Part 2 of the Safety Case.
The purpose of the quality management system is to minimise the incidence of human errors at each
stage in the life-cycle, and thus to reduce the risk of systematic faults in the system, sub-system or
equipment.
The quality management system shall be applicable throughout the system/sub-system/equipment life-
cycle, as defined in EN 50126. An example of a system life-cycle diagram (from EN 50126) is reproduced
as Figure 4 of this standard.
NOTE  Examples of aspects which should be controlled by the quality management system and included in the Quality
Management Report:
- organisational structure;
- quality planning and procedures;
- specification of requirements;
- design control;
- design verification and reviews;
- application engineering;
- procurement and manufacture;
- product identification and traceability;
- handling and storage;
- inspection and testing;
- non-conformance and corrective action;
- packaging and delivery;
- installation and commissioning;
- operation and maintenance;
- quality monitoring and feedback;
- documentation and records;
- configuration management/change control;
- personnel competency and training;
- quality audits and follow-up;
- decommissioning and disposal.

Compliance with the requirements for quality management is mandatory for Safety Integrity Levels 1 to 4
inclusive, (see Annex A for explanation of Safety Integrity Levels). However, the depth of the evidence
presented and the extent of the supporting documentation should be appropriate to the Safety Integrity
Level of the system/sub-system/equipment under scrutiny (see Table E.1 and Table E.8 for guidance on
evidence required for each Safety Integrity Level). The requirements for Safety Integrity Level 0 (non-
safety-related) are outside the scope of this safety standard.

– 19 – EN 50129:2003
Concept
System Definition and
Application Conditions
Risk Analysis
System Requirements
Apportionment of
System Requirements
Design and Implementation
Manufacture
Installation
System Validation (including
Safety Acceptance and
Commissioning)
System Acceptance
12 13
Performance Monitoring Modification and Retrofit
Operation and Maintenance
14 Re-apply Lifecycle
(See note)
Decommissioning and Disposal
NOTE  The phase at which a modification enters the life-cycle will be dependent upon both the system being
modified and the specific modification under consideration.

Figure 4 – Example of system life-cycle
(from EN 50126)
5.3  Evidence of safety management
5.3.1 Introduction
The second condition for safety acceptance which shall be satisfied is that the safety of the system, sub-
system or equipment has been, and shall continue to be, managed by means of an effective safety
management process, which should be consistent with the management process for RAMS described in
EN 50126. The purpose of this process is to further reduce the incidence of safety-related human errors
throughout the life-cycle, and thus minimise the residual risk of safety-related systematic faults. The
elements of the safety management process are briefl
...
