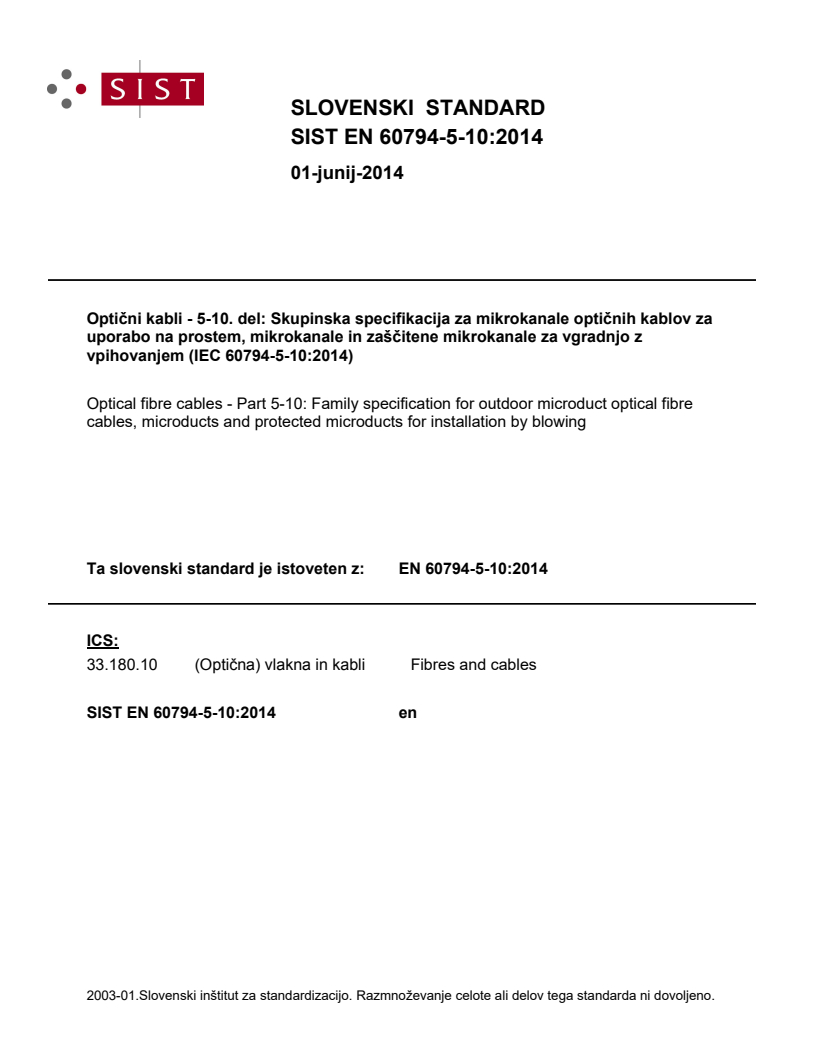

EN 60794-5-10:2014

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Optical fibre cables - Part 5-10: Family specification for outdoor microduct optical fibre cables, microducts and protected microducts for installation by blowing33.180.10Fibres and cablesICS:Ta slovenski standard je istoveten z:EN 60794-5-10:2014SIST EN 60794-5-10:2014en01-junij-2014SIST EN 60794-5-10:2014SLOVENSKI
STANDARD

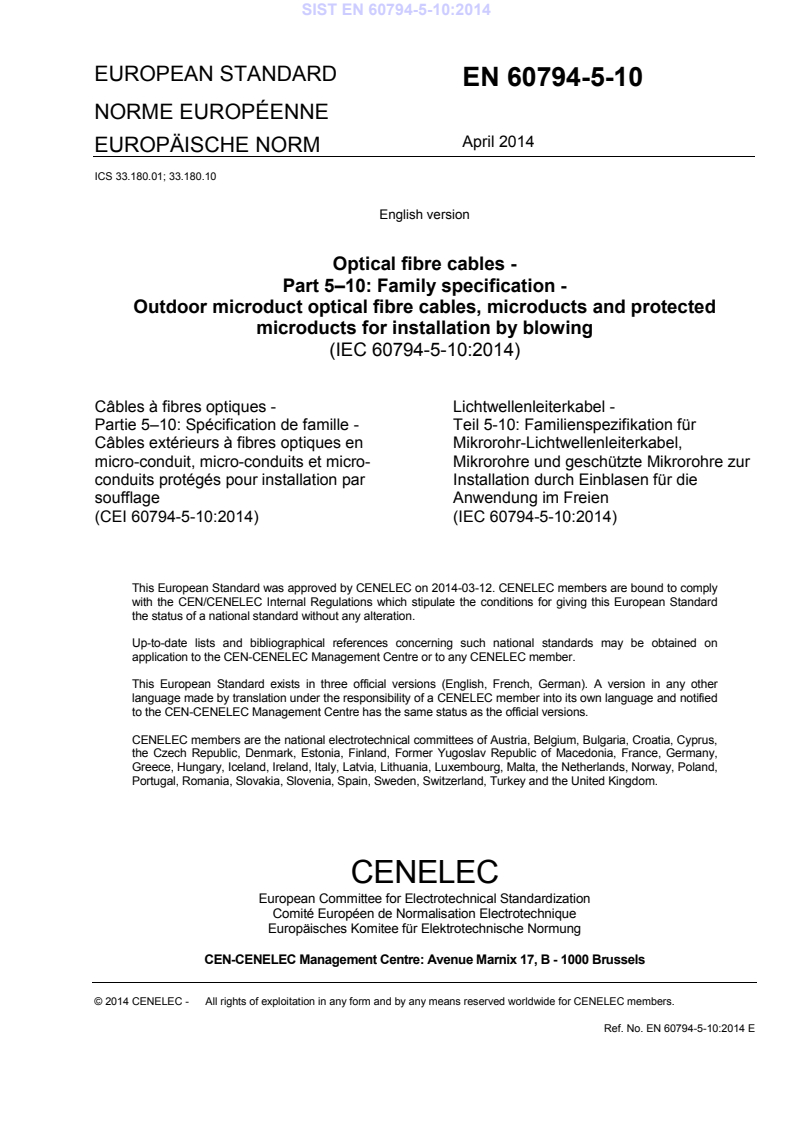

EUROPEAN STANDARD EN 60794-5-10 NORME EUROPÉENNE
EUROPÄISCHE NORM April 2014
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2014 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60794-5-10:2014 E
ICS 33.180.01; 33.180.10
English version
Optical fibre cables -
Part 5–10: Family specification -
Outdoor microduct optical fibre cables, microducts and protected microducts for installation by blowing (IEC 60794-5-10:2014)
Câbles à fibres optiques -
Partie 5–10: Spécification de famille -
Câbles extérieurs à fibres optiques en micro-conduit, micro-conduits et micro-conduits protégés pour installation par soufflage (CEI 60794-5-10:2014)
Lichtwellenleiterkabel -
Teil 5-10: Familienspezifikation für Mikrorohr-Lichtwellenleiterkabel, Mikrorohre und geschützte Mikrorohre zur Installation durch Einblasen für die Anwendung im Freien (IEC 60794-5-10:2014)
This European Standard was approved by CENELEC on 2014-03-12. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

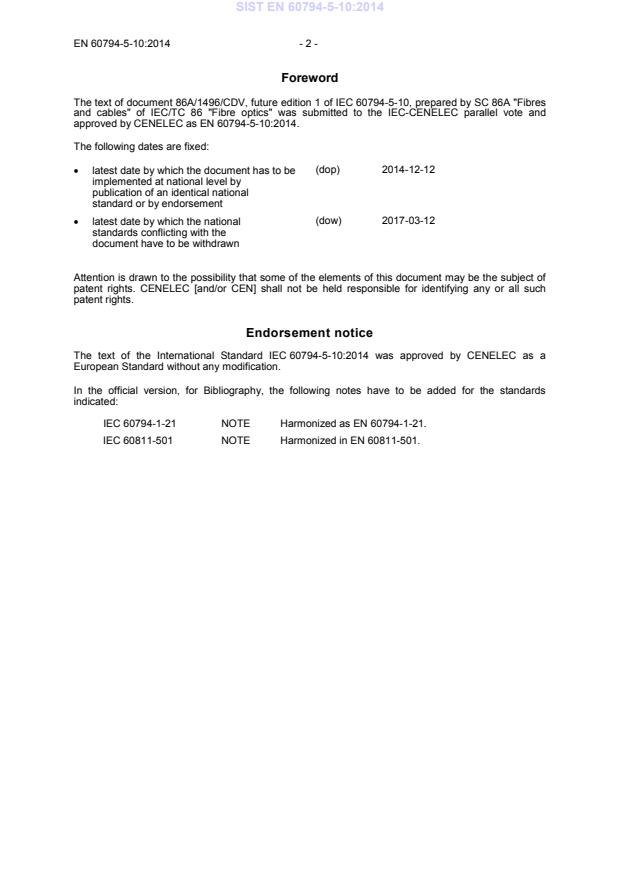

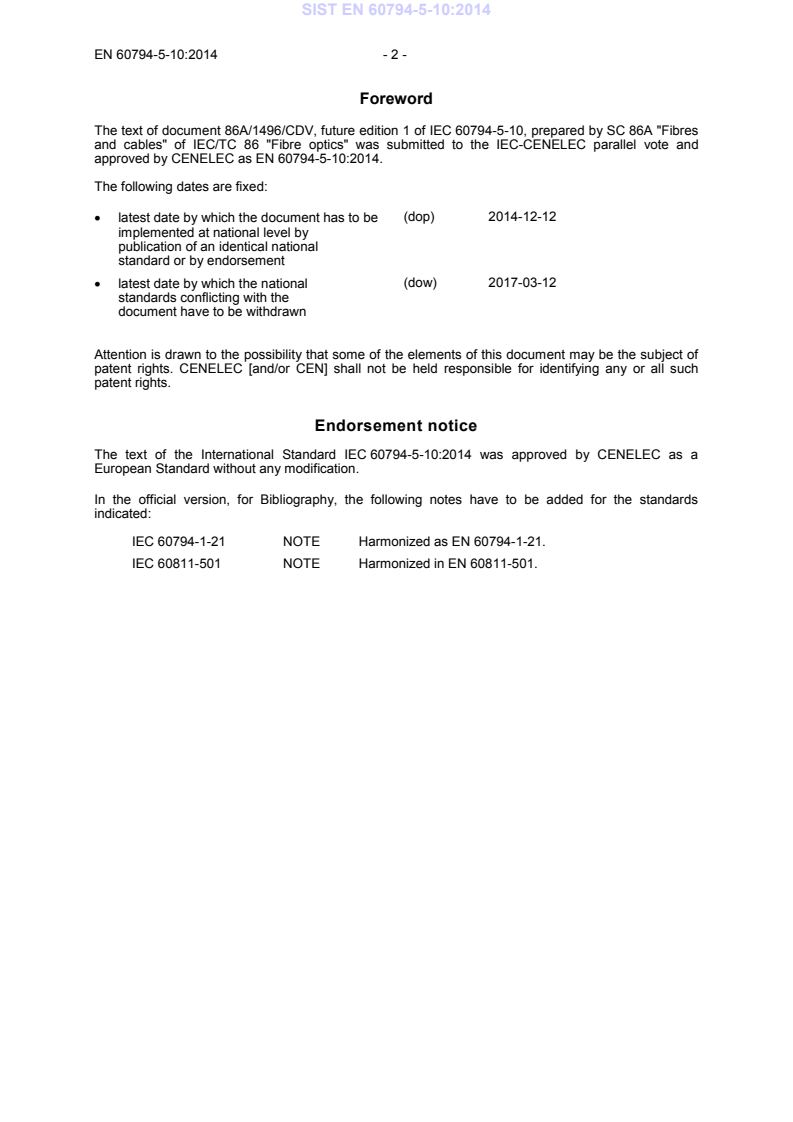

Foreword The text of document 86A/1496/CDV, future edition 1 of IEC 60794-5-10, prepared by SC 86A "Fibres and cables" of IEC/TC 86 "Fibre optics" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 60794-5-10:2014.
The following dates are fixed: • latest date by which the document has to be implemented at national level by publication of an identical national standard or by endorsement (dop) 2014-12-12 • latest date by which the national standards conflicting with the document have to be withdrawn (dow) 2017-03-12
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
Endorsement notice The text of the International Standard IEC 60794-5-10:2014 was approved by CENELEC as a European Standard without any modification. In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60794-1-21 NOTE Harmonized as EN 60794-1-21. IEC 60811-501 NOTE Harmonized in EN 60811-501. SIST EN 60794-5-10:2014

- 3 - EN 60794-5-10:2014 Annex ZA
(normative)
Normative references to international publications with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE
When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
Publication Year Title EN/HD Year
IEC 60304 - Standard colours for insulation for low-frequency cables and wires HD 402 S2 -
IEC 60793-1-40 (mod) - Optical fibres -
Part 1-40: Measurement methods and test procedures - Attenuation EN 60793-1-40 -
IEC 60793-2-10 - Optical fibres -
Part 2-10: Product specifications - Sectional specification for category A1 multimode fibres EN 60793-2-10 -
IEC 60793-2-50 - Optical fibres -
Part 2-50: Product specifications - Sectional specification for class B single-mode fibres EN 60793-2-50 -
IEC 60794-1 - Optical fibre cables -
Part 1: Generic specification - -
IEC 60794-1-1
- Optical fibre cables -
Part 1-1: Generic specification - General EN 60794-1-1 -
IEC 60794-1-2 - Optical fibre cables -
Part 1-2: Generic specification - Cross reference table for optical cable test procedures EN 60794-1-2 -
IEC 60794-1-22 2012 Optical fibre cables -
Part 1-22: Generic specification - Basic optical cable test procedures - Environmental test methods EN 60794-1-22 2012
IEC 60794-1-23 - Optical fibre cables -
Part 1-23: Generic specification - Basic optical cable test procedures - Cable element test methods EN 60794-1-23 -
IEC 60794-1-24 - Optical fibre cables -
Part 1-24: Generic specification - Basic optical cable test procedures - Electrical test methods EN 60794-1-24 -
IEC 60794-2 - Optical fibre cables -
Part 2: Indoor cables - Sectional specification EN 60794-2 -
IEC 60794-3 - Optical fibre cables -
Part 3: Sectional specification - Outdoor cables EN 60794-3
IEC 60794-4 - Optical fibre cables -
Part 4: Sectional specification - Aerial optical cables along electrical power lines EN 60794-4 -
IEC 60794-5 - Optical fibre cables -
Part 5: Sectional specification - Microduct cabling for installation by blowing EN 60794-5 -
Part 5-20: Family specification for outdoor microduct fibre units, microducts and protected microducts for installation by blowing EN 60794-5-20 -
IEC 60811-202 - Electric and optical fibre cables - Test methods for non-metallic materials -
Part 202: General tests - Measurement of thickness of non-metallic sheath EN 60811-202 -
IEC 60811-203 - Electric and optical fibre cables - Test methods for non-metallic materials -
Part 203: General tests - Measurement of overall dimensions EN 60811-203 -
IEC 60811-601 - Electric and optical fibre cables - Test methods for non-metallic materials -
Part 601: Physical tests - Measurement of the drop point of filling compounds EN 60811-601 -
IEC 60811-602 - Electric and optical fibre cables - Test methods for non-metallic materials -
Part 602: Physical tests - Separation of oil in filling compounds EN 60811-602 -
IEC 60811-604 - Electric and optical fibre cables - Test methods for non-metallic materials -
Part 604: Physical tests - Measurement of absence of corrosive components in filling compounds EN 60811-604 -
ISO/IEC 11801
- Information technology - Generic cabling for customer premises EN ISO/IEC 11801 -
IEC 60794-5-10
Edition 1.0 2014-02 INTERNATIONAL STANDARD NORME INTERNATIONALE Optical fibre cables – Part 5–10: Family specification – Outdoor microduct optical fibre cables, microducts and protected microducts for installation by blowing
Câbles à fibres optiques – Partie 5–10: Spécification de famille – Câbles extérieurs à fibres optiques en micro-conduit, micro-conduits et micro-conduits protégés pour installation par soufflage
INTERNATIONAL ELECTROTECHNICAL COMMISSION COMMISSION ELECTROTECHNIQUE INTERNATIONALE V ICS 33.180.01, 33.180.10 PRICE CODE CODE PRIX ISBN 978-2-8322-1374-2
– 2 – 60794-5-10 © IEC:2014 CONTENTS
FOREWORD . 5 1 Scope . 7 2 Normative references . 7 3 Symbols . 8 4 General requirements . 9 4.1 Construction . 9
General . 9 4.1.1 Microduct optical fibre cables. 10 4.1.2 Microduct . 10 4.1.3 Protected microduct . 10 4.1.4 Microduct fittings . 10 4.1.5 Microduct hardware . 11 4.1.64.2 Optical fibres . 11 4.3 Installation performance tests . 11
Installation conditions . 11 4.3.1 Tests applicable . 11 4.3.24.4 Mechanical and environmental tests . 12 5 Microduct optical fibre cable . 12 5.1 Tests applicable . 12 5.2 Tensile performance . 12 5.3 Crush . 13 5.4 Impact . 13 5.5 Repeated bending . 13 5.6 Torsion . 13 5.7 Kink . 14 5.8 Bend . 14 5.9 Temperature cycling . 14 5.10 Water penetration . 15 5.11 Ageing . 15 5.12 Ribbon strippability . 15 5.13 Fibre ribbon separability. 15 6 Microduct. 15 6.1 Tests applicable . 15 6.2 Tensile performance . 16 6.3 Crush . 16 6.4 Impact . 16 6.5 Repeated bending . 16 6.6 Torsion . 17 6.7 Kink . 17 6.8 Bend . 17 6.9 Microduct route verification test . 17 6.10 Microduct pressure withstand . 17 6.11 Ageing . 18 7 Protected microduct(s) . 18 SIST EN 60794-5-10:2014

60794-5-10 © IEC:2014 – 3 –
7.1 Tests applicable . 18 7.2 Tensile performance . 18 7.3 Crush . 19 7.4 Impact . 19 7.5 Repeated bending . 19 7.6 Kink . 19 7.7 Bend . 20 7.8 Microduct route verification test . 20 7.9 Microduct pressure withstand . 20 7.10 Ageing . 20
(informative)
Examples of microduct optical fibre cables and microducts . 21 Annex A (informative)
Family specifications for microduct optical fibre cable,
Annex Bmicroduct and protected microduct (blank detail specifications and minimum requirements) . 23 B.1 Microduct optical fibre cable description . 23 B.2 Microduct description . 24 B.3 Protected microduct description . 25
(normative)
Product constructions . 26 Annex C (normative)
Transmission requirements . 29 Annex DD.1 Attenuation of cabled fibre . 29 D.2 Fibre bandwidth requirements . 30
(normative)
IEC 60794-1-21, Method Exx – Microduct inner clearance test . 31 Annex EE.1 Object . 31 E.2 General . 31 E.3 Sample . 31 E.4 Test equipment . 31 E.5 Procedure . 31 E.6 Requirements . 31 E.7 Details to be recorded . 31 Bibliography . 33
Figure A.1 – Microduct optical fibre cables (not to scale) . 21 Figure A.2 – Protected microduct in pre-installed ducts (not to scale) . 21 Figure A.3 – Protected microduct with tight integral outer duct (not to scale) . 22
Table 1 – Tests applicable for installation performance . 12 Table 2 – Tests applicable for mechanical and environmental performance of microduct cable. 12 Table 3 – Tests applicable for mechanical and environmental performance of a microduct . 15 Table 4 – Tests applicable for mechanical and environmental
performance of a protected microduct . 18 Table C.1 – Outdoor microduct optical fibre cable construction . 26 Table C.2 – Microduct construction . 27 Table C.3 – Protected microduct construction . 28 Table D.1 – Multimode maximum cable attenuation coefficient (dB/km) . 29 Table D.2 – Single-mode maximum cable attenuation coefficient (dB/km) – Premises cabling applications . 29 SIST EN 60794-5-10:2014

– 4 – 60794-5-10 © IEC:2014 Table D.3 – Single-mode maximum cable attenuation coefficient (dB/km) – All other applications . 29 Table D.4 – Minimum multimode fibre bandwidth (MHz × km) . 30
60794-5-10 © IEC:2014 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________
OPTICAL FIBRE CABLES –
Part 5–10: Family specification –
Outdoor microduct optical fibre cables, microducts and protected microducts
for installation by blowing
FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any services carried out by independent certification bodies. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 60794-5-10 has been prepared by subcommittee 86A: Fibres and cables, of IEC technical committee 86: Fibre optics. The text of this standard is based on the following documents: CDV Report on voting 86A/1496/CDV 86A/1542/RVC
Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. SIST EN 60794-5-10:2014

– 6 – 60794-5-10 © IEC:2014 A list of all parts of IEC 60794 series, published under the general title Optical fibre cables, can be found on the IEC website. The committee has decided that the contents of this publication will remain unchanged until the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be
• reconfirmed, • withdrawn, • replaced by a revised edition, or • amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates that it contains colours which are considered to be useful for the correct understanding of its contents. Users should therefore print this document using a colour printer.
60794-5-10 © IEC:2014 – 7 –
OPTICAL FIBRE CABLES –
Part 5-10: Family specification –
Outdoor microduct optical fibre cables, microducts and protected microducts for installation by blowing
1 Scope This part of IEC 60794 is a family specification that covers outdoor microduct optical fibre cables for installation by blowing and the associated microducts, which together make up a microduct optical fibre cable system. Although primarily designed for use with outdoor microduct applications, the cable products specified herein may be used individually for short lengths in other applications as agreed upon between supplier and customer. These may include short runs inside a building or in other outdoor applications, such as a transition between separate (unconnected) microduct systems, or from a microduct system to some other protective structure such as a cable conduit or tray. Systems built with components covered by this standard are subject to the requirements of IEC 60794-5 where applicable.
Annex A shows examples of microduct optical fibre cables and microducts. Annex B describes a blank detail specification for outdoor microduct optical fibre cables and the associated microducts, and incorporates some minimum requirements. Detail product specifications may be prepared on the basis of this family specification using Annex B as a guide. Annex C provides normative requirements for microduct optical fibre cables.
The parameters specified in this standard may be affected by measurement uncertainty arising either from measurement errors or calibration errors due to lack of suitable standards. Acceptance criteria should be interpreted with respect to this consideration. The number of fibres and microducts tested shall be representative of the microduct optical fibre cable design and should be agreed between customer and supplier. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. IEC 60304, Standard colours for insulation for low-frequency cables and wires IEC 60793-1-40, Optical fibres – Part 1-40: Measurement methods and test procedures – Attenuation IEC 60793-2-10, Optical fibres – Part 2-10: Product specifications – Sectional specification for category A1 multimode fibres IEC 60793-2-50, Optical fibres – Part 2-50: Products specification – Sectional specification for class B single-mode fibres IEC 60794 (all parts), Optical fibre cables SIST EN 60794-5-10:2014

– 8 – 60794-5-10 © IEC:2014 IEC 60794-1-1, Optical fibre cables – Part 1-1: Generic specification – General IEC 60794-1-2, Optical fibre cables – Part 1-2: Generic specification – Basic optical cable test procedures IEC 60794-1-22:2012, Optical fibre cables – Part 1-22: Generic specification – Basic optical cable test procedures – Environmental test methods IEC 60794-1-23, Optical fibre cables – Part 1-23: Generic specification – Basic optical cable test procedures – Cable elements test methods IEC 60794-1-24, Optical fibre cables – Part 1-24: Generic specification – Basic optical cable test procedures – Electrical test methods1 IEC 60794-2, Optical fibre cables – Part 2: Indoor optical fibre cables – Sectional specification IEC 60794-3, Optical fibre cables – Part 3: Sectional specification – Outdoor cables IEC 60794-4, Optical fibre cables – Part 4: Sectional specification – Aerial optical cables along electrical power lines IEC 60794-5, Optical fibre cables – Part 5: Sectional specification – Microduct cabling for installation by blowing IEC 60794-5-20, Optical fibre cables – Part 5-20: Family specification – Outdoor microduct fibre units, microducts and protected microducts for installation by blowing1 IEC 60811-202, Electric and optical fibre cables – Test methods for non-metallic materials – Part 202: General tests – Measurement of thickness of non-metallic sheath IEC 60811-203, Electric and optical fibre cables – Test methods for non-metallic materials – Part 203: General tests – Measurement of overall dimensions IEC 60811-601, Electric and optical fibre cables – Test methods for non-metallic materials – Part 601: Physical tests – Measurement of the drop-point of filling compounds IEC 60811-602, Electric and optical fibre cables – Test methods for non-metallic materials – Part 602: Physical tests – Separation of oil in filling compounds IEC 60811-604, Electric and optical fibre cables – Test methods for non-metallic materials – Part 604: Physical tests – Measurement of absence of corrosive components in filling compounds ISO/IEC 11801, Information technology − Generic cabling for customer premises 3 Symbols For the purposes of this document, the following symbols apply. ∆a Minimum wall thickness ∆a’ Minimum thickness of the outer sheath of the protected microduct d Nominal outer diameter of the microduct cable ___________ 1
To be published. SIST EN 60794-5-10:2014

60794-5-10 © IEC:2014 – 9 –
DS Detail specification ID Nominal inner diameter of the microduct OD Nominal outer diameter of the microduct la’ Nominal outer diameter of the protected microduct TA1 Temperature cycling test low-temperature limit (usage and storage) according to IEC 60794-1-22, Method F1 TA2 Temperature cycling test secondary low-temperature limit for extended storage temperature range according to IEC 60794-1-22, Method F1
TB1 Temperature cycling test high-temperature limit (usage and storage) according to IEC 60794-1-22, Method F1 TB2 Temperature cycling test secondary high-temperature limit for extended storage temperature range according to IEC 60794-1-22, Method F1 t1 Temperature cycling dwell time n × d The product of a variable and the cable outer diameter used for determining appropriate sizes for bends, mandrels, etc. n × OD
The product of a variable and the outer diameter of the microduct used for determining appropriate sizes for bends, mandrels, etc. n × OD’
The product of a variable and the outer diameter of the protected microduct used for determining appropriate sizes for bends, mandrels, etc. W Weight of 1 km of microduct, protected microduct or microduct optical fibre cable 4 General requirements 4.1 Construction
General 4.1.1In addition to the construction requirements of IEC 60794-5, where applicable, the following considerations apply to outdoor microduct optical fibre cables and their corresponding microducts and protected microducts. The products covered in this specification shall be designed and manufactured for expected operating lifetimes of at least 20 years. The microduct optical fibre cables are designed to be installed in microducts or protected microducts and in appropriate housings. The microducts and protected microducts that are compatible for use with microduct optical fibre cables are defined in this standard. Microduct optical fibre cables are optimized for installation and operational life in these microducts. It shall be possible to install or remove the microduct optical fibre cable from microduct or protected microduct by blowing during the operational lifetime, except under the following conditions: a) products are compromised by multiple installation or removal operations; b) microducts fouled with sediment, debris or other foreign matter due to inadequate maintenance; c) microducts subsequently damaged by extrinsic factors such as diggings, earth upheavals, etc. In such cases, the affected section of microduct shall be cleared or repaired, or products replaced prior to any microduct cable installations. The microduct fitness should be verified with dimensional clearance and static pressure testing of the microduct route. SIST EN 60794-5-10:2014

– 10 – 60794-5-10 © IEC:2014 The materials in the microduct optical fibre cable, microduct or protected microduct shall not present a health hazard within its intended use.
Microduct optical fibre cables 4.1.2Microduct optical fibre cables are suitable for installation by blowing into a microduct. Although not specifically addressed by cable products specifications such as IEC 60794-2, IEC 60794-3 or IEC 60794-4, cable products specifically designed for installation by blowing into microducts may also comply with other such industry standards and specifications. However, they are often not as mechanically robust as traditional outdoor optical fibre cables and, therefore, require the use of suitable installation and handling practices to prevent damage. Ad hoc installation practices could degrade optical performance or reduce the products’ operating lifetimes.
Microduct 4.1.3A microduct suitable for installation of microduct cables is a small, flexible, lightweight tube with an outer diameter typically less than 16 mm. Compared to microduct fibre units (see IEC 60794-5-20), microduct cables are more mechanically robust, but they place greater reliance on microducts and protected microducts or appropriate closures to provide mechanical protection than do traditional cables. Therefore, a microduct shall meet the realistic impact, compression and bending requirements for an application. A protected microduct may be required. Microducts shall be able to resist pressure differences needed for installation by blowing. The microducts shall be circular and uniform in cross-section throughout their length and their inner surface may have a low coefficient of friction. Inner and outer diameters shall be specified. As an option, a supplier may provide a special lining or lubricating coating on the interior of the microduct to aid installation. These layers should not reduce the specified inside diameter of the microduct. Microducts generally are intended for benign installation within ducts or as components within a protected microduct as described in 4.1.1.3. In all cases, it shall be possible to identify each individual microduct throughout its length. When using colours they shall conform to IEC 60304. Microducts installed outdoors and not occupied shall be sealed at each end to prevent the introduction of moisture, debris, insects or other such foreign contaminants that could subsequently hinder the successful installation of cable. Microducts installed outdoors and not immediately occupied shall be tested for obstruction prior to use.
Protected microduct 4.1.4A protected microduct is one or more microducts surrounded by a protective sheath, a larger protective duct and/or an integral thick sheath such that it complies with the requirements of Clause 7. A protected microduct can provide additional crush and impact protection compared to a stand-alone microduct. This additional protection may be needed for a specific operating environment or installation method. The protective sheath may include an integrated layer of armouring or thicker outer sheath. In all cases, it shall be possible to identify each individual microduct throughout its length. When using colours, they shall conform to IEC 60304.
Microduct fittings 4.1.5Microduct fittings are components needed to physically align, connect and seal the junction between two or more sections of microduct, or to connect microduct to hardware. Multiple microducts may be connected in series in order to support extended microduct cable installation distances, or connected in a branch-type configuration with multiple output termini for a given input, within the same system. The latter may be employed in campus type local area networks (LANs) or fibre-to-the-premises (FTTP) applications to allow for additional flexibility that can support frequent changes to the physical optical distribution system. SIST EN 60794-5-10:2014

60794-5-10 © IEC:2014 – 11 –
Fittings should be appropriate to the microduct construction. Mechanical and environmental performance requirements of fittings may also require that such be tested while attached to sections of ducting (or hardware) to ensure intermateability and operational compatibility. The specific physical and material attributes of any fittings used should be agreed between customer and supplier. Microduct fittings shall be able to resist pressure differences needed for installing microduct cables by blowing. Fittings shall allow for the smooth transition of microduct cables between successive sections of microduct, or between microducts and hardware, and shall be constructed and installed to prevent jamming of the microduct cable at splice, branch or other connection points under maximum installation pressures. Successive sections of microduct may also be welded or otherwise secured together along the same longitudinal axis without the use of mechanical fittings. Such junctions shall meet the same mechanical and dimensional requirements as for joints made using mechanical fittings. Translucent or transparent materials may be used to support the identification of populated microducts, and for troubleshooting installation related issues.
Microduct hardware 4.1.6Microduct hardware includes the housings and closures that support the termination of microduct cables, to include splicing or connectorization. Because microduct cables are generally compatible with traditional outdoor fibre optic cable hardware, accounting for the relatively small size, no specific requirements for microduct hardware are included herein. In some applications, it may be appropriate to use hardware that is compatible with the microducts in order to create a sealed microduct cabling system. One example is when empty microducts are pre-installed in hardware to support future microduct cable placement. 4.2 Optical fibres There shall be no fibre splice in a delivered length unless otherwise agreed by customer and supplier. It shall be possible to identify each individual fibre throughout the length of the microduct cable. The transmission performance shall be in accordance with Annex D. 4.3 Installation performance tests
Installation conditions 4.3.1A test route may be used to verify the field performance of a microduct cable, microduct, and/or protected microduct as agreed between customer and supplier. Ambient conditions can affect installation performance and therefore should be monitored. Alternately, the supplier can provide performance data from a specified test route under specific ambient conditions using a specified installation method. Verifying that a microduct cable or microduct can be installed using a blown installation technique is critical. Any installation performance requirement shall be agreed upon between customer and supplier.
Tests applicable 4.3.2The tests that are applicable for installation performance are given in Table 1. SIST EN 60794-5-10:2014

– 12 – 60794-5-10 © IEC:2014 Table 1 – Tests applicable for installation performance Characteristics
Family requirements Test methods Remarks General requirements Agreement between customer and supplier
Route verification test Agreement between customer and supplier IEC 60794-1-21,
Method E23
Installation test Agreement between customer and supplier IEC 60794-1-21,
Method E24
4.4 Mechanical and environmental tests Based on the expected operating conditions over the life of the product, including the mechanical loads exerted on the product during installation, the following sections specify product performance for microduct cables, microducts and protected microducts. 5 Microduct optical fibre cable 5.1 Tests applicable The tests that are applicable for mechanical and environmental performance are given in Table 2. Table 2 – Tests applicable for mechanical and environmental performance of microduct cable Characteristics
Family requirements Test methods Remarks Tensile performance 5.2 IEC 60794-1-21, Method E1
Crush 5.3 IEC 60794-1-21, Method E3
Impact
5.4 IEC 60794-1-21, Method E4
Repeated bending 5.5 IEC 60794-1-21, Method E6
Torsion 5.6 IEC 60794-1-21, Method E7
Kink 5.7 IEC 60794-1-21, Method E10
Bend 5.8 IEC 60794-1-21, Method E11B
Temperature cycling 5.9 IEC 60794-1-22, Method F1
Water penetration
5.10 IEC 60794-1-22, Method F5B
Ageing 5.11 IEC 60794-1-22, Method F9
Fibre ribbons (if used)
Ribbon stripping
5.12 IEC 60794-1-21, Method E5B
Separability of individual fibres from ribbon
5.13 IEC 60794-1-23, Method G5
5.2 Tensile performance a) Family requirements Under short-term tensile load the fibre strain shall not exceed 60 % of the fibre proof strain. After removal of load, there shall be no change in attenuation. Other criteria may be agreed between customer and supplier. SIST EN 60794-5-10:2014

60794-5-10 © IEC:2014 – 13 –
Under visual examination without magnification there shall be no damage to the sheath or to the cable elements. b) Test conditions Method: IEC 60794-1-21, Method E1 Length under tension: Not less than 50 m. Shorter lengths may be used by agreement between customer and supplier, taking into account the measurement accuracy and end effects Fibre length: Finished cable length Tensile load on cable: 1 × W
Diameter of test pulleys: Not less than the minimum loaded bending diameter specified for the microduct optical fibre cable 5.3 Crush a) Family requirements After removal of the short-term load, there shall be no change in attenuation. Under visual examination, there shall be no damage to the microduct cable. The imprint of the plate or mandrel on the microduct cable is not considered mechanical damage. b) Test conditions Method: IEC 60794-1-21, Method E3A Load (plate/plate): 500 N Duration of load: 1 min 5.4 Impact a) Family requirements Under visual examination without magnification there shall be no damage to the sheath or to the cable elements. The imprint of the striking surface on the sheath is not considered mechanical damage. The residual increase in attenuation shall be <0,1 dB at 1 550 nm. b) Test conditions Method: IEC 60794-1-21, Method E4 Number of impacts: One in 3 different places spaced not less than 500 mm apart Striking surface radius: 300 mm
Impact energy: 1 J 5.5 Repeated bending a) Family requirements Under visual examination without magnification there shall be no damage to the sheath and to the cable elements. b) Test conditions Method: IEC 60794-1-21, Method E6 Bending diameter: 40 × d
Load: Adequate to assure uniform contact with the mandrel Number of cycles: 25 5.6 Torsion a) Family requirements Under visual examination without magnification there shall be no damage to the sheath or to the cable elements. SIST EN 60794-5-10:2014

– 14 – 60794-5-10 © IEC:2014 There shall be no change in attenuation after the test. b) Test conditions Method: IEC 60794-1-21, Method E7 Length under test: 2 m 5.7 Kink a) Family requirements Under visual examination, without magnification, there shall be no damage to the cable. b) Test conditions Method: IEC 60794-1-21, Method E10 Minimum diameter: 40 × d
5.8 Bend a) Family requirements There shall be no change in attenuation after the test when measured at room temperature. If required, the change in attenuation when tested at –30 °C shall be ≤0,1 dB for single-mode fibre and <=0,4 dB for multimode fibre.
b) Test conditions Method: IEC 60794-1-21, Method E11A Diameter of mandrel: 40 × d
Number of turns/helix: 4 Number of cycles: 3 5.9 Temperature cycling a) Family requirements Attenuation measurements shall be taken during the last cycle. For TA1 to TB1 there shall be no change in attenuation as defined in IEC 60794-1-1. For TA1 to TA2 and TB1 to TB2, the change in attenuation coefficient shall be: – ≤0,15 dB/km for single-mode fibre and shall be reversible to measurement uncertainty when measured in the
1 550 nm region.
– ≤0,3 dB/km for multimode fibre and shall be reversible to measurement uncertainty when measured in the
1 300 nm region.
b) Test conditions Method: IEC 60794-1-22, Method F1 Sample length under test: Finished microduct cable, length of at least 1 000 m. High temperature, TB2: +60 °C to +70 °C, depending on customer requirements. High temperature, TB1: +30 °C to +60 °C depending on customer requirements. Low temperature, TA1: –15 °C. Low temperature, TA2: TA1 to –30 °C or –40 °C depending on customer requirements. NOTE Other temperature values corresponding to specific climate conditions can be agreed between supplier and customer. Number of cycles: 2
60794-5-10 © IEC:2014 – 15 –
5.10 Water penetration a) Family requirements The cable shall not propagate water longitudinally according to requirements of IEC 60794-1-2, Method F5B. b) Test conditions Method: IEC 60794-1-22, Method F5B 5.11 Ageing
a) Family requirements:
according to 11.5 of IEC 60794-1-22:2012, Method F9 b) Test conditions Method: IEC 60794-1-22, Method F9 5.12 Ribbon strippability
...
