EN IEC 60794-1-1:2023
(Main)Optical fibre cables - Part 1-1: Generic specification - General
Optical fibre cables - Part 1-1: Generic specification - General
IEC 60794-1-1:2023 applies to optical fibre cables for use with communication equipment and devices employing similar techniques. Electrical properties are specified for optical ground wire (OPGW) and optical phase conductor (OPPC) cables. Hybrid communication cables are specified in the IEC 62807 series. The object of this document is to establish uniform generic requirements for the geometrical, transmission, material, mechanical, ageing (environmental exposure), climatic and electrical properties of optical fibre cables and cable elements, where appropriate. This fifth edition cancels and replaces the fourth edition published in 2015. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) reorganization of the document to a more logical flow making it easier for the reader: b) expansion of the tables to include names and definitions of all documents in the IEC 60794‑x series; c) expansion of the definitions, graphical symbols, terminology and abbreviations content, with the aim of making this document the default and reference for all others in the IEC 60794‑x series; d) inclusion of updated, reorganized and expanded optical fibre, attenuation and bandwidth subclauses, with the aim of making this document the default and reference for all others in the IEC 60794-x series.
Lichtwellenleiterkabel - Teil 1-1: Fachgrundspezifikation - Allgemeines
Câbles à fibres optiques - Partie 1-1: Spécification générique - Généralités
L'IEC 60794-1-1:2023 s’applique aux câbles à fibres optiques destinés à être utilisés avec des équipements de communication et des dispositifs utilisant des techniques similaires. Les propriétés électriques sont spécifiées pour les câbles de garde à fibres optiques (OPGW) et les câbles conducteurs de phase à fibres optiques (OPPC). Les câbles de communication hybrides sont spécifiés dans la série IEC 62807. Le présent document a pour objet d’établir des exigences génériques uniformes relatives aux caractéristiques géométriques, de transmission, de matériaux, mécaniques, de vieillissement (exposition à l’environnement), climatiques et électriques des câbles et des éléments de câbles à fibres optiques, le cas échéant. Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente: a) réorganisation du document en un flux plus logique pour faciliter la lecture; b) extension des tableaux pour inclure les noms et définitions de tous les documents de la série IEC 60794‑x; c) extension du contenu des définitions, des symboles graphiques, de la terminologie et des abréviations, dans le but de faire du présent document le document par défaut et la référence pour tous les autres documents de la série IEC 60794‑x; d) ajout d’alinéas étendus, mis à jour et réorganisés sur la largeur de bande et l’affaiblissement des fibres optiques, dans le but de faire du présent document le document par défaut et la référence pour tous les autres documents de la série IEC 60794-x.
Optični kabli - 1-1. del: Splošna specifikacija - Splošno (IEC 60794-1-1:2023)
IEC 60794-1-1:2023 se uporablja za optične kable za uporabo s komunikacijsko opremo in napravami, ki uporabljajo podobne tehnike. Električne lastnosti so določene za optične ozemljitvene žice (OPGW) in optične linijske vodnike (OPPC). Hibridni komunikacijski kabli so določeni v skupini standardov IEC 62807. Cilj tega dokumenta je vzpostaviti enotne splošne zahteve za geometrijske, materialne, mehanske, klimatske in električne zahteve ter zahteve v zvezi s prenosom in staranjem (okoljska izpostavljenost) optičnih kablov in kabelskih elementov, kjer je to ustrezno. Peta izdaja razveljavlja in nadomešča četrto izdajo, objavljeno leta 2015. Ta izdaja je tehnično popravljena izdaja. Ta izdaja v primerjavi s prejšnjo vključuje naslednje pomembne tehnične spremembe:
a) reorganizacija dokumenta z bolj logičnim potekom, da se bralcu olajša branje;
b) razširitev preglednic z imeni in definicijami iz vseh dokumentov v skupini standardov IEC 60794‑x;
c) razširitev vsebine definicij, grafičnih simbolov, izrazoslovja in okrajšav, da bo ta dokument lahko privzeti in referenčni dokument za vse druge v skupini standardov IEC 60794‑x;
d) vključitev posodobljenih, reorganiziranih in razširjenih podtočk o optičnih vlaknih, slabljenju in pasovni širini, da bo ta dokument lahko privzeti in referenčni dokument za vse druge v skupini standardov IEC 60794‑x.
General Information
Relations
Standards Content (Sample)

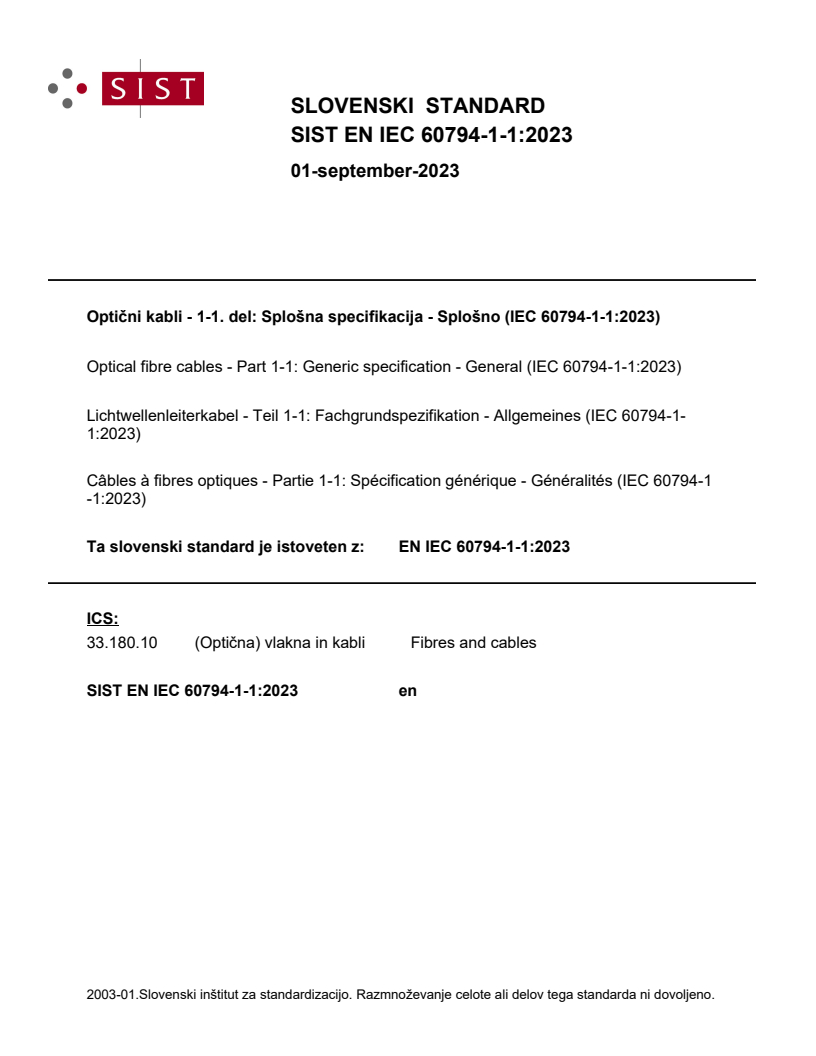

SLOVENSKI STANDARD
01-september-2023
Optični kabli - 1-1. del: Splošna specifikacija - Splošno (IEC 60794-1-1:2023)
Optical fibre cables - Part 1-1: Generic specification - General (IEC 60794-1-1:2023)
Lichtwellenleiterkabel - Teil 1-1: Fachgrundspezifikation - Allgemeines (IEC 60794-1-
1:2023)
Câbles à fibres optiques - Partie 1-1: Spécification générique - Généralités (IEC 60794-1
-1:2023)
Ta slovenski standard je istoveten z: EN IEC 60794-1-1:2023
ICS:
33.180.10 (Optična) vlakna in kabli Fibres and cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

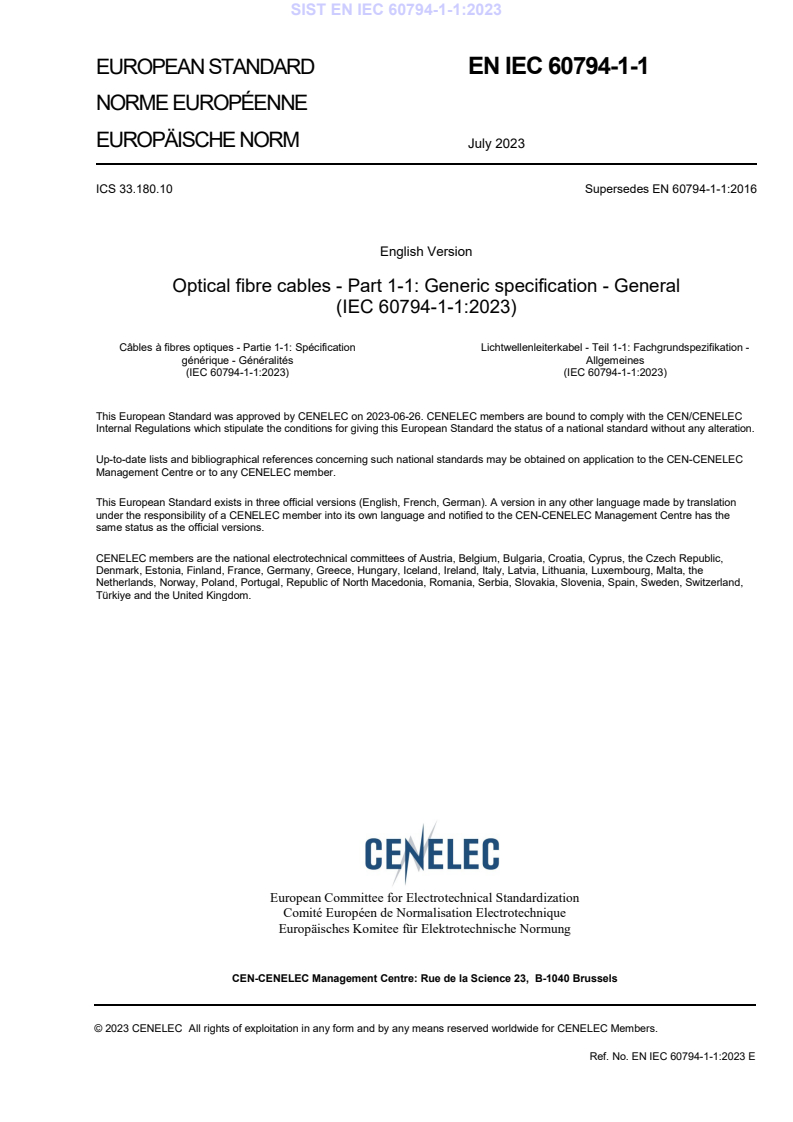

EUROPEAN STANDARD EN IEC 60794-1-1
NORME EUROPÉENNE
EUROPÄISCHE NORM July 2023
ICS 33.180.10 Supersedes EN 60794-1-1:2016
English Version
Optical fibre cables - Part 1-1: Generic specification - General
(IEC 60794-1-1:2023)
Câbles à fibres optiques - Partie 1-1: Spécification Lichtwellenleiterkabel - Teil 1-1: Fachgrundspezifikation -
générique - Généralités Allgemeines
(IEC 60794-1-1:2023) (IEC 60794-1-1:2023)
This European Standard was approved by CENELEC on 2023-06-26. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60794-1-1:2023 E

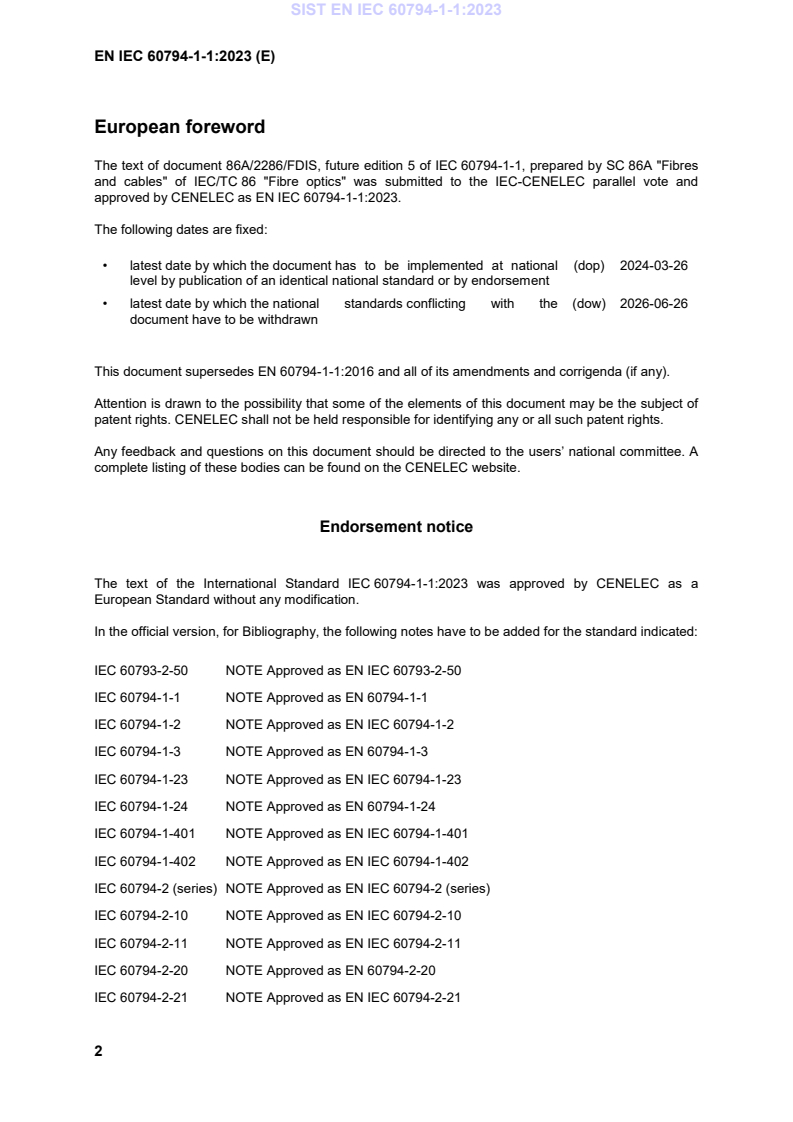

European foreword
The text of document 86A/2286/FDIS, future edition 5 of IEC 60794-1-1, prepared by SC 86A "Fibres
and cables" of IEC/TC 86 "Fibre optics" was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN IEC 60794-1-1:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2024-03-26
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-06-26
document have to be withdrawn
This document supersedes EN 60794-1-1:2016 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60794-1-1:2023 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60793-2-50 NOTE Approved as EN IEC 60793-2-50
IEC 60794-1-1 NOTE Approved as EN 60794-1-1
IEC 60794-1-2 NOTE Approved as EN IEC 60794-1-2
IEC 60794-1-3 NOTE Approved as EN 60794-1-3
IEC 60794-1-23 NOTE Approved as EN IEC 60794-1-23
IEC 60794-1-24 NOTE Approved as EN 60794-1-24
IEC 60794-1-401 NOTE Approved as EN IEC 60794-1-401
IEC 60794-1-402 NOTE Approved as EN IEC 60794-1-402
IEC 60794-2 (series) NOTE Approved as EN IEC 60794-2 (series)
IEC 60794-2-10 NOTE Approved as EN IEC 60794-2-10
IEC 60794-2-11 NOTE Approved as EN IEC 60794-2-11
IEC 60794-2-20 NOTE Approved as EN 60794-2-20
IEC 60794-2-21 NOTE Approved as EN IEC 60794-2-21
IEC 60794-2-22 NOTE Approved as EN IEC 60794-2-22
IEC 60794-2-30 NOTE Approved as EN IEC 60794-2-30
IEC 60794-2-31 NOTE Approved as EN IEC 60794-2-31
IEC 60794-2-40 NOTE Approved as EN 60794-2-40
IEC 60794-2-41 NOTE Approved as EN 60794-2-41
IEC 60794-2-42 NOTE Approved as EN 60794-2-42
IEC 60794-2-50 NOTE Approved as EN IEC 60794-2-50
IEC 60794-3 (series) NOTE Approved as EN IEC 60794-3 (series)
IEC 60794-3-10 NOTE Approved as EN 60794-3-10
IEC 60794-3-11 NOTE Approved as EN 60794-3-11
IEC 60794-3-12 NOTE Approved as EN IEC 60794-3-12
IEC 60794-3-20 NOTE Approved as EN 60794-3-20
IEC 60794-3-21 NOTE Approved as EN 60794-3-21
IEC 60794-3-30 NOTE Approved as EN 60794-3-30
IEC 60794-3-40 NOTE Approved as EN IEC 60794-3-40
IEC 60794-3-70 NOTE Approved as EN IEC 60794-3-70
IEC 60794-4 (series) NOTE Approved as EN IEC 60794-4 (series)
IEC 60794-4-10 NOTE Approved as EN 60794-4-10
IEC 60794-4-20:2018 NOTE Approved as EN IEC 60794-4-20:2018 (not modified)
IEC 60794-4-30 NOTE Approved as EN IEC 60794-4-30
IEC 60794-5 (series) NOTE Approved as EN 60794-5 (series)
IEC 60794-5-10 NOTE Approved as EN 60794-5-10
IEC 60794-5-20 NOTE Approved as EN 60794-5-20
IEC 60794-6 (series) NOTE Approved as EN IEC 60794-6 (series)
IEC 60794-6-10 NOTE Approved as EN IEC 60794-6-10
IEC 60794-6-20 NOTE Approved as EN IEC 60794-6-20
IEC 60794-6-30 NOTE Approved as EN IEC 60794-6-30
IEC 61753-1 NOTE Approved as EN IEC 61753-1
ISO 14001 NOTE Approved as EN ISO 14001
ISO 14064-1 NOTE Approved as EN ISO 14064-1
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60189-1 - Low-frequency cables and wires with PVC - -
insulation and PVC sheath - Part 1:
General test and measuring methods
IEC 60304 - Standard colours for insulation for low- HD 402 S2 -
frequency cables and wires
IEC 60793-1-21 - Optical fibres - Part 1-21: Measurement EN 60793-1-21 -
methods and test procedures - Coating
geometry
IEC 60793-1-22 - Optical fibres - Part 1-22: Measurement EN 60793-1-22 -
methods and test procedures - Length
measurement
IEC 60793-1-40 - Optical fibres - Part 1-40: Attenuation EN IEC 60793-1-40 -
measurement methods
IEC 60793-1-44 - Optical fibres - Part 1-44: Measurement EN 60793-1-44 -
methods and test procedures - Cut-off
wavelength
IEC 60793-1-46 - Optical fibres - Part 1-46: Measurement EN 60793-1-46 -
methods and test procedures - Monitoring
of changes in optical transmittance
IEC 60793-1-48 - Optical fibres - Part 1-48: Measurement EN 60793-1-48 -
methods and test procedures - Polarization
mode dispersion
IEC 60793-2 - Optical fibres - Part 2: Product EN IEC 60793-2 -
specifications - General
IEC 60793-2-10 - Optical fibres - Part 2-10: Product EN IEC 60793-2-10 -
specifications - Sectional specification for
category A1 multimode fibres
IEC 60793-2-40 2021 Optical fibres - Part 2-40: Product EN IEC 60793-2-40 2021
specifications - Sectional specification for
category A4 multimode fibres
IEC 60794-1-21 - Optical fibre cables - Part 1-21: Generic EN 60794-1-21 -
specification - Basic optical cable test
procedures - Mechanical tests methods
IEC 60794-1-22 - Optical fibre cables - Part 1-22: Generic EN IEC 60794-1-22 -
specification - Basic optical cable test
procedures - Environmental test methods
IEC 60811-201 - Electric and optical fibre cables - Test EN 60811-201 -
methods for non-metallic materials - Part
201: General tests - Measurement of
insulation thickness
IEC 60811-202 - Electric and optical fibre cables - Test EN 60811-202 -
methods for non-metallic materials - Part
202: General tests - Measurement of
thickness of non-metallic sheath
IEC 60811-203 - Electric and optical fibre cables - Test EN 60811-203 -
methods for non-metallic materials - Part
203: General tests - Measurement of
overall dimensions
IEC 60794-1-1 ®
Edition 5.0 2023-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Optical fibre cables –
Part 1-1: Generic specification – General
Câbles à fibres optiques –
Partie 1-1: Spécification générique – Généralités
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.10 ISBN 978-2-8322-6709-7
– 2 – IEC 60794-1-1:2023 © IEC 2023
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Graphical symbols and abbreviated terms . 12
5 Optical fibre cables – IEC 60794 structure . 13
5.1 General . 13
5.2 IEC 60794-1 series . 13
5.3 IEC 60794-2 series . 14
5.4 IEC 60794-3 series . 14
5.5 IEC 60794-4 series . 15
5.6 IEC 60794-5 series . 15
5.7 IEC 60794-6 series . 15
5.8 IEC 60794-7 series . 16
6 Cable materials . 16
6.1 Indoor cable materials . 16
6.2 Outdoor cable materials . 16
6.3 Indoor/outdoor cable materials . 17
6.4 Environmental requirements for cable materials . 17
7 Cable construction . 17
7.1 General . 17
7.2 Colour coding . 17
7.2.1 Overview . 17
7.2.2 Fibre colour coding . 18
7.2.3 Unit colour coding . 18
7.2.4 Sheath colour coding . 18
7.3 Fibre . 18
7.3.1 General . 18
7.3.2 Attenuation coefficient . 18
7.3.3 Attenuation uniformity – Attenuation discontinuities . 18
7.3.4 Cable cut-off wavelength . 18
7.3.5 Polarization mode dispersion (PMD) . 19
7.4 Buffer tubes . 19
7.5 Tensile strength elements . 19
7.6 Crush protection elements .
...
