Title : IEC 60312-2 Ed 1.0: Vacuum cleaners for household use - Part 2: Wet vacuum cleaner - Methods of measuring the performance
Note d'introduction La version française sera diffusée ultérieurement. Introductory note This CDV has been prepared as part of the project to split the present IEC 60312 Ed 4.0 into separate parts for dry and wet cleaning. As the project on updating the dry cleaning part has advanced to CDV stage and is expected to be published as IEC 60312-1 first half next year, this CDV aimed to maintain a standard on methods for testing wet cleaning performance in order to allow for withdrawal of the present IEC 60312. As a consequence of this, except for editorial changes, only minor changes compared with present standard has been introduced.
French version will be circulated later. ATTENTION VOTE PARALLÈLE CEI – CENELEC L’attention des Comités nationaux de la CEI, membres du CENELEC, est attirée sur le fait que ce projet de comité pour vote (CDV) de Norme internationale est soumis au vote parallèle.
Les membres du CENELEC sont invités à voter via le système de vote en ligne du CENELEC. ATTENTION IEC – CENELEC PARALLEL VOTING The attention of IEC National Committees, members of CENELEC, is drawn to the fact that this Committee Draft for Vote (CDV) for an International Standard is submitted for parallel voting. The CENELEC members are invited to vote through the CENELEC online voting system.
Copyright © 2009 International Electrotechnical Commission, IEC. All rights reserved. It is permitted to download this electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions. You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without permission in writing from IEC. ® kSIST FprEN 60312-2:2010



60312-2/Ed 1.0/CDV © IEC

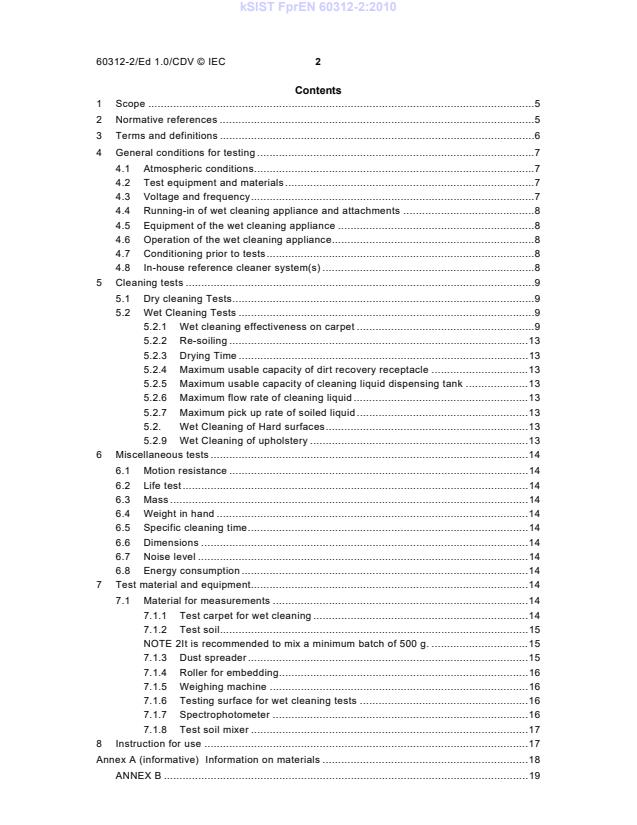

2Contents 1 Scope.5 2 Normative references.5 3 Terms and definitions.6 4 General conditions for testing.7 4.1 Atmospheric conditions.7 4.2 Test equipment and materials.7 4.3 Voltage and frequency.7 4.4 Running-in of wet cleaning appliance and attachments.8 4.5 Equipment of the wet cleaning appliance.8 4.6 Operation of the wet cleaning appliance.8 4.7 Conditioning prior to tests.8 4.8 In-house reference cleaner system(s).8 5 Cleaning tests.9 5.1 Dry cleaning Tests.9 5.2 Wet Cleaning Tests.9 5.2.1 Wet cleaning effectiveness on carpet.9 5.2.2 Re-soiling.13 5.2.3 Drying Time.13 5.2.4 Maximum usable capacity of dirt recovery receptacle.13 5.2.5 Maximum usable capacity of cleaning liquid dispensing tank.13 5.2.6 Maximum flow rate of cleaning liquid.13 5.2.7 Maximum pick up rate of soiled liquid.13 5.2. Wet Cleaning of Hard surfaces.13 5.2.9 Wet Cleaning of upholstery.13 6 Miscellaneous tests.14 6.1 Motion resistance.14 6.2 Life test.14 6.3 Mass.14 6.4 Weight in hand.14 6.5 Specific cleaning time.14 6.6 Dimensions.14 6.7 Noise level.14 6.8 Energy consumption.14 7 Test material and equipment.14 7.1 Material for measurements.14 7.1.1 Test carpet for wet cleaning.14 7.1.2 Test soil.15 NOTE 2It is recommended to mix a minimum batch of 500 g.15 7.1.3 Dust spreader.15 7.1.4 Roller for embedding.16 7.1.5 Weighing machine.16 7.1.6 Testing surface for wet cleaning tests.16 7.1.7 Spectrophotometer.16 7.1.8 Test soil mixer.17 8 Instruction for use.17 Annex A (informative)
Information on materials.18 ANNEX B.19 kSIST FprEN 60312-2:2010



60312-2/Ed 1.0/CDV © IEC
3
VACUUM CLEANERS FOR HOUSEHOLD USE –
PART 2: WET CLEANING APPLIANCES METHODS OF MEASURING THE PERFORMANCE
FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any services carried out by independent certification bodies. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 60312-1 has been prepared by subcommittee 59F: Floor treatment appliances, of IEC technical committee 59: Performance of household and similar electrical appliances. The text of this standard is based on the following documents: FDIS Report on voting 59F/XX/FDIS 59F/XX/RVD
Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. A list of all the parts in the IEC 60312 series, under the general title Vacuum cleaners for household use, can be found on the IEC website. kSIST FprEN 60312-2:2010



60312-2/Ed 1.0/CDV © IEC
4The committee has decided that the contents of this publication will remain unchanged until the maintenance result date1) indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be
• reconfirmed, • withdrawn, • replaced by a revised edition, or • amended. ___________ 1) The National Committees are requested to note that for this publication the maintenance result date is 2013 kSIST FprEN 60312-2:2010



60312-2/Ed 1.0/CDV © IEC
5 VACUUM CLEANERS FOR HOUSEHOLD USE –
PART 2: WET CLEANING APPLIANCES METHODS OF MEASURING THE PERFORMANCE
1 Scope This International Standard is applicable to wet cleaning appliances for household use in or under conditions similar to those in households. The purpose of this standard is to specify essential performance characteristics of wet cleaning appliances being of interest to the users and to describe methods for measuring these characteristics and is complementary to the methods for dry cleaning vacuum cleaner in IEC 60312-1. NOTE Due to influence of environmental conditions, variations in time, origin of test materials and proficiency of the operator, most of the described test methods will give more reliable results when applied for comparative testing of a number of appliances at the same time, in the same laboratory and by the same operator. For safety requirements, reference is made to IEC 60335-1 and IEC 60335-2-2. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. IEC 60312-1 Vacuum Cleaners for household use – dry vacuum cleaners, Methods of measuring the performance IEC 60704-1, Test code for the determination of airborne acoustical noise emitted by household and similar electrical appliances − Part 1: General requirements IEC 60704-2-1, Test code for the determination of airborne acoustical noise emitted by household and similar electrical appliances − Part 2: Particular requirements for vacuum cleaners ISO 554, Standard atmospheres for conditioning and/or testing – Specifications ISO 679, Methods of testing cements − Determination of strength CIE 15.2, Colorimetry kSIST FprEN 60312-2:2010



60312-2/Ed 1.0/CDV © IEC
63 Terms and definitions For the purpose of this International Standard, the following definitions apply: 3.1 cleaning head
plain nozzle or a brush attached to a connecting tube, or a power nozzle, separate or part of the appliance housing, and that part of a vacuum cleaner which is applied to a surface to be cleaned. 3.2 active nozzle cleaning head provided with an agitation device to assist dirt removal. NOTE
The agitation device may be driven by an incorporated electric motor (motorized nozzle), an incorporated turbine powered by the air flow (air-turbine nozzle) or an incorporated friction or gear mechanism actuated by moving the cleaning head over the surface to be cleaned (mechanical nozzle)
3.3 self-propelled cleaning head cleaning head provided with a propulsion mechanism 3.4 Extractor Wet cleaning appliance with the cleaning head forming an integral part of or directly connected to the cleaner housing, the cleaning head may be provided with an agitation device to assist dirt removal and the complete cleaner housing being moved over the surface to be cleaned by means of an attached handle 3.5 forward stroke forward movement of a stroke pattern NOTE
On test carpets, forward strokes are normally carried out in the direction of the carpet pile (direction of manufacture) unless otherwise indicated. 3.6 return stroke backward movement of a stroke pattern 3.7 stroke speed speed of the cleaning head, moved as uniformly as possible, during a forward or a return stroke 3.8 stroke length distance between the two parallel lines defining the limits of a stroke pattern 3.9 stroke pattern arrangement of the forward and return strokes on the surface to be cleaned kSIST FprEN 60312-2:2010



60312-2/Ed 1.0/CDV © IEC
7 3.10 cleaning cycle for a given measurement, the sequence of forward and return strokes to be carried out at a specified stroke speed over the test area according to the appropriate stroke pattern 3.11 wet cleaning appliance electrically operated appliance that applies cleaning solution and removes soil together with solution from the surface to be cleaned by an airflow created by a vacuum developed within the unit.
The material and solution thus removed is separated in the appliance and the cleaned dry suction air is returned to the ambient 3.12 passive nozzle cleaning head without any agitation devices 3.13
cleaning head width the external maximum width of the cleaning head in mm 4 General conditions for testing 4.1 Atmospheric conditions Unless otherwise specified, the test procedures and measurements shall be carried out under the following conditions (in accordance with ISO 554): Standard atmosphere 23/50 Temperature: (23 ± 2) °C Relative humidity: (50 ± 5) % Air pressure: 86 kPa to 106 kPa
NOTE
Temperature and humidity conditions within the specified ranges are required for good repeatability and reproducibility. Care should be taken to avoid changes during a test. For test procedures and measurements which may be carried out at other than standard atmospheric conditions, the ambient temperature shall be maintained at (23 ± 5) °C. 4.2 Test equipment and materials Measurements on carpets shall be carried out on a flat floor consisting of a smooth untreated pine plywood or equivalent panel, at least 15 mm thick and of a size appropriate for the test. Equipment and materials for measurements (devices, test carpets, soil, test dust etc.) to be used in a test shall, prior to the test, be kept for at least 16 h at standard atmospheric conditions according to 4.1. NOTE It is recommended that carpets that are already being used shall be stored unbeaten at standard atmospheric conditions according to 4.1. When not in use they should be hanging free, not lying or rolled. 4.3 Voltage and frequency Measurements shall be carried out at rated voltage with a tolerance of ±1 % and, if applicable, at rated frequency. kSIST FprEN 60312-2:2010



60312-2/Ed 1.0/CDV © IEC
