EN 62841-2-5:2014/prAB:2024
(Amendment)Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 2-5: Particular requirements for hand-held circular saws (IEC 62841-2-5:2014, modified)
Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 2-5: Particular requirements for hand-held circular saws (IEC 62841-2-5:2014, modified)
IEC 62841-2-5:2014 applies to hand-held circular saws. This standard does not apply to saws designed for use with abrasive wheels. Saws designed for use with abrasive wheels as cut-off machines are covered by IEC 62841-2-22. The rated voltage is not more than 250 V for single-phase a.c. or d.c. tools, and 480 V for three-phase a.c. tools. The rated input is not more than 3 700 W. The limits for the applicability of this standard for battery tools is given in Annex K. This standard deals with the hazards presented by tools which are encountered by all persons in the normal use and reasonably foreseeable misuse of the tools. Hand-held electric tools, which can be mounted on a support or working stand for use as fixed tools without any alteration of the tool itself, are within the scope of this standard and such combination of a hand-held tool and a support is considered to be a transportable tool and thus covered by the relevant Part 3. The attention of National Committees is drawn to the fact that equipment manufacturers and testing organizations may need a transitional period following publication of a new, amended or revised IEC publication in which to make products in accordance with the new requirements and to equip themselves for conducting new or revised tests. It is the recommendation of the committee that the content of this publication be adopted for implementation nationally not earlier than 36 months from the date of publication. Key words: Saw, Circular, Cutting, This publication is to be read in conjunction with IEC 62841-1:2014.
Elektrische motorbetriebene handgeführte Werkzeuge, transportable Werkzeuge und Rasen- und Gartenmaschinen - Sicherheit - Teil 2-5: Besondere Anforderungen für handgeführte Kreissägen (IEC 62841-2-5:2014, modifiziert)
Outils électroportatifs à moteur, outils transportables et machines pour jardins et pelouses - Sécurité - Partie 2-5: Exigences particulières pour les scies circulaires portatives (IEC 62841-2-5:2014, modifiée)
L'IEC 62841-2-5:2014 s'applique aux scies circulaires portatives. La présente norme ne s'applique pas aux scies destinées à être utilisées avec des roues abrasives. Les scies destinées à être utilisées avec des roues abrasives comme des machines de coupe sont traitées dans l'IEC 62841-2-22. The rated voltage is not more than 250 V for single-phase a.c. or d.c. tools, and 480 V for three-phase a.c. tools. The rated input is not more than 3 700 W. The limits for the applicability of this standard for battery tools is given in Annex K. This standard deals with the hazards presented by tools which are encountered by all persons in the normal use and reasonably foreseeable misuse of the tools. Les outils électroportatifs, qui peuvent être montés sur un support de travail pour être utilisés comme outils installés à poste fixe sans aucune modification de l'outil lui-même, sont compris dans le domaine d'application de la présente Norme et la combinaison d'un outil portatif et d'un support est considérée comme un outil portable, donc couvert par la Partie 3 applicable. L'attention des Comités Nationaux est attirée sur le fait que les fabricants d'appareils et les organismes d'essai peuvent avoir besoin d'une période transitoire après la publication d'une nouvelle publication IEC, ou d'une publication amendée ou révisée, pour fabriquer des produits conformes aux nouvelles exigences et pour adapter leurs équipements aux nouveaux essais ou aux essais révisés. Le comité recommande que le contenu de cette publication soit entériné au niveau national au plus tôt 12 mois et au plus tard 36 mois après la date de publication. Mots-clés: Scie, Circulaire, Coupant Cette publication doit être lue conjointement avec la CEI 62841-1:2014.
Električna motorna ročna orodja, prenosna orodja ter stroji za trato in vrt - Varnost - 2-5. del: Posebne zahteve za ročne krožne žage - Dopolnilo AB
General Information
Relations
Standards Content (Sample)

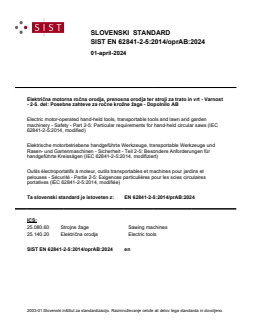

SLOVENSKI STANDARD
01-april-2024
Električna motorna ročna orodja, prenosna orodja ter stroji za trato in vrt - Varnost
- 2-5. del: Posebne zahteve za ročne krožne žage - Dopolnilo AB
Electric motor-operated hand-held tools, transportable tools and lawn and garden
machinery - Safety - Part 2-5: Particular requirements for hand-held circular saws (IEC
62841-2-5:2014, modified)
Elektrische motorbetriebene handgeführte Werkzeuge, transportable Werkzeuge und
Rasen- und Gartenmaschinen - Sicherheit - Teil 2-5: Besondere Anforderungen für
handgeführte Kreissägen (IEC 62841-2-5:2014, modifiziert)
Outils électroportatifs à moteur, outils transportables et machines pour jardins et
pelouses - Sécurité - Partie 2-5: Exigences particulières pour les scies circulaires
portatives (IEC 62841-2-5:2014, modifiée)
Ta slovenski standard je istoveten z: EN 62841-2-5:2014/prAB:2024
ICS:
25.080.60 Strojne žage Sawing machines
25.140.20 Električna orodja Electric tools
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD DRAFT
EN 62841-2-5:2014
NORME EUROPÉENNE
EUROPÄISCHE NORM
prAB
February 2024
ICS 25.140.20 -
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Safety - Part 2-5: Particular
requirements for hand-held circular saws (IEC 62841-2-5:2014,
modified)
Outils électroportatifs à moteur, outils transportables et Elektrische motorbetriebene handgeführte Werkzeuge,
machines pour jardins et pelouses - Sécurité - Partie 2-5: transportable Werkzeuge und Rasen- und
Exigences particulières pour les scies circulaires portatives Gartenmaschinen - Sicherheit - Teil 2-5: Besondere
(IEC 62841-2-5:2014, modifiée) Anforderungen für handgeführte Kreissägen (IEC 62841-2-
5:2014, modifiziert)
This draft amendment prAB, if approved, will modify the European Standard EN 62841-2-5:2014; it is submitted to CENELEC members for
enquiry.
Deadline for CENELEC: 2024-05-03.
It has been drawn up by CLC/TC 116.
If this draft becomes an amendment, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.
This draft amendment was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 79289 Ref. No. EN 62841-2-5:2014/prAB:2024 E

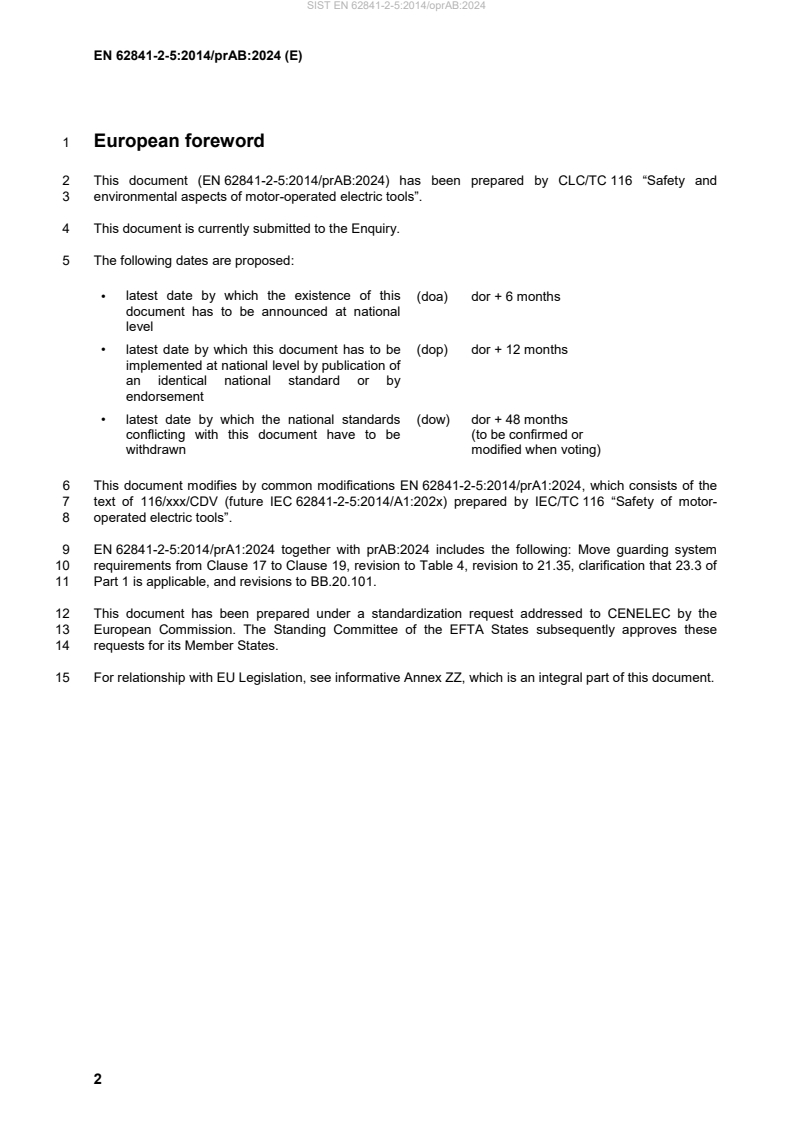

1 European foreword
2 This document (EN 62841-2-5:2014/prAB:2024) has been prepared by CLC/TC 116 “Safety and
3 environmental aspects of motor-operated electric tools”.
4 This document is currently submitted to the Enquiry.
5 The following dates are proposed:
• latest date by which the existence of this (doa) dor + 6 months
document has to be announced at national
level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) dor + 48 months
conflicting with this document have to be (to be confirmed or
withdrawn
modified when voting)
6 This document modifies by common modifications EN 62841-2-5:2014/prA1:2024, which consists of the
7 text of 116/xxx/CDV (future IEC 62841-2-5:2014/A1:202x) prepared by IEC/TC 116 “Safety of motor-
8 operated electric tools”.
9 EN 62841-2-5:2014/prA1:2024 together with prAB:2024 includes the following: Move guarding system
10 requirements from Clause 17 to Clause 19, revision to Table 4, revision to 21.35, clarification that 23.3 of
11 Part 1 is applicable, and revisions to BB.20.101.
12 This document has been prepared under a standardization request addressed to CENELEC by the
13 European Commission. The Standing Committee of the EFTA States subsequently approves these
14 requests for its Member States.
15 For relationship with EU Legislation, see informative Annex ZZ, which is an integral part of this document.
16 1 Modification to Clause 2, “Normative references”
17 Replace the existing normative reference EN 847-1 as follows:
18 EN 847-1:2017, Tools for woodworking - Safety requirements - Part 1: Milling tools, circular saw blades
19 2 Modification to Clause 8, “Marking and instructions”
20 In subclause 8.2, delete NOTE 101.
21 3 Modification to Annex K, “Battery tools and battery packs”
22 Add the following new subclause:
23 “K.21.18.Z301 Isolation and disabling device
24 Tools with an integral battery shall be equipped
25 — with an isolation device to prevent the risk of injury from mechanical hazards during servicing or user
26 maintenance; or
27 — with a disabling device that prevents unintentional starting of the tool.
28 An isolation device shall
29 — provide disconnection of at least one pole of the battery from the serviceable region of the tool;
30 — be equipped with an unambiguous indication of the state of the disconnection device which
31 corresponds to each position of its manual control (actuator);
32 — be provided with protection against accidental reconnection.
33 NOTE 1 Examples of methods to achieve this disconnection include removable jumpers, integral batteries that
34 can be disconnected for servicing or user maintenance, or an electromechanical power switch with a direct
35 mechanical link between the actuator and the contact.
36 NOTE 2 The risk of accidental reconnection for a power switch is addressed by the requirement of 21.18.1.2. The
37 other examples in NOTE 1 achieve this by the necessary actions for reconnection.
38 A disabling device may be achie
...
