EUROPEAN STANDARD EN 60695-1-21
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2016
ICS 29.020; 13.220.40
English Version
Fire hazard testing - Part 1-21: Guidance for assessing the fire
hazard of electrotechnical products - Ignitability - Summary and
relevance of test methods
(IEC 60695-1-21:2016)
Essais relatifs aux risques du feu - Partie 1-21: Lignes Prüfungen zur Beurteilung der Brandgefahr - Teil 1-21:
directrices pour l'évaluation des risques du feu des produits Anleitung zur Beurteilung der Brandgefahr von
électrotechniques - Allumabilité - Résumé et pertinence des elektrotechnischen Erzeugnissen - Entzündbarkeit -
méthodes d'essais Zusammenfassung und Bedeutung der Prüfverfahren
(IEC 60695-1-21:2016) (IEC 60695-1-21:2016)
This European Standard was approved by CENELEC on 2016-10-12. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60695-1-21:2016 E

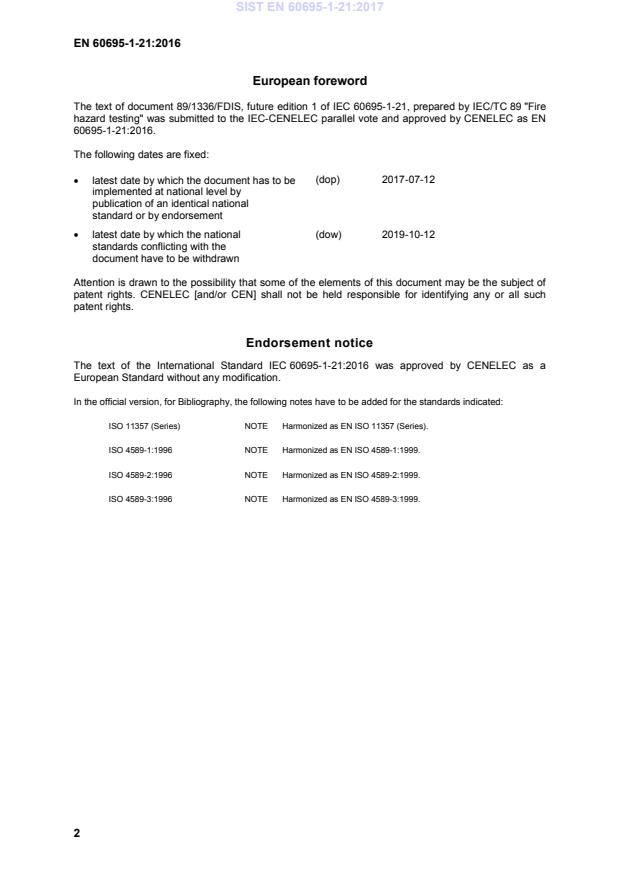

European foreword
The text of document 89/1336/FDIS, future edition 1 of IEC 60695-1-21, prepared by IEC/TC 89 "Fire
hazard testing" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN
60695-1-21:2016.
The following dates are fixed:
(dop) 2017-07-12
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2019-10-12
standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 60695-1-21:2016 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
ISO 11357 (Series) NOTE Harmonized as EN ISO 11357 (Series).
ISO 4589-1:1996 NOTE Harmonized as EN ISO 4589-1:1999.
ISO 4589-2:1996 NOTE Harmonized as EN ISO 4589-2:1999.
ISO 4589-3:1996 NOTE Harmonized as EN ISO 4589-3:1999.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60695-1-20 - Fire hazard testing - Part 1-20: Guidance EN 60695-1-20 -
for assessing the fire hazard of
electrotechnical products - Ignitability -
General guidance
IEC 60695-1-30 - Fire hazard testing -- Part 1-30: Guidance EN 60695-1-30 -
for assessing the fire hazard of
electrotechnical products - Preselection
testing process - General guidelines
IEC 60695-4 2012 Fire hazard testing -- Part 4: Terminology EN 60695-4 2012
concerning fire tests for electrotechnical
products
IEC Guide 104 - The preparation of safety publications and - -
the use of basic safety publications and
group safety publications
ISO 13943 2008 Fire safety - Vocabulary EN ISO 13943 2010
ISO/IEC Guide 51 - Safety aspects - Guidelines for their - -
inclusion in standards
IEC 60695-1-21 ®
Edition 1.0 2016-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
BASIC SAFETY PUBLICATION
PUBLICATION FONDAMENTALE DE SÉCURITÉ
Fire hazard testing –
Part 1-21: Guidance for assessing the fire hazard of electrotechnical products –
Ignitability – Summary and relevance of test methods
Essais relatifs aux risques du feu –
Partie 1-21: Lignes directrices pour l’évaluation des risques du feu des produits
électrotechniques – Allumabilité – Résumé et pertinence des méthodes d'essais
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.220.40, 29.020 ISBN 978-2-8322-3617-8
– 2 – IEC 60695-1-21:2016 IEC 2016
CONTENTS
FOREWORD .3
INTRODUCTION .5
1 Scope .7
2 Normative references .7
3 Terms and definitions .8
4 Summary of published test methods . 12
4.1 General . 12
4.2 Tests using heated air or electrical heating . 12
4.2.1 Determination of ignition temperature using a hot-air furnace, ISO 871 . 12
4.2.2 Differential scanning calorimetry (DSC), ISO 11357 [1] . 13
4.3 Tests using radiant heat . 14
4.3.1 Heat release rate – Cone calorimeter method, ISO 5660-1 [4] . 14
4.3.2 Heat release of insulating liquids, IEC TS 60695-8-3 [5] . 15
4.3.3 Standard test method for determining material ignition and flame
spread properties, ASTM E 1321 [6] . 16
4.3.4 Determination of the characteristic heat flux for ignition from a non-
contacting flame source, IEC TS 60695-11-11 [7] . 17
4.4 Oxygen index tests . 17
4.4.1 Oxygen index – Ambient temperature test, ISO 4589-2 [8] . 17
4.4.2 Oxygen index – Elevated temperature test, ISO 4589-3 [10] . 18
4.5 Glowing/hot-wire based test methods . 20
4.5.1 Glow wire tests, IEC 60695-2-11 [14], IEC 60695-2-12 [15] and
IEC 60695-2-13 [16] . 20
4.5.2 Hot wire coil ignitability test, IEC 60695-2-20 and ASTM D 3874 [17] . 22
4.6 Flame tests . 23
4.6.1 Needle flame test, IEC 60695-11-5 [18] . 23
4.6.2 50 W Horizontal and vertical flame test methods, IEC 60695-11-10 [19]
500 W flame test methods, IEC 60695-11-20 [20] . 24
4.6.3 1 kW nominal pre-mixed flame, IEC 60695-11-2 [23] . 25
4.6.4 Vertical and 60° tests for aircraft components, FAR 25 [25] . 25
4.7 Tests using an electrical arc . 26
4.7.1 Tracking index tests, IEC 60112 [26], ASTM D 3638 [27] . 26
4.7.2 High-Current Arc Ignition (HAI), UL 746A – Sec. 32 [30] . 28
4.7.3 High-voltage arc resistance to ignition (HVAR), UL 746A – Sec. 33 [31] . 28
Annex A (informative) Applicability of test methods . 30
A.1 Applicability of test methods . 30
Bibliography . 32
Table 1 – Main differences between IEC 60112 and ASTM D 3638 . 27
Table A.1 – Applicability of test methods (1 of 2) . 30
