EN IEC 60917-1:2019
(Main)Modular order for the development of mechanical structures for electrical and electronic equipment practices - Part 1: Generic standard
Modular order for the development of mechanical structures for electrical and electronic equipment practices - Part 1: Generic standard
IEC 60917-1:2019 is available as IEC 60917-1:2019 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 60917-1:2019 specifies the relationships between equipment practices and the modular order which are applicable to the main structural dimensions of electronic and electrical equipment mounted in various installations where dimensional interfaces have to be considered for mechanical compatibility. This document also established terms for parts and assemblies of mechanical structures for electrical and electronic equipment, to clarify the specific relations between equipment practices and modular order. This second edition cancels and replaces the first edition published in 1998 and its Amendment 1:2000. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) added information on newly developed detail specification standards of mechanical structures for the electrical and electronic equipment practices; b) added information on newly developed performance test standards for the verifications of environmental performances and safety aspects and issues of the thermal performance and thermal management for the electrical and electronic equipment practices; c) introduced the relations between the mechanical structure for electrical and electronic system, the verification of environmental performance and safety aspects and issues of the thermal performance and thermal management for the electrical and electronic equipment practices. Key words: IT Cabinets, Mechanical Structures
Modulordnung für die Entwicklung von Bauweisen für elektrische und elektronische Einrichtungen - Teil 1: Fachgrundnorm
Ordre modulaire pour le développement des structures mécaniques pour les infrastructures électriques et électroniques - Partie 1: Norme générique
IEC 60917-1:2019 est disponible sous forme de IEC 60917-1:2019 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.L'IEC 60917-1:2019 spécifie les relations entre les infrastructures et l’ordre modulaire qui sont applicables aux dimensions structurelles principales de l’équipement électronique et électrique monté au sein de diverses installations où des interfaces dimensionnelles doivent être considérées pour une compatibilité mécanique. Le présent document établit également les termes pour les composants et les ensembles des structures mécaniques pour l’équipement électrique et électronique, afin de clarifier les relations spécifiques entre les infrastructures et l’ordre modulaire. Cette deuxième édition annule et remplace la première édition publiée en 1998, ainsi que son Amendement 1:2000. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) informations ajoutées sur les nouvelles normes de spécification particulière de structures mécaniques pour les infrastructures électroniques et électriques; b) informations ajoutées sur les nouvelles normes d’essai de performances destinées à la vérification des performances environnementales, les aspects de la sécurité et le sujet des performances thermiques et de la gestion thermique pour les infrastructures électroniques et électriques; c) introduction des relations entre la structure mécanique pour les systèmes électriques et électroniques, la vérification des performances environnementales, les aspects de la sécurité et le sujet des performances thermiques et de la gestion thermique pour les infrastructures électroniques et électriques. Mots-clés: Baies, Structures mécaniques
Razpored modulov za razvoj mehanske zgradbe elektronske opreme - 1. del: Osnovni standard (IEC 60917-1:2019)
Ta standard opredeljuje razmerja med postopki opreme in razporedom modulov, ki veljajo za glavne strukturne dimenzije elektronike in elektronske opreme, nameščene v različnih napravah, pri katerih je treba za mehansko združljivost upoštevati dimenzijske vmesnike. Ta dokument opredeljuje tudi izraze za dele in sklope mehanskih struktur za elektroniko ter elektronsko opremo za pojasnitev posebnih razmerij med opremo in razporedom modulov.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2020
Nadomešča:
SIST EN 60917-1:2002
SIST EN 60917-1:2002/A1:2002
Razpored modulov za razvoj mehanske zgradbe elektronske opreme - 1. del:
Osnovni standard (IEC 60917-1:2019)
Modular order for the development of mechanical structures for electronic equipment
practices - Part 1: Generic standard (IEC 60917-1:2019)
Modulordnung für die Entwicklung von Bauweisen für elektronische Einrichtungen - Teil
1: Fachgrundnorm (IEC 60917-1:2019)
Ordre modulaire pour le développement des structures mécaniques pour les
infrastructures électroniques - Partie 1: Norme générique (IEC 60917-1:2019)
Ta slovenski standard je istoveten z: EN IEC 60917-1:2019
ICS:
31.240 Mehanske konstrukcije za Mechanical structures for
elektronsko opremo electronic equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 60917-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2019
ICS 31.240 Supersedes EN 60917-1:1998 and all of its amendments
and corrigenda (if any)
English Version
Modular order for the development of mechanical structures for
electrical and electronic equipment practices - Part 1: Generic
standard
(IEC 60917-1:2019)
Ordre modulaire pour le développement des structures Modulordnung für die Entwicklung von Bauweisen für
mécaniques pour les infrastructures électriques et elektrische und elektronische Einrichtungen - Teil 1:
électroniques - Partie 1: Norme générique Fachgrundnorm
(IEC 60917-1:2019) (IEC 60917-1:2019)
This European Standard was approved by CENELEC on 2019-10-18. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60917-1:2019 E

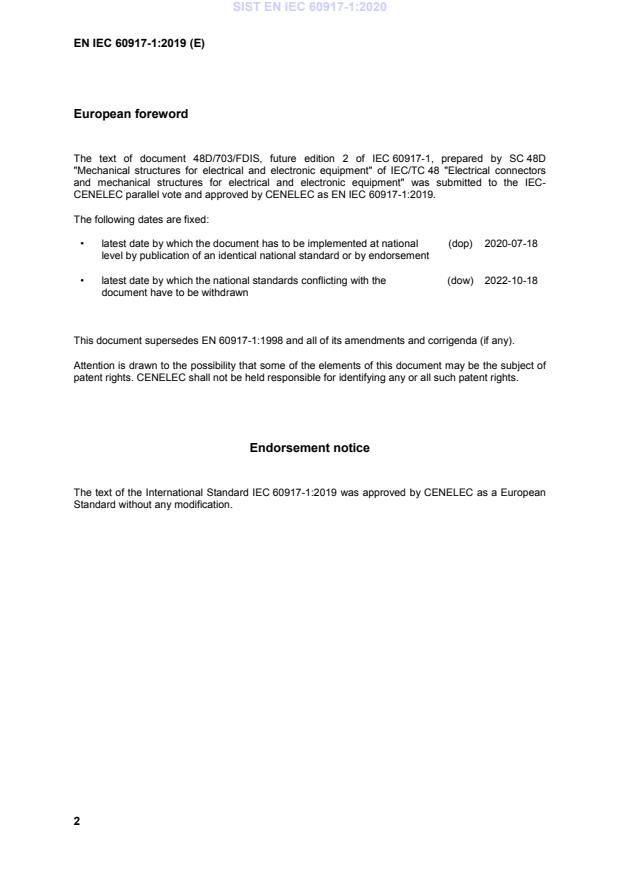

European foreword
The text of document 48D/703/FDIS, future edition 2 of IEC 60917-1, prepared by SC 48D
"Mechanical structures for electrical and electronic equipment" of IEC/TC 48 "Electrical connectors
and mechanical structures for electrical and electronic equipment" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN IEC 60917-1:2019.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2020-07-18
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2022-10-18
document have to be withdrawn
This document supersedes EN 60917-1:1998 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Endorsement notice
The text of the International Standard IEC 60917-1:2019 was approved by CENELEC as a European
Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-581 - International Electrotechnical Vocabulary - - -
Part 581: Electromechanical components
for electronic equipment
IEC 60297 series Dimensions of mechanical structures of the - -
482,6 mm (19 in) series
IEC 60297-3-100 - Mechanical structures for electronic EN 60297-3-100 -
equipment - Dimensions of mechanical
structures of the 482,6 mm (19 in) series -
Part 3-100: Basic dimensions of front
panels, subracks, chassis, racks and
cabinets
IEC 60297-3-101 - Mechanical structures for electronic EN 60297-3-101 -
equipment - Dimensions of mechanical
structures of the 482,6 mm (19 in) series -
Part 3-101: Subracks and associated plug-
in units
IEC 60297-3-102 - Mechanical structures for electronic EN 60297-3-102 -
equipment - Dimensions of mechanical
structures of the 482,6 mm (19 in) series -
Part 3-102: Injector/extractor handle
IEC 60297-3-103 - Mechanical structures for electronic EN 60297-3-103 -
equipment - Dimensions of mechanical
structures of the 482,6 mm (19 in) series -
Part 3-103: Keying and alignment pin
IEC 60297-3-104 - Mechanical structures for electronic EN 60297-3-104 -
equipment - Dimensions of mechanical
structures of the 482,6 mm (19 in) series -
Part 3-104: Connector dependent
interface dimensions of subracks and plug-
in units
Publication Year Title EN/HD Year
IEC 60297-3-105 - Mechanical structures for electronic EN 60297-3-105 -
equipment - Dimensions of mechanical
structures of the 482,6 mm (19 in) series -
Part 3-105: Dimensions and design
aspects for 1U high chassis
IEC 60297-3-106 - Mechanical structures for electronic EN 60297-3-106 -
equipment - Dimensions of mechanical
structures of the 482,6 mm (19 in) series -
Part 3-106: Adaptation dimensions for
subracks and chassis applicable with
metric cabinets or racks in accordance with
IEC 60917-2-1
IEC 60297-3-107 - Mechanical structures for electronic EN 60297-3-107 -
equipment - Dimensions of mechanical
structures of the 482,6 mm (19 in) series -
Part 3-107: Dimensions of subracks and
plug-in units, small form factor
IEC 60297-3-108 - Mechanical structures for electronic EN 60297-3-108 -
equipment - Dimensions of mechanical
structures of the 482,6 mm (19 in) series -
Part 3-108: Dimensions of R-type subracks
and plug-in units
IEC 60297-3-109 - Mechanical structures for electrical and EN 60297-3-109 -
electronic equipment – Dimensions of
mechanical structures of the 482,6 mm (19
in) series – Part 3-109: Dimensions of
chassis for embedded computing devices
IEC 60297-3-110 - Mechanical structures for electrical and EN IEC 60297-3-110 -
electronic equipment - Dimensions of
mechanical structures of the 482,6 mm (19
in) series - Part 3-110: Residential racks
and cabinets for smart houses
IEC/TR 60668 - Dimensions of panel areas and cut-outs for - -
panel and rack-mounted industrial-process
measurement and control instruments
IEC 60917-2 - Modular order for the development of EN 60917-2 -
mechanical structures for electronic
equipment practices - Part 2: Sectional
specification - Interface co-ordination
dimensions for the 25 mm equipment
practice
IEC 60917-2-1 - Modular order for the development of EN 60917-2-1 -
mechanical structures for electronic
equipment practices - Part 2: Sectional
specification - Interface co-ordination
dimensions for the 25 mm equipment
practice - Section 1: Detail specification -
Dimensions for cabinets and racks
Publication Year Title EN/HD Year
IEC 60917-2-2 - Modular order for the development of EN 60917-2-2 -
mechanical structures for electronic
equipment practices - Part 2: Sectional
specification - Interface co-ordination
dimensions for the 25 mm equipment
practice - Section 2: Detail specification -
Dimensions for subracks, chassis,
backplanes, front panels and plug-in units
IEC 60917-2-3 - Modular order for the development of EN 60917-2-3 -
mechanical structures for electronic
equipment practices - Part 2-3: Sectional
specification - Interface co-ordination
dimensions for the 25 mm equipment
practice - Extended detail specification -
Dimensions for subracks, chassis,
backplanes, front panels and plug-in units
IEC 60917-2-4 - Modular order for the development of EN 60917-2-4 -
mechanical structures for electronic
equipment practices - Part 2-4: Sectional
specification - Interface co-ordination
dimensions for the 25 mm equipment
practice - Adaptation dimensions for
subracks or chassis applicable in cabinets
or racks in accordance with IEC 60297-3-
100 (19 in)
IEC 60917-2-5 - Modular order for the development of EN 60917-2-5 -
mechanical structures for electronic
equipment practices - Part 2-5: Sectional
specification - Interface co-ordination
dimensions for the 25 mm equipment
practice - Cabinet interface dimensions for
miscellaneous equipment
IEC 61554 - Panel mounted equipment - Electrical - -
measuring instruments - Dimensions for
panel mounting
IEC 61587 series Mechanical structures for electronic EN 61587 series
equipment - Tests for IEC 60917 and IEC
60297 series
IEC 61969-1 - Mechanical structures for electronic EN 61969-1 -
equipment - Outdoor enclosures - Part 1:
Design guidelines
IEC 61969-2 - Mechanical structures for electronic EN 61969-2 -
equipment - Outdoor enclosures - Part 2:
Coordination dimensions
IEC 61969-3 - Mechanical structures for electronic EN 61969-3 -
equipment - Outdoor enclosures - Part 3:
Environmental requirements, tests and
safety aspects
IEC 62194 - Method of evaluating the thermal EN 62194 -
performance of enclosures
Publication Year Title EN/HD Year
IEC/TS 62454 - Mechanical structures for electronic - -
equipment - Design guide: Interface
dimensions and provisions for water
cooling of electronic equipment within
cabinets of the IEC 60297 and IEC 60917
series
IEC 62610 series Mechanical structures for electrical and EN 62610 series
electronic equipment – Thermal
management for cabinets in accordance
with IEC 60297 and IEC 60917 series
IEC Guide 103 1980 Guide on dimensional co-ordination - -
ISO 1006 - Building construction; Modular - -
coordination; Basic module
ISO 1040 - Building construction - Modular - -
coordination - Multimodules for horizontal
coordinating dimensions
ISO 1791 - Building construction - Modular co- - -
ordination - Vocabulary
ISO 2848 - Building construction - Modular - -
coordination - Principles and rules
ISO 3394 - Dimensions of rigid rectangular packages; - -
Transport packages
ISO 3676 - - -
ISO 6514 - Building construction - Modular - -
coordination - Sub-modular increments
ISO 80000-1 2009 Quantities and units -- Part 1: General EN ISO 80000-1 2013
ISO 80000-3 2006 Quantities and units -- Part 3: Space and EN ISO 80000-3 2013
time
IEC 60917-1 ®
Edition 2.0 2019-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Modular order for the development of mechanical structures for electrical and
electronic equipment practices –
Part 1: Generic standard
Ordre modulaire pour le développement des structures mécaniques pour les
infrastructures électriques et électroniques –
Partie 1: Norme générique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.240 ISBN 978-2-8322-7164-3
– 2 – IEC 60917-1:2019 © IEC 2019
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 9
4 Fundamentals and background information . 19
4.1 General . 19
4.2 Structures of electrical and electronic equipment practices . 20
4.3 Dimensional co-ordination with adjacent technical fields .
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
