EN 60317-0-7:2017

SLOVENSKI STANDARD
01-januar-2018
1DGRPHãþD
SIST EN 60317-0-7:2012
Specifikacije za posebne vrste navijalnih žic - 0-7. del: Splošne zahteve -
Popolnoma izolirana in brezhibno lakirana okrogla bakrena žica (IEC 60317-0-
7:2017)
Specifications for particular types of winding wires - Part 0-7: General requirements -
Fully insulated (FIW) zero-defect enamelled round copper wire (IEC 60317-0-7:2017)
Ta slovenski standard je istoveten z: EN 60317-0-7:2017
ICS:
29.060.10 Žice Wires
77.150.30 Bakreni izdelki Copper products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 60317-0-7

NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2017
ICS 29.060.10 Supersedes EN 60317-0-7:2012
English Version
Specifications for particular types of winding wires -
Part 0-7: General requirements - Fully insulated (FIW) zero-
defect enamelled round copper wire
(IEC 60317-0-7:2017)
Spécifications pour types particuliers de fils de bobinage - Technische Lieferbedingungen für bestimmte Typen von
Partie 0-7: Exigences générales - Fil de section circulaire, Wickeldrähten - Teil 0-7: Allgemeine Anforderungen -
isolé en continu (FIW), en cuivre émaillé, sans défaut Isolationsfehlerfreie Runddrähte (FIW) aus Kupfer,
d'isolation électrique lackisoliert
(IEC 60317-0-7:2017) (IEC 60317-0-7:2017)
This European Standard was approved by CENELEC on 2017-09-20. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60317-0-7:2017 E

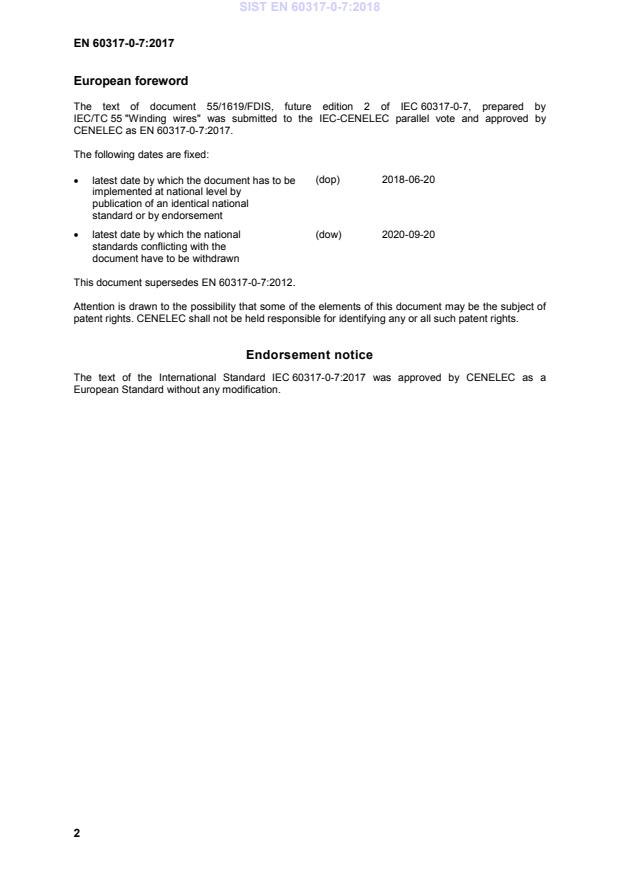

European foreword
The text of document 55/1619/FDIS, future edition 2 of IEC 60317-0-7, prepared by
IEC/TC 55 "Winding wires" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN 60317-0-7:2017.
The following dates are fixed:
(dop) 2018-06-20
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2020-09-20
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60317-0-7:2012.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice
The text of the International Standard IEC 60317-0-7:2017 was approved by CENELEC as a
European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year

IEC 60172 -  Test procedure for the determination EN 60172 -
of the temperature index of enamelled
and tape wrapped winding wires
IEC 60317-0-1 2013 Specifications for particular types EN 60317-0-1 2014
of winding wires -
Part 0-1: General requirements -
Enamelled round copper wire
IEC 60851 Series Winding wires - Test methods EN 60851 Series
IEC 60851-5 2008 Winding wires - Test methods - EN 60851-5 2008
Part 5: Electrical properties
+A1 2011  +A1 2011
ISO 3 -  Preferred numbers - Series of preferred - -
numbers
IEC 60317-0-7 ®
Edition 2.0 2017-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –

Part 0-7: General requirements – Fully insulated (FIW) zero-defect enamelled round

copper wire
Spécifications pour types particuliers de fils de bobinage –

Partie 0-7: Exigences générales – Fil de section circulaire, isolé en continu (FIW),

en cuivre émaillé, sans défaut d'isolation électrique

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.10 ISBN 978-2-8322-4722-8

– 2 – IEC 60317-0-7:2017 © IEC 2017
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, general notes and appearance . 7
3.1 Terms and definitions . 7
3.2 General notes . 9
3.2.1 Methods of test . 9
3.2.2 Winding wire . 9
3.3 Appearance . 9
4 Dimensions. 9
4.1 Conductor diameter . 9
4.2 Out of roundness of conductor (for nominal diameters over 0,090 mm up to
0,900 mm) . 10
4.3 Minimum overall diameter . 10
4.4 Maximum overall diameter . 10
5 Electrical resistance . 11
6 Elongation . 11
7 Springiness . 11
8 Flexibility and adherence . 12
8.1 Mandrel winding test (for nominal conductor diameters over 0,090 mm up to
0,900 mm) . 12
8.2 Jerk test (for nominal diameters up to 0,900 mm) . 13
9 Heat shock . 13
10 Cut through . 14
11 Resistance to abrasion . 14
12 Resistance to solvents . 14
13 Breakdown voltage . 14
14 Continuity of insulation (nominal conductor diameters over 0,090 mm up to
0,900 mm) . 15
14.1 Off-line high voltage continuity . 15
14.2 In-line high voltage continuity . 15
15 Temperature index . 15
16 Resistance to refrigerants . 15
17 Solderability . 15
18 Heat or solvent bonding . 15
19 Dielectric dissipation factor . 16
20 Resistance to transformer oil . 16
21 Loss of mass . 16
23 Pin-hole test . 16
30 Packaging . 16
Annex A (normative) Supplemental requirements for FIW . 17
A.1 Dimensions . 17
A.2 Electrical resistance . 18

IEC 60317-0-7:2017 © IEC 2017 – 3 –
A.3 Elongation . 19
A.4 Springiness . 20
A.5 Mandrel winding test . 21
A.6 Heat shock . 22
A.7 Breakdown voltage . 24

Table 1 – Dimensions of enamelled wires (R 20). 10
Table 2 – Elongation at break . 11
Table 3 – Springiness . 12
Table 4 – Mandrel diameters for mandrel winding test . 13
Table 5 – Heat shock . 14
Table 6 – Breakdown voltage . 15
Table A.1 – Dimensions of enamelled wires for grades FIW 3, 5, 7 and 9 . 17
Table A.2 – Dimensions of enamelled wires up to and including 0,090 mm and over
0,900 mm (R 20) for grades FIW 4, 6 and 8 . 18
Table A.3 – Electrical resistance . 19
Table A.4 – Elongation at break . 19
Table A.5 – Springiness for grades FIW 3, 5, 7 and 9 . 20
Table A.6 – Springiness for grades FIW 4, 6 and 8 . 21
Table A.7 – Mandrel diameters for mandrel winding test for grade FIW 3, 5, 7 and 9 . 21
Table A.8 – Mandrel diameters for mandrel winding test for grade FIW 4, 6 and 8,
nominal conductor diameters up to and including 0,090 m
...
