EUROPEAN STANDARD
EN 771-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2003
ICS 91.100.30
English version
Specification for masonry units - Part 3: Aggregate concrete
masonry units (Dense and light-weight aggregates)
Spécifications pour éléments de maçonnerie - Partie 3: Festlegungen für Mauersteine - Teil 3: Mauersteine aus
Blocs en béton de granulats (granulats courants et légers) Beton (mit dichten und porigen Zuschlägen)
This European Standard was approved by CEN on 9 April 2003.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2003 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 771-3:2003 E
worldwide for CEN national Members.

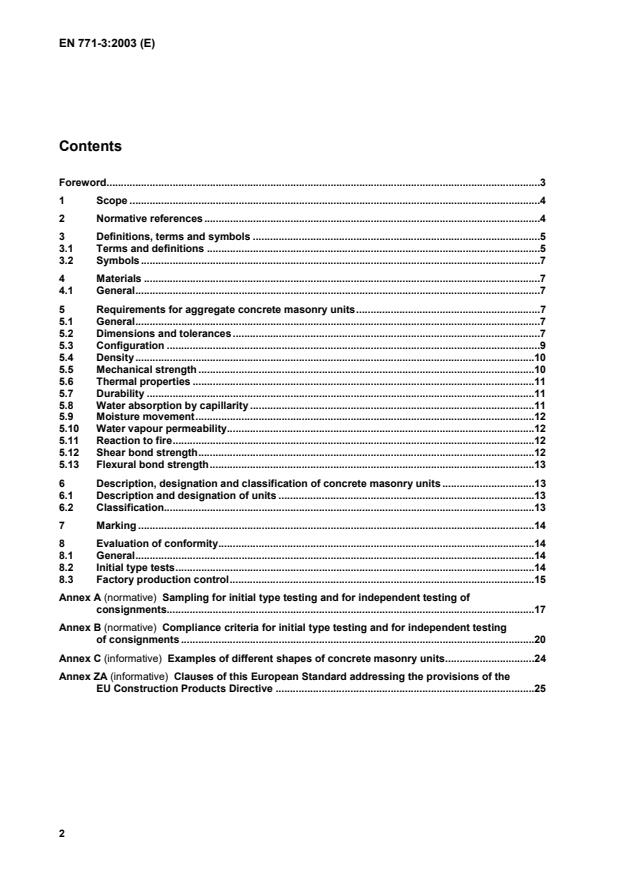

Contents
Foreword.3
1 Scope .4
2 Normative references .4
3 Definitions, terms and symbols .5
3.1 Terms and definitions .5
3.2 Symbols.7
4 Materials .7
4.1 General.7
5 Requirements for aggregate concrete masonry units.7
5.1 General.7
5.2 Dimensions and tolerances.7
5.3 Configuration .9
5.4 Density.10
5.5 Mechanical strength .10
5.6 Thermal properties .11
5.7 Durability .11
5.8 Water absorption by capillarity .11
5.9 Moisture movement.12
5.10 Water vapour permeability.12
5.11 Reaction to fire.12
5.12 Shear bond strength.12
5.13 Flexural bond strength.13
6 Description, designation and classification of concrete masonry units .13
6.1 Description and designation of units .13
6.2 Classification.13
7 Marking .14
8 Evaluation of conformity.14
8.1 General.14
8.2 Initial type tests.14
8.3 Factory production control.15
Annex A (normative) Sampling for initial type testing and for independent testing of
consignments.17
Annex B (normative) Compliance criteria for initial type testing and for independent testing
of consignments .20
Annex C (informative) Examples of different shapes of concrete masonry units.24
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the
EU Construction Products Directive .25
Foreword
This document (EN 771-3:2003) has been prepared by Technical Committee CEN/TC 125 ’Masonry’, the
Secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by January 2004, and conflicting national standards shall
be withdrawn at the latest by April 2005.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association and supports the essential requirements of the EU Construction
Products Directive (89/106/EEC).
For relationship with EU Directives, see informative Annex ZA which is an integral part of this document.
It also takes into account the general rules for reinforced and unreinforced masonry in Eurocode 6.
The Annexes A and B of this European Standard are normative, Annex C is informative.
EN 771 Specification for masonry units consists of:
Part 1: Clay masonry units.
Part 2: Calcium silicate masonry units.
Part 3: Aggregates concrete masonry units (Dense and light-weight aggregates).
Part 4: Autoclaved aerated concrete masonry units.
Part 5: Manufactured stone masonry units.
Part 6: Natural stone masonry units.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta,
Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and the United Kingdom.
1 Scope
This European Standard specifies the characteristics and performance requirements of aggregate
concrete masonry units made from dense and lightweight aggregates or a combination of both for which
the main intended uses are common, facing or exposed masonry in load bearing or non load bearing
building and civil engineering applications. The units are suitable for all forms of walling, including single
leaf, external leaf to chimneys, cavity wall, partitions, retaining, and basement. They can provide fire
protection, thermal insulation, sound insulation and sound absorption.
This European Standard includes concrete masonry units of an overall non rectangular parallelepiped
shape, especially shaped and accessory units.
It defines the performance related to e.g. strength, density, dimensional accuracy, and provides for the
evaluation of conformity of the product to this European Standard. The marking requirements for products
covered by this European Standard is also included.
This European Standard does not specify standard sizes for aggregate concrete masonry units, nor
standard work dimensions and angles of specially shaped aggregate concrete masonry units. It does not
cover storey height panels, chimney flue linings nor units intended for use as a damp proof course. It
does not cover units with an incorporated thermal insulation material bonded to the faces of the unit
susceptible to be exposed to fire.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other publications.
These normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this European Standard only when incorporated in it by amendment or revision. For undated
references the latest edition of the publication referred to applies (including amendments).
EN 772-1:2000, Methods of test for masonry units — Part 1: Determination of compressive strength
EN 772-2, Methods of test for masonry units — Part 2: Determination of percentage area of voids in
aggregate concrete masonry units (by paper indentation)
EN 772-6, Methods of test for masonry units — Part 6: Determination of bending tensile strength of
aggregate concrete masonry units
EN 772-11, Methods of test for masonry units — Part 11: Determination of water absorption of aggregate
concrete, manufactured stone and natural stone masonry units due to capillary action in the initial rate of
water absorption of clay masonry units
EN 772-13, Methods of test for masonry units — Part 13: Determination of net and gross dry density of
masonry units (except for natural stone)
EN 772-14, Methods of test for masonry units — Part 14: Determination of moisture movement of
aggregate concrete and manufactured stone masonry units
EN 772-16: 2000, Methods of test for masonry units — Part 16: Determination of dimensions
EN 772-20, Methods of test for masonry units — Part 20: Determination of flatness of faces of aggregate
concrete, manufactured stone and natural stone masonry units
EN 998-2:2001, Specification for mortar for masonry — Part 2 : Masonry mortar
EN 1052-3, Methods of test for masonry — Part 3 : Determination of initial shear strength
EN 1745, Masonry and masonry products — Methods for determining declared and design thermal
values
EN 13501-1, Fire classification of construction products and building elements —
Part 1: Classification using test data from reaction to fire tests
EN ISO 12572, Hygrothermal performance of building materials and products - Determination of water
vapour transmission properties (ISO 12572:2001)
3 Definitions, terms and symbols
3.1 Terms and definitions
For the purposes of this European Standard the following terms and definitions apply.
3.1.1
masonry unit
preformed component intended for use in masonry construction
3.1.2
common masonry unit
masonry unit normally intended for use with no faces left visible
3.1.3
facing masonry unit
masonry unit intended for use with one or more faces left visible and which may or may not be exposed
to external climatic conditions
3.1.4
exposed masonry unit
facing masonry unit exposed to external climatic conditions without render or other equivalent protection
3.1.5
aggregate concrete masonry unit
masonry unit manufactured from, cementitious binder, aggregates and water and which may contain
admixtures and additions and colouring pigments and other materials incorporated or applied during or
subsequent to unit manufacture
3.1.6
co-ordinating size
size of a co-ordinating space allocated to a masonry unit including allowances for joints
3.1.7
work size
size of a unit specified for its manufacture, to which the actual size conforms within permissible deviations
3.1.8
actual size
size of a unit as measured
3.1.9
regular shaped masonry unit
masonry unit with an overall rectangular parallelepiped shape
NOTE Examples of different shapes of concrete masonry units are shown in Annex C.
3.1.10
specially shaped masonry unit
masonry unit which is not a rectangular parallelepiped
3.1.11
accessory unit
unit which is shaped to provide a particular function, e.g. to complete the geometry of the masonry
3.1.12
interlocking features
shaped matched projections and indentations on masonry units, e.g. tongue and groove systems
3.1.13
hole
formed void which ma
...
