CEN

EN 509:1999

(Main)

Decorative fuel-effect gas appliances

Decorative fuel-effect gas appliances

This European Standard specifies the requirements and test methods for the construction, safety, and marking of decorative fuel effect gas appliances not exceeding a nominal heat input of 20 kW, (based on the net calorific value), thereafter referred to as appliances.  This standard is applicable to appliances that are designed to simulate a solid fuel fire and incorporate a natural draught burner with or without an ignition burner. The appliances are for decorative purposes only and are not heating appliances.

Dekorative Gasgeräte mit Brennstoffeffekt

Diese Europäische Norm legt die Anforderungen und die neuen Prüfbestimmungen für Konstruktion, Sicherheit, und Kennzeichnung von dekorativen Gasgeräten mit Brennstoffeffekt mit einer Nennwärmebelastung von höchstens 20 kW, (bezogen auf den Heizwert), im folgenden als Gerät bezeichnet, fest.  Diese Norm gilt für dekorative Geräte mit Brennstoffeffekt, die mit Gas betrieben werden und einen atmosphärischen Brenner mit oder ohne Zündbrenner besitzen. Diese Geräte erfüllen nur eine dekorative Funktion und gelten nicht als Heizgeräte.

Appareils à effet décoratif de combustion utilisant les combustibles gazeux

La présente norme européenne spécifie les exigences et les méthodes d'essais pour la construction, la sécurité et le marquage des appareils à effet décoratif de combustion utilisant les combustibles gazeux de débit calorifique ne dépassant pas 20kW (sur le pouvoir calorifique inférieur), appelés ci-après appareils.  La présente norme européenne s'applique aux appareils conçus pour simuler un feu de combustible solide, équipé d'un brûleur atmosphérique avec ou sans brûleur d'allumage. Ces appareils ont un but uniquement décoratif et ne sont pas des appareils de chauffage.

Plinski aparati z dekorativnim plamenom

General Information

Status
Withdrawn
Publication Date
16-Nov-1999
Withdrawal Date
29-Oct-2024
ICS
97.100.20 - Gas heaters
Technical Committee
CEN/TC 62 - Independent gas-fired space heaters
Drafting Committee
CEN/TC 62/WG 2 - Decorative fuel effect appliances
Current Stage
9960 - Withdrawal effective - Withdrawal
Completion Date
30-Oct-2024
Directive
2009/142/EC - DIRECTIVE 2009/142/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 30 November 2009 relating to appliances burning gaseous fuels
90/396/EEC - Appliances burning gaseous fuels
Mandate
M/BC/CEN/89/6 - Standardization request to CEN concerning appliances burning gaseous fuels
Ref Project
SIST EN 509:2001 - Decorative fuel-effect gas appliances

Relations

Replaced By
EN 509:2024 - Decorative fuel-effect gas appliances
Effective Date
18-Jan-2023
Amended By
EN 509:1999/A1:2003 - Decorative fuel-effect gas appliances
Effective Date
22-Dec-2008
Amended By
EN 509:1999/A2:2004 - Decorative fuel-effect gas appliances
Effective Date
22-Dec-2008

Buy Standard

EN 509:2001EN 509:2001
PreviousNext
Standard
EN 509:2001
English language
115 pages
sale 10% off

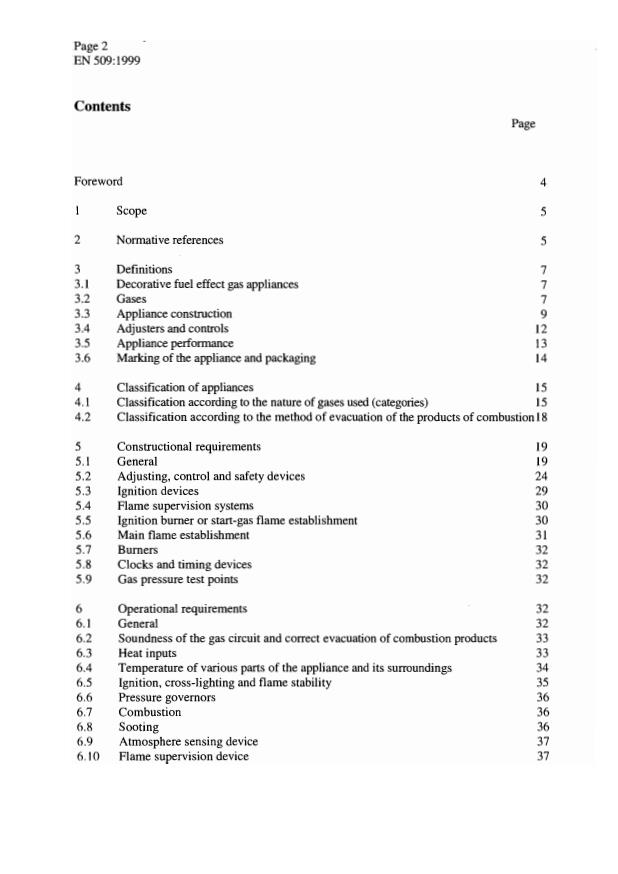

Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-februar-2001
Plinski aparati z dekorativnim plamenom
Decorative fuel-effect gas appliances
Dekorative Gasgeräte mit Brennstoffeffekt
Appareils a effet décoratif de combustion utilisant les combustibles gazeux
...
