Overview
EN 6049-007:2012 is a European Standard developed by CEN, specifically tailored for the aerospace industry. It defines the requirements and characteristics of flexible, self-wrapping protective sleeves made from meta-aramid fibres for electrical cables and cable bundles. Designed for post-installation application, these sleeves offer mechanical and electrical protection while withstanding extreme temperature ranges from -55 °C to 260 °C. This ensures durability and safety in demanding aerospace environments. The standard emphasizes integration of water-repellent features to protect against moisture ingress, enhancing the reliability of aerospace electrical installations.
Key Topics
- Material Composition: The sleeves consist of a woven blend of textured meta-aramid continuous yarn and polyetheretherketone (PEEK) monofilament, preventing fraying and providing superior thermal and mechanical properties.
- Design and Dimensions: The sleeve sizes range with specified overlap angles to fit varying cable bundle diameters from 1 mm up to 40 mm. Identification is facilitated by an ivory tracer line centered along the sleeve.
- Temperature Range: Operational capability spans from low temperatures of -55 °C up to high temperatures of 260 °C, making it ideal for aerospace applications where thermal extremes are common.
- Electrical and Mechanical Protection: The sleeve can serve as electrical insulation at 115 VAC/400 Hz, 15 A max per conductor, complying with EN 6059-502 standards. It also provides mechanical safeguards against abrasion, vibration, and impacts due to its flexible and resilient nature.
- Water Repellency: Treated with water-repellent coatings for protection against moisture, ensuring long-term performance in humid or wet aerospace conditions.
- Testing and Compliance: The standard mandates rigorous testing including tensile strength, flammability, smoke density, resistance to fluids and mould growth, voltage proof, arc resistance, abrasion, and vibration endurance. These tests align with aerospace safety requirements ensuring reliable operation under critical conditions.
Applications
EN 6049-007:2012 protective sleeves are primarily used in the aerospace sector for:
- Electrical Cable Harnesses: Post-installation wrapping of cable bundles in aircraft to protect wiring from mechanical damage, electrical arcs, and environmental factors.
- Aerospace Electrical Systems: Providing additional insulation and protection for avionics wiring and power distribution systems exposed to wide temperature fluctuations and harsh conditions.
- Retrofitting and Maintenance: Enables flexible and easy installation on existing cable assemblies to add protective layers without full disassembly.
- Moisture and Arc Protection: Enhances cable longevity and functionality by providing water resistance and electrical arc resistance in critical aerospace environments.
Related Standards
This standard is part of the broader Aerospace series for electrical cable installations and references several important documents:
- EN 6049-001: Technical specifications for meta-aramid fibre protection sleeves providing the foundational product requirements.
- EN 6059-100: Test methods for aerospace cable protection sleeves, covering mechanical, electrical, and environmental test protocols.
- EN 2825 & EN 2826: Standards on burning behaviour and smoke toxicity of non-metallic materials under radiating heat and flames.
- EN 3844-1: Flammability testing procedures for non-metallic materials using a small burner test.
- EN 9133: Aerospace quality management system for qualification of aerospace standard parts.
Benefits of EN 6049-007:2012 Compliant Sleeves
- Durable and Lightweight Protection for complex aerospace electrical systems.
- High Temperature Resistance ensures operational safety across demanding thermal environments.
- Self-Wrapping Design facilitates quick installation and maintenance with optimal fit.
- Water Repellency and Fire Performance reduce risks linked to moisture ingress and flammable conditions.
- Certified Electrical Protection supports safe electrical insulation and arc resistance for sensitive avionics cables.
Adopting EN 6049-007:2012 guarantees aerospace manufacturers and maintenance teams a compliant, high-performance cable protection solution that meets stringent safety, mechanical, and environmental standards critical to modern aviation and space systems.
Frequently Asked Questions
EN 6049-007:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical cables, installation - Protection sleeve in meta-aramid fibres - Part 007: Self-wrapping mechanical and electrical protective sleeve, flexible post installation operating temperature from - 55 °C to 260 °C - Product standard". This standard covers: This European Standard specifies the characteristics of post installation flexible self-wrapping protection sleeves for electrical cable and cable bundles made from meta-aramid fibres and provided with a water repellent protection for aerospace application.
This European Standard specifies the characteristics of post installation flexible self-wrapping protection sleeves for electrical cable and cable bundles made from meta-aramid fibres and provided with a water repellent protection for aerospace application.
EN 6049-007:2012 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 6049-007:2012 has the following relationships with other standards: It is inter standard links to prEN 6049-007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 6049-007:2012 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2012
$HURQDYWLND(OHNWULþQLNDEOLQDPHVWLWHY=DãþLWQDRERMNDL]PHWDDUDPLGQLK
YODNHQGHO 6DPRRYRMQD]DãþLWQDRERMNDIOHNVLELOQD]PRåQRVWMRSR]QHMãH
PRQWDåHREUDWRYDOQDWHPSHUDWXUDRGƒ&GRƒ&6WDQGDUG]DL]GHOHN
Aerospace series - Electrical cables, installation - Protection sleeve in meta-aramid fibres
- Part 007: Self-wrapping protective sleeve, flexible post installation operating
temperature from - 55 °C to 260 °C - Product standard
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche aus Meta-
Aramidfasern - Teil 007: Selbstverschließender Schutzschlauch, flexibel, nachträglich
montierbar, Betriebstemperatur von -55 °C bis 260 °C - Produktnorm
Série aérospatiale - Câbles électriques, installation - Gaine de protection en fibres méta-
aramides - Partie 007: Gaine de protection auto-fermable, souple après montage
température d'utilisation - 55 °C à 260 °C - Norme de produit
Ta slovenski standard je istoveten z: EN 6049-007:2012
ICS:
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 6049-007
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2012
ICS 49.060
English Version
Aerospace series - Electrical cables, installation - Protection
sleeve in meta-aramid fibres - Part 007: Self-wrapping protective
sleeve, flexible post installation operating temperature from - 55
°C to 260 °C - Product standard
Série aérospatiale - Câbles électriques, installation - Gaine
Luft- und Raumfahrt - Elektrische Leitungen, Installation -
de protection en fibres méta-aramides - Partie 007: Gaine Schutzschläuche aus Meta-Aramidfasern - Teil 007:
de protection auto-fermable, souple après montage Selbstverschließender Schutzschlauch, flexibel,
température d'utilisation - 55 °C à 260 °C - Norme de nachträglich montierbar, Betriebstemperatur von -55 °C bis
produit 260 °C - Produktnorm
This European Standard was approved by CEN on 23 December 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6049-007:2012: E
worldwide for CEN national Members.

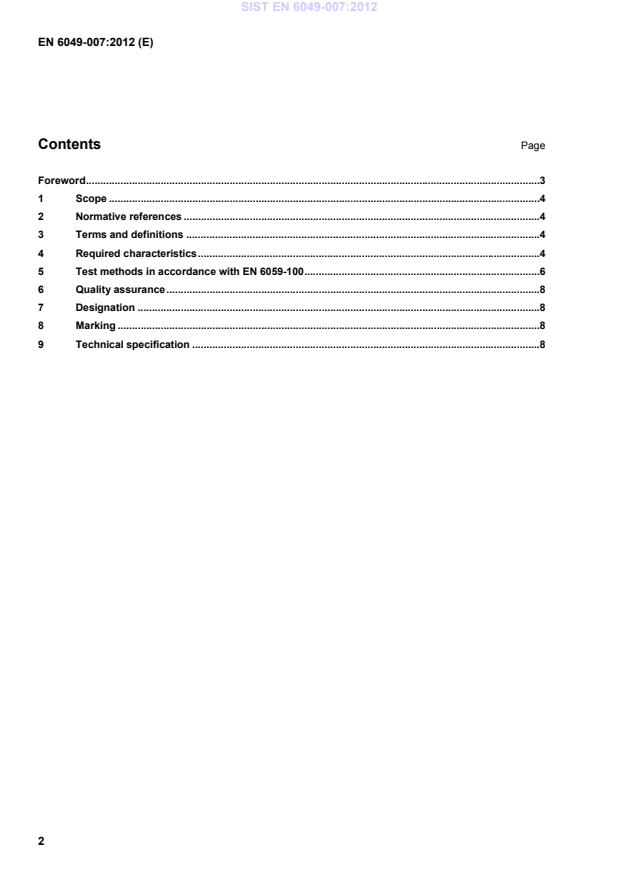

Contents Page
