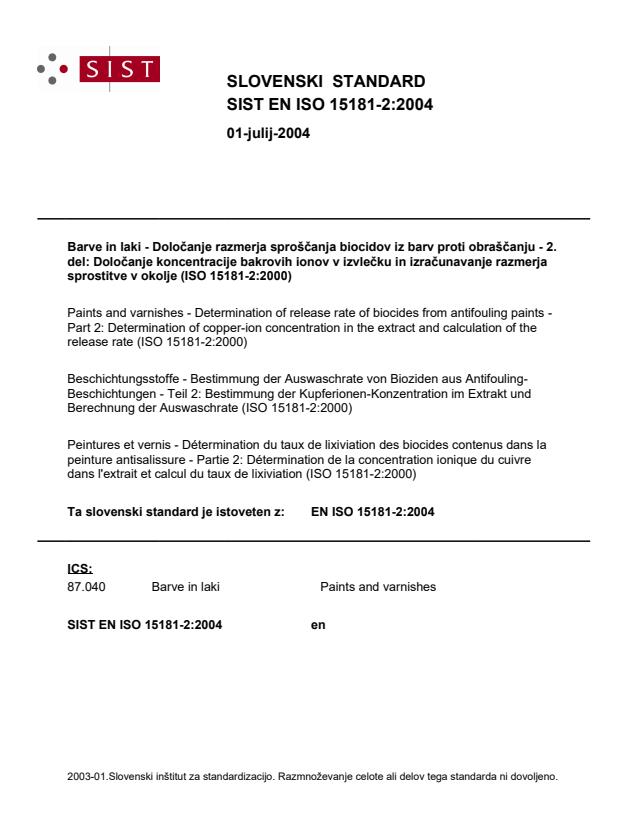

EN ISO 15181-2:2004

SLOVENSKI STANDARD
01-julij-2004
%DUYHLQODNL'RORþDQMHUD]PHUMDVSURãþDQMDELRFLGRYL]EDUYSURWLREUDãþDQMX
GHO'RORþDQMHNRQFHQWUDFLMHEDNURYLKLRQRYYL]YOHþNXLQL]UDþXQDYDQMHUD]PHUMD
VSURVWLWYHYRNROMH,62
Paints and varnishes - Determination of release rate of biocides from antifouling paints -
Part 2: Determination of copper-ion concentration in the extract and calculation of the
release rate (ISO 15181-2:2000)
Beschichtungsstoffe - Bestimmung der Auswaschrate von Bioziden aus Antifouling-
Beschichtungen - Teil 2: Bestimmung der Kupferionen-Konzentration im Extrakt und
Berechnung der Auswaschrate (ISO 15181-2:2000)
Peintures et vernis - Détermination du taux de lixiviation des biocides contenus dans la
peinture antisalissure - Partie 2: Détermination de la concentration ionique du cuivre
dans l'extrait et calcul du taux de lixiviation (ISO 15181-2:2000)
Ta slovenski standard je istoveten z: EN ISO 15181-2:2004
ICS:
87.040 Barve in laki Paints and varnishes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

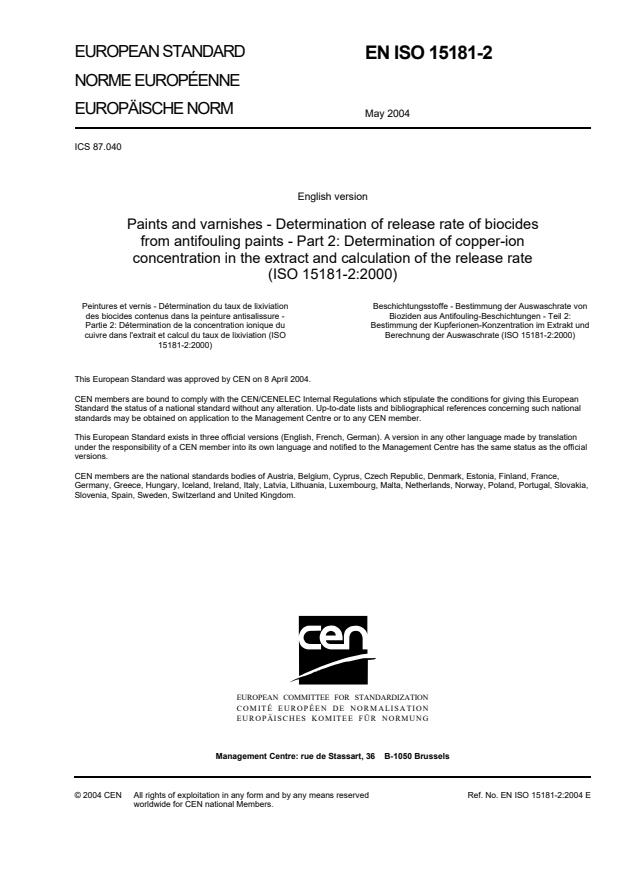

EUROPEAN STANDARD
EN ISO 15181-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2004
ICS 87.040
English version
Paints and varnishes - Determination of release rate of biocides
from antifouling paints - Part 2: Determination of copper-ion
concentration in the extract and calculation of the release rate
(ISO 15181-2:2000)
Peintures et vernis - Détermination du taux de lixiviation Beschichtungsstoffe - Bestimmung der Auswaschrate von
des biocides contenus dans la peinture antisalissure - Bioziden aus Antifouling-Beschichtungen - Teil 2:
Partie 2: Détermination de la concentration ionique du Bestimmung der Kupferionen-Konzentration im Extrakt und
cuivre dans l'extrait et calcul du taux de lixiviation (ISO Berechnung der Auswaschrate (ISO 15181-2:2000)
15181-2:2000)
This European Standard was approved by CEN on 8 April 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 15181-2:2004 E
worldwide for CEN national Members.

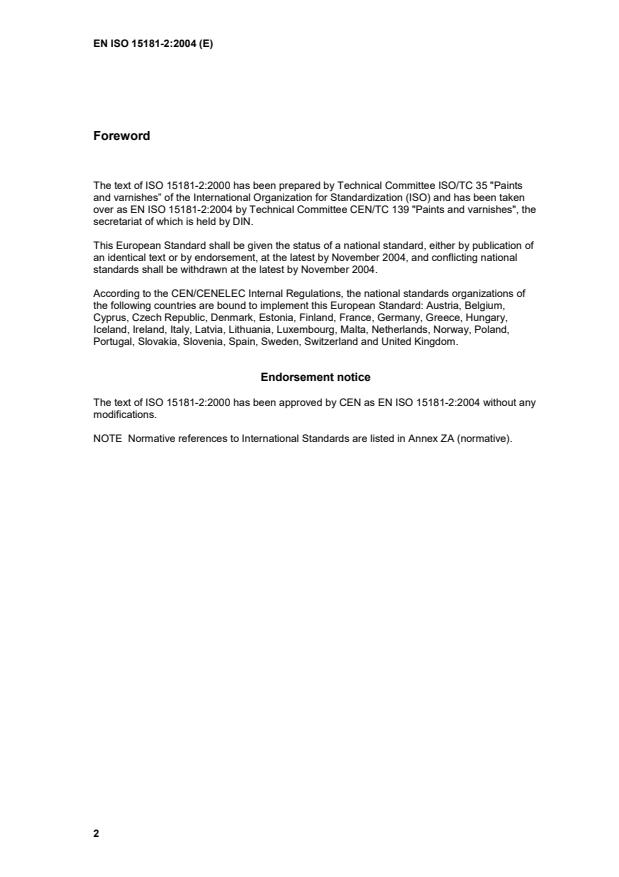

Foreword
The text of ISO 15181-2:2000 has been prepared by Technical Committee ISO/TC 35 "Paints
and varnishes” of the International Organization for Standardization (ISO) and has been taken
over as EN ISO 15181-2:2004 by Technical Committee CEN/TC 139 "Paints and varnishes", the
secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by November 2004, and conflicting national
standards shall be withdrawn at the latest by November 2004.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Endorsement notice
The text of ISO 15181-2:2000 has been approved by CEN as EN ISO 15181-2:2004 without any
modifications.
NOTE Normative references to International Standards are listed in Annex ZA (normative).
Annex ZA
(normative)
Normative references to international publications
with their relevant European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of
any of these publications apply to this European Standard only when incorporated in it by
amendment or revision. For undated references the latest edition of the publication referred to
applies (including amendments).
NOTE Where an International Publication has been modified by common modifications, indicated
by (mod.), the relevant EN/HD applies.
Publication Year Title EN Year
ISO 2811-1 1997 Paints and varnishes - EN ISO 2811-1 2001
Determination of density - Part 1:
Pyknometer method
ISO 3696 1987 Water for analytical laboratory use - EN ISO 3696 1995
Specification and test methods
INTERNATIONAL ISO
STANDARD 15181-2
First edition
2000-11-15
Paints and varnishes — Determination of
release rate of biocides from antifouling
paints —
Part 2:
Determination of copper-ion concentration
in the extract and calculation of the release
rate
Peintures et vernis — Détermination du taux de lixiviation des biocides
contenus dans la peinture antisalissure —
Partie 2: Détermination de la concentration ionique du cuivre dans l'extrait et
calcul du taux de lixiviation
Reference number
ISO 15181-2:2000(E)
ISO 15181-2:2000(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not be
edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this file,
parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, elec-
tronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's mem-
ber body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
©
ii ISO 2000 – All rights reserved

ISO 15181-2:2000(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical com-
mittees. Each member body interested in a subject for which a technical committee has been established has the
right to be represented on that committee. International organizations, governmental and non-governmental, in liai-
son with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO 15181 may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 15181-2 was prepared by Technical Committee ISO/TC 35, Paints and varnishes,Sub-
committee SC 9, General test methods for paints and varnishes.
ISO 15181 consists of the following parts, under the general title Paints and varnishes — Determination of release
rate of biocides from antifouling paints:
— Part 1: General method for extraction of biocides
— Part 2: Determination of copper-ion concentration in the extract and calculation of the release rate
Annexes A and B form a normative part of this part of ISO 15181.
©
ISO 2000 – All rights reserved iii

ISO 15181-2:2000(E)
Introduction
By using standard conditions of temperature, salinity and pH at low biocide concentrations in the surrounding artifi-
cial seawater, a repeatable value of the release rate can be determined which can be used for quality assurance,
material selection, environmental regulations or paint comparison purposes. However the actual release rate of
biocides from antifouling paints on ships hulls into the environment will depend on many factors, such as ship
operating schedules, length of service, berthing conditions, paint condition, as well as temperature, salinity, pH,
pollutants and bacterial content.
©
iv ISO 2000 – All rights reserved

INTERNATIONAL STANDARD ISO 15181-2:2000(E)
Paints and varnishes — Determination of release rate of biocides
from antifouling paints —
Part 2:
Determination of copper-ion concentration in the extract and
calculation of the release rate
1 Scope
This part of ISO 15181 is one of a series of standards dealing with the sampling and testing of paints, varnishes and
related products.
This part of ISO 15181 specifies the apparatus and analysis technique for determining copper (based) biocides in
artificial seawater which have been extracted from antifouling paints in accordance with ISO 15181-1. It determines
the copper-ion concentration and gives the final calculation for the release rate of copper. It has been proven that
small changes in certain parameters of the test method can greatly affect the leaching rate of certain biocides, there-
fore, the release rates are compared against a well-documented reference standard as a means of establishing that
test conditions are within normal operating parameters.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this part of ISO 15181. For dated references, subsequent amendments to, or revisions of, any of these publications
do not apply. However, parties to agreements based on this part of ISO 15181 are encouraged to investigate the
possibility of applying the most recent editions of the normative documents indicated below. For undated references,
the latest edition of the normative document referred to applies. Members of ISO and IEC maintain registers of cur-
rently valid International Standards.
ISO 1524, Paints, varnishes and printing inks — Determination of fineness of grind.
ISO 2811-1, Paints and varnishes — Determination of density — Part 1: Pyknometer method.
ISO 3696, Water for analytical laboratory use — Specification and test methods.
ISO 15181-1:2000, Paints and varnishes — Determination of release rate of biocides from antifouling paints —
Part 1: General method for extraction of biocides.
3 Principle
The concentration of the copper ions released into artificial seawater by the method defined in ISO 15181-1 is deter-
mined by the use of an atomic absorption spectrometer or by another agreed instrument which has been shown to
have equivalent or better precision. The release rate of the biocide is then calculated as copper metal.
4 Required supplementary information
For any particular application, the test method specified in this part of ISO 15181 needs to be completed by
supplementary information. The items of supplementary information are given in annex A.
©
ISO 2000 – All rights reserved 1

ISO 15181-2:2000(E)
5 Apparatus, equipment and reagents
5.1 Atomic absorption spectrometer, preferably with autosampler, or other agreed instrument which has been
shown to have a quantification limit for the analytical method of 10g/l or less.
5.2 Mechanical shaker, with appropriate holders.
5.3 Dispensers, automatic or repeating for reagents.
5.4 Pipettes, of appropriate volume with disposable tips.
5.5 Volumetric flasks, of appropriate volume.
5.6 Centrifuge tubes, of appropriate capacity, with screw closures, made of an inert material, or disposable tubes
have been fou
...
