EN 4017:2001
(Main)Aerospace series - Pipe coupling 8°30' in titanium alloy - Elbows 90°
Aerospace series - Pipe coupling 8°30' in titanium alloy - Elbows 90°
This standards specifies the characteristics of elbows 90°, for pipe couplings 8°30' , in titanium alloy, for aerospace applications
Nominal pressure up to 28 000 kPa
Temperature range -55°C to 135°C
Luft- und Raumfahrt - Rohrverschraubung 8°30' aus Titanlegierung - Winkelverschraubung 90°
Diese Norm legt die Eigenschaften von Winkelverschraubungen 90°, für Rohrverschraubungen 8°30', aus Titanlegierung,
zur Verwendung in der Luft- und Raumfahrt fest.
Nenndruck: bis 28 000 kPa
Temperaturbereich: 55 °C bis 135 °C
Série aérospatiale - Système de raccordement 8°30' en alliage de titane - Raccords coudés à 90°
La présente norme spécifie les caractéristiques des raccords coudés a 90°, pour les systèmes de raccordement 8°30', en alliage de titane pour applications aérospatiale.
Pression nominale jusqu'a 28 000 kPa
Plage de températures -55°C a 135°C
Aerospace series - Pipe coupling 8-30' in titanium alloy - Elbows 90o
General Information
Overview
EN 4017:2001 is a European standard developed by CEN that specifies the characteristics of 90° elbows used in aerospace pipe couplings with an 8°30' angle, manufactured from titanium alloy. This standard is part of the aerospace series standards and targets components functioning under high pressure and varied temperature conditions typical for aerospace fluid systems.
Key specifications include:
- Nominal pressure: up to 28,000 kPa
- Temperature range: -55°C to 135°C
- Material: Titanium alloy as per aerospace-grade requirements
- Applicability: Aerospace fluid systems requiring durable, high-performance pipe couplings and elbows
This standard helps ensure compatibility, safety, and reliability in critical aerospace piping assemblies.
Key Topics
Design and Dimensions
The standard defines dimensional requirements, mass limits, and configuration parameters for 90° titanium alloy elbows with 8°30' pipe couplings. Dimensions conform to detailed figures and tables, ensuring consistency across manufacturers. Pipe nominal outside diameters and threaded connections (MJ series) follow ISO 5855-3 standards for aerospace applications.Material and Surface Quality
Titanium alloy use per EN 3311, EN 3312, EN 3314, or EN 3315 ensures lightweight yet robust performance. Surface treatments include abrasive blasting with non-metallic grit, followed by lubricant coating according to EN 2491. Internal surface finish demands a radius of 0.3 to 1.0 mm and a surface roughness of 0.8 μm to optimize flow and reduce wear.Marking and Identification
Marking requirements comply with EN 2424 style A, facilitating traceability and quality control across aerospace manufacturing and maintenance processes.Technical Compliance
Elbows must meet the technical specifications outlined in EN 3275, type II, incorporating dynamic seals and thread end configurations to withstand operational stresses up to the 28,000 kPa pressure rating.
Applications
EN 4017:2001 elbows are critical components in aerospace fluid systems, where reliable pipe connections under high pressures and temperature fluctuations are essential. Applications include:
- Aircraft hydraulic and fuel systems
- Pressurized fluid transport in aerospace vehicles
- High-performance aerospace mechanical assemblies requiring corrosion-resistant and lightweight pipe fittings
The titanium alloy construction provides significant advantages in strength-to-weight ratio and corrosion resistance, ideal for aerospace environments exposed to extreme conditions.
Related Standards
EN 4017:2001 references and integrates with several complementary aerospace standards for comprehensive system consistency:
- ISO 5855-3: MJ thread limits for fluid system fittings
- EN 2424: Marking protocols for aerospace products
- EN 2491: Standards for molybdenum disulphide dry lubricants on aerospace components
- EN 3274 / EN 3275: Geometric configurations and dynamic seal specifications for pipe couplings 8°30'
- EN 3311 to EN 3315: Specifications covering titanium alloy materials used in aerospace components
Adhering to this ecosystem of standards ensures that elbow components fit seamlessly into aerospace fluid systems, meeting strict quality, safety, and performance criteria.
Keywords: aerospace pipe coupling, titanium alloy elbows, 90° elbow, pipe fittings aerospace standard, EN 4017, aerospace fluid system components, high-pressure pipe fittings, aerospace tubing connectors, aerospace standard titanium alloy, pipe coupling 8°30'
Frequently Asked Questions
EN 4017:2001 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Pipe coupling 8°30' in titanium alloy - Elbows 90°". This standard covers: This standards specifies the characteristics of elbows 90°, for pipe couplings 8°30' , in titanium alloy, for aerospace applications Nominal pressure up to 28 000 kPa Temperature range -55°C to 135°C
This standards specifies the characteristics of elbows 90°, for pipe couplings 8°30' , in titanium alloy, for aerospace applications Nominal pressure up to 28 000 kPa Temperature range -55°C to 135°C
EN 4017:2001 is classified under the following ICS (International Classification for Standards) categories: 49.080 - Aerospace fluid systems and components. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase EN 4017:2001 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2002
Aerospace series - Pipe coupling 8-30' in titanium alloy - Elbows 90o
Aerospace series - Pipe coupling 8°30' in titanium alloy - Elbows 90°
Luft- und Raumfahrt - Rohrverschraubung 8°30' aus Titanlegierung -
Winkelverschraubung 90°
Série aérospatiale - Systeme de raccordement 8°30' en alliage de titane - Raccords
coudés a 90°
Ta slovenski standard je istoveten z: EN 4017:2001
ICS:
49.080 /HWDOVNLLQYHVROMVNL Aerospace fluid systems and
KLGUDYOLþQLVLVWHPLLQGHOL components
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 4017
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2001
ICS 49.080
English version
Aerospace series - Pipe coupling 8°30' in titanium alloy - Elbows
90°
Série aérospatiale - Système de raccordement 8°30' en Luft- und Raumfahrt - Rohrverschraubung 8°30' aus
alliage de titane - Raccords coudés à 90° Titanlegierung - Winkelverschraubungen 90°
This European Standard was approved by CEN on 29 December 2000.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2001 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4017:2001 E
worldwide for CEN national Members.

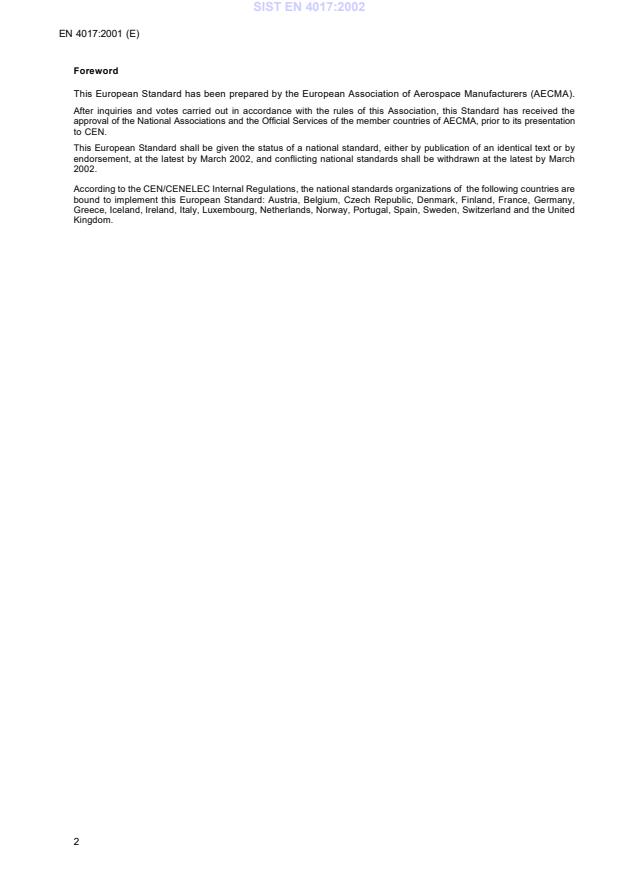

Foreword
This European Standard has been prepared by the European Association of Aerospace Manufacturers (AECMA).
After inquiries and votes carried out in accordance with the rules of this Association, this Standard has received the
approval of the National Associations and the Official Services of the member countries of AECMA, prior to its presentation
to CEN.
This European Standard shall be given the status of a national standard, either by publication of an identical text or by
endorsement, at the latest by March 2002, and conflicting national standards shall be withdrawn at the latest by March
2002.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are
bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany,
Greece, Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United
Kingdom.
1 Scope
This standard specifies the characteristics of elbows 90°, for pipe couplings 8°30', in titanium alloy, for aerospa
...
