EN 3155-069:2009
(Main)Aerospace series - Electrical contacts used in elements of connection - Part 069: Contacts, electrical, coaxial, size 16, female, type D, solder, class P - Product standard
Aerospace series - Electrical contacts used in elements of connection - Part 069: Contacts, electrical, coaxial, size 16, female, type D, solder, class P - Product standard
This standard specifies the required characteristics, tests and tooling applicable to size 16, female coaxial electrical contacts, type D, solder, class P, used in elements of connection according to EN 3155-002.
It shall be used together with EN 3155-001.
The associated male contacts are defined in EN 3155-058.
Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 069: Elektrische koaxiale Buchsenkontakte, Größe 16, Typ D, zum Löten, Klasse P - Produktnorm
Diese Norm legt die Anforderungen, Prüfungen und Werkzeuge für elektrische koaxiale Buchsenkontakte, Gröβe 16, Typ D, zum Löten, Klasse P, zur Verwendung in elektrischen Verbindungselementen nach EN 3155 002 fest.
Die vorliegende Norm ist in Verbindung mit EN 3155 001 zu verwenden.
Die zugehörigen Stiftkontakte sind in EN 3155 058 festgelegt.
Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 069: Contacts, électriques, coaxiaux, taille 16, femelles, type D, à souder, classe P - Norme de produit
Aeronavtika - Električni kontakti za uporabo v veznih elementih - 069. del: Kontakti, električni, koaksialni, velikost 16, ženski, tip D, za spajkanje, razred P - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 10-Feb-2009
- Withdrawal Date
- 30-Aug-2009
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2025
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3155-069:2009 is a CEN product standard in the Aerospace series that defines requirements for size 16, female coaxial electrical contacts, type D, solder, class P. It specifies dimensions, materials, assembly tooling and a comprehensive test regime for contacts used in elements of connection per EN 3155-002. Class P indicates an operating temperature range of −65 °C to 125 °C. The contact is interchangeable with SAE‑AS39029/78 and mates with the male contact defined in EN 3155-058.
Key topics and technical requirements
- Contact type & size: Size 16, female coaxial, type D, solder termination; mass ~0.60 g; mating outer diameter ~1.57–1.61 mm.
- Materials & finishes:
- Contact body: copper alloy with gold on undercoat (protective coating).
- Dielectric: ETFE fluoropolymer.
- Heat‑shrink tubing: radiation cross‑linked PVDF.
- Weld rings: Sn63 solder per QQ‑S‑571.
- Cable compatibility (permitted dimensions):
- Jacket: 2.59–2.79 mm
- Shield: 1.67–2.13 mm
- Dielectric: 0.91–1.72 mm
- Conductor: 0.22–0.58 mm
- Assembly & tooling:
- Pretin central conductor with SN63 solder; heat until solder flows and strain‑relief tubing conforms.
- Recommended hot‑air generator: ≥ 800 W, heating zone 420 ± 20 °C; insertion/extraction tooling per MIL‑I‑81969 series (M81969/14, M81969/08).
- Key tests (referenced EN 2591 series and EN 3155-001): contact resistance (low level and at rated current), insulation resistance, voltage‑proof, capacitance, shielding effectiveness, shock and vibration, temperature endurance (1 000 h at 125 °C), fluid resistance, solderability and coating adhesion.
Applications and who uses this standard
- Aerospace connector designers and engineers specifying aerospace coaxial contacts for avionics, RF and shielded signal applications.
- Cable-assembly and connector manufacturers implementing size 16 female coaxial terminations.
- Quality assurance, test laboratories and certification bodies performing environmental, electrical and mechanical qualification to the EN 3155 series.
- Maintenance, procurement and supply chain teams ensuring interchangeability and compliance for spares and repairs.
Related standards
- EN 3155-001 - Technical specification (use together)
- EN 3155-002 - List and utilisation of contacts (application context)
- EN 3155-058 - Associated male coaxial contact (mating part)
- EN 2591-* series - Test methods cited
- SAE‑AS39029/78 - Source interoperability reference
EN 3155-069:2009 is essential for ensuring reliable, tested, and interchangeable aerospace electrical contacts used in high‑performance coaxial connector systems.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3155-069:2009 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical contacts used in elements of connection - Part 069: Contacts, electrical, coaxial, size 16, female, type D, solder, class P - Product standard". This standard covers: This standard specifies the required characteristics, tests and tooling applicable to size 16, female coaxial electrical contacts, type D, solder, class P, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated male contacts are defined in EN 3155-058.
This standard specifies the required characteristics, tests and tooling applicable to size 16, female coaxial electrical contacts, type D, solder, class P, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated male contacts are defined in EN 3155-058.
EN 3155-069:2009 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3155-069:2009 has the following relationships with other standards: It is inter standard links to EN 2591-402:2012, EN 2591-212:2005, EN 2591-514:2002, EN 2591-403:2025, EN 3155-001:2025, EN 2591-508:2023, EN 2591-501:2002, EN 2591-509:2023, EN 2591-211:2002, EN 2591-513:2002, EN 2591-307:2012, EN 3155-058:2006, EN 2591-220:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3155-069:2009 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

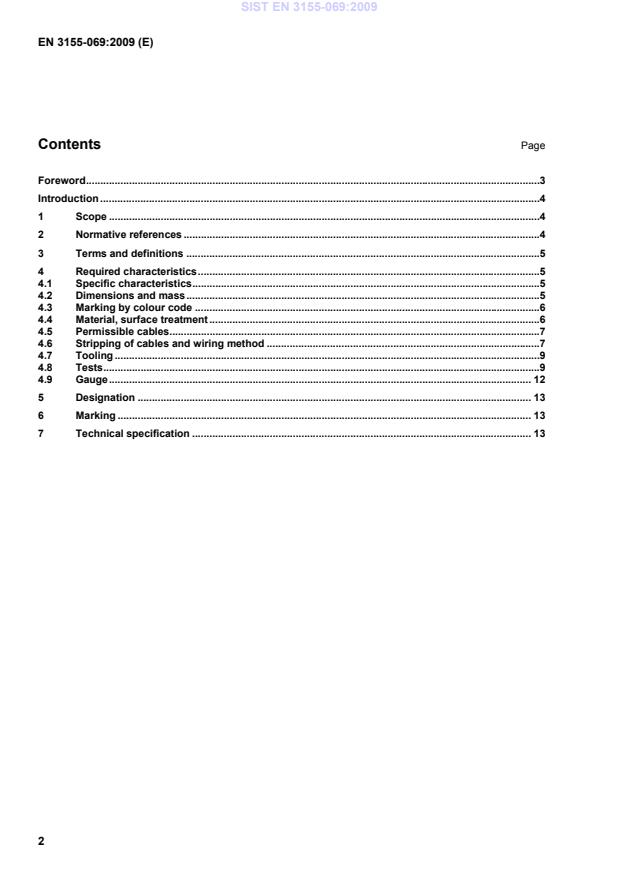

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 069: Elektrische koaxial Bushenkontackte Größe 16, typ D, zum Löten, Klasse P - ProduktnormSérie aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 069: Contacts, électriques, coaxiaux, taille 16,
femelles, type D, à souder, classe P - Norme de produitAerospace series - Electrical contacts used in elements of connection - Part 069: Contacts, electrical, coaxial, size 16, female, type D, solder, class P - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3155-069:2009SIST EN 3155-069:2009en01-maj-2009SIST EN 3155-069:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 3155-069February 2009ICS 49.060 English VersionAerospace series - Electrical contacts used in elements ofconnection - Part 069: Contacts, electrical, coaxial, size 16,female, type D, solder, class P - Product standardSérie aérospatiale - Contacts électriques utilisés dans lesorganes de connexion - Partie 069: Contacts, électriques,coaxiaux, taille 16,
femelles, type D, à souder, classe P -Norme de produitLuft- und Raumfahrt - Elektrische Kontakte zur Verwendungin Verbindungselementen - Teil 069: Elektrische koaxialBushenkontackte Größe 16, typ D, zum Löten, Klasse P -ProduktnormThis European Standard was approved by CEN on 4 July 2008.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 3155-069:2009: ESIST EN 3155-069:2009
QQ-S-571, Solder, tin alloy: tin-lead alloy and lead alloy 2 MIL-I-81969/08, Installing and removal tools, connector electrical contact, type I and II, class 2, composition A 2 MIL-I-81969/14, Installing and removal tools, connector electrical contact, type III, class 2, composition B 2 MIL-PRF-5606, Hydraulic fluid, petroleum base, aircraft, missile and ordnance 2 MIL-PRF-7808, Lubricating oil, aircraft turbi
...
