EN ISO 18276:2024
(Main)Welding consumables - Tubular cored electrodes for gas-shielded and non-gas-shielded metal arc welding of high strength steels - Classification (ISO 18276:2024)
Welding consumables - Tubular cored electrodes for gas-shielded and non-gas-shielded metal arc welding of high strength steels - Classification (ISO 18276:2024)
This document specifies the requirements for classification of tubular cored electrodes with or without a gas shield for metal arc welding of high-strength steels in the as-welded condition or in the post-weld heat-treated condition with a minimum yield strength higher than 550 MPa or a minimum tensile strength higher than 590 MPa. One tubular cored electrode can be tested and classified with different shielding gases, if used with more than one.
This document is a combined specification providing classification utilizing a system based upon the yield strength and an average impact energy of 47 J of the all-weld metal, or utilizing a system based upon the tensile strength and an average impact energy of 27 J of the all-weld metal.
— Subclauses and tables which carry the suffix “system A” are applicable only to tubular cored electrodes classified under the system based upon the yield strength and an average impact energy of 47 J of the all-weld metal given in this document.
— Subclauses and tables which carry the suffix “system B” are applicable only to tubular cored electrodes classified under the system based upon the tensile strength and an average impact energy of 27 J of the all-weld metal given in this document.
— Subclauses and tables which do not have either the suffix “system A” or the suffix “system B” are applicable to all tubular cored electrodes classified under this document.
It is recognized that the operating characteristics of tubular cored electrodes can be modified by the use of pulsed current but, for the purposes of this document, pulsed current is not used for determining the electrode classification.
Schweißzusätze - Fülldrahtelektroden zum Metall-Lichtbogenschweißen mit und ohne Schutzgas von hochfesten Stählen - Einteilung (ISO 18276:2024)
Dieses Dokument legt die Anforderungen für die Einteilung von Fülldrahtelektroden zum Metall-Lichtbogenschweißen von hochfesten Stählen mit oder ohne Gasschutz mit einer Mindeststreckgrenze über 550 MPa oder einer Mindestzugfestigkeit über 590 MPa im Schweißzustand oder nach einer Wärmenachbehandlung fest. Eine Fülldrahtelektrode kann mit verschiedenen Schutzgasen geprüft und eingeteilt werden, falls sie mit mehr als einem Schutzgas angewendet wird.
Dieses Dokument enthält gemeinsame Anforderungen zur Einteilung des reinen Schweißgutes entweder nach der Streckgrenze und der durchschnittlichen Kerbschlagarbeit von 47 J oder nach der Zugfestigkeit und der durchschnittlichen Kerbschlagarbeit von 27 J.
- Unterabschnitte und Tabellen, gekennzeichnet durch ein nachgestelltes „System A“, sind nur für Fülldrahtelektroden anwendbar, die nach der Streckgrenze und einer durchschnittlichen Kerbschlagarbeit von 47 J des reinen Schweißgutes nach diesem Dokument eingeteilt werden.
- Unterabschnitte und Tabellen, gekennzeichnet durch ein nachgestelltes „System B“, sind nur für Fülldrahtelektroden anwendbar, die nach der Zugfestigkeit und einer durchschnittlichen Kerbschlagarbeit von 27 J des reinen Schweißgutes nach diesem Dokument eingeteilt werden.
- Unterabschnitte und Tabellen, die weder ein nachgestelltes „System A“ noch „System B“ enthalten, sind für alle nach diesem Dokument eingeteilten Fülldrahtelektroden anwendbar.
Es ist bekannt, dass die Schweißeigenschaften von Fülldrahtelektroden durch die Anwendung von pulsierendem Strom beeinflusst werden können, jedoch ist in diesem Dokument pulsierender Strom nicht für die Einteilung der Fülldrahtelektroden vorgesehen.
Produits consommables pour le soudage - Fils-électrodes fourrés pour le soudage à l'arc avec ou sans gaz de protection des aciers à haute résistance - Classification (ISO 18276:2024)
Le présent document spécifie les exigences relatives à la classification des fils-électrodes fourrés pour soudage à l'arc avec ou sans gaz de protection pour l’état brut de soudage ou pour l’état traité thermiquement après soudage des aciers à haute résistance ayant une limite d'élasticité minimale supérieure à 550 MPa ou une résistance à la traction minimale supérieure à 590 MPa. Un fil-électrode peut, le cas échéant, être essayé et classifié avec différents gaz de protection.
Le présent document propose une spécification mixte permettant une classification utilisant un système basé soit sur la limite d'élasticité et l'énergie de rupture moyenne de 47 J du métal fondu hors dilution, soit sur la résistance à la traction et l'énergie de rupture moyenne de 27 J du métal fondu hors dilution.
— Les paragraphes et les tableaux qui portent le suffixe «système A» ne sont applicables qu'aux fils-électrodes fourrés classifiés d'après le système basé sur la limite d'élasticité et l'énergie de rupture moyenne de 47 J du métal fondu hors dilution conformément au présent document.
— Les paragraphes et les tableaux qui portent le suffixe « système B» ne sont applicables qu'aux fils-électrodes fourrés classifiés d'après le système basé sur la résistance à la traction et l'énergie de rupture moyenne de 27 J du métal fondu hors dilution conformément au présent document.
— Les paragraphes et les tableaux qui ne portent ni le suffixe «système A», ni le suffixe «système B», sont applicables à tous les fils-électrodes fourrés classifiés conformément au présent document.
Il est reconnu que les caractéristiques d’emploi des fils-électrodes fourrés peuvent être modifiées par l’utilisation de courant pulsé mais, pour les besoins du présent document, le courant pulsé n'est pas utilisé pour la détermination de la classification d'un fil-électrode.
Dodajni in pomožni materiali za varjenje - Strženske žice za obločno varjenje nerjavnih in ognjeodpornih jekel v zaščitnem plinu in brez zaščite - Razvrščanje (ISO 18276:2024)
General Information
Relations
Standards Content (Sample)

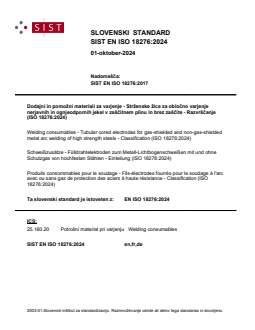

SLOVENSKI STANDARD
01-oktober-2024
Nadomešča:
SIST EN ISO 18276:2017
Dodajni in pomožni materiali za varjenje - Strženske žice za obločno varjenje
nerjavnih in ognjeodpornih jekel v zaščitnem plinu in brez zaščite - Razvrščanje
(ISO 18276:2024)
Welding consumables - Tubular cored electrodes for gas-shielded and non-gas-shielded
metal arc welding of high strength steels - Classification (ISO 18276:2024)
Schweißzusätze - Fülldrahtelektroden zum Metall-Lichtbogenschweißen mit und ohne
Schutzgas von hochfesten Stählen - Einteilung (ISO 18276:2024)
Produits consommables pour le soudage - Fils-électrodes fourrés pour le soudage à l'arc
avec ou sans gaz de protection des aciers à haute résistance - Classification (ISO
18276:2024)
Ta slovenski standard je istoveten z: EN ISO 18276:2024
ICS:
25.160.20 Potrošni material pri varjenju Welding consumables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN ISO 18276
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2024
EUROPÄISCHE NORM
ICS 25.160.20 Supersedes EN ISO 18276:2017
English Version
Welding consumables - Tubular cored electrodes for gas-
shielded and non-gas-shielded metal arc welding of high
strength steels - Classification (ISO 18276:2024)
Produits consommables pour le soudage - Fils- Schweißzusätze - Fülldrahtelektroden zum Metall-
électrodes fourrés pour le soudage à l'arc avec ou sans Lichtbogenschweißen mit und ohne Schutzgas von
gaz de protection des aciers à haute résistance - hochfesten Stählen - Einteilung (ISO 18276:2024)
Classification (ISO 18276:2024)
This European Standard was approved by CEN on 5 July 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 18276:2024 E
worldwide for CEN national Members.

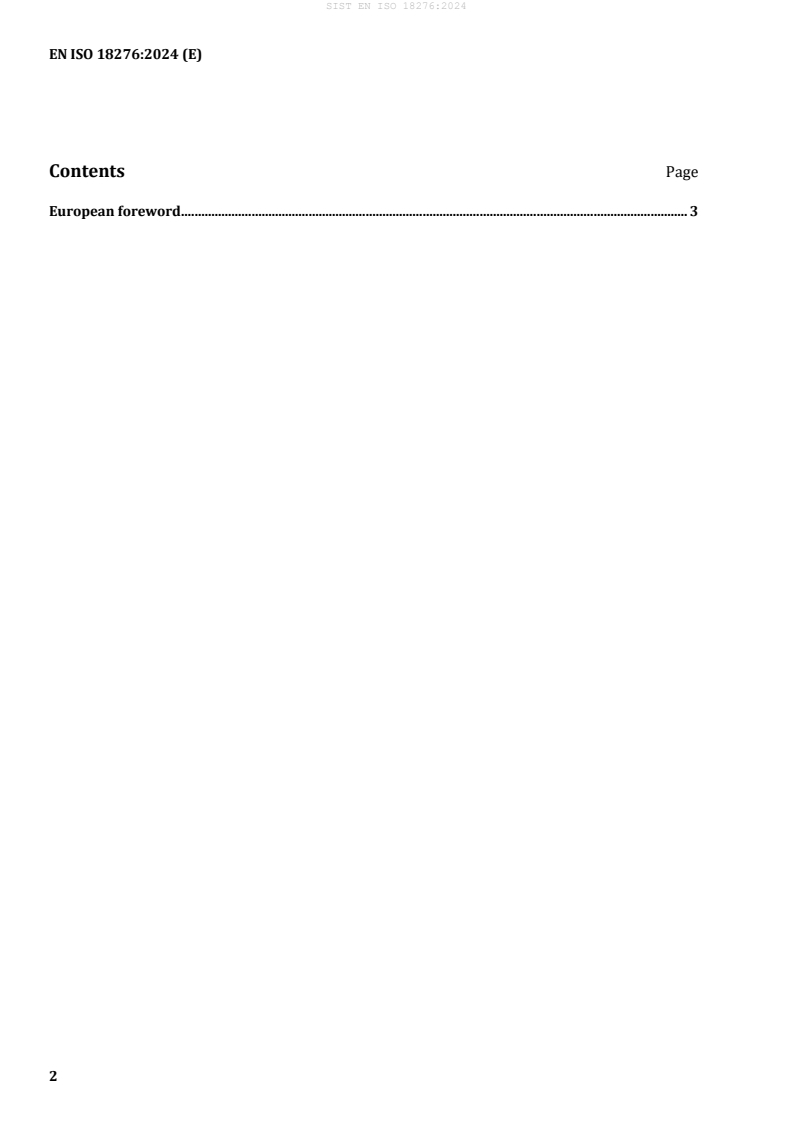

Contents Page
European foreword . 3
European foreword
This document (EN ISO 18276:2024) has been prepared by Technical Committee ISO/TC 44 "Welding
and allied processes" in collaboration with Technical Committee CEN/TC 121 “Welding and allied
processes” the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by January 2025, and conflicting national standards shall
be withdrawn at the latest by January 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 18276:2017.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 18276:2024 has been approved by CEN as EN ISO 18276:2024 without any modification.
International
Standard
ISO 18276
Third edition
Welding consumables — Tubular
2024-07
cored electrodes for gas-shielded
and non-gas-shielded metal arc
welding of high strength steels —
Classification
Produits consommables pour le soudage — Fils-électrodes
fourrés pour le soudage à l'arc avec ou sans gaz de protection des
aciers à haute résistance — Classification
Reference number
ISO 18276:2024(en) © ISO 2024
ISO 18276:2024(en)
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 18276:2024(en)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Classification . 2
4.1 General .2
4.2 Classification systems .2
4.3 Compulsory and optional sections in classifications .3
5 Symbols and requirements . 4
5.1 Symbol for the product or process .4
5.2 Symbol for tensile properties of all-weld metal .4
5.3 Symbol for impact properties of all-weld metal .5
5.4 Symbol for chemical composition of all-weld metal.6
5.5 Symbol for type of electrode core – Classification by yield strength and 47 J impact
energy – System A . .10
5.6 Symbol for usability characteristics of the electrodes – Classification by tensile
strength and 27 J impact energy – System B .10
5.7 Symbol for shielding gas .11
5.8 Symbol for welding position .11
5.9 Symbol for hydrogen content of deposited metal.11
5.10 Symbol for conditions of post-weld heat treatment . 12
5.10.1 Classification by yield strength and 47 J impact energy – System A . 12
5.10.2 Classification by tensile strength and 27 J impact energy – System B . 12
6 Rounding procedure .12
7 Mechanical tests .12
7.1 General . 12
7.2 Preheating and interpass temperatures . 12
7.3 Pass sequence . 13
7.4 Post-weld heat treatment (PWHT) condition .14
7.4.1 Classification by yield strength and 47 J impact energy – System A .14
7.4.2 Classification by tensile strength and 27 J impact energy – System B .14
8 Chemical analysis . . 14
9 Retesting . 14
10 Technical delivery conditions .15
11 Examples of designations .15
11.1 General . 15
11.2 Example 1 - Classification by yield strength and 47 J impact energy – System A . 15
11.3 Example 2 - Classification by tensile strength and 27 J impact energy – System B . 15
11.4 Example 3 – Classification by yield strength and 47 J impact energy - System A .16
11.5 Example 4 – Classification by tensile strength and 27 J impact energy – System B .17
Annex A (informative) Classification systems . 19
Annex B (informative) Description of composition designations for electrodes in the
classification system based upon tensile strength and average impact energy of 27 J –
System B .22
Annex C (informative) Description of types of electrode core in the classification
...
