EN ISO/IEC 29101:2021

SLOVENSKI STANDARD
01-december-2021
Informacijska tehnologija - Varnostne tehnike - Okvir arhitekture zasebnosti
(ISO/IEC 29101:2018)
Information technology - Security techniques - Privacy architecture framework (ISO/IEC
29101:2018)
Informationstechnik - Sicherheitstechniken - Rahmenwerk für Datenschutz (ISO/IEC
29101:2018)
Technologies de l'information - Techniques de sécurité - Architecture de référence de la
protection de la vie privée (ISO/IEC 29101:2018)
Ta slovenski standard je istoveten z: EN ISO/IEC 29101:2021
ICS:
35.030 Informacijska varnost IT Security
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO/IEC 29101
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2021
ICS 35.030
English version
Information technology - Security techniques - Privacy
architecture framework (ISO/IEC 29101:2018)
Technologies de l'information - Techniques de sécurité Informationstechnik - Sicherheitstechniken -
- Architecture de référence de la protection de la vie Rahmenwerk für Datenschutz (ISO/IEC 29101:2018)
privée (ISO/IEC 29101:2018)
This European Standard was approved by CEN on 27 September 2021.

CEN and CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical
references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to
any CEN and CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN and CENELEC member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN and CENELEC members are the national standards bodies and national electrotechnical committees of Austria, Belgium,
Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia,
Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

CEN-CENELEC Management Centre:
Rue de la Science 23, B-1040 Brussels
© 2021 CEN/CENELEC All rights of exploitation in any form and by any means Ref. No. EN ISO/IEC 29101:2021 E
reserved worldwide for CEN national Members and for
CENELEC Members.

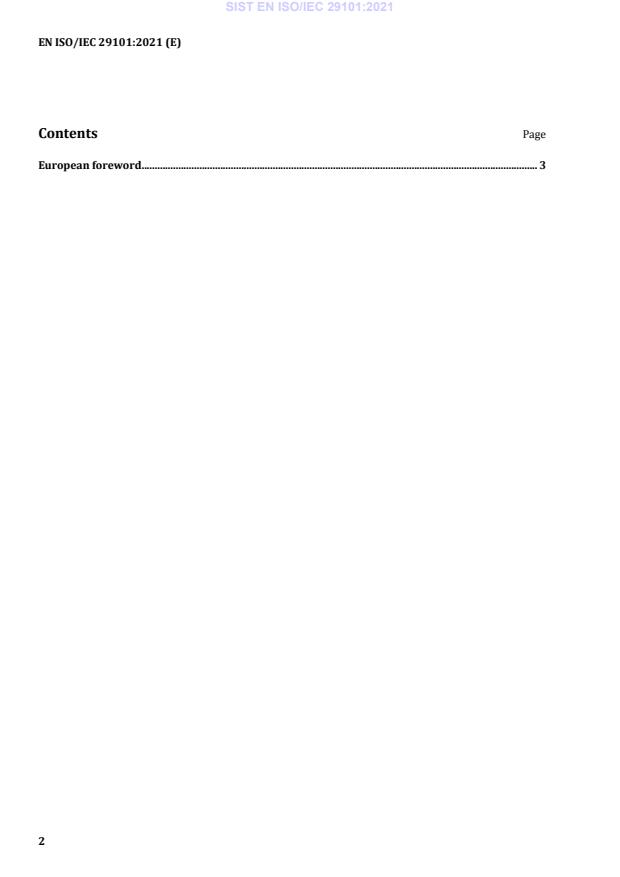

Contents Page
European foreword . 3

European foreword
The text of ISO/IEC 29101:2018 has been prepared by Technical Committee ISO/IEC JTC 1 "Information
technology” of the International Organization for Standardization (ISO) and has been taken over as
Protection” the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2022, and conflicting national standards shall be
withdrawn at the latest by April 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN-CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN and CENELEC websites.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Endorsement notice
The text of ISO/IEC 29101:2018 has been approved by CEN-CENELEC as EN ISO/IEC 29101:2021
without any modification.
INTERNATIONAL ISO/IEC
STANDARD 29101
Second edition
2018-11
Information technology — Security
techniques — Privacy architecture
framework
Technologies de l'information — Techniques de sécurité —
Architecture de référence de la protection de la vie privée
Reference number
ISO/IEC 29101:2018(E)
©
ISO/IEC 2018
ISO/IEC 29101:2018(E)
© ISO/IEC 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2018 – All rights reserved

ISO/IEC 29101:2018(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 1
5 Overview of the privacy architecture framework . 1
5.1 Elements of the framework . 1
5.2 Relationship with management systems . 3
6 Actors and PII . 3
6.1 Overview . 3
6.2 Phases of the PII processing life cycle . 4
6.2.1 Collection . 4
6.2.2 Transfer . 5
6.2.3 Use . 5
6.2.4 Storage . 6
6.2.5 Disposal . 6
7 Concerns . 6
7.1 Overview . 6
7.2 The privacy principles of ISO/IEC 29100 . 6
7.3 Privacy safeguarding requirements . 7
8 Architectural views . 7
8.1 General . 7
8.2 Component view . 8
8.2.1 General. 8
8.2.2 Privacy settings layer . 9
8.2.3 Identity management and access management layer .12
8.2.4 PII layer .14
8.3 Actor view .19
8.3.1 General.19
8.3.2 ICT system of the PII principal .20
8.3.3 ICT system of the PII controller .20
8.3.4 ICT system of the PII processor .21
8.4 Interaction view .22
8.4.1 General.22
8.4.2 Privacy settings layer .22
8.4.3 Identity and access management layer .23
8.4.4 PII layer .23
Annex A (informative) Examples of the PII-related concerns of an ICT system .25
Annex B (informative) A PII aggregation system with secure computation .30
Annex C (informative) A privacy-friendly, pseudonymous system for identity and access
control management .37
© ISO/IEC 2018 – All rights reserved iii

ISO/IEC 29101:2018(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 27, Security techniques.
This second edition cancels and replaces the first edition (ISO/IEC 29101:2013) which has been
technically revised. The main change compared to the previous edition is that old Annex D has been
removed.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO/IEC 2018 – All rights reserved

ISO/IEC 29101:2018(E)
Introduction
This document describes a high-level architecture framework and associated controls for the
safeguarding of privacy in information and communication technology (ICT) systems that store and
process personally identifiable information (PII).
The privacy architecture framework described in this document:
— provides a consistent, high-level approach to the implementation of privacy controls for the
processing of PII in ICT systems;
— provides guidance for planning, designing and building ICT system architectures that safeguard the
privacy of PII principals by controlling the processing, access and transfer of personally identifiable
information; and
— shows how privacy enhancing technologies (PETs) can be used as privacy controls.
This document builds on the privacy framework provided by ISO/IEC 29100 to help an organization
define its privacy safeguarding requirements as they relate to PII processed by any ICT system. In some
countries, privacy safeguarding requirements are understood to be synonymous with data protection/
privacy requirements and are the subject of data protection/privacy legislation.
© ISO/IEC 2018 – All rights reserved v

INTERNATIONAL STANDARD ISO/IEC 29101:2018(E)
Information technology — Security techniques — Privacy
architecture framework
1 Scope
This document defines a privacy architecture framework that:
— specifies concerns for ICT systems that process PII;
— lists components for the implementation of such systems; and
— provides architectural views contextualizing these components.
This document is applicable to entities involved in specifying, procuring, architecting, designing,
testing, maintaining, administering and operating ICT systems that process PII.
It focuses primarily on ICT systems that are designed to interact with PII principals.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 29100, Information technology — Security techniques — Privacy framework
ISO/IEC/IEEE 42010, Systems and software engineering — Architecture description
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 29100 and ISO/IEC/
IEEE 42010 apply.
4 Symbols and abbreviated terms
The following abbreviations apply to this document.
ICT Information and Communication Technology
PET Privacy Enhancing Technology
PII Personally Identifiable Information
5 Overview of the privacy architecture framework
5.1 Elements of the framework
The privacy architecture framework presented in this document is intended as a technical reference
for developers of ICT systems that process PII. This document does not set requirements for privacy
policies; it assumes that a privacy policy is in place and that privacy safeguarding requirements have
been defined and that appropriate safeguards are implemented within the ICT system.
© ISO/IEC 2018 – All rights reserved 1

ISO/IEC 29101:2018(E)
This architecture framework focuses on the protection of PII. Since this is partly a security goal,
ICT systems processing PII should also follow information security engineering guidelines. This
architecture framework lists some information security components that are critical for safeguarding
PII processed within ICT systems. The architecture framework presented is based on the model used in
ISO/IEC/IEEE 42010.
The stakeholders related to these concerns are the privacy stakeholders defined in ISO/IEC 29100. They
are discussed in more detail in Clause 6.
The concerns for the architecture framework are described in Clause 7 and include the privacy
principles of ISO/IEC 29100 and privacy safeguarding requirements specific to an ICT system.
The architecture framework is presented as follows:
a) the layers of the technical architecture framework in 8.2 show the architecture from a component
viewpoint. Each layer groups components with a common goal or a similar function;
b) the deployment model in 8.3 shows the architecture framework from a standalone ICT system
viewpoint. Each view shows a grouping of the components based on their deployment in the
stakeholders’ ICT systems; and
c) the views in 8.4 show the architecture framework from an interaction viewpoint. The views
illustrate how the components interact between ICT systems of different stakeholders.
The architecture framework also presents correspondence rules between the concerns and viewpoints
through the use of mapping tables.
Figure 1 — Elements of the privacy architecture framework in context
Figure 1 illustrates the relationship between the elements of the privacy architecture framework.
The central element of the architecture framework is the ICT system being built. An ISO/IEC 29101
actor uses the ICT system. The design of the ICT systems is affected by both concerns addressed in this
document and also other concerns. Examples of other concerns include non-functional requirements
that affect the performance, accessibility and design of the ICT system and do not affect the functional
processing of PII. These other concerns are out of the scope of this document.
The ICT system can contain components from the privacy architecture framework of this document as
well as other components. These components do not process PII, but instead handle other functionality
in the ICT system like providing accessibility or rendering special user interfaces. Such components are
out of the scope of this document.
2 © ISO/IEC 2018 – All rights reserved

ISO/IEC 29101:2018(E)
5.2 Relationship with management systems
The use of a management system enables PII controllers and processors to more effectively meet
their privacy safeguarding requirements using a structured approach. This structured approach also
provides PII controllers and processors the ability to measure outcomes and continuously improve the
management system’s effectiveness.
An effective management system is as transparent as possible but still impacts people, processes
and technology. It should be part of the internal control program and risk mitigation strategy of an
organization and its implementation helps to satisfy compliance with data protection and privacy
regulations.
6 Actors and PII
6.1 Overview
The actors of the ISO/IEC architecture framework are the privacy stakeholders involved in PII
processing described in ISO/IEC 29100. These actors are:
a) the PII principal;
b) the PII controller; and
c) the PII processor.
NOTE The “third party” defined as one of the four categories of the actors in ISO/IEC 29100 is out of the
scope of the architecture framework specified in this document.
From the deployment viewpoint, the architecture framework is divided into three parts. Each part
applies to the ICT system deployed from the viewpoint of each of these actors.
Figure 2 shows the ICT systems of the actors and the flows of PII between these ICT systems. It illustrates
the logical division of functionality for the architecture framework described in this document. It is
not intended as a representation of the physical structure, organisation or ownership of ICT system
hardware.
Figure 2 — Actors and their ICT systems according to this document
An actor can be responsible for building the ICT systems that it uses, or not. For example, the PII principal
can use a system built by and the responsibility of the PII controller or the ICT system of the PII principal
can be a part of the ICT system of the PII controller. Furthermore, the functionality of the ICT system
© ISO/IEC 2018 – All rights reserved 3

ISO/IEC 29101:2018(E)
of the PII principal can be split across different ICT hardware systems owned by the PII principal and
the PII controller. Similarly, the PII controller can provide the ICT system of the PII processor. Business
processes in which ICT systems are employed use a wide range of communication and trust models. The
architecture framework in this document builds on an abstraction of these models.
If the PII principal is using a privately owned ICT system, the other privacy stakeholders can impose
requirements on this ICT system. For example, the ICT system of the PII principal can have to meet a
minimum baseline of security requirements to be allowed to connect to the other ICT systems. Other
examples include the use of special security components like hardware authentication tokens, certain
operating system versions or special web browser versions.
For example, in ICT systems employing peer-to-peer communications (communication method,
communication model or communication technology featuring communication in between/among the
entities that are peer to each other without central servers), every application can take the roles of
all three listed actors. Information is both sent and received by each peer, so each peer can be a PII
controller or processor for PII transferred by another party in the role of a PII principal.
In social networking applications, PII can be processed by anyone with access to other people's profiles.
Web-based social networking applications allow all the authorized and possible anonymous users of
the service to process PII provided by the PII principals connected to the social network.
6.2 Phases of the PII processing life cycle
6.2.1 Collection
Many organizations collect information from PII principals. This information can contain PII.
When collecting PII, organizations should always consider the privacy preferences and legal rights of
the PII principal and privacy safeguarding requirements as stated by applicable law. Factors such as
the type of PII, consent given, or any privacy preferences stated need to be considered throughout all
stages of processing. PII should only be collected if it is needed for the declared purposes.
Documentation should be associated with the PII. Examples include, but are not limited to:
a) software tags that state the purpose(s) the PII can be used for;
b) records describing the purpose(s) that PII can be used for; and
c) records of the consent given and any specific sensitivities that should be observed (e.g., certain PII
categories should be encrypted or deleted after a certain period of time).
Privacy controls should be implemented wherever data is tagged as PII or wherever PII is marked
with additional information concerning the PII principal. It is also important to preserve tags that are
relevant to processing PII during the usage, transfer, storage and disposal phases. If stored PII are likely
to have been modified, it should be validated for accuracy and currency before use.
In addition, PII collection processes should be designed to collect only the PII that is necessary for
the respective transaction. Organizations should take steps to minimize the inadvertent/unintended
collection of PII through data entry systems (e.g., web application forms that allow the entry of any
information). The entry of arbitrary PII should be minimized through the use of context-specific display
of input fields reducing or eliminating areas in the web form where this information can be entered (e.g.,
removing unnecessary check boxes and free text fields). In addition, the use of fields with predefined
entries (e.g., list boxes and drop-down lists), containing non-PII options, should be considered. When
free form text fields are necessary, the User Interface (UI) should provide:
a) warnings to alert the PII principal not to enter PII other than that which is explicitly asked for and
consented to or required by applicable law;
b) clear indication of those fields where PII is to be entered and what PII should be entered (e.g. name,
address, health information); and
4 © ISO/IEC 2018 – All rights reserved

ISO/IEC 29101:2018(E)
c) clear indication of those fields where PII should not be entered.
6.2.2 Transfer
Transferring, disseminating, or releasing PII to others means that the PII is no longer under the sole
control of the PII principal. Transfer is usually the term given for dissemination of PII from the PII
controller or PII processor to other PII controllers and processors. If PII is transferred from the PII
controller to another actor, transfer is sometimes also referred to as disclosure.
Accountability and responsibility for the transferred PII should be agreed on and maintained by each
party involved in the PII processing. This agreement should be in writing where required by applicable
law. Furthermore, such agreements need to be compliant with data protection legislation in the source
and destination domains of the transfers. When relevant and appropriate, or when legally required to
do so, the PII principal should be notified that transfer is taking place and should be informed of the
content and purpose of the transfer. If a dispute occurs between the PII principal and the PII controller
or PII processor, records of relevant PII transfer transactions should be available to assist in resolving
any such dispute.
The transfer of sensitive PII should be avoided unless it:
— is necessary to provide a service that the PII principals has requested;
— fulfils a business requirement for offering the requested service; or
— is required by law.
Some jurisdictions have instituted laws that specifically require formal contractual agreements that
include all privacy safeguarding requirements between the involved parties when PII is transferred
outside a jurisdiction that has a prescribed level of privacy protection. Where cross-border transfers
are used, particular attention should be given to protection measures for the PII being transferred.
Appropriate protection mechanisms should be in place during the transfer of PII. In the case of a digital
transfer, PII should be transmitted over a secure channel or in encrypted form if the transmission is
over an insecure channel. If PII is transferred on physical media, it should be encrypted. If encryption is
used, the encryption key should not be stored or transmitted together with the encrypted PII.
6.2.3 Use
Using PII means any form of PII processing that does not include “collect”, “transfer”, “store”, “archive”
or “dispose”. The privacy principles described in ISO/IEC 29100 (Privacy Framework), as well as some
data protection and privacy laws, can limit the processing of PII if that processing is incompatible with
the originally specified purposes. Therefore, PII should only be processed for the declared purposes for
which it was collected.
If the PII is to be processed for any other purpose that is not covered by applicable law, consent should be
obtained from the PII principal or his agent. The PII principal should be provided a means for contacting
the PII controller or processor in the event there are any questions about any activities about which the
PII principals is unclear.
Where such processing is considered necessary the consent of the PII principal should be obtained
unless otherwise permitted by law. PII principals should be provided clear notice about the specific use
of the PII.
Additionally, protection mechanisms appropriate to the usage of PII should be applied as deemed
necessary by a thorough risk analysis. This includes the use of anonymization or pseudonymization
techniques prior to processing and the use of secure computation techniques during processing.
© ISO/IEC 2018 – All rights reserved 5

ISO/IEC 29101:2018(E)
6.2.4 Storage
When it is necessary to store PII, the consent of the PII principal should be obtained, taking into account
any specific measures that can be required by law. In such cases, the PII should be stored only for the
amount of time necessary to achieve the specific business purpose.
PII should be stored with appropriate controls and mechanisms to prevent unauthorized access,
modification, destruction, removal, or other unauthorized use. Such controls include, but are not limited
to, encryption, secret sharing, pseudonymization and anonymization.
Archived PII needs careful attention. The privacy principles state that PII should be retained only as
long as necessary to fulfil the stated purposes and then be securely destroyed or anonymized. However,
if the PII controller or PII processor is required by applicable law to retain PII after the other purposes
have expired, the PII should be locked (i.e., archived and protected with an access control mechanism
to prevent further usage). The primary considerations in archiving PII should be to ensure that the
appropriate data protection mechanisms are in place, including access management solutions that
provide access to archived PII only to authorized users.
The PII controller should implement controls in storage systems to dispose of PII when it expires or
when the purpose for the storing or processing of the PII is no longer valid.
6.2.5 Disposal
In the final stage of the PII processing life cycle, PII gets deleted, anonymized, destroyed, returned or
disposed of in some other way. Specific PII within PII records can get locked from unauthorized use
by marking it for disposal. It should be noted that deleting PII does not necessarily mean that the PII is
ultimately disposed of because PII deleted in ICT systems can often be recovered. Although it can seem
to be an obvious task in PII handling, procedures concerning disposal of PII sometimes do not comply
with privacy safeguarding requirements. Specifications given by the PII principal (e.g., usage purpose)
or requirements specified by legislation (e.g., expiration date for specific PII) should be considered
before PII is disposed of.
7 Concerns
7.1 Overview
A concern as defined in ISO/IEC/IEEE 42010 is an interest in a system relevant to one or more of its
stakeholders. The privacy architecture framework in this document focuses on concerns of the privacy
stakeholders related to the processing of PII. The concerns in this document include the privacy
principles of ISO/IEC 29100 and any privacy safeguarding requirements derived from and complying
with these principles.
The privacy safeguarding requirements should be determined by following a privacy risk management
process complying with the process described in ISO/IEC 29100:2011, 4.5. Any individual or
organization that is designing an ICT system that processes PII should follow this process. All the
identified privacy safeguarding requirements should conform to applicable privacy legislation.
7.2 The privacy principles of ISO/IEC 29100
The PII controller is responsible for the protection of PII and the fair and lawful handling of it at all
times, throughout the organization, as well as for PII processing outsourced to PII processors.
The PII controller is ultimately responsible for implementing privacy controls in an ICT system. Privacy
controls are intended to ensure that the privacy safeguarding requirements set for a specific PII
principal, transaction, or scenario are addressed and consistently fulfilled. Evidence of implementation
should be provided by properly documenting the privacy controls that are in place and providing audit
documents that verify that the controls exist, that they have been implemented correctly and that
6 © ISO/IEC 2018 – All rights reserved

ISO/IEC 29101:2018(E)
they are functioning properly. Ultimately, the PII controller should accept and adhere to the privacy
principles that are described in ISO/IEC 29100.
a) consent and choice;
b) purpose legitimacy and specification;
c) collection limitation;
d) data minimization;
e) use, retention and disclosure limitation;
f) accuracy and quality;
g) openness, transparency and notice;
h) individual participation and access;
i) accountability;
j) information security; and
k) privacy compliance.
7.3 Privacy safeguarding requirements
ICT systems should implement privacy controls as a primary element in every phase of the PII
processing life cycle. The privacy safeguarding requirements enable the designer of the ICT system
to operationalize the link between privacy principles and the architectural components laid down in
Clause 8.
In order to implement effective privacy controls in an ICT system, PII processing flows describing the PII
processing should be created. PII processing flow diagrams are a graphical representation of the “flow”
of PII through the ICT system and between the different actors. For example, if an actor transfers PII
to other actors (e.g., PII processors) the PII processing flow diagram should include those PII transfers.
A PII processing flow diagram can also be represented as a PII flow table. This diagram or table follows
the collection, transfer, use, storage or disposal of PII and includes information such as the type of PII,
who collected the PII, the purpose for processing, to whom the PII is going to be transferred, the receipt
of consent by the PII principal, the retention period and at which location it is stored and the resulting
privacy risk level. The PII processing flow information is an input to the privacy risk management
process that outputs the privacy safeguarding requirements.
After the requirements analysis of an ICT system has been completed, the developers should cross-
reference the privacy safeguarding requirements of the ICT system with the list of concerns in this
document. The privacy safeguarding requirements should then be used for choosing the architectural
components that satisfy said requirements.
Annex A contains an example list of concerns and illustrates how to link concerns to the privacy
principles of ISO/IEC 29100 and the architectural components of this document.
8 Architectural views
8.1 General
The architectural views in this clause are structured into three views. First, the component view
describes the ICT system components in detail and separates them into layers based on their
functionality. Each layer groups components that help to contribute to the proper processing of PII.
Limited implementation guidance is given for each component. Actor-specific guidance is given where
© ISO/IEC 2018 – All rights reserved 7

ISO/IEC 29101:2018(E)
applicable. This view is helpful for understanding the building blocks in the privacy architecture
framework.
Tables showing examples of typical relationships between the privacy principles of ISO/IEC 29100
and the components of the architecture are provided in the component view. Such mapping tables
are helpful for understanding how an ICT system adheres to the privacy principles of ISO/IEC 29100.
Similar tables can be used as examples and updated during system design to describe how a particular
ICT system adheres to the privacy principles in ISO/IEC 29100.
The actor view looks at the components described in the component view from the perspective of the
ICT system of an individual actor. This view is helpful in the design of the architecture of a particular
ICT system. The interaction view looks at the components from a deployment perspective. This view is
helpful for understanding how components in the ICT systems of different actors interact with each other.
8.2 Component view
8.2.1 General
The component view is meant to describe ICT system components that are involved in the
processing of PII.
The choice of components should be guided by the appropriate privacy safeguarding requirements.
The developer of the ICT system for a specific actor(s) (see Figure 2) should use the component view
to determine the components that need to be included in the architecture of the system that they are
developing. This architecture should be based on the privacy safeguarding requirements established
using the guidance given in Clause 7. Note that not all components described in this document are
necessarily appropriate in a particular ICT system.
The component view is presented in three layers. Each layer is a logical group of components that
contribute to a specific goal in the processing of PII. Components in the privacy settings layer handle
the management of metadata about PII processing including, among others, the exchange of information
on the purpose of processing, consent and preferences of the PII principal. Components in the identity
and access management layer are responsible for ensuring that proper identity information is used in
PII processing and access to the PII is controlled according to the privacy safeguarding requirements.
Finally, components in the PII layer perform various tasks to process the PII.
The architecture framework is designed with the assumption that all components interact with several
other components. However, in order to maintain generality and readability, the possible interactions
between components have been omitted from the representation.
Some of the components in the architecture framework are Privacy Enhancing Technologies (PETs).
This selection of PETs is not comprehensive. Other PETs exist, that are not described in this document
and the developer of the ICT system is responsible for choosing appropriate PETs and adapting them to
this architecture framework.
Annex B gives an example of an ICT system architecture that applies PETs for securely processing PII.
Annex C gives an example of how to use attribute-based credentials to build an ICT system that provides
pseudonymous identity and access control management.
The following subclauses describe the layers, the components within them and the actors that interact
with the components. A general description of each component is given and it is followed by actor-
specific guidelines. For some components, no guidance specific to the ICT systems of a particular actor
is given, as the behaviour of the component is similar in the ICT systems of all actors.
8 © ISO/IEC 2018 – All rights reserved

ISO/IEC 29101:2018(E)
8.2.2 Privacy settings layer
8.2.2.1 General
The privacy settings layer comprises components that communicate the system privacy policy to the
relevant actors and implement the system privacy safeguarding requirements. These components
let the ICT system communicate the system privacy policy and implement the corresponding privacy
safeguarding measures.
In addition, the components in this layer should convey to the PII controller and PII processor any
privacy preferences and consent information that have been collected from the PII principal.
8.2.2.2 Policy and purpose communication
— General: This component is responsible for relaying information, including updates, about the
privacy policy of the PII controller and the purpose of PII collection to the ICT systems of privacy
stakeholders.
The communicated information should contain at least the following:
a) the identities of the PII controllers and any associated PII pr
...
