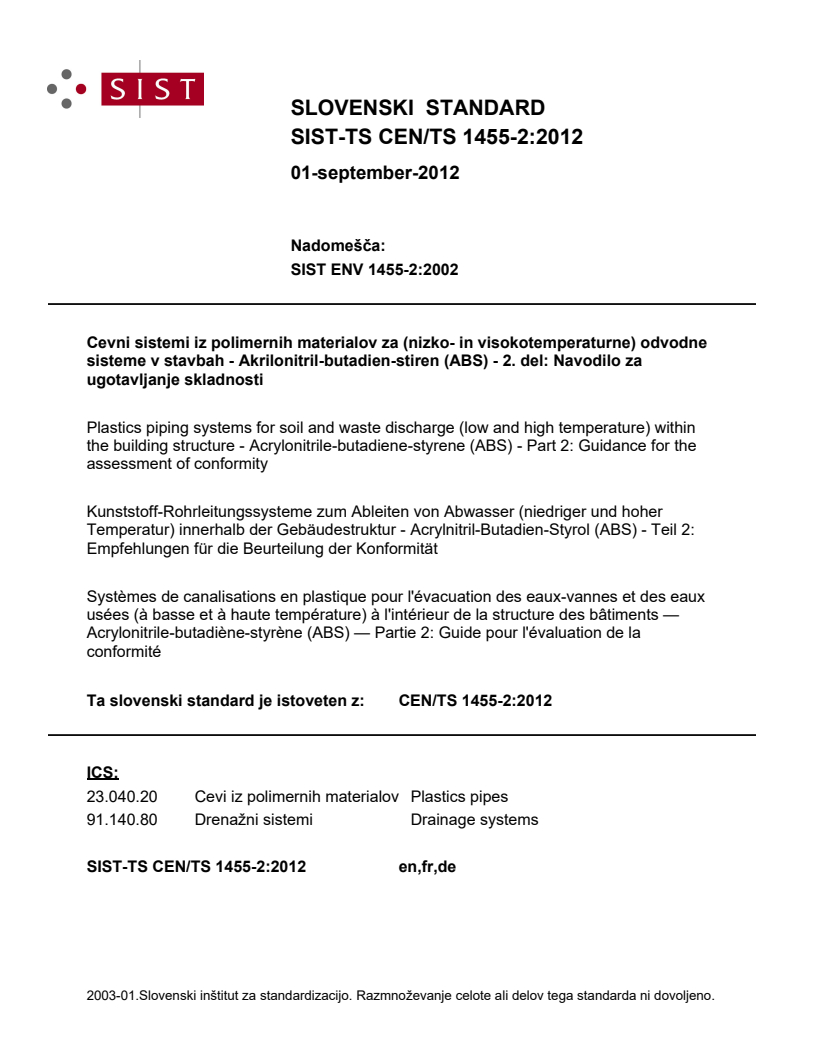

CEN/TS 1455-2:2012

SLOVENSKI STANDARD
01-september-2012
1DGRPHãþD
SIST ENV 1455-2:2002
Cevni sistemi iz polimernih materialov za (nizko- in visokotemperaturne) odvodne
sisteme v stavbah - Akrilonitril-butadien-stiren (ABS) - 2. del: Navodilo za
ugotavljanje skladnosti
Plastics piping systems for soil and waste discharge (low and high temperature) within
the building structure - Acrylonitrile-butadiene-styrene (ABS) - Part 2: Guidance for the
assessment of conformity
Kunststoff-Rohrleitungssysteme zum Ableiten von Abwasser (niedriger und hoher
Temperatur) innerhalb der Gebäudestruktur - Acrylnitril-Butadien-Styrol (ABS) - Teil 2:
Empfehlungen für die Beurteilung der Konformität
Systèmes de canalisations en plastique pour l'évacuation des eaux-vannes et des eaux
usées (à basse et à haute température) à l'intérieur de la structure des bâtiments —
Acrylonitrile-butadiène-styrène (ABS) — Partie 2: Guide pour l'évaluation de la
conformité
Ta slovenski standard je istoveten z: CEN/TS 1455-2:2012
ICS:
23.040.20 Cevi iz polimernih materialov Plastics pipes
91.140.80 Drenažni sistemi Drainage systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

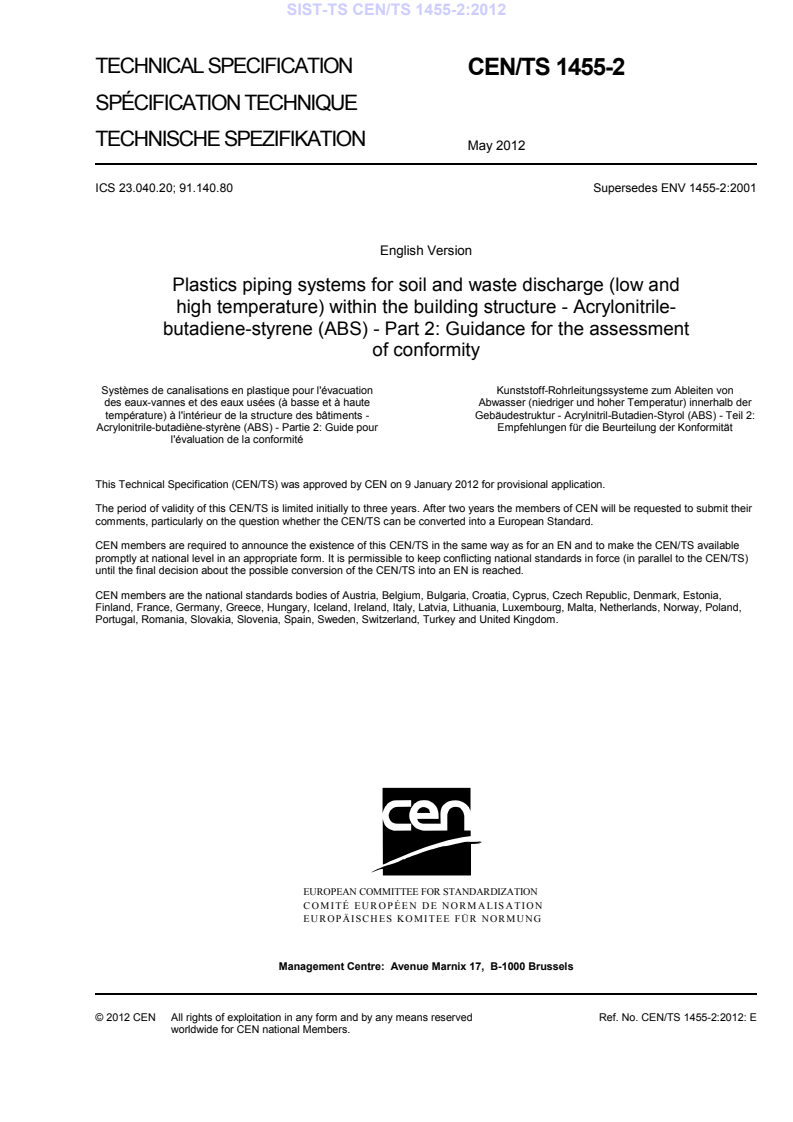

TECHNICAL SPECIFICATION
CEN/TS 1455-2
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
May 2012
ICS 23.040.20; 91.140.80 Supersedes ENV 1455-2:2001
English Version
Plastics piping systems for soil and waste discharge (low and
high temperature) within the building structure - Acrylonitrile-
butadiene-styrene (ABS) - Part 2: Guidance for the assessment
of conformity
Systèmes de canalisations en plastique pour l'évacuation Kunststoff-Rohrleitungssysteme zum Ableiten von
des eaux-vannes et des eaux usées (à basse et à haute Abwasser (niedriger und hoher Temperatur) innerhalb der
température) à l'intérieur de la structure des bâtiments - Gebäudestruktur - Acrylnitril-Butadien-Styrol (ABS) - Teil 2:
Acrylonitrile-butadiène-styrène (ABS) - Partie 2: Guide pour Empfehlungen für die Beurteilung der Konformität
l'évaluation de la conformité
This Technical Specification (CEN/TS) was approved by CEN on 9 January 2012 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available
promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)
until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 1455-2:2012: E
worldwide for CEN national Members.

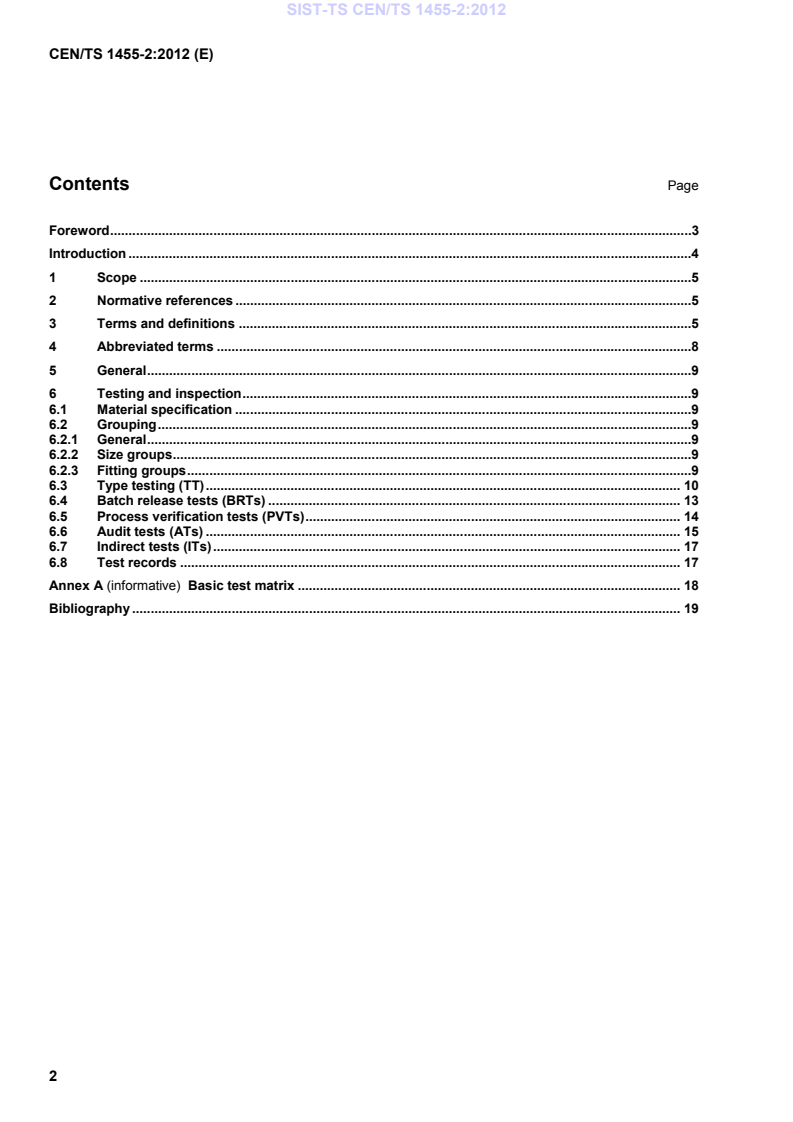

Contents Page
Foreword .3
Introduction .4
1 Scope .5
2 Normative references .5
3 Terms and definitions .5
4 Abbreviated terms .8
5 General .9
6 Testing and inspection .9
6.1 Material specification .9
6.2 Grouping .9
6.2.1 General .9
6.2.2 Size groups .9
6.2.3 Fitting groups .9
6.3 Type testing (TT) . 10
6.4 Batch release tests (BRTs) . 13
6.5 Process verification tests (PVTs) . 14
6.6 Audit tests (ATs) . 15
6.7 Indirect tests (ITs) . 17
6.8 Test records . 17
Annex A (informative) Basic test matrix . 18
Bibliography . 19

Foreword
This document (CEN/TS 1455-2:2012) has been prepared by Technical Committee CEN/TC 155 “Plastics
piping systems and ducting systems”, the secretariat of which is held by NEN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes ENV 1455-2:2001.
Compared with ENV 1455-2:2001, the following changes have been made:
a) Use of the template drafted by CEN/TC 155/WG 21 for assessment of conformity documents (change of
"Terms and definitions" and addition of 1 column "Sampling procedures" in Tables);
b) Deletion of all requirements for TPE seals as they are no longer required;
c) Addition of an informative Annex A: Basic test matrix.
EN 1455 Plastics piping systems for soil and waste discharge (low and high temperature) within the building
structure — Acrylonitrile-butadiene-styrene (ABS) consists of the following Parts:
 Part 1: Requirements for pipes, fittings and the system
 Part 2: Guidance for the assessment of conformity (the present TS)
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria, Croatia, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

Introduction
Figures 1 and 2 are intended to provide general information on the concept of testing and organisation of
those tests used for the purpose of the assessment of conformity. For each type of test, i.e. type test (TT),
batch release test (BRT), process verification test (PVT) and audit test (AT), this document details the
applicable characteristics to be assessed and the frequency and sampling of testing.
A typical scheme for the assessment of conformity of materials (compounds/formulations), pipes, fittings,
joints or assemblies by manufacturers is given in Figure 1.

Figure 1 — Typical scheme for the assessment of conformity by a manufacturer
A typical scheme for the assessment of conformity of materials (compounds/formulations), pipes, fittings,
joints or assemblies by manufacturers, including a third-party certification, is given in Figure 2.

Figure 2 — Typical scheme for the assessment of conformity by a manufacturer, including a third-
party certification
1 Scope
This Technical Specification gives guidance for the assessment of conformity of materials
(compounds/formulations), products and assemblies in accordance with EN 1455-1 intended to be included in
the manufacturer’s quality plan as part of the quality management system and for the establishment of third-
party certification procedures.
NOTE 1 It is recommended that the quality management system conforms to or is no less stringent than the relevant
requirements to EN ISO 9001 [1].
NOTE 2 If third-party certification is involved, it is recommended that the certification body is accredited to
EN 45011 [2], EN 45012 [3] or EN ISO/IEC 17021 [4], as applicable.
NOTE 3 In order to help the reader, a basic test matrix is given in Annex A.
In conjunction with EN 1455-1, this document is applicable to solid-wall piping systems made of acrylonitrile-
butadiene-styrene (ABS) intended to be used for the following purposes:
 for soil and waste discharge (low and high temperature) inside buildings (application area code "B");
 for soil and waste discharge (low and high temperature) inside buildings and buried in ground within the
building structure (application area code "BD").
NOTE 4 This is reflected in the marking of products by "B" or "BD".
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 1455-1:1999, Plastics piping systems for soil and waste discharge (low and high temperature) within the
building structure — Acrylonitrile-butadiene-styrene (ABS) — Part 1: Requirements for pipes, fittings and the
system
3 Terms and definitions
For the purposes of this Technical Specification, the terms and definitions given in EN 1455-1:1999 and the
following apply.
3.1
certification body
impartial body, governmental or non-governmental, possessing the necessary competence and responsibility
to carry out certification of conformity according to given rules of procedure and management
Note 1 to entry: A certification boby is preferably accredited to EN 45011 [2].
3.2
inspection body
impartial organisation or company approved by the certification body as possessing the necessary
competence to verify and/or to carry out initial type testing, audit testing and inspection of the manufacturer's
factory production control in accordance with the relevant standard
Note 1 to entry: An inspection body is preferably accredited to EN ISO/IEC 17020 [5].
3.3
testing laboratory
laboratory which measures, tests, calibrates or otherwise determines the characteristics of the performance of
materials and products
Note 1 to entry: In the context of this part of EN 1455, the materials and products can be subjected to type testing,
batch release testing, process verification testing, audit testing and/or witness testing, as applicable.
Note 2 to entry: A testing laboratory is preferably accredited to EN ISO/IEC 17025 [6].
3.4
quality management system
a system to direct and control an organization with regard to quality
Note 1 to entry: Requirements for quality management systems are given in EN ISO 9001 [1].
3.5
quality plan
document setting out the specific quality practices, resources and sequence of activities relevant to a
particular product or range of products
3.6
type testing
TT
testing performed to verify that the material, product, joint or assembly is capable of conforming to the
requirements given in the relevant standard
Note 1 to entry: The type test results remain valid until there is a change in the material or product or assembly
provided that the process verification tests are done regularly.
3.7
batch release test
BRT
test performed by or on behalf of the manufacturer on a batch of materials or products, which needs to be
satisfactorily completed before the batch can be released
3.8
process verification test
PVT
test performed by or on behalf of the manufacturer on materials, products, joints or assemblies at specific
intervals to confirm that the process continues to be capable of producing products which conform to the
requirements given in the relevant standard
Note 1 to entry: Such tests are not required to release batches of materials or products and are carried out as a
measure of process control.
3.9
audit test
AT
test performed by a test laboratory on behalf of an inspection body or certification body to confirm that the
material, product, joint or assembly continues to conform to the requirements given in the relevant standard
and to provide information to assess the effectiveness of the quality management system
3.10
indirect test
IT
test performed by or on behalf of the manufacturer, different from that specified test for that particular
characteristic, having previously verified its correlation with the specified test
3.11
witness test
WT
test accepted by an inspection or a certification body for type testing and/or audit testing, which is carried out
by or on behalf of the manufacturer and supervised by a representative of the inspection or certification body,
qualified in testing
3.12
material
generic term for compounds/formulations grouped by families, expressed by generic names, e.g.
polypropylene, stainless steel, brass or EPDM
[SOURCE: European Commission, Directorate-General for Enterprise and Industry, Sub-group on Product Testing
Procedures (EC, DG ENT and IND, SG PTP)]
3.13
compound/formulation
clearly defined homogenous mixture of base polymer with additives, i.e. anti-oxidants, pigments, stabilizers
and others, at a dosage level necessary for the processing and the intended use of the final product
3.14
material batch
clearly identified quantity of a given homogeneous compound/formulation manufactured under uniform
conditions and defined and identified by the compound/formulation manufacturer
3.15
product
pipe or fitting of a clearly identified type intended to be a part of a piping system which the manufacturer puts
on the market
3.16
product batch
clearly identified collection of products, manufactured consecutively or continuously under the same
conditions, using the same materials and conforming to the same specification
Note 1 to entry: The production batch is defined and identified by the product manufacturer.
3.17
lot
clearly identifiable sub-division of a batch for inspection purposes
3.18
sample
one or more products drawn from the same production batch or lot, selected at random without regard to their
quality
Note 1 to entry: The number of products in the sample is the sample size.
3.19
group
collection of similar products from which samples are selected for testing purposes
3.20
component
product manufactured out of a specific compound/formulation, brought to the market as part of a product or as
a spare part
3.21
joint
connection between two products
3.22
assembled product
assembled final product using two or more single parts
3.23
thermoplastics fabricated fitting
fitting produced from pipe and/or from injection-moulded fittings by thermoforming, solvent-cementing or
welding
3.24
assembly
product that can be dismantled into a set of components
EXAMPLE A test piece consisting of various products.
3.25
sampling plan
specification of the type of sampling to be used combined with the operational specification of the entities or
increments to be taken, the samples to be constituted and the measurements or tests to be made
EXAMPLE A specific plan which indicates the number of units of products or assemblies to be inspected.
3.26
product type
generic description of a product
EXAMPLE A pipe or fitting or their main parts, of the same design, from a particular compound.
3.27
cavity
(moulding) space within a mould to be filled to form the moulded product
EXAMPLE That part of the injection mould which gives the form to the injection moulded product.
4 Abbreviated terms
To avoid misunderstanding, the abbreviations in this Clause are defined as being the same in each language.
For the same reason, the terms are given in the three languages, English, French and German.
EN FR DE
AT audit test essai d’audit Überwachungsprüfung
BRT batch release test essai de libération de campagne de fabrication Freigabeprüfung einer Charge
IT indirect test essai indirect indirekte Prüfung
PVT process verification test essai de vérification du procédé de fabrication Prozessüberprüfung
TT type test essai de type Typprüfung
WT witness testing essai témoin Prüfung unter Aufsicht
5 General
5.1 Materials (compounds/formulations), products, joints and assemblies shall conform to the requirements
given in EN 1455-1.
5.2 Products shall be produced by the manufacturer under a quality management system which includes a
quality plan (including specifications on joints and assemblies).
It is recommended that the quality management system conforms to or is no less stringent than the relevant
requirements to EN ISO 9001 [1].
6 Testing and inspection
6.1 Material specification
For the purposes of this Technical Specification, the material specification consists of a formulation comprising
an ABS material with specific trade name and additives with known dosage level.
6.2 Grouping
6.2.1 General
For the purposes of this Technical Specification, the following groups apply.
6.2.2 Size groups
Two size groups are defined for pipes and fittings, as given in Table 1.
For testing purposes, one individual nominal diameter, d , shall be selected from each group.
n
Table 1 — Size groups
Size group Nominal diameter, d

n
mm
1 32 ≤ d < 75
n
75 ≤ d < 160
n
6.2.3 Fitting groups
Three groups of fittings each having a similar design are defined, as given in Table 2.
For testing purposes, one individual fitting shall be selected from each group.
Table 2 — Fit
...
