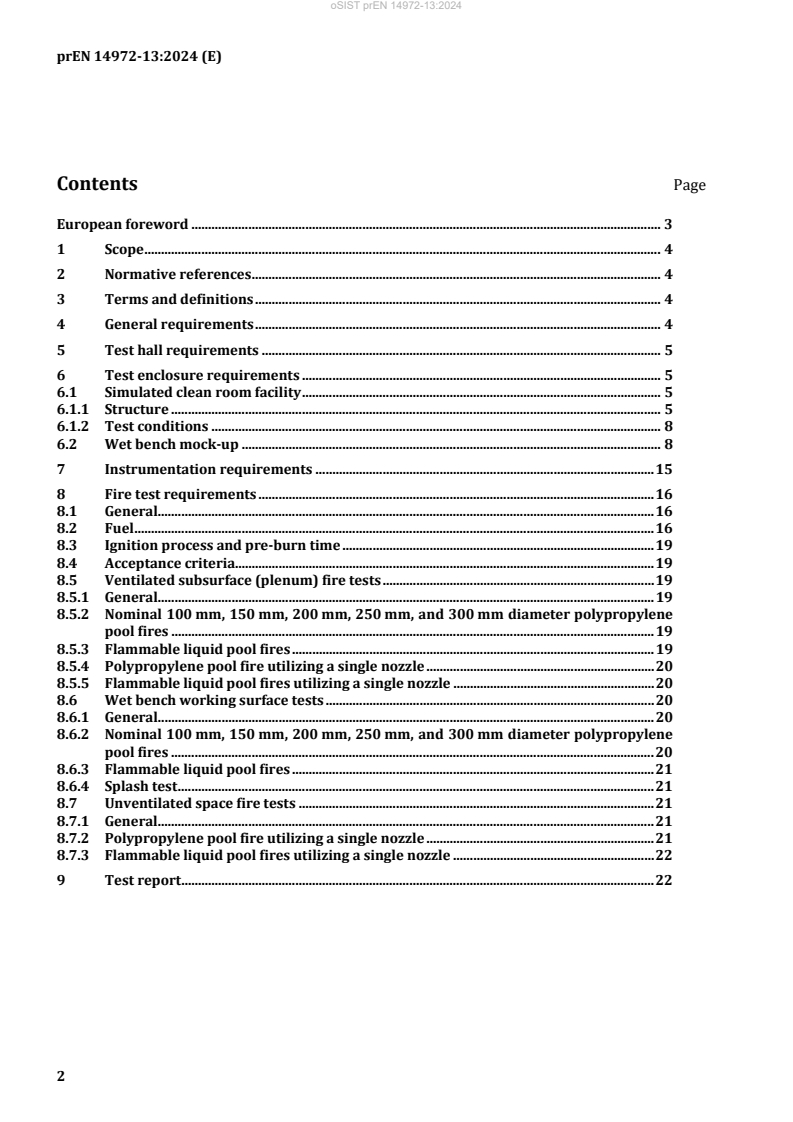

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 General requirements . 4
5 Test hall requirements . 5
6 Test enclosure requirements . 5
6.1 Simulated clean room facility . 5
6.1.1 Structure . 5
6.1.2 Test conditions . 8
6.2 Wet bench mock-up . 8
7 Instrumentation requirements . 15
8 Fire test requirements . 16
8.1 General. 16
8.2 Fuel . 16
8.3 Ignition process and pre-burn time . 19
8.4 Acceptance criteria. 19
8.5 Ventilated subsurface (plenum) fire tests . 19
8.5.1 General. 19
8.5.2 Nominal 100 mm, 150 mm, 200 mm, 250 mm, and 300 mm diameter polypropylene
pool fires . 19
8.5.3 Flammable liquid pool fires . 19
8.5.4 Polypropylene pool fire utilizing a single nozzle . 20
8.5.5 Flammable liquid pool fires utilizing a single nozzle . 20
8.6 Wet bench working surface tests . 20
8.6.1 General. 20
8.6.2 Nominal 100 mm, 150 mm, 200 mm, 250 mm, and 300 mm diameter polypropylene
pool fires . 20
8.6.3 Flammable liquid pool fires . 21
8.6.4 Splash test . 21
8.7 Unventilated space fire tests . 21
8.7.1 General. 21
8.7.2 Polypropylene pool fire utilizing a single nozzle . 21
8.7.3 Flammable liquid pool fires utilizing a single nozzle . 22
9 Test report . 22

European foreword
This document (prEN 14972-13:2024) has been prepared by Technical Committee CEN/TC 191 “Fixed
firefighting systems”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
The EN 14972 series, published under the general title Fixed firefighting systems — Water mist systems,
consists of the following parts. This list includes standards that are in preparation, and other standards
can be added. For the current status of published standards, refer to www.cencenelec.eu.
— Part 1: Design, installation, inspection and maintenance;
— Part 2: Test protocol for shopping areas for automatic nozzle systems;
— Part 3: Test protocol for office, school classrooms and hotel for automatic nozzle systems;
— Part 4: Test protocol for non-storage occupancies for automatic nozzle systems;
— Part 5: Test protocol for car garages for automatic nozzle systems;
— Part 6: Test protocol for false floors and false ceilings for automatic nozzle systems;
— Part 7: Test protocol for commercial low hazard occupancies for automatic nozzle systems;
— Part 8: Test protocol for machinery in enclosures exceeding 260 m for open nozzle systems;
— Part 9: Test protocol for machinery in enclosures not exceeding 260 m for open nozzle systems;
— Part 10: Test protocol for atrium protection with sidewall nozzles for open nozzle systems;
— Part 11: Test protocol for cable tunnels for open nozzle systems;
— Part 12: Test protocol for commercial deep fat cooking fryers for open nozzle systems;
— Part 13: Test protocol for wet benches and other similar processing equipment for open nozzle systems;
— Part 14: Test protocol for combustion turbines in enclosures exceeding 260 m for open nozzle systems;
— Part 15: Test protocol for combustion turbines in enclosures not exceeding 260 m for open nozzle
systems;
— Part 16: Test protocol for industrial oil cookers for open nozzle systems;
— Part 17: Test protocol for residential occupancies for automatic nozzle systems.
1 Scope
This document specifies the evaluation of the fire performance of water mist systems for wet benches
and other similar processing equipment.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 14972-1:2020, Fixed firefighting systems — Water mist systems — Design, installation, inspection and
maintenance
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 14972-1 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
4 General requirements
4.1 Up to a maximum of 5 nozzles used in the fire tests shall be kept for later verification.
4.2 The water mist system, operating without manual intervention, shall successfully complete all
described performance fire tests for their specific applications.
4.3 The fire tests shall be conducted until the fire is extinguished, as required by the fire test.
4.4 System components, component locations, operating conditions and test enclosure details shall
remain unaltered throughout all the fire tests for a given application.
4.5 All fire tests shall be conducted using the manufacturer instructions in regard to nozzle placement,
spray flux, operating pressure, and spray duration. Sprays can be continuous or intermittent in time. In
case of intermittent, or cycled, sprays, the time period during which the system is not discharging shall
not be greater than 50 % of one complete on/off cycle. The system off period shall not exceed 1 min.
4.6 In conjunction with the performance fire tests, all twin fluid water mist systems shall be subjected
to a straight discharge test with no fire to evaluate the resulting discharge and oxygen concentration. This
evaluation shall be conducted using the maximum extinguishing agent flow and pressure. The discharge
duration for the test shall be the maximum required for the system and occupancy to be protected.
Oxygen measurements shall be recorded at a location(s) within the test enclosure. This information shall
be used to evaluate personnel safety and shall be accounted for in the manufacturer’s DIOM manual.
4.7 The minimum operating nozzle pressure (as specified by the manufacturer) shall be used for all
tests. System operating pressures shall be repeatable to within ± 5 %. If the system pressures cannot be
controlled within the specified tolerance, fire tests shall be conducted at the minimum and maximum
pressure by using external means to control the system pressure.
4.8 The maximum nozzle ceiling height and spacing (as specified by the manufacturer) shall be used
for all tests. This includes utilizing the maximum ceiling spacing of the nozzles from the walls.
4.9 The ceiling nozzle arrangement shall have uniform spacing. The ceiling nozzle spacing from the
wall shall be uniform, preferably one half of the main spacing.
5 Test hall requirements
5.1 The fire test hall shall be of adequate size with natural or minimal ventilation so as not to interfere
with the fire testing within the enclosure or about the wet bench mock-up in the hall.
5.2 The size of the test laboratory shall not impact extinguishment of any test fires (i.e. depletion of
oxygen due to an inadequately sized test laboratory).
5.3 For all fire tests, the ceiling, floor, and walls shall be as dry as possible, with only ambient moisture
content allowed. The relative humidity in the test enclosure shall not significantly differ from that of the
ambient relative humidity. Maximum room relative humidity shall not be more than 70 % prior to the
test.
5.4 The fire test hall shall be at an ambient temperature of (20 ± 10) °C prior to the start of the test.
6 Test enclosure requirements
6.1 Simulated clean room facility
6.1.1 Structure
The simulated clean room facility shall be constructed in a large open test hall. The enclosure shall be
3,7 m wide by 5,5 m long by 3,7 m in height. The enclosure shall be constructed of wood or metal frame
with an inner lining of minimum 13 mm gypsum or 0,7 mm galvanized steel. A 0,8 m by 2,0 m high
personnel door shall be installed with a locking mechanism in one of the walls. A 1,2 m by 2,4 m high
removable panel shall also be installed for test enclosure access (the personnel door may be constructed
within this panel).
The ceiling of the enclosure shall be constructed of a porous plate to allow inflow of air from the open
test hall at the ceiling level. The plate shall include 6,3 mm diameter perforations at 25 mm spacing. This
will result in an open area of approximately 6 %.
The floor of the enclosure shall be raised. The floor shall be constructed with closed mesh ca. 2,65 mm
steel grating (bearing bar size of 25 mm) tall by 3,2 mm thick. The mesh opening shall be 8 mm by
100 mm. A porous steel plate shall be placed below the steel grating. The plate shall include 6,5 mm
diameter perforations at 25 mm spacing. This will result in an open area of approximately 6 %.
A sub-floor shall be constructed underneath the primary enclosure, to allow airflow through the test
enclosure floor openings, creating a realistic flow environment surrounding the wet bench mock-up. The
sub-floor shall be 3,7 m wide by 5,5 m long by 1,2 m deep and shall be constructed of wood or metal frame
with an inner lining of minimum 1
...
