EN 12662-1:2024
(Main)Liquid petroleum products - Determination of total contamination - Part 1: Middle distillates and diesel fuels
Liquid petroleum products - Determination of total contamination - Part 1: Middle distillates and diesel fuels
This document specifies a method for the determination of the content of undissolved substances, referred to as total contamination, in middle distillates, in diesel fuels containing up to 30 % (V/V) fatty acid methyl esters (FAME). The working range is from 12 mg/kg to 26 mg/kg and it was established in an interlaboratory study by applying EN ISO 4259-1 [4].
This document in general is applicable to products having a kinematic viscosity not exceeding 8 mm2/s at 20 °C, or 5 mm2/s at 40 °C.
This test method can be used for paraffinic diesel fuels as specified in EN 15940, for diesel fuels containing more than 30 % (V/V) FAME and for petroleum products having a kinematic viscosity exceeding 8 mm2/s at 20 °C, or 5 mm2/s at 40 °C, however in such cases the precision of the test method has not been determined.
NOTE For the purposes of this document, the term “% (V/V)” is used to represent the volume fraction, φ, of a material.
WARNING - The use of this document can involve hazardous materials, operations and equipment. This document does not purport to address all of the safety problems associated with its use. It is the responsibility of the user of this document to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
Flüssige Mineralölerzeugnisse - Bestimmung der Gesamtverschmutzung - Teil 1: Mitteldestillate und Dieselkraftstoffe
Dieses Dokument legt ein Verfahren zur Bestimmung des Gehalts an ungelösten Stoffen, bezeichnet als Gesamtverschmutzung, in Mitteldestillaten und in Dieselkraftstoffen mit einem Anteil von bis zu 30 % (V/V) Fettsäure-Methylester (FAME, en: fatty acid methyl esters) fest. Der Arbeitsbereich liegt zwischen 12 mg/kg und 26 mg/kg und wurde in einem Ringversuch unter Anwendung von EN ISO 4259-1 [4] ermittelt.
Dieses Dokument ist im Allgemeinen anwendbar für Erzeugnisse mit einer kinematischen Viskosität nicht größer als 8 mm2/s bei 20 °C bzw. nicht größer als 5 mm2/s bei 40 °C.
Dieses Prüfverfahren kann für paraffinische Dieselkraftstoffe nach EN 15940, für Dieselkraftstoffe mit einem Gehalt von mehr als 30 % (V/V) FAME sowie für Mineralölerzeugnisse mit einer kinematischen Viskosität größer als 8 mm2/s bei 20 °C bzw. größer als 5 mm2/s bei 40 °C eingesetzt werden. Für diese Fälle wurde die Präzision des Prüfverfahrens allerdings noch nicht ermittelt.
ANMERKUNG Für die Zwecke dieses Dokuments wird zur Angabe des Volumenanteils φ eines Materials der Ausdruck „% (V/V)“ verwendet.
WARNUNG - Die Anwendung dieses Dokuments kann die Anwendung gefährlicher Stoffe, Arbeitsgänge und Geräte mit sich bringen. Dieses Dokument beansprucht nicht, alle damit verbundenen Sicherheitsprobleme zu behandeln. Es liegt in der Verantwortung der Person, die das Dokument anwendet, vor der Anwendung geeignete Maßnahmen für die Sicherheit und den Gesundheitsschutz zu ergreifen und die Geltung weiterer diesbezüglicher Auflagen zu prüfen.
Produits pétroliers liquides - Détermination de la contamination totale - Partie 1 : Distillats moyens et gazoles
Le présent document spécifie une méthode de détermination de la teneur en substances non dissoutes, référencée comme contamination totale, dans les distillats moyens, dans les gazoles contenant jusqu’à 30 % (V/V) d’esters méthyliques d’acides gras (EMAG). Le domaine d’application s’étend sur un intervalle de teneurs en contaminants allant de 12 mg/kg à 26 mg/kg ; celui-ci a été établi au moyen d’une étude interlaboratoires conformément à l’EN ISO 4259-1 [4].
D’une manière générale, le présent document est applicable aux produits dont la viscosité cinématique ne dépasse pas 8 mm2/s à 20 C ou 5 mm2/s à 40 C.
Cette méthode d’essai peut être utilisée sur des gazoles paraffiniques tels que spécifiés dans l’EN 15940, sur des carburants diesel contenant plus de 30 % (V/V) d’EMAG et sur des produits pétroliers dont la viscosité cinématique est supérieure à 8 mm2/s à 20 °C ou 5 mm2/s à 40 °C, cependant, dans de tels cas, les valeurs de fidélité concernant cette méthode n’ont pas été déterminées.
NOTE Pour les besoins du présent document, l'expression « % (V/V) » est employée pour représenter la fraction volumique, φ, d’un produit.
AVERTISSEMENT - L'utilisation du présent document peut impliquer l'intervention de produits, d'opérations et d'équipements à caractère dangereux. Ce document n'est pas censé aborder tous les problèmes de sécurité concernés par sa mise en œuvre. Il est de la responsabilité de l'utilisateur de consulter et d'établir des règles de sécurité et d'hygiène appropriées et de déterminer l'applicabilité des restrictions réglementaires avant utilisation.
Tekoči naftni proizvodi - Določanje celokupnih nečistoč - 1. del: Srednji destilati in dizelsko gorivo
Ta evropski standard določa metodo za določanje vsebnosti neraztopljenih snovi (celokupnih nečistoč) v srednjih destilatih, dizelskem gorivu, ki vsebuje do 30 % (V/V) metilnih estrov maščobnih kislin (FAME), in v čistih metilnih estrih maščobnih kislin. Delovno območje je od 12 do 30 mg/kg in je bilo določeno z medlaboratorijsko študijo ob upoštevanju standarda EN ISO 4259 [2].
Ta evropski standard se v splošnem uporablja za proizvode s kinematično viskoznostjo, manjšo od 8 mm2/s pri 20 °C oziroma 5 mm2/s pri 40°C, kot je dizelsko gorivo iz standarda EN 590 [1].
Ta preskusna metoda se lahko uporablja za dizelska goriva, ki vsebujejo več kot 30 % (V/V) metilnih estrov maščobnih kislin, in naftne proizvode s kinematično viskoznostjo, večjo od 8 mm2/s pri 20 °C oziroma 5 mm2/s pri 40°C, vendar v takih primerih natančnost preskusne metode ni bila določena.
OPOMBA 1: Prevelika vsebnost nečistoč v sistemu za gorivo lahko povzroči prezgodnjo blokado filtrov in/ali okvaro strojne opreme, zato ni zaželena.
OPOMBA 2: V tem evropskem standardu oznaka »% (V/V)« predstavlja prostorninski delež (φ) materiala.
OPOZORILO: Pri uporabi tega standarda so lahko prisotni nevarni materiali, postopki in oprema. Ta standard ne obravnava vseh varnostnih težav, ki se navezujejo na njegovo uporabo. Za vzpostavitev ustreznih varnostnih in zdravstvenih praks ter za določitev uporabnosti regulativnih omejitev pred uporabo je odgovoren uporabnik tega standarda.
General Information
Relations
Overview
EN 12662-1:2024 - Liquid petroleum products: Determination of total contamination (Part 1) specifies a vacuum‑filtration test method to measure undissolved substances (referred to as total contamination) in middle distillates and diesel fuels containing up to 30 % (V/V) FAME (fatty acid methyl esters). The method has an established working range of 12 mg/kg to 26 mg/kg based on interlaboratory studies and is intended primarily for products with kinematic viscosity ≤ 8 mm2/s at 20 °C (or ≤ 5 mm2/s at 40 °C).
Key topics and technical requirements
- Scope & applicability
- Middle distillates and diesel fuels up to 30 % (V/V) FAME; can be applied to other fuels (including paraffinic diesel or higher FAME blends) but precision is not determined for those.
- Working range: 12–26 mg/kg (precision determined using EN ISO 4259-1).
- Test principle
- Weigh a test portion, filter under vacuum through a pre‑weighed 47 mm glass‑fibre filter (mean pore size 0.7 µm), wash, dry and reweigh; contamination reported as mg/kg.
- Essential equipment and reagents
- Analytical balance (0.1 mg), static oven (110 ± 5 °C), desiccator, vacuum source able to maintain 2–5 kPa (absolute pressure), heptane (≥99.0 % V/V), isopropanol (propan‑2‑ol).
- Sampling and cleaning
- Samples should be taken per EN ISO 3170 / EN ISO 3171 / EN 14275; glass containers and filtration apparatus must be rigorously cleaned to avoid false positives.
- Safety and limitations
- Method involves flammable solvents and vacuum equipment - users must observe applicable safety and regulatory requirements.
- Method validation
- Precision established via interlaboratory study (EN ISO 4259-1). For products outside the stated viscosity or FAME limits, precision data are not provided.
Practical applications
- Quality control of retail and bulk diesel to prevent filter blockage and fuel-system failures by monitoring total contamination.
- Acceptance testing at terminals, fuel distributors and laboratories checking conformity to fuel quality specifications.
- Investigative testing after equipment fouling or fuel handling incidents to quantify particulate/undissolved contaminants.
Who should use this standard
- Fuel testing laboratories, oil and petrochemical QC teams, refinery and distribution quality managers, engine and filter manufacturers assessing fuel compatibility and cleanliness.
Related standards
- EN ISO 3170, EN ISO 3171 (sampling)
- EN 14275 (retail pump sampling)
- EN ISO 4259-1 (statistical evaluation / precision)
- EN 15940 (paraffinic diesel fuels)
- EN 12662-2 (separate part covering neat FAME)
Keywords: EN 12662-1:2024, total contamination, middle distillates, diesel fuels, FAME, vacuum filtration, fuel quality testing.
Standards Content (Sample)

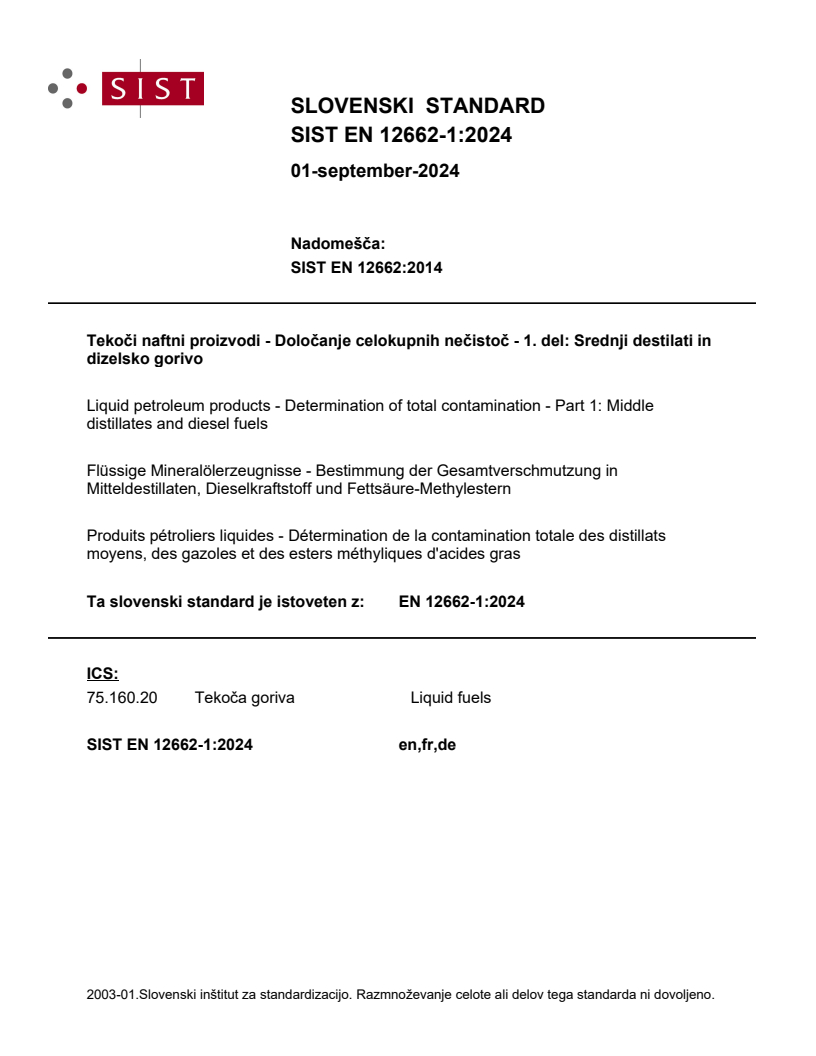

SLOVENSKI STANDARD
01-september-2024
Nadomešča:
SIST EN 12662:2014
Tekoči naftni proizvodi - Določanje celokupnih nečistoč - 1. del: Srednji destilati in
dizelsko gorivo
Liquid petroleum products - Determination of total contamination - Part 1: Middle
distillates and diesel fuels
Flüssige Mineralölerzeugnisse - Bestimmung der Gesamtverschmutzung in
Mitteldestillaten, Dieselkraftstoff und Fettsäure-Methylestern
Produits pétroliers liquides - Détermination de la contamination totale des distillats
moyens, des gazoles et des esters méthyliques d'acides gras
Ta slovenski standard je istoveten z: EN 12662-1:2024
ICS:
75.160.20 Tekoča goriva Liquid fuels
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

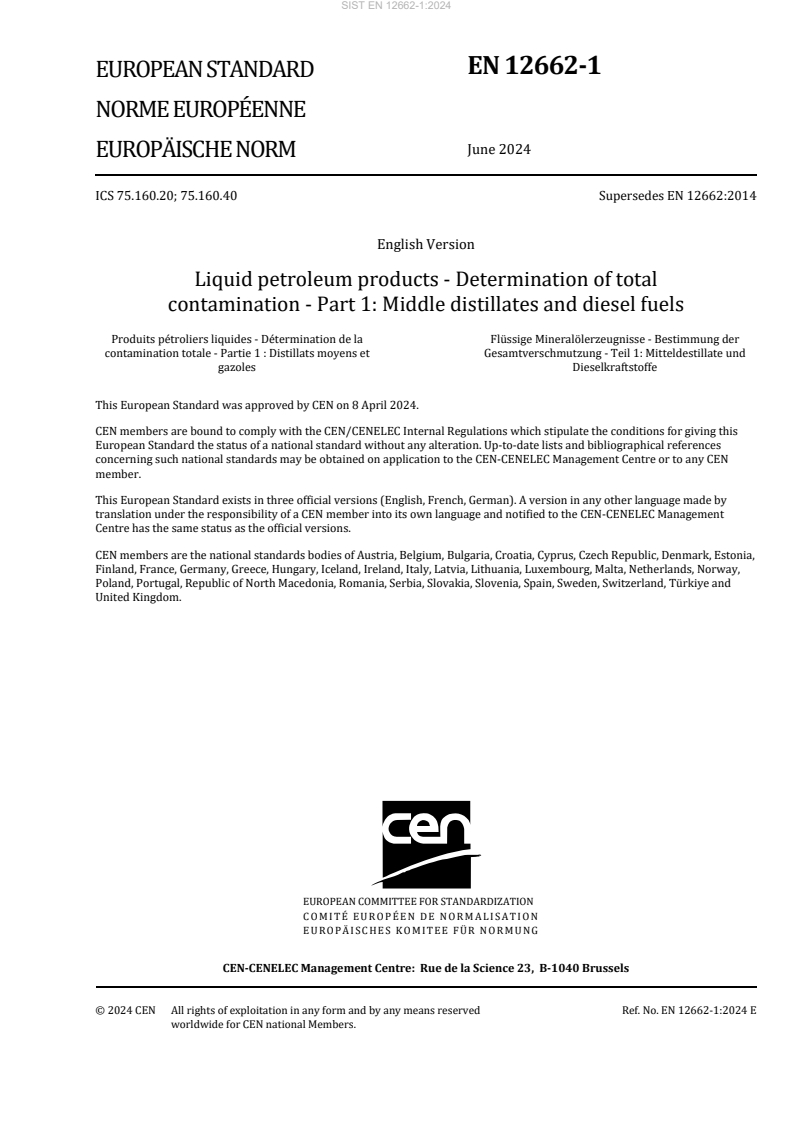

EN 12662-1
EUROPEAN STANDARD
NORME EUROPÉENNE
June 2024
EUROPÄISCHE NORM
ICS 75.160.20; 75.160.40 Supersedes EN 12662:2014
English Version
Liquid petroleum products - Determination of total
contamination - Part 1: Middle distillates and diesel fuels
Produits pétroliers liquides - Détermination de la Flüssige Mineralölerzeugnisse - Bestimmung der
contamination totale - Partie 1 : Distillats moyens et Gesamtverschmutzung - Teil 1: Mitteldestillate und
gazoles Dieselkraftstoffe
This European Standard was approved by CEN on 8 April 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 12662-1:2024 E
worldwide for CEN national Members.

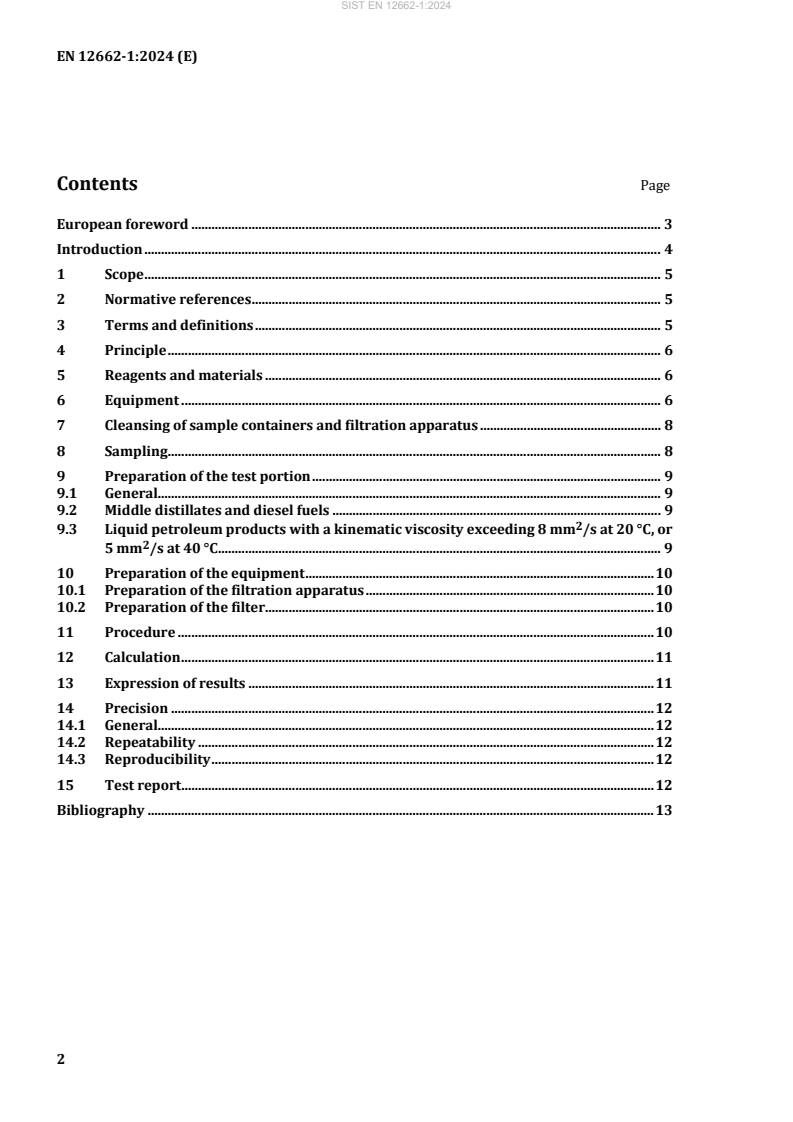

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 6
5 Reagents and materials . 6
6 Equipment . 6
7 Cleansing of sample containers and filtration apparatus . 8
8 Sampling . 8
9 Preparation of the test portion . 9
9.1 General. 9
9.2 Middle distillates and diesel fuels . 9
9.3 Liquid petroleum products with a kinematic viscosity exceeding 8 mm /s at 20 °C, or
5 mm /s at 40 °C . 9
10 Preparation of the equipment . 10
10.1 Preparation of the filtration apparatus . 10
10.2 Preparation of the filter . 10
11 Procedure . 10
12 Calculation . 11
13 Expression of results . 11
14 Precision . 12
14.1 General. 12
14.2 Repeatability . 12
14.3 Reproducibility . 12
15 Test report . 12
Bibliography . 13
European foreword
This document (EN 12662-1:2024) has been prepared by Technical Committee CEN/TC 19 “Gaseous and
liquid fuels, lubricants and related products of petroleum, synthetic and biological origin”, the secretariat
of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2024, and conflicting national standards shall
be withdrawn at the latest by December 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12662:2014.
In comparison with the previous edition, the following technical modifications have been made:
— split of the scope of the previous edition in two parts, with Part 1 covering the middle distillates and
the diesel fuels containing up to 30 % (V/V) of fatty acid methyl ester (FAME) in this document and
with Part 2 covering the neat FAME in a separated document;
— update of the precision data following a new statistical analysis [6] of the interlaboratory tests data
available without the FAME samples according to EN ISO 4259-1:2017 [4].
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
Excessive contamination in a fuel system can give rise to premature blocking of filters and/or hardware
failure, and is therefore undesirable. The determination of the content of undissolved substances,
referred to as total contamination, is a way to control this issue.
In the previous version of this method, the scope was covering middle distillates, diesel fuels containing
up to 30 % (V/V) of FAME and neat FAME. It was found that the improvement sought in 2014, give
problems in the lab in testing FAME and correlate the results to those obtained with the previous version
of the method. A solution has been found, which resulted in splitting the methodology in two parts: to
include the previous version as Part 1 and to develop a separate standard for neat FAME as Part 2.
1 Scope
This document specifies a method for the determination of the content of undissolved substances,
referred to as total contamination, in middle distillates, in diesel fuels containing up to 30 % (V/V) fatty
acid methyl esters (FAME). The working range is from 12 mg/kg to 26 mg/kg and it was established in
an interlaboratory study by applying EN ISO 4259-1 [4].
This document in general is applicable to products having a kinematic viscosity not exceeding 8 mm /s
at 20 °C, or 5 mm /s at 40 °C.
This test method can be used for paraffinic diesel fuels as specified in EN 15940, for diesel fuels
containing more than 30 % (V/V) FAME and for petroleum products having a kinematic viscosity
2 2
exceeding 8 mm /s at 20 °C, or 5 mm /s at 40 °C, however in such cases the precision of the test method
has not been determined.
NOTE For the purposes of this document, the term “% (V/V)” is used to represent the volume fraction, φ, of a
material.
WARNING — The use of this document can involve hazardous materials, operations and equipment. This
document does not purport to address all of the safety problems associated with its use. It is the
responsibility of the user of this document to establish appropriate safety and health practices and
determine the applicability of regulatory limitations prior to use.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 14275, Automotive fuels — Assessment of petrol and diesel fuel quality — Sampling from retail site
pumps and commercial site fuel dispensers
EN ISO 3170, Petroleum liquids — Manual sampling (ISO 3170)
EN ISO 3171, Petroleum liquids — Automatic pipeline sampling (ISO 3171)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org
3.1
total contamination
undissolved substances retained on a filter after filtration under test conditions
3.2
absolute pressure
pressure measured relative to zero pressure or a total vacuum
4 Principle
A sample portion is weighed and filtered under vacuum through a pre-weighed filter. In the case of liquid
2 2
petroleum products having a kinematic viscosity exceeding 8 mm /s at 20 °C, or 5 mm /s at 40 °C, the
weighed sample portion is diluted with a solvent before filtration. The filter with the residue is washed,
dried and weighed. Contamination is calculated from the difference in mass of the filter and expressed
relative to the sample mass as mg/kg.
5 Reagents and materials
5.1 Heptane, with a purity no less than 99,0 % (V/V), filtered using a membrane filter (6.18).
NOTE Heptane used as a reference fuel in EN ISO 5164 [5] is suitable.
5.2 Propan-2-ol, with a purity no less than 99,0 % (V/V).
NOTE Propan-2-ol is used to dry glassware and the sample container after rinsing with water.
6 Equipment
All glassware and sample containers shall be carefully cleaned as described in Clause 7.
Usual laboratory apparatus and glassware, together with the following:
6.1 Filtration apparatus, suitable for a filter (6.2), as shown in Figure 1.
A different filtration apparatus may be used if it is suitable to take the filters given in 6.2.
6.2 Filters, of high retention glass fibre type, 47 mm in diameter and with a 0,7 μm mean pore size.
NOTE Glass fibre filters Whatman GF-F type have been found suitable for total contamination measurements.
This information is given for the convenience of users of this document and does not constitute an endorsement by
CEN of this product.
6.3 Beakers, tall form 0,5 l and 1 l.
6.4 Cylinders, 500 ml and 1 000 ml graduated cylinders.
6.5 Glass bottles, 0,5 l and 1 l, with screw caps.
6.6 Oven, of the static type (without fan assisted circulation), explosion-proof, capable of heating to
(110 ± 5) °C.
6.7 Desiccator, containing freshly activated silica gel (or equivalent desiccant) with a moisture content
indicator.
6.8 Glass Petri dishes with covers, greater than 50 mm in diameter or an equivalent alternative to
handling the filter, which is sample and temperature resistant, for example an aluminium bowl.
6.9 Analytical balance, capable of weighing to the nearest 0,1 mg.
6.10 Forceps, with round shaped tips for transferring the filter from the filter holder to the Petri dish
and from the latter on to the dish of the analytical balance.
6.11 Water bath or oven, capable of maintaining the following temperatures: (40 ± 1) °C.
6.12 Wash bottle, fitted with spray nozzle, suitable for use with heptane (5.1).
6.13 Top load balance, capable
...
Frequently Asked Questions
EN 12662-1:2024 is a standard published by the European Committee for Standardization (CEN). Its full title is "Liquid petroleum products - Determination of total contamination - Part 1: Middle distillates and diesel fuels". This standard covers: This document specifies a method for the determination of the content of undissolved substances, referred to as total contamination, in middle distillates, in diesel fuels containing up to 30 % (V/V) fatty acid methyl esters (FAME). The working range is from 12 mg/kg to 26 mg/kg and it was established in an interlaboratory study by applying EN ISO 4259-1 [4]. This document in general is applicable to products having a kinematic viscosity not exceeding 8 mm2/s at 20 °C, or 5 mm2/s at 40 °C. This test method can be used for paraffinic diesel fuels as specified in EN 15940, for diesel fuels containing more than 30 % (V/V) FAME and for petroleum products having a kinematic viscosity exceeding 8 mm2/s at 20 °C, or 5 mm2/s at 40 °C, however in such cases the precision of the test method has not been determined. NOTE For the purposes of this document, the term “% (V/V)” is used to represent the volume fraction, φ, of a material. WARNING - The use of this document can involve hazardous materials, operations and equipment. This document does not purport to address all of the safety problems associated with its use. It is the responsibility of the user of this document to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
This document specifies a method for the determination of the content of undissolved substances, referred to as total contamination, in middle distillates, in diesel fuels containing up to 30 % (V/V) fatty acid methyl esters (FAME). The working range is from 12 mg/kg to 26 mg/kg and it was established in an interlaboratory study by applying EN ISO 4259-1 [4]. This document in general is applicable to products having a kinematic viscosity not exceeding 8 mm2/s at 20 °C, or 5 mm2/s at 40 °C. This test method can be used for paraffinic diesel fuels as specified in EN 15940, for diesel fuels containing more than 30 % (V/V) FAME and for petroleum products having a kinematic viscosity exceeding 8 mm2/s at 20 °C, or 5 mm2/s at 40 °C, however in such cases the precision of the test method has not been determined. NOTE For the purposes of this document, the term “% (V/V)” is used to represent the volume fraction, φ, of a material. WARNING - The use of this document can involve hazardous materials, operations and equipment. This document does not purport to address all of the safety problems associated with its use. It is the responsibility of the user of this document to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
EN 12662-1:2024 is classified under the following ICS (International Classification for Standards) categories: 75.160.20 - Liquid fuels; 75.160.40 - Biofuels. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 12662-1:2024 has the following relationships with other standards: It is inter standard links to EN 12662:2014. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 12662-1:2024 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
SIST EN 12662-1:2024 문서는 중간 증류품 및 디젤 연료에서 총 오염도를 측정하기 위한 방법을 명세하고 있습니다. 이 표준의 주요 범위는 30% (V/V) 이하의 지방산 메틸 에스터(FAME)를 포함한 디젤 연료에서 비용해 물질의 함량을 결정하는 것입니다. 작업 범위는 12 mg/kg에서 26 mg/kg까지로, 이는 EN ISO 4259-1에 의해 수행된 상호 시험 연구를 통해 설정되었습니다. 이 표준의 강점 중 하나는 비중이 20°C에서 8 mm²/s, 40°C에서 5 mm²/s를 초과하지 않는 제품에 일반적으로 적용된다는 점입니다. 따라서, 다음 유형의 연료에 대해 신뢰할 수 있는 테스트 방법을 제공하므로, 제반 산업에서 디젤 연료의 품질 관리를 위한 필수적 기준이 됩니다. 또한, 이 시험 방법은 EN 15940에 명시된 파라핀 디젤 연료에 적용 가능하며, 30% (V/V)가 넘는 FAME를 포함한 디젤 연료 및 20°C에서 8 mm²/s, 40°C에서 5 mm²/s를 초과하는 점성을 가진 석유 제품에도 사용될 수 있습니다. 단, 이러한 경우에는 시험 방법의 정밀도가 확립되지 않았음을 유의해야 합니다. 문서 사용 시 경고 사항도 포함되어 있어, 사용자에게 안전하고 건강한 작업 관행을 수립하고 규제적 한계를 고려해야 할 책임이 있음을 강조합니다. 이는 사용자들에게 신뢰할 수 있는 정보를 제공함으로써 안전한 작업 환경을 보장하는 데 기여합니다. 결론적으로, SIST EN 12662-1:2024 표준은 중간 증류품과 디젤 연료의 품질을 보장하고, 산업의 표준화된 안전 기준을 제공하는 데 필수적인 역할을 합니다.
Die Norm EN 12662-1:2024 behandelt die Bestimmung der Gesamtverunreinigung in mitteldestillierten Flüssigkraftstoffen und Dieselölen. Ihr Anwendungsbereich erstreckt sich auf Diesel kraftstoffe, die bis zu 30 % (V/V) Fettsäuremethylester (FAME) enthalten. Diese Norm liefert ein präzises Verfahren zur Bestimmung des Gehalts an ungelösten Stoffen, was für die Qualitätssicherung und die Verträglichkeit von Kraftstoffen entscheidend ist. Ein wesentliches Merkmal dieser Norm ist die klare Definition des Arbeitsbereichs, der von 12 mg/kg bis 26 mg/kg reicht und in einer Interlaborstudie gemäß EN ISO 4259-1 ermittelt wurde. Dies stärkt die Zuverlässigkeit der Testergebnisse und macht diese Norm besonders relevant für Hersteller und Prüfinstitute, die mit mitteldestillierten Produkten arbeiten. Zudem ist die Norm auf Produkte mit einer kinematischen Viskosität von maximal 8 mm²/s bei 20 °C oder 5 mm²/s bei 40 °C anwendbar, was eine wichtige Einschränkung zur Gewährleistung der Genauigkeit der Testergebnisse darstellt. Die Anwendung dieser Methode bezieht sich nicht nur auf paraffinhaltige Diesel kraftstoffe gemäß EN 15940, sondern schließt auch Dieselöle mit einem FAME-Anteil von über 30 % (V/V) sowie Petroleumprodukte mit einer kinematischen Viskosität von mehr als 8 mm²/s bei 20 °C oder 5 mm²/s bei 40 °C ein. Es ist jedoch zu beachten, dass für diese Produkte die Präzision der Methode nicht bestimmt wurde, was für Nutzer von Bedeutung ist, um informierte Entscheidungen zu treffen. Zusätzlich wird in der Norm auf die Notwendigkeit hingewiesen, geeignete Sicherheits- und Gesundheitspraktiken zu etablieren und geltende Vorschriften zu beachten. Dies unterstreicht die Verantwortung des Nutzers bei der Anwendung dieses Verfahrens, insbesondere im Hinblick auf die Handhabung gefährlicher Materialien und die Durchführung der Tests. Insgesamt bietet die EN 12662-1:2024 eine präzise, methodisch fundierte Grundlage zur Bestimmung der Gesamtverunreinigung in mitteldestillierten Flüssigkraftstoffen und bekräftigt ihre Relevanz für die Industrie durch die klare Definition von Anwendungsbereichen und Prüfbedingungen. Die Norm ist von großer Bedeutung für die Sicherstellung der Qualität und Sicherheit in der Kraftstoffproduktion und -verwendung.
The EN 12662-1:2024 standard presents a comprehensive approach to the determination of total contamination in liquid petroleum products, specifically in middle distillates and diesel fuels, including those with up to 30% (V/V) fatty acid methyl esters (FAME). Its defined scope ensures that the methodology is applicable primarily to products with kinematic viscosity limits, namely those that do not exceed 8 mm²/s at 20 °C or 5 mm²/s at 40 °C, thereby ensuring a focused application in relevant contexts. One of the significant strengths of this standard lies in its rigorous interlaboratory study validation, which establishes a detailed working range for total contamination, set between 12 mg/kg and 26 mg/kg. This quantitative framework enhances credibility and reproducibility in laboratory settings, providing clear guidelines for users in various industrial applications. Furthermore, the scope extends to encompass paraffinic diesel fuels as well as applications for diesel fuels containing more than 30% (V/V) FAME, enhancing its relevance to diverse product formulations in the petroleum industry. However, it is essential to note that the precision of the method for these higher FAME contents has not been determined, a detail that users must consider when applying this standard to different fuel mixtures. The inclusion of a caution regarding hazardous materials and the need for safety assessments underscores the commitment to responsible usage, reinforcing the importance of safety and compliance in the application of this test method. This aspect is particularly critical in environments handling various petroleum products. Overall, the EN 12662-1:2024 standard provides robust guidelines for the determination of total contamination in relevant liquid petroleum products, highlighting its significance for manufacturers, regulatory bodies, and quality assurance professionals in maintaining product integrity and safety.
Le document SIST EN 12662-1:2024 présente une norme essentielle pour la détermination de la contamination totale dans les produits pétroliers liquides, en particulier les distillats moyens et les carburants diesel. Cette norme définit une méthode précise pour évaluer le contenu des substances non dissoutes dans les distillats moyens et les carburants diesel contenant jusqu'à 30 % (V/V) d'esters méthyliques d'acides gras (FAME). L'étendue de la norme couvre des cas pratiques pour des produits ayant une viscosité cinématique n'excédant pas 8 mm²/s à 20 °C, ou 5 mm²/s à 40 °C. Cela en fait un outil essentiel pour les analyses relatives à la qualité des carburants, garantissant que les combustibles diesel répondent aux normes de propreté et de performance. De plus, la méthode peut être utilisée pour caractériser les carburants diesel paraphiniques conformément à la norme EN 15940, renforçant ainsi sa pertinence dans des applications industrielles variées. Les points forts de la norme incluent son application à un large éventail de carburants et ses fondements scientifiquement validés par une étude interlaboratoire selon la méthode EN ISO 4259-1. Cela assure non seulement la fiabilité des résultats obtenus, mais également leur précision dans un cadre de travail défini. En outre, la norme propose une approche systématique pour les utilisateurs, tout en les avertissant des risques liés à la manipulation de matériaux potentiellement dangereux. La norme SIST EN 12662-1:2024 est donc non seulement un guide fondamental pour la détermination de la contamination totale dans les carburants diesel, mais aussi un instrument crucial pour assurer la conformité aux réglementations dans le secteur des produits pétroliers. Sa pertinence et sa robustesse en font un document incontournable pour les professionnels impliqués dans le contrôle de la qualité des carburants.
標準EN 12662-1:2024は、液体石油製品における中間馏出物やディーゼル燃料の総汚染物質の含有量を定量するための方法を規定しています。この標準は、最大30%（V/V）の脂肪酸メチルエステル（FAME）を含むディーゼル燃料および中間馏出物に適用可能であり、その作業範囲は12 mg/kgから26 mg/kgに設定されています。これは、EN ISO 4259-1に基づく相互試験によって確立された信頼性の高い測定基準です。 この文書の強みは、特定の粘度範囲（20℃で8 mm²/s以下、または40℃で5 mm²/s以下）に関して、明確なテスト方法を提供している点です。これは、燃料の品質管理や環境規制遵守において非常に重要です。さらに、この標準はEN 15940で指定されたパラフィン系ディーゼル燃料にも対応しており、幅広い適用性を有しています。 また、標準は、汚染物質測定のための精密性が未確認の条件についても言及しており、使用者に対して実際の応用における留意点を明確に示しています。これにより、適切な安全管理や法的制限に基づいた実施が求められることが理解できます。 総じて、EN 12662-1:2024は、液体石油製品の品質を確保するための信頼性の高い基準であり、その具体的な方法論と適用可能範囲が、使用者にとって非常に価値のあるリファレンスを提供しています。
The article discusses prEN 12662-1, a method for determining the amount of undissolved substances, known as total contamination, in middle distillates and diesel fuels. The method is applicable to fuels containing up to 30% fatty acid methyl esters (FAME), with a working range of 12 mg/kg to 26 mg/kg. The article also notes that the method can be used for fuels with more than 30% FAME or higher kinematic viscosities, but the precision of the results is not defined. It is important to use this method with caution, as it involves hazardous materials and operations. The user is responsible for establishing safety measures and considering regulatory limitations.
記事タイトル：prEN 12662-1 - 液体石油製品 - 総汚染物質の測定 - 第1部：中間蒸留物およびディーゼル燃料 記事内容：この文書は、中間蒸留物および最大30％（体積比）の脂肪酸メチルエステル（FAME）を含むディーゼル燃料中の未溶解物質である総汚染物質の含有量を決定するための方法を規定しています。作業範囲は、12 mg/kgから26 mg/kgであり、EN ISO 4259-1 [1]を適用して相互試験によって確立されました。 この文書は一般的に、20°Cで8 mm2/s以下または40°Cで5 mm2/s以下の運動粘度を持つ製品に適用されます。たとえば、EN 590 [2]で指定されたディーゼル燃料に該当します。 この試験方法は、30％以上のFAMEを含むディーゼル燃料や、20°Cで8 mm2/s以上または40°Cで5 mm2/s以上の運動粘度を持つ石油製品にも使用できますが、その場合、試験方法の精度は定義されていません。 注意 - 本文書では、「%（体積比）」という用語は、材料の体積分率を表すφとして使用されます。 警告 - この試験方法の使用には、危険物、作業、および機器が関与する場合があります。この方法は使用される際に発生するすべての安全問題を扱うものではありません。使用者は、適切な安全および衛生手順を確立し、使用前に規制の制限の適用可能性を確定する責任があります。
기사 제목 : prEN 12662-1 - 액체 석유 제품 - 총 오염 물질의 측정 - 제1부 : 중간 증류품 및 디젤 연료 기사 내용 : 본 문서는 중간 증류품과 30%(부피 비율) 이하의 지방산 메틸 에스테르(FAME)를 함유한 디젤 연료의 총 오염물질 내용을 결정하기 위한 방법을 규정한다. 작동 범위는 12 mg/kg에서 26 mg/kg까지이며 EN ISO 4259-1 [1]을 적용하여 교차 실험을 통해 마련되었다. 이 문서는 일반적으로 20°C에서 8 mm2/s 이하 또는 40°C에서 5 mm2/s 이하의 운동 점도를 가지는 제품에 적용된다. 예를 들어 EN 590 [2]에서 지정된 디젤 연료에 해당한다. 이 시험 방법은 30% 이상의 FAME을 함유한 디젤 연료 및 20°C에서 8 mm2/s 이상 또는 40°C에서 5 mm2/s 이상의 운동 점도를 가진 석유 제품에 대해서도 사용될 수 있으나, 이러한 경우에는 시험 방법의 정밀도가 정의되어 있지 않다. 참고 - 본 문서에서 "%(부피 비율)"이라는 용어는 물질의 체적분율을 나타내는 φ로 사용된다. 경고 - 이 시험 방법의 사용은 위험 물질, 작업 및 장비가 관계되어 있을 수 있다. 이 방법은 사용과정에서 발생하는 모든 안전 문제를 다루지 못한다. 사용자는 이 방법의 적절한 안전 및 보건 절차를 수립하고 사용 전 규제 제한의 적용 가능성을 결정하는 책임이 있다.
The article discusses a document, prEN 12662-1, which outlines a method for determining the amount of undissolved substances, known as total contamination, in middle distillates and diesel fuels. The method is applicable to fuels with up to 30% fatty acid methyl esters (FAME), and the range for measurement is 12 mg/kg to 26 mg/kg. The document applies to products with a kinematic viscosity below 8 mm2/s at 20 °C or 5 mm2/s at 40 °C, specifically diesel fuel as specified in EN 590. The method can also be used for fuels with more than 30% FAME content and products with higher viscosity, but the precision of the method is not defined for such cases. The document includes a warning about the potential hazards associated with using the test method and emphasizes the user's responsibility to establish appropriate safety practices.
이 기사는 prEN 12662-1이라는 문서에서 중간 유통 기름 및 디젤 연료의 총 오염물질 함유량을 결정하기 위한 방법을 소개하고 있습니다. 작동 범위는 12 mg/kg에서 26 mg/kg로, EN ISO 4259-1를 적용하여 간섭실험을 통해 설정되었습니다. 이 문서는 일반적으로 20 °C에서 8 mm2/s를 초과하지 않는 운동 점도, 또는 40 °C에서 5 mm2/s를 초과하지 않는 제품에 적용되며, EN 590에 명시된 디젤 연료 등이 해당됩니다. 이 시험 방법은 30% 이상의 FAME을 포함하는 디젤 연료 및 운동 점도가 20 °C에서 8 mm2/s를 초과하거나 40 °C에서 5 mm2/s를 초과하는 석유 제품에도 사용될 수 있지만, 이러한 경우에는 시험 방법의 정확도가 정의되어 있지 않습니다. 이 문서는 "% (V/V)"라는 용어를 사용하여 재료의 체포율, φ,을 나타냅니다. 이 시험 방법의 사용은 위험한 물질, 작업 및 장비를 포함할 수 있으므로 주의가 필요합니다. 이 방법은 모든 안전 문제를 해결하기 위한 것이 아닙니다. 이 방법의 사용자는 적절한 안전 및 보건 관행을 수립하고 사용 전 규제 제한 사항의 적용 가능성을 결정하는 것이 사용자의 책임입니다.
この記事では、prEN 12662-1という文書が中間蒸留物およびディーゼル燃料中の未溶解物質である総汚染物質の含有量を測定する方法を示しています。作業範囲は12 mg/kgから26 mg/kgであり、EN ISO 4259-1を適用して相互試験によって確立されました。この文書は一般的に、20℃で8 mm2/s以下または40℃で5 mm2/s以下の運動粘度を持つ製品に適用されます。具体的にはEN 590で規定されるディーゼル燃料などが該当します。この試験方法は、30％以上の脂肪酸メチルエステル（FAME）を含むディーゼル燃料や、運動粘度が20℃で8 mm2/sを超えるか、40℃で5 mm2/sを超える石油製品にも使用することができますが、その場合、試験方法の精度は定義されていません。この文書では、「％（V/V）」という用語を使用して、材料の体積分率を表しています。この試験方法の使用には、危険な材料、操作、および機器が関与する場合があります。この方法はすべての安全関連の問題に対処するものではありません。使用者は、適切な安全および健康管理手順を確立し、使用前に規制制限の適用可能性を判断するための責任を持つ必要があります。
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
