EN 16806-1:2016
(Main)Textiles and textile products - Textiles containing phase change materials (PCM) - Part 1: Determination of the heat storage and release capacity
Textiles and textile products - Textiles containing phase change materials (PCM) - Part 1: Determination of the heat storage and release capacity
This part of EN 16806 specifies a test method for the determination of the heat storage and heat release capacity and the phase change temperatures of textile fibres, yarns and fabrics (woven and knitted fabrics, nonwovens) containing phase change materials (PCM). The test method can also be applied for pure or micro-encapsulated PCM.
This part of EN 16806 does not apply to the determination of the heat transfer properties of textile fabrics (woven and knitted fabrics, nonwovens) containing phase change materials, for which part 2 of EN 16806 applies.
This part of EN 16806 does not apply to determining the heat transfer between the user and the product for textile products, e.g. garments, mattresses, etc. made with PCM containing materials, for which part 3 of EN 16806 applies.
Textilien und textile Erzeugnisse - Phasenwechselmaterialien enthaltende Textilien (PCM) - Teil 1: Bestimmung der Wärmespeicherungs- und Wärmefreisetzungskapazität
Dieser Teil der EN 16826 legt ein Prüfverfahren zur Bestimmung der Wärmespeicherungs- und Wärmefreisetzungskapazität und der Phasenänderungstemperaturen von textilen Fasern, Garnen und Flächengebilden (Gewebe und Maschenwaren, Vliesstoffe), die Phasenwechselmaterialien (PCM) enthalten fest. Das Prüfverfahren kann auch für reine oder mikroverkapselte PCM angewendet werden.
Dieser Teil der EN 16806 gilt nicht für die Bestimmung der Wärmeübertragungseigenschaften textiler Flächengebilde (Gewebe und Maschenwaren, Vliesstoffe), die Phasenwechselmaterialien enthalten und für die Teil 2 der EN 16806 gilt.
Dieser Teil der EN 16806 gilt nicht für die Bestimmung der Wärmeübertragung zwischen dem Anwender und dem Produkt bei Textilerzeugnissen, z. B. Kleidungsstücke, Matratzen usw., die unter Verwendung von PCM-enthaltender Materialien hergestellt wurden und für die Teil 3 der EN 16806 gilt.
Textiles et produits textiles - Textiles contenant des matériaux à changement de phase (PCM) - Partie 1: Détermination de la capacité de stockage et de dégagement de chaleur
La présente norme spécifie une méthode d’essai permettant de déterminer la capacité de stockage et de dégagement de chaleur et les températures de changement de phase des fibres, fils et étoffes textiles (étoffes tissées et tricotées, nontissés) contenant des matériaux à changement de phase (PCM, Phase Change Material). Cette méthode d’essai peut également s’appliquer aux PCM purs ou micro-encapsulés.
La présente norme ne s’applique pas à la détermination des propriétés de transfert de chaleur des étoffes textiles (étoffes tissées et tricotées, nontissés) contenant des matériaux à changement de phase, ce sujet étant traité dans la Partie 2 de la présente norme.
La présente norme ne s’applique pas à la détermination du transfert de chaleur entre l’utilisateur et le produit pour les produits textiles, par exemple les vêtements, les matelas, etc., constitués de matériaux qui contiennent des PCM, ce sujet étant traité dans la Partie 3 de la présente norme.
Tekstilije in tekstilni izdelki - Tekstilije, ki vsebujejo materiale s spremembo faze (PCM) - 1. del: Ugotavljanje ohranjanja toplote in zmogljivosti sprostitve
Določa metodo za ugotavljanje ohranjanja toplote in zmogljivosti sprostitve vlaken, prej in tkanin.
General Information
- Status
- Published
- Publication Date
- 08-Mar-2016
- Withdrawal Date
- 29-Sep-2016
- Technical Committee
- CEN/TC 248 - Textiles and textile products
- Drafting Committee
- CEN/TC 248/WG 31 - Smart textiles
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 04-Oct-2021
- Completion Date
- 14-Apr-2025
{ "metaTitle": "EN 16806-1:2016 - PCM Heat Storage & Release Test", "metaDescription": "EN 16806-1:2016 defines a DSC test to determine heat storage/release capacity and phase‑change temperatures of textiles containing PCM - for R&D and QC.", "contentMarkdown": "## Overview\n\nEN 16806-1:2016 (CEN) specifies a standardized test method to determine the heat storage and heat release capacity and the phase change temperatures of textile fibres, yarns and fabrics that contain phase change materials (PCM). The method is applicable to free (pure) PCM, micro-encapsulated PCM and PCM incorporated in textiles (woven, knitted or nonwovens). The procedure is based on differential scanning calorimetry (DSC) and delivers enthalpy (J/g or J/m2) and phase change temperature data useful for product development and quality control.\n\n## Key Topics\n\n- Test principle: Measurement of heat flow difference between specimen and reference during a controlled thermal cycle using DSC.
- Specimen types: Pure PCM, micro-encapsulated PCM, fibres, yarns and fabrics (including multi-layer constructions when relevant).
- DSC parameters specified in the standard:
- Heating/cooling rate: 5 °C/min.
- Thermal cycle: heating from Tlow = 20 °C to Thigh = 60 °C, with isotherms (2 min) at the temperature extremes.
- Specimen mass for DSC: 10–40 mg (10 mg recommended).
- Use of open aluminium crucibles (lid advised but not hermetically sealed) to ensure isobaric conditions.
- Measured outputs: Enthalpy of fusion and crystallization (J/g), extrapolated onset and peak melting/crystallization temperatures, and calculated heat storage/release per unit area (J/m2) for fabrics.
- Quality criteria: Repeatability on three specimens (with two extras if coefficient of variation > 20 %). Calibration and instrument type (heat flux or power compensated) must be reported.\n\n## Applications\n\nThis part of EN 16806 is primarily used for:\n\n- Research & development of PCM-enhanced textiles and technical fabrics.
- Quality control and batch verification of PCM content and performance (pure or micro-encapsulated).
- Comparative testing for material selection in apparel, bedding, mattress covers and technical textile applications (note: this part does NOT address heat transfer performance between user and product).\n\nPractical benefits include reliable enthalpy values for thermal buffering design, objective phase-change temperature data close to skin temperature, and standardized reporting for suppliers and regulators.\n\n## Related Standards\n\n- EN 16806-2: Determination of heat transfer using a dynamic method (covers fabric heat transfer properties).
- EN 16806-3: Determination of heat transfer between the user and the product (covers garment/mattress level performance).
- Normative references used in EN 16806-1: EN ISO 11357-1, EN ISO 11357-3 (DSC methods), EN ISO 139 (conditioning), EN 12127 (mass per unit area).\n\nNote: EN 16806-1:2016 does not apply to measuring fabric-level heat transfer (see Part 2) or user-product heat exchange (see Part 3). For test reporting, include instrument type, calibration details, specimen preparation, and full DSC curves with onset and peak values as specified in the standard." }
Frequently Asked Questions
EN 16806-1:2016 is a standard published by the European Committee for Standardization (CEN). Its full title is "Textiles and textile products - Textiles containing phase change materials (PCM) - Part 1: Determination of the heat storage and release capacity". This standard covers: This part of EN 16806 specifies a test method for the determination of the heat storage and heat release capacity and the phase change temperatures of textile fibres, yarns and fabrics (woven and knitted fabrics, nonwovens) containing phase change materials (PCM). The test method can also be applied for pure or micro-encapsulated PCM. This part of EN 16806 does not apply to the determination of the heat transfer properties of textile fabrics (woven and knitted fabrics, nonwovens) containing phase change materials, for which part 2 of EN 16806 applies. This part of EN 16806 does not apply to determining the heat transfer between the user and the product for textile products, e.g. garments, mattresses, etc. made with PCM containing materials, for which part 3 of EN 16806 applies.
This part of EN 16806 specifies a test method for the determination of the heat storage and heat release capacity and the phase change temperatures of textile fibres, yarns and fabrics (woven and knitted fabrics, nonwovens) containing phase change materials (PCM). The test method can also be applied for pure or micro-encapsulated PCM. This part of EN 16806 does not apply to the determination of the heat transfer properties of textile fabrics (woven and knitted fabrics, nonwovens) containing phase change materials, for which part 2 of EN 16806 applies. This part of EN 16806 does not apply to determining the heat transfer between the user and the product for textile products, e.g. garments, mattresses, etc. made with PCM containing materials, for which part 3 of EN 16806 applies.
EN 16806-1:2016 is classified under the following ICS (International Classification for Standards) categories: 59.080.30 - Textile fabrics. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase EN 16806-1:2016 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

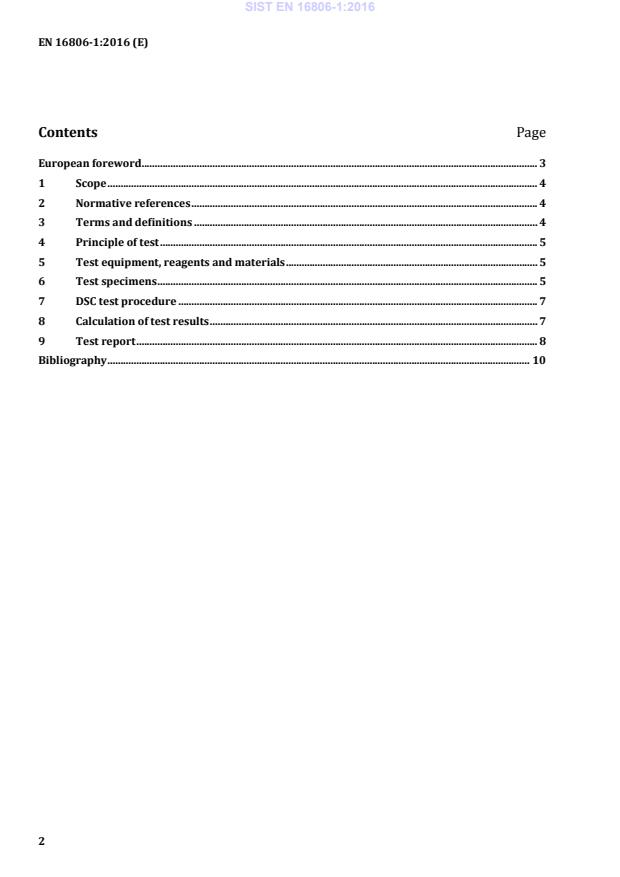

Standards Content (Sample)
