EN 1888:2003

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Artikel für Säuglinge und Kleinkinder - Transportmittel für Rädern auf Kinder - Sicherheitstechnische Anforderungen und PrüfungenArticles de puériculture - Voitures d'enfant - Exigences de sécurité et méthodes d'essaiChild care articles - Wheeled child conveyances - Safety requirements and test methods97.190Otroška opremaEquipment for childrenICS:Ta slovenski standard je istoveten z:EN 1888:2003SIST EN 1888:2003en01-maj-2003SIST EN 1888:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1888January 2003ICS 97.190English versionChild care articles - Wheeled child conveyances - Safetyrequirements and test methodsArticles de puériculture - Voitures d'enfant - Exigences desécurité et méthodes d'essaiArtikel für Säuglinge und Kleinkinder - Transportmittel aufRädern für Kinder - Sicherheitstechnische Anforderungenund PrüfungenThis European Standard was approved by CEN on 1 August 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovak Republic, Spain, Sweden, Switzerland andUnited Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1888:2003 ESIST EN 1888:2003

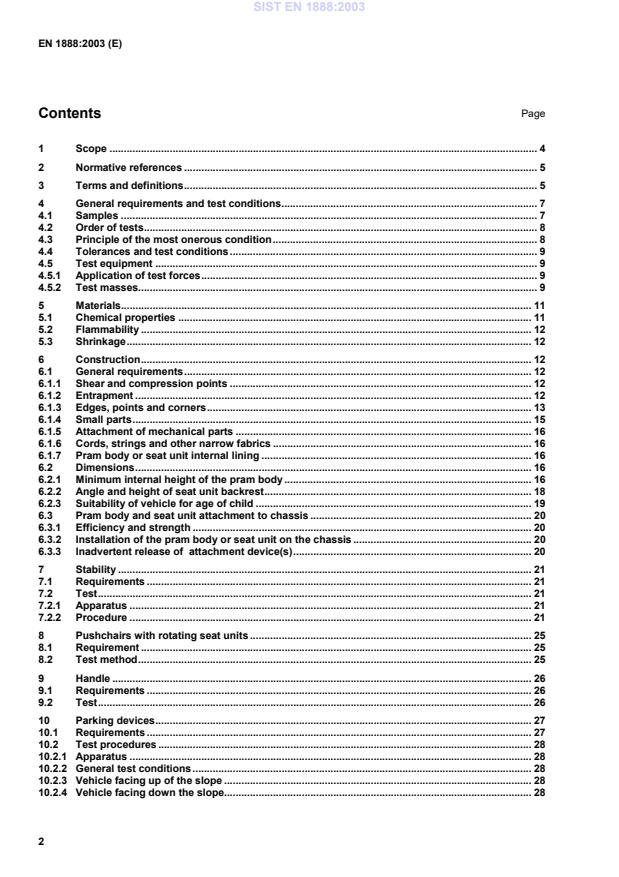

attachment device(s).207Stability.217.1Requirements.217.2Test.217.2.1Apparatus.217.2.2Procedure.218Pushchairs with rotating seat units.258.1Requirement.258.2Test method.259Handle.269.1Requirements.269.2Test.2610Parking devices.2710.1Requirements.2710.2Test procedures.2810.2.1Apparatus.2810.2.2General test conditions.2810.2.3Vehicle facing up of the slope.2810.2.4Vehicle facing down the slope.28SIST EN 1888:2003

attachment points of the restraint system.3415.2.2Effectiveness of the adjustment system.3415.2.3Strength of
fasteners.3516Wheel strength.3516.1Requirements.3516.2Test.3517Irregular surface test.3517.1Requirements.3517.2Test apparatus.3517.3Test.3718Dynamic strength.3818.1Requirements.3818.2Test.3819Durability of marking.3920Plastic packaging.3921Product information.4021.1General.4021.2Marking of product.4021.3Purchase information.4121.4Instructions for use.4122Test report.42Annex A (informative)
Examples of articulated arms to maintain the vehicle on the rig for theirregular surface test.43Annex B.44(informative)
A-deviations.44Bibliography.45SIST EN 1888:2003

for a second Formal Vote.In this document Annexes A and B are informative.Requirements for :- effectiveness of integral restraint systems- variants of wheeled child conveyances- additional entrapment hazardshave been prepared within CEN/TC 252/WG 3 and will be incorporated by amendments in this EuropeanStandard.The amendments cover the following :- amendment 1 : effectiveness of restraint- amendment 2 : jogger type pushchairs, new types of seat units, pushchairs fitted with a platform, babycarriers fitted with wheels, handle strength test- amendment 3 : attachment of textile parts with child retention purposes, head entrapment between thehandle and the end of pram bodiesSIST EN 1888:2003

the child from sliding forward3.15harnessadditional restraining device comprising a waist belt and straps3.16integral harnessdevice comprising either a crotch strap, waist strap and shoulder straps, or straps that pass over the child'sshoulders and between the child's legs 3.17basketreceptacle designed for carrying additional load(s) on the vehicleNOTE 1This excludes small pockets fitted onto textile parts.NOTE 2For the purpose of this standard, the term "basket" covers also shopping tray and bag.4 General requirements and test conditions4.1
SamplesTests shall be conducted on one chassis unless otherwise indicated.Vehicles with multiple places for pram bodies and/or seat units shall comply with all applicable requirements inany possible arrangement. If a vehicle can be equipped with an additional seat unit or the manufacturerrecommends such a seat unit for the vehicle, it shall conform to this standard.SIST EN 1888:2003

can be carried out in any order. When thesequence number of the test, N, has a value of 0, this means that the test's order has no influence in theconsidered sequence ; thus the test can be carried out in any order in this sequence.4.3 Principle of the most onerous conditionEach test shall be conducted with the vehicle in the most onerous condition for that test in terms of :-the choice and number of seat units and/or pram bodies attached to the chassis ;-the addition of any additional seat units approved by the manufacturer ;-the use of test mass A or B (see Figures 2 and 3) in each place that a child can occupy (at least one testmass shall be used in one place) ;SIST EN 1888:2003

allowed in the manufacturer's instructions, but not less than 2 kg ;-the addition (or not) of any other accessories supplied for use with the vehicle ;-the adjustment of seat units, handles and any other adjustable features or accessories, or any otheroptional arrangement of the vehicle allowed in the manufacturer's instructions or otherwise approved bythe manufacturer.NOTEThe heaviest loads do not always produce the most onerous conditions.4.4 Tolerances and test conditionsUnless otherwise specified, all forces shall be measured to a limit deviation of ± 5 %, all masses to a limitdeviation of ± 1 %, all angles to a limit deviation of ± 1° and all dimensions to a limit deviation of ± 0,5 mm.These tolerances are applicable only to the equipment used for the tests.The vehicle shall be conditioned at a temperature of (23 ± 5) °C for at least 2 h prior to tests. All tests shall becarried out at a temperature of (23 ± 10) °C unless otherwise specified.4.5 Test equipment4.5.1 Application of test forcesUnless otherwise specified, the test forces shall be applied by any device normally used.4.5.2 Test masses4.5.2.1 GeneralUnless otherwise specified, the test masses shall be those given in 4.5.2.2, 4.5.2.3 and 4.5.2.4.Damage to fabric may occur as a result of abrasion by the test masses during tests. This damage should beignored. Damage can be minimized by using a convenient means of negligible mass. Where seat damage isnot caused by abrasion it constitutes a structural failure.4.5.2.2 Test mass ATest mass A is a rigid cylinder (160 ± 5) mm in diameter and (300 ± 5) mm in height, having a mass of)(,0100
9+ kg and with its centre of gravity in the centre of the cylinder. All edges shall have a radius of(5 ± 1) mm. Two anchorage points shall be provided, positioned (150 ± 2,5) mm from the base and at 180° toeach other around the circumference (see Figure 2).SIST EN 1888:2003

15+ kg and with its centre of gravity in the centre of the cylinder. All edges shall have a radius of(5 ± 1) mm. Two anchorage points shall be provided, positioned (150 ± 2,5) mm from the base and at 180° toeach other around the circumference (see Figure 3).Dimensions in millimetresKey1radius : (5 ± 1) mm2two anchorage pointsFigure 3 - Test mass BSIST EN 1888:2003

a mass of )(,0100
9+ kg hinged along the centre line. All corners shall have a radius of (15 ± 1) mm (seeFigure 4).Dimensions in millimetresKey :1Hinge lineFigure 4 - Test mass C5 Materials5.1 Chemical propertiesWithin the access zone, all surfaces of materials i.e. the parts of the article which are painted, varnished,lacquered or coated with similar substances, the parts consisting of materials integral with the structure andthe parts consisting of textiles shall be made using products, which in their soluble or soluble compound statehave a content not exceeding the following :- Antimony :60 mg/kg ;- Arsenic :25 mg/kg ;- Barium :1 000 mg/kg ;- Cadmium :75 mg/kg ;- Chromium :60 mg/kg ;- Lead :90 mg/kg ;- Mercury :60 mg/kg ;- Selenium :500 mg/kg.SIST EN 1888:2003

(10012,+-) mm, with afull hemispherical end that can be mounted on a force measuring device. Probes made from plastics or otherhard smooth material of diameters (00,125+-) mm and )0,10(45+- mm with one conical end (with an angle of 30°),that can be mounted on a force measuring device (see Figure 5).SIST EN 1888:2003

not fit wholly within the small partscylinder.SIST EN 1888:2003

angle of backrestWhere it is difficult to determine the angle between the backrest and seat, e.g. on hammock type seats, thefollowing method shall be used.To determine the angle between the seat and the backrest, place the device shown in Figure 10 in the seatunit and centrally locate the test mass B on the base board as indicated in Figure 9.Ensure that the 20 mm x 12 mm removable stop is located against the front edge of the seat unit and that thereclining board is resting firmly against the backrest. Measure the angle between the reclining board and baseboard.SIST EN 1888:2003

150° or
more measured according to6.2.3.2;c) a seat unit suitable from birth conforming to ECE 44.Any seat unit not conforming to b) or c) shall be marked with the following warning :6.2.3.2 MeasurementThe angle between the backrest and the seat shall be measured using the device shown in Figure 10 inaccordance with the method specified in 6.2.2.2.6.3 Pram body and seat unit attachment to chassis6.3.1 Efficiency and strengthAfter testing in accordance with 14.2 and 18.2 the pram body or seat unit shall not become detached from thechassis.6.3.2 Installation of the pram body or seat unit on the chassisWhen the pram body or seat unit is attached to the chassis in accordance with the manufacturers instructions,it shall be obvious to the carer that the pram body or seat unit is correctly placed and locked in position.6.3.3 Inadvertent release of
attachment device(s)Any
attachment device(s) shall fulfil at least one of the following requirements :- a minimum force of 50 N is required to release the
attachment device attaching the pram body or seatunit
to the chassis ;- at least 2 consecutive actions on the same attachment
device are required to release it, the first of whichshall be maintained while the second is carried out ;- at least 2 separate simultaneous actions are required to release the attachment device.SIST EN 1888:2003

between the backrest and the seat is less than 150°, the test mass B shallremain in full contact with the backrest throughout the test (see Figure 12).Key1Test mass B2Backrest3Seat4Wedges of negligible massFigure 12 - Positioning of test mass B for stability test of pushchairs in which the angle between thebackrest and the seat is less than 150°For positions in which the angle between the backrest and the seat is equal or greater than 150°, test mass Bshall be positioned as shown in Figure 13.SIST EN 1888:2003
...
