Overview
EN 4612-010:2019 defines a product standard for jacketed or screened-and-jacketed electrical cables in the XLETFE family intended for aerospace on‑board electrical systems. These cables use silver‑plated copper conductors with a Crosslinked Ethylene Tetra Fluoro Ethylene (XLETFE) outer jacket that is UV laser printable. The standard applies to cables rated for operation between −65 °C and 150 °C, at voltages not exceeding 600 V rms (sea level) and frequencies up to 2 000 Hz. The insulation system has established use with 115 V (phase‑to‑neutral) 400 Hz AC and 28 V DC systems; suitability for other systems is the user’s responsibility.
Key Topics
- Materials & construction: cores per EN 4611‑006; 1 to 4 cores (2–4 cores may be twisted per EN 2235); no filler cores. Outer jacket is XLETFE with a minimum thickness of 0.15 mm and must be markable by UV laser.
- Screen (braid): tin‑plated copper stranded woven braid (material per EN 2083). Required screen coverage ≥ 85 % and lay factor < 3 (Annex A). Braid details and fill factor formulae are provided in the normative annex.
- Electrical & environmental limits: rated ≤ 600 V rms at sea level, frequencies ≤ 2 000 Hz, operating temperature range −65 °C to 150 °C.
- Performance tests: requirements reference EN 2235 and EN 3475‑100 test methods covering visual inspection, dimensional and mass checks, ohmic resistance, voltage proof, insulation/surface resistance, thermal shock, flammability (methods 1 and 2), ageing, bending and abrasion, smoke density and toxicity for specified constructions, and laser mark contrast requirements (K ≥ 50 %).
- Airframe suitability: cables are suitable for airframe use without additional protection and take precedence over conflicting referenced documents.
Applications
- Primary use: on‑board aircraft electrical systems where high temperature stability, UV laser marking, and reliable braid screening are required.
- Typical systems: instrumentation, power distribution and control circuits used with 115 V/400 Hz AC and 28 V DC architectures.
- Practical benefits: durable XLETFE jacket for exposed/outer applications, reliably screened to reduce electromagnetic interference, UV laser markability for traceability and maintenance, and compliance with aerospace quality assurance regimes.
Related Standards
- EN 2235 - single and multicore screened and jacketed cable constructions
- EN 3475‑100 - aerospace cable test methods (general)
- EN 4611‑006 - XLETFE cores (silver plated copper)
- EN 4612‑002 - XLETFE family general requirements (designation, marking, colour coding)
- EN 2083 - copper conductor product standard
- EN 9133 - quality management & qualification procedures for aerospace standard products
Use EN 4612-010:2019 as the authoritative product specification when selecting, procuring or qualifying XLETFE jacketed/screened cables for airframe electrical systems to ensure traceability, testability and in-service performance.
Frequently Asked Questions
EN 4612-010:2019 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cables, electrical, for general purpose, single and multicore assembly - XLETFE Family - Jacketed or screened and jacketed - Part 010: Silver plated copper - Operating temperatures, between - 65 °C and 150 °C - Dual extruded wall for open applications, with jacket and screen (braid) - UV laser printable - Product standard". This standard covers: This document specifies the characteristics of UV laser printable jacket, silver plated copper conductor, electrical cables Crosslinked Ethylene Tetra Fluoro Ethylene co-polymer (XLETFE) family for use in the on-board electrical systems of aircraft operating at temperatures between 65 °C and 150 °C, operating at voltages not exceeding 600 V rms at sea level and frequencies not exceeding 2 000 Hz. This insulation system has been used in aerospace applications using 115 V (phase-to-neutral) 400 Hz ac and 28 Vdc. Verification of the suitability of cables for use in other electrical systems is the responsibility of the user. These cables are suitable for airframe use without additional protection. In case of conflict between this standard and other referenced documents the requirements of this standard shall take precedence.
This document specifies the characteristics of UV laser printable jacket, silver plated copper conductor, electrical cables Crosslinked Ethylene Tetra Fluoro Ethylene co-polymer (XLETFE) family for use in the on-board electrical systems of aircraft operating at temperatures between 65 °C and 150 °C, operating at voltages not exceeding 600 V rms at sea level and frequencies not exceeding 2 000 Hz. This insulation system has been used in aerospace applications using 115 V (phase-to-neutral) 400 Hz ac and 28 Vdc. Verification of the suitability of cables for use in other electrical systems is the responsibility of the user. These cables are suitable for airframe use without additional protection. In case of conflict between this standard and other referenced documents the requirements of this standard shall take precedence.
EN 4612-010:2019 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4612-010:2019 has the following relationships with other standards: It is inter standard links to EN 4612-010:2011. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4612-010:2019 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-november-2019
Nadomešča:
SIST EN 4612-010:2011
Aeronavtika - Kabli, električni, za splošne namene, eno- in večžilni - Družina
XLETFE - Oplaščeni ali zaslonjeni in oplaščeni - 010. del: Posrebreni baker -
Obratovalne temperature med –65 °C in 150 °C - Dvojno ekstrudirana izolacija za
zunanjo uporabo, s plaščem in zaslonom (pletenica) - Potiskljiva z UV-laserjem -
Standard za proizvod
Aerospace series - Cables, electrical, for general purpose, single and multicore
assembly - XLETFE Family - Jacketed or screened and jacketed - Part 010: Silver plated
copper - Operating temperatures, between -65 °C and 150 °C - Dual extruded wall for
open applications, with jacket and screen (braid) - UV laser printable - Product standard
Luft- und Raumfahrt - Ein- und mehradrige elektrische Leitungen für allgemeine
Verwendung - XLETFE Familie - mit Mantel oder geschirmt und Mantel - Teil 010: Kupfer
versilbert - Betriebstemperaturen zwischen -65 °C und 150 °C - Doppelt extrudierte
Isolierung für externe Verwendung, mit Mantel und Schirm (Geflecht) - UV-Laser
bedruckbar - Produktnorm
Ta slovenski standard je istoveten z: EN 4612-010:2019
ICS:
29.060.20 Kabli Cables
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 4612-010
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2019
EUROPÄISCHE NORM
ICS 49.060 Supersedes EN 4612-010:2011
English Version
Aerospace series - Cables, electrical, for general purpose,
single and multicore assembly - XLETFE Family - Jacketed
or screened and jacketed - Part 010: Silver plated copper -
Operating temperatures, between - 65 °C and 150 °C - Dual
extruded wall for open applications, with jacket and screen
(braid) - UV laser printable - Product standard
Série aérospatiale - Câbles, électriques, d'usage Luft- und Raumfahrt - Ein- und mehradrige elektrische
général, mono et multiconducteurs - Famille XLETFE - Leitungen zur allgemeinen Verwendung - XLETFE-
Gainés ou blindés et gainés - Partie 010 : Cuivre Familie - ummantelt oder geschirmt und ummantelt -
argenté - Températures de fonctionnement comprises Teil 010: Kupfer versilbert - Betriebstemperaturen
entre - 65 °C et 150 °C - Fil double isolé pour zwischen -65 °C und 150 °C - doppelt extrudierte
applications externes, gainé et blindé (tressé) - Isolierung für offene Anwendungen, ummantelt und
Marquable au laser UV - Norme de produit geschirmt (Geflecht) - UV-Laser bedruckbar -
Produktnorm
This European Standard was approved by CEN on 5 May 2019.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4612-010:2019 E
worldwide for CEN national Members.

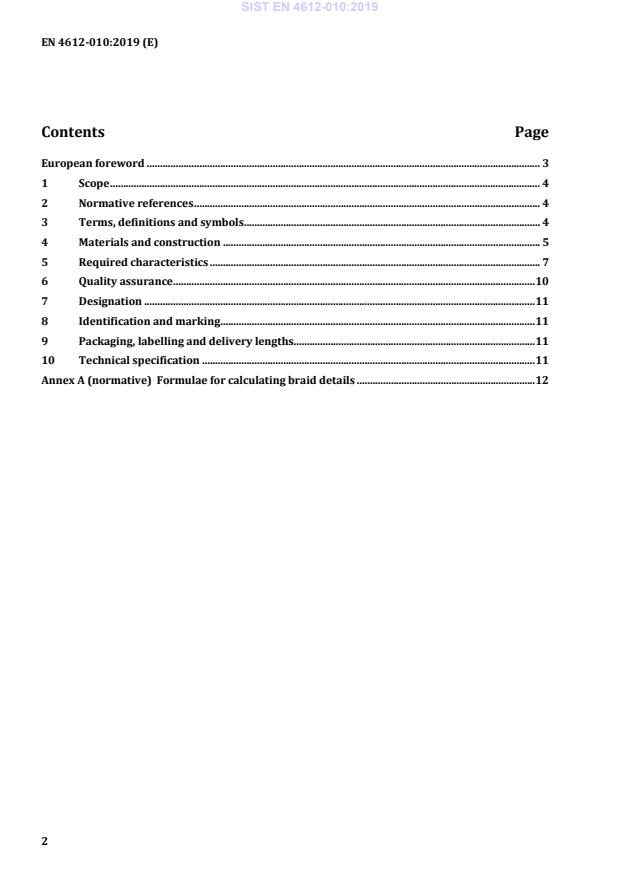

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms, definitions and symbols . 4
4 Materials and construction . 5
5 Required characteristics . 7
6 Quality assurance . 10
7 Designation . 11
8 Identification and marking . 11
9 Packaging, labelling and delivery lengths . 11
10 Technical specification . 11
Annex A (normative) Formulae for calculating braid details . 12
European foreword
This document (EN 4612-010:2019) has been prepared by the Aerospace and Defence Industries
Association of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2020, and conflicting national standards shall
be withdrawn at the latest by February 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 4612-010:2011.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
1 Scope
This document specifies the characteristics of UV laser printable jacket, silver plated copper conductor,
electrical cables Crosslinked Ethylene Tetra Fluoro Ethylene co-polymer (XLETFE) family for use in the
on-board electrical systems of aircraft operating at temperatures between − 65 °C and 150 °C, operating
at voltages not exceeding 600 V rms at sea level and frequencies not exceeding 2 000 Hz. This insulation
system has been used in aerospace applications using 115 V (phase-to-neutral) 400 Hz ac and 28 Vdc.
Verification of the suitability of cables for use in other electrical systems is the responsibility of the user.
These cables are suitable for airframe use without additional protection. In case of conflict between this
standard and other referenced documents the requirements of this standard shall take precedence.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited
...
