EN 3155-059:2006
(Main)Aerospace series - Electrical contacts used in elements of connection - Part 059: Contacts, electrical, coaxial, size 16, female, type D, solder, class R Product standard
Aerospace series - Electrical contacts used in elements of connection - Part 059: Contacts, electrical, coaxial, size 16, female, type D, solder, class R Product standard
This standard specifies the required characteristics, tests and tooling applicable to size 16, female coaxial, electrical contacts, type D, solder, class R, used in elements of connection according to EN 3155-002.
It shall be used together with EN 3155-001.
The associated male contacts are defined in EN 3155-058.
Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 059: Elektrische koaxiale Buchsenkontakte Größe 16, Typ D, zum Löten, Klasse R - Produktnorm
Diese Norm legt die Anforderungen, Prüfungen und Werkzeuge für elektrische koaxiale Buchsenkontakte, Größe 16, Typ D, zum Löten, Klasse R zur Verwendung in elektrischen Verbindungselementen nach EN 3155-002 fest.
Sie ist in Verbindung mit EN 3155-001 anzuwenden.
Die zugehörigen Stiftkontakte sind in EN 3155-058 festgelegt.
Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 059 : Contacts, électriques, coaxiaux, taille 16, femelle, type D, à souder, class R - Norme de produit
Aeronavtika - Električni kontakti za uporabo v veznih elementih - 059. del: Kontakti, električni, koaksialni, velikost 16, ženski, tip D, za spajkanje, razred R - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 12-Dec-2006
- Withdrawal Date
- 29-Jun-2007
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3155-059:2006 is a CEN/Aerospace series product standard that specifies the characteristics, tests and tooling for size 16, female coaxial electrical contacts, type D, solder, class R used in elements of connection per EN 3155-002. These contacts are derived from MIL-C-39029/77 and are intermateable with associated MIL and EN male contacts (EN 3155-058). The standard is intended to be used together with EN 3155-001 (technical specification).
Key topics and technical requirements
- Contact type & rating
- Size: 16 (female coaxial), Type D, solder, Class R (operating temperature −65 °C to +150 °C).
- Contact mass: ≤ 0.7 g.
- Materials and finish
- Body: copper alloy with gold plating on suitable undercoat.
- Dielectric: ETFE fluoropolymer.
- Heatshrink: radiation-crosslinked PVDF.
- Solder rings: Sn63 (per QQ‑S‑571).
- Cable compatibility
- Permissible cable codes: XE, XY, WL (per TR 6058).
- Key dimensional ranges (examples from Table 1): shield Ø 1.67–2.13 mm; dielectric Ø 0.91–1.72 mm; conductor Ø 0.22–0.58 mm.
- Termination tooling
- Hot-air generator: ≥ 800 W usable, heating zone (420 ± 20) °C; positioner and cable clamp specified for reliable soldering and shrink application.
- Insertion/extraction tools referenced: MIL‑I‑81969 variants.
- Testing and inspection
- Test matrix references EN 2591 methods and EN 3155‑001. Typical mandatory tests include:
- Visual, dimensional and mass checks (EN 2591‑101/102)
- Contact resistance (low level and at rated current)
- Insulation resistance and dielectric voltage proof
- Vibration (sinusoidal and random) and shock (discontinuity ≤ 100 ns)
- Thermal endurance (1 000 h at −150 °C listed in standard table)
- Fluid resistance, salt mist, solderability, mechanical endurance, insertion/extraction force and gauge checks
- Test matrix references EN 2591 methods and EN 3155‑001. Typical mandatory tests include:
Practical applications and users
- Applications
- Aerospace and defence electrical and RF connections where compact, shielded coaxial interfaces are required: aircraft wiring harnesses, avionics connectors, and series MIL/EN-compatible connector systems.
- Who uses this standard
- Connector and contact manufacturers, aerospace OEMs, harness assemblers, test laboratories and procurement/specification engineers who require defined mechanical, electrical and environmental performance for soldered female coaxial contacts.
Related standards
- EN 3155-001 - Technical specification (use together)
- EN 3155-002 - List and utilization of contacts
- EN 3155-058 - Associated male coaxial contact (size 16, type D)
- EN 2591 (all parts) - Test methods referenced
- MIL-C-39029/76 & /77 - Source/compatibility references
This standard ensures interchangeability, environmental robustness and defined testability for aerospace-grade coaxial contacts. For procurement or design, reference EN 3155‑059 when specifying solder-type size 16 female coaxial contacts in aerospace systems.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3155-059:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical contacts used in elements of connection - Part 059: Contacts, electrical, coaxial, size 16, female, type D, solder, class R Product standard". This standard covers: This standard specifies the required characteristics, tests and tooling applicable to size 16, female coaxial, electrical contacts, type D, solder, class R, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated male contacts are defined in EN 3155-058.
This standard specifies the required characteristics, tests and tooling applicable to size 16, female coaxial, electrical contacts, type D, solder, class R, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated male contacts are defined in EN 3155-058.
EN 3155-059:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3155-059:2006 has the following relationships with other standards: It is inter standard links to EN 2591-708:2001, EN 2591-6318:2001, EN 2591-416:2001, EN 2591-401:1996, EN 2591-6406:2001, EN 2591-407:1999, EN 2591-6301:2001, EN 2591-508:2023, EN 2591-502:2001, EN 2591-409:1999, EN 2591-312:1997, EN 2591-208:1996, EN 2591-427:2001, EN 2591-503:2001, EN 2591-301:1996. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3155-059:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

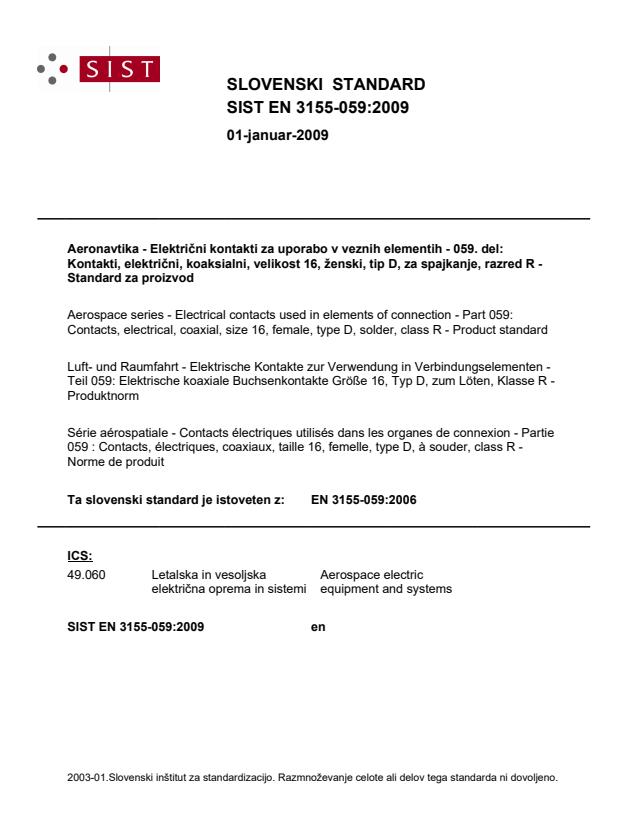

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 059: Elektrische koaxiale Buchsenkontakte Größe 16, Typ D, zum Löten, Klasse R - ProduktnormSérie aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 059 : Contacts, électriques, coaxiaux, taille 16, femelle, type D, à souder, class R - Norme de produitAerospace series - Electrical contacts used in elements of connection - Part 059: Contacts, electrical, coaxial, size 16, female, type D, solder, class R - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3155-059:2006SIST EN 3155-059:2009en01-januar-2009SIST EN 3155-059:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 3155-059December 2006ICS 49.060 English VersionAerospace series - Electrical contacts used in elements ofconnection - Part 059: Contacts, electrical, coaxial, size 16,female, type D, solder, class R Product standardSérie aérospatiale - Contacts électriques utilisés dans lesorganes de connexion - Partie 059 : Contacts, électriques,coaxiaux, taille 16, femelle, type D, à souder, class R -Norme de produitLuft- und Raumfahrt - Elektrische Kontakte zur Verwendungin Verbindungselementen - Teil 059: Elektrische KoaxialBuchsenkontakte Größe 16, Typ D, zum Löten, Klasse R -ProduktnormThis European Standard was approved by CEN on 26 July 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36

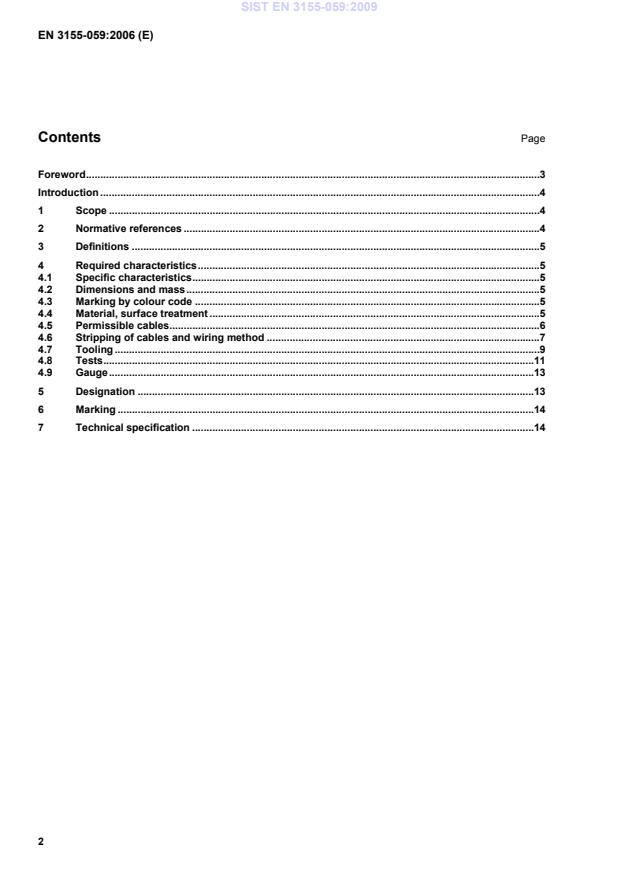

B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 3155-059:2006: ESIST EN 3155-059:2009
MIL-A-8243D, Anti-icing and deicing-defrosting fluids 2) MIL-C-25769J, Cleaning compound, aircraft surface, alkaline water base 2) MIL-C-39029/76, Contacts, electrical connector, pin, crimp, removable, shielded, size 16, (for MIL-C-38999 Series I, II, III, IV and MIL-C-24308 connectors) 2) MIL-C-39029/77, Contacts, electrical connector, socket, crimp, removable, shielded, size 16, (for MIL-C-38999 Series I, III, IV connectors) 2) MIL-H-5606E, Hydraulic fluid, petroleum base, aircraft, missile and ordnance 2) MIL-I-81969B, Installing and removal tools, connector electrical contact, type II, class 2, composition C 2) MIL-I-81969/08B, Installing and removal tools, connector electrical contact, types I and II, class 2, composition A 2)
1) Published at ASD Prestandard at the date of publication of this standard. 2) Published by: Department of Defense (DOD), the Pentagon, Washington D.C. 20301 USA. S
...
