EN 4134:2009
(Main)Aerospace series - Bolts, normal hexagonal head, coarse tolerance normal shank, long thread, in heat resisting nickel base alloy, aluminium IVD coated - Classification: 1 250 MPa (at ambient temperature) / 425°C
Aerospace series - Bolts, normal hexagonal head, coarse tolerance normal shank, long thread, in heat resisting nickel base alloy, aluminium IVD coated - Classification: 1 250 MPa (at ambient temperature) / 425°C
This standard specifies the characteristics of bolts, normal hexagonal head, coarse tolerance normal shank,
long thread, in heat resisting nickel base alloy, aluminium IVD coated.
Classification: 1 250 MPa 1) / 425 °C 2)
Luft- und Raumfahrt - Sechskantschrauben, langes Gewinde, aus hochwarmfester Nickelbasislegierung, Aluminium-IVD-beschichtet - Klasse: 1 250 MPa (bei Raumtemperatur)/425 °C
Diese Norm legt Eigenschaften von Sechskantschrauben mit langem Gewinde aus hochwarmfester Nickelbasislegierung, Aluminium-IVD-beschichtet, fest.
Klasse: 1 250 MPa/425 °C
Série aérospatiale - Vis à tête hexagonale normale, tige normale à tolérance large, filetage long, en alliage résistant à chaud à base de nickel, revêtues aluminium IVD - Classification: 1 250 MPa (à température ambiante)/425 °C
Aeronavtika - Sorniki, normalna šestroba glava, široka toleranca, dolg navoj, iz toplotnoodporne zlitine na nikljevi osnovi, prevlečene z aluminijem IVD - Klasifikacija: 1250 MPa (pri temperaturi okolice)/425 °C
General Information
- Status
- Published
- Publication Date
- 14-Apr-2009
- Withdrawal Date
- 30-Oct-2009
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 3 - Mechanical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2025
- Completion Date
- 11-Feb-2026
Relations
- Effective Date
- 09-Feb-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 4134:2009 is a CEN (ASD‑STAN) aerospace standard that specifies the characteristics, designation and marking of bolts with a normal hexagonal head, coarse tolerance normal shank and long thread, manufactured from heat‑resisting nickel‑base alloy and aluminium IVD coated. The standard covers bolts classified for a minimum tensile strength of 1 250 MPa at ambient temperature and rated for service temperatures up to 425 °C (maximum temperature after which original characteristics must be retained on return to ambient).
Keywords: EN 4134:2009, aerospace bolts, heat resisting nickel base alloy, aluminium IVD coated, MJ threads, hexagonal head bolts, 1250 MPa, 425 °C.
Key topics
- Materials and strength
- Heat‑resisting nickel‑base alloys referenced via EN 2952, EN 3219 or TR 3775 (classification 1 250 MPa).
- Dimensions and thread forms
- MJ thread series per ISO 5855‑2 and rolled external threads per ISO 3353‑1; diameter codes cover MJ3×0.5 to MJ20×1.5 with corresponding length codes.
- Dimensions and tolerances specified in millimetres and apply after surface treatment.
- Surface treatment
- Aluminium IVD coating per MIL‑DTL‑83488D (Type II, Class 3) with deposit thickness 7–20 µm, followed by mechanical blasting and chromate conversion coating within 24 h. Optional lubrication (cethylic alcohol, code E).
- Note: maximum service temperature is linked to the chosen surface treatment.
- Quality, testing and approval
- Manufacturer approval and quality systems per EN 9100; part qualification per EN 9133.
- Tolerances of form and position per ISO 7913.
- Test loads use a coefficient of 0.81 as modified by the standard.
- Designation and marking
- Standard provides a designation format (example: EN4134H050040E) and marking rules referenced to EN 2424.
Applications
- Designed for critical aerospace fastener applications requiring high tensile strength and high‑temperature resistance: engine and hot‑section assemblies, exhaust structures, high‑temperature attachment points and structural components exposed to elevated temperatures.
- Typical users: aerospace fastener manufacturers, OEM design and procurement engineers, maintenance/repair organizations, quality managers and specification writers.
Related standards
- EN 2952, EN 3219, TR 3775 (materials)
- ISO 3353‑1, ISO 5855‑2, ISO 7913, ISO 9154 (threads, tolerances, procurement)
- EN 2424 (marking), EN 9100 (quality systems), EN 9133 (qualification)
- MIL‑DTL‑83488D (aluminium coating specification)
EN 4134:2009 is a technical standard for specifying high‑performance, aluminium‑coated nickel‑base bolts in aerospace environments - essential when selecting or specifying heat‑resistant fasteners for elevated‑temperature service.
Get Certified
Connect with accredited certification bodies for this standard
DEKRA North America
DEKRA certification services in North America.
Eagle Registrations Inc.
American certification body for aerospace and defense.
Element Materials Technology
Materials testing and product certification.
Sponsored listings
Frequently Asked Questions
EN 4134:2009 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Bolts, normal hexagonal head, coarse tolerance normal shank, long thread, in heat resisting nickel base alloy, aluminium IVD coated - Classification: 1 250 MPa (at ambient temperature) / 425°C". This standard covers: This standard specifies the characteristics of bolts, normal hexagonal head, coarse tolerance normal shank, long thread, in heat resisting nickel base alloy, aluminium IVD coated. Classification: 1 250 MPa 1) / 425 °C 2)
This standard specifies the characteristics of bolts, normal hexagonal head, coarse tolerance normal shank, long thread, in heat resisting nickel base alloy, aluminium IVD coated. Classification: 1 250 MPa 1) / 425 °C 2)
EN 4134:2009 is classified under the following ICS (International Classification for Standards) categories: 49.030.20 - Bolts, screws, studs. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4134:2009 has the following relationships with other standards: It is inter standard links to ISO 9154:1999, EN 9100:2018, EN 14460:2006, EN 2424:2008, EN 9133:2018. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4134:2009 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

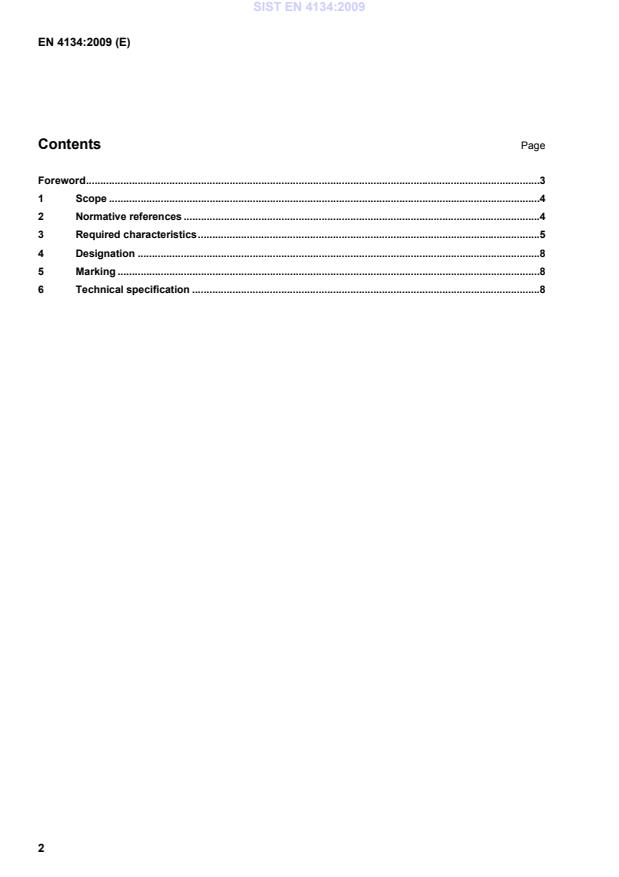

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Sechskantschrauben, langes Gewinde, aus hochwarmfester Nickelbasislegierung, Aluminium IVD beschichtet - Klasse : 1 250 MPa (bei Raumtemperatur) / 425° CSérie aérospatiale - Vis à tête hexagonale normale, tige normale à tolérance large, filetage long, en alliage résistant à chaud à base de nickel, revêtues aluminium IVD - Classification : 1 250 MPa (à température ambiante)/425 °CAerospace series - Bolts, normal hexagonal head, coarse tolerance normal shank, long thread, in heat resisting nickel base alloy, aluminium IVD coated - Classification: 1 250 MPa (at ambient temperature) / 425° C49.030.20Sorniki, vijaki, stebelni vijakiBolts, screws, studs49.025.20AluminijAluminiumICS:Ta slovenski standard je istoveten z:EN 4134:2009SIST EN 4134:2009en01-junij-2009SIST EN 4134:2009SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4134
April 2009 ICS 49.030.20 English Version
Aerospace series - Bolts, normal hexagonal head, coarse tolerance normal shank, long thread, in heat resisting nickel base alloy, aluminium IVD coated - Classification: 1 250 MPa (at ambient temperature) / 425 °C
Série aérospatiale - Vis à tête hexagonale normale, tige normale à tolérance large, filetage long, en alliage résistant à chaud à base de nickel, revêtues aluminium IVD - Classification: 1 250 MPa (à température ambiante)/425 °C Luft- und Raumfahrt - Sechskantschrauben, langes Gewinde, aus hochwarmfester Nickelbasislegierung, Aluminium IVD beschichtet - Klasse : 1 250 MPa (bei Raumtemperatur) / 425 °C This European Standard was approved by CEN on 12 March 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 4134:2009: ESIST EN 4134:2009
Scope This standard specifies the characteristics of bolts, normal hexagonal head, coarse tolerance normal shank, long thread, in heat resisting nickel base alloy, aluminium IVD coated. Classification: 1 250 MPa 1) / 425 °C 2) 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited appli
...
